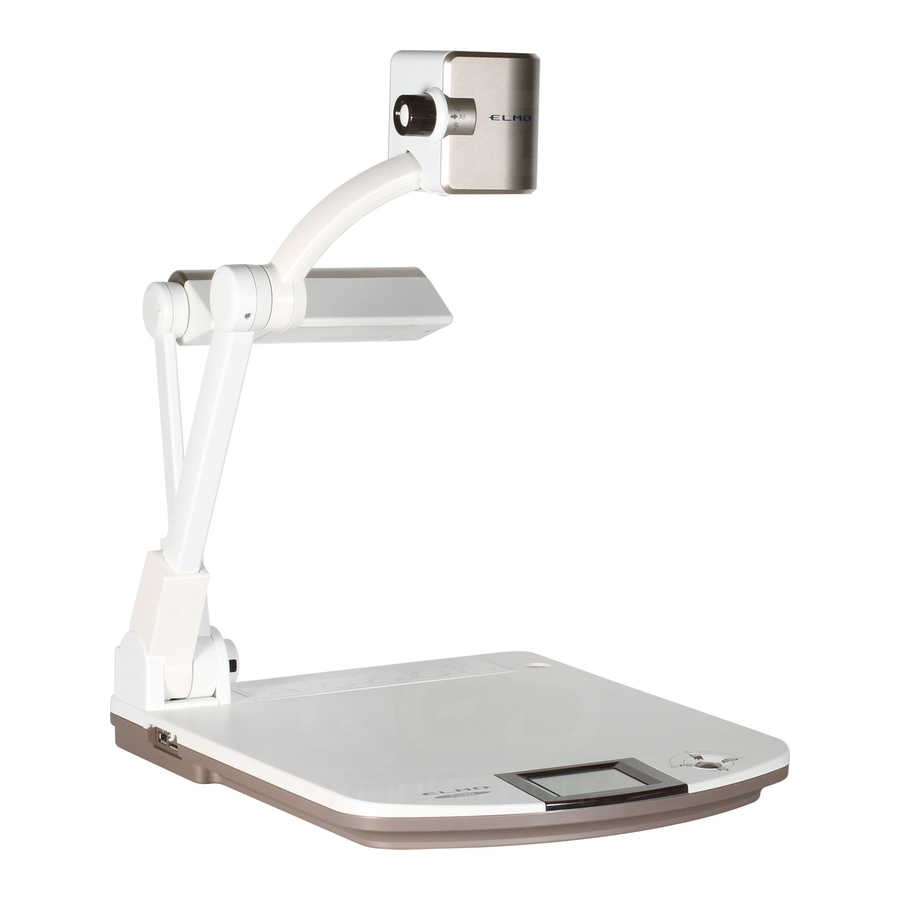

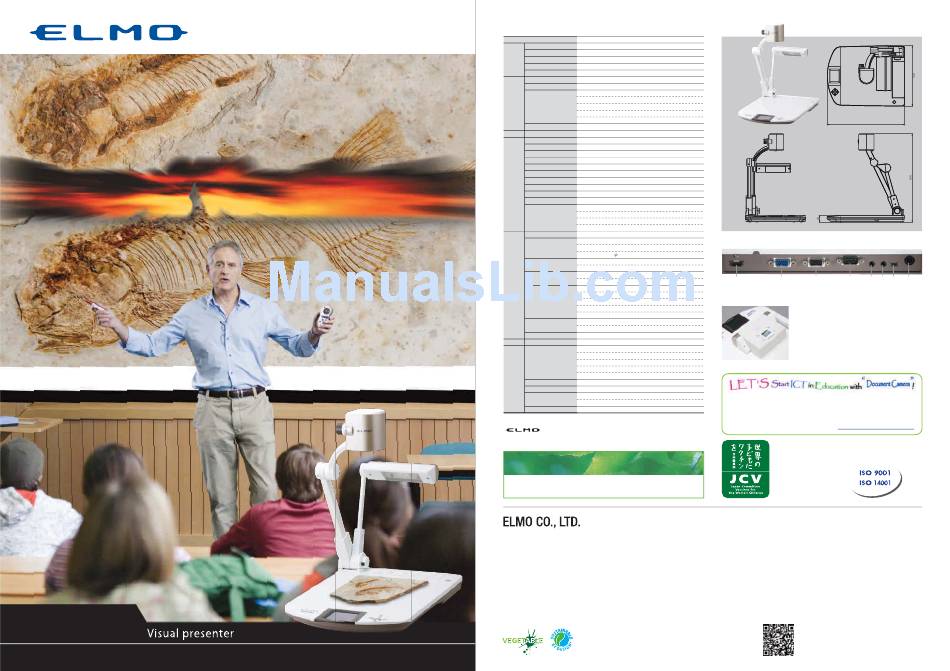

Elmo P30HD Specifications

Teleconference
Display documents in TV conferences between different networked locations
Power of Visualization
Use for promotional presenations or operating explanations of a new product
Complex explanations, such
as product operating
instructions, can be
demonstrated live, using the
actual object, making
presentations more
effective and persuasive.
Meeting
Convenient for various meeting purposes
P30HD
Both a view of the other conference
party and the document being
displayed can be seen at the same time.
Quick and effective decisions can be
made through such easy-to-understand
TV conferences.
Promotion
Easily conduct presentations by projecting
documents, product samples, or any
object at all. And with the Elmo wireless
tablet (CRA-1, sold separately), annotating
important points on live images becomes
possible, allowing the presenter to share
information quickly and efficiently.
P30HD Specifications
Model P30HD
Camera Image pick-up 1/2.8" CMOS
Total pixels 2144(H) x 1588(V)
Effective pixels 1920(H) x 1536(V)
Frame rate 30fps
Resolution Analog RGB :800(H) x 800(V)TV lines or more
Optics Zoom Powered, 16× Optical
Lens f=4.9mm-78.4mm(16x zoom) F2.7
Shooting area 1080p : Max.400×223mm Min.27×15mm
720p : Max.400×223mm Min.27×15mm
University SXGA : Max.400×320mm Min.27×22mm
WXGA : Max.400×248mm Min.27×17mm
XGA : Max.400×299mm Min.27×20mm
Focus Auto/Manual/Zoom Sync
Project references in a lecture or a seminar
Function White balance Auto/One-Push/Manual
Image mode Text1/Text2/Text3/Graphics1/Graphics2
Edge Effect Provided (only for Graphics1 mode)
Make productive and effective
Still Image storage Provided
lectures by projecting and vividly
Movie storage Provided
Digital zoom 8×
displaying teaching materials,
Gamma setting Provided (only for Graphics1 mode)
such as documents, valued art
Graphical OSD(On Screen Display) Provided
Image save SD memory card/SDHC memory card/USB memory
objects, or archaeological
State presetting Up to 3 user settings
information.
Brightness control Auto/Manual
Support Function "Highlight, Mask, Scroll(in digital zoom), Mosaic
Split screen,PinP(Picture-in-Pcture)
Colour filter, Pause, Image rotation(0°/180°)
Positive/negative conversion, Color/B&W selection"
Interface Input selection Main/External
Output terminal RGB output mini D-sub 15P connector, femalex1
HDMI output terminal x1
Line Out terminal 3.5mm stereo minijack
Input terminal RGB input mini D-sub 15P connector, female x1
Mic In/Line Out terminal (shared), 3.5mm-diameter stereo mini jack x1
Ext. control terminal USB device (2.0 compliant) Mini-B receptacle x1
Inspection
RS-232C D-sub 9P connector male ×1
Analog RGB output 1080p : 1920x1080@60Hz,
720p : 1280x720@60Hz
Conduct testing and quality control for manufacturing lines
SXGA:1280x1024@60Hz,
WXGA:1280x800@60Hz
XGA:1024x768@60Hz
HDMI output Image output : 1080p/720p
Audio output : PCM44.1kHz sampling frequency
Memory Interface SD memory card slot x1, USB host(2.0 compliant) Type A receptacle x1
Lighting Illumination light White LED
Others Accessories AC adapter, AC cord, RGB cable, USB cable(for connecting to PC)
Remote control, Strap(for remote control)
AAA batteries(for remote control), Slide shooting adapter,
Image Mate CD-ROM, Image Mate installation manual
Instruction manual(CD-ROM), Warranty,Important safe guards
Power source 12V DC(AC adapter AC100-240V)
Power consumption 23.5W
Dimensions (W×D×H) 376x482x549mm setup
376x482x181mm folded
Weight Approx. 4.7kg (main unit only)
H: horizontal, V: vertical
Design and specifications are subject to change without prior notice. The images in this brochure are simulated.
" " is a trademark of ELMO COMPANY, LIMITED. SD logo is a trademark.
Other brand names and product names may be trademarks or registered trademarks of their respective owners.
ELMO's Helping to Provide a Greener
Court
Future for Our Children
This ELMO product complies with RoHS Directive 2002/95/EC (Restriction Of the use of
Display sketches or articles of evidence
certain Hazardous Substances in electronic equipment). This compliance helps to ensure a
healthier and greener environment for all our children.
Detailed sketches
and even the smallest
London Branch Taipei Office
articles of evidence
Crown House, 72 11F, Unit #7, No. 171
can be projected Hammersmith Road, London Songde Road, Xinyi District
6-14, Meizen-cho, Mizuho-ku
W14 8TH, U.K. Taipei City, 110 Taiwan (R.O.C.)
Nagoya, 467-8567, Japan
through the P30HD,
Tel. 44 (0207) 559-1388 Tel. 886 (0)2 2759 5585
E-mail : overseassales@elmo.co.jp
Fax. 44 (0207) 559-1389 Fax. 886 (0)2 2759 5586
making easy-to
E-mail : info@elmo-visualiser.co.uk
Web : http://www.elmo-visualiser.co.uk
-understand trials
ELMO Europe SAS ELMO USA Corp.
achievable.
Headquarters German Branch Headquarters
Immeuble Elysées La Défense Hansaallee 201, Haus 1 1478 Old Country Road
7C Place du Dôme 40549 Düsseldorf Plainview, NY 11803, U.S.A.
92056 Paris La Défense France Germany Tel. (516) 501-1400
Fax. (516) 501-0429
Tel. 33 (0)1 73 02 67 06 Tel. 49 (0)211 5447 5640 E-mail : elmo@elmousa.com
Fax. 33 (0)1 73 02 67 10 Fax. 49 (0)211 5447 5660 Web : http://www.elmousa.com
This brochure is printed on recycled paper with
environmentally friendly vegetable oil-based ink
BASED INKS
Profile
All dimensions in mm
482
Rear Panel
HDMI Analogue Analogue RS-232C Audio MIC USB DC 12V
OUT RGB OUT RGB IN OUT
Supplied accessory
Display and enlarge small
parts or detailed wiring to
a much more magnified view,
allowing testing and quality
control to be conducted
Slide Shooting Adapter
accurately.
