Summary of Contents for Elmo P30

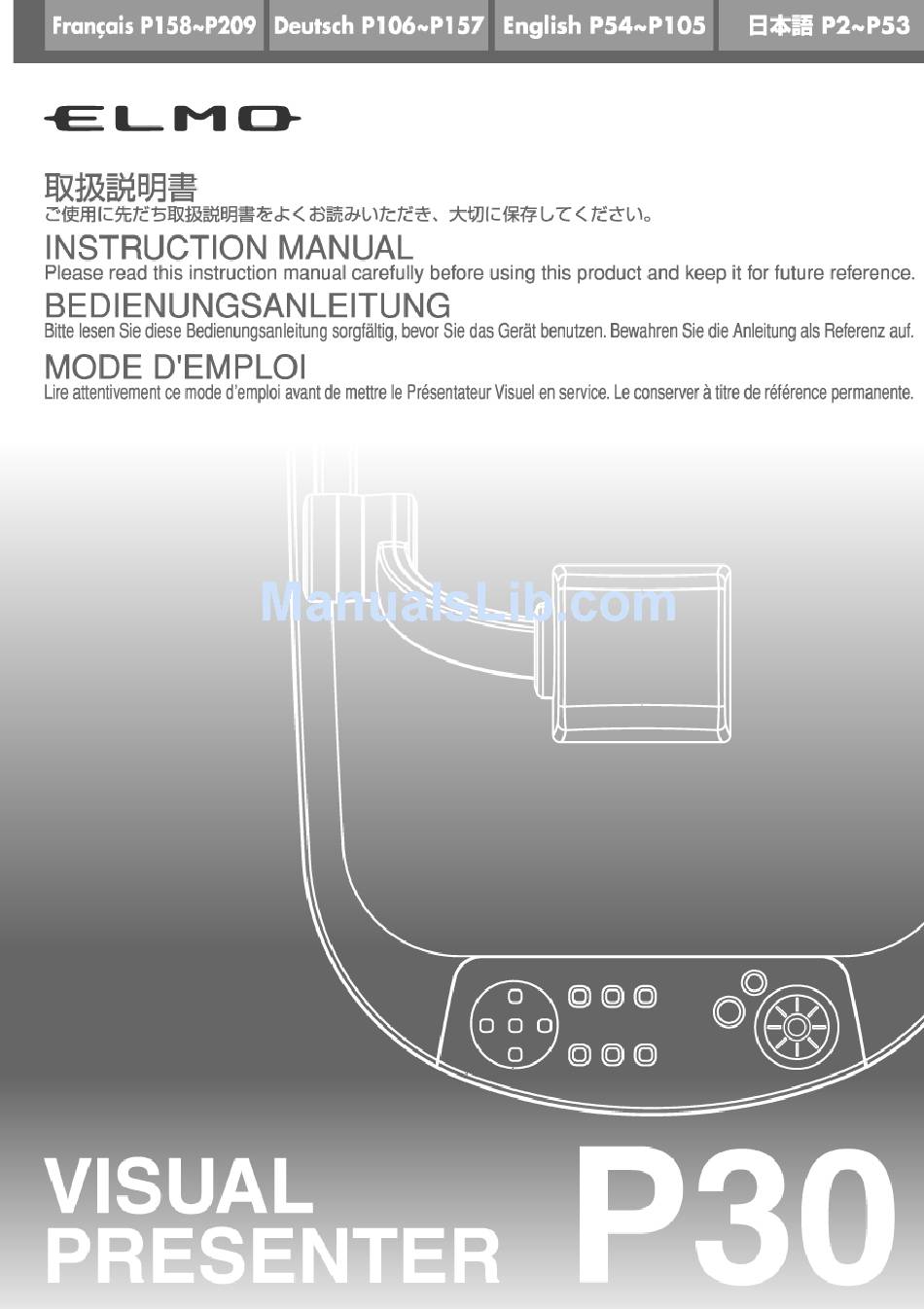

  • Page 2 Français P000~P000 Deutch P000~P000 English P54~P105 P00~P00 Français P000~P000 Deutch P000~P000 VISUAL PRESENTER INSTRUCTION MANUAL Please read this instruction manual carefully before using this product and keep it for future reference.

  • Page 3: Important Safeguards

    ENGLISH IMPORTANT SAFEGUARDS Read Instructions – All the safety and operating instructions should be read before the appliance is operated. Retain Instructions – The safety and operating instructions should be retained for future reference. Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.
  • Page 4 Grounding or Polarization – This product may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. The 2-wire polarized plug will fit into the power outlet only one way.
  • Page 5 ENGLISH Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power-supply cord or plug is damaged. If liquid has been spilled, or objects have fallen into the product.
  • Page 6 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER MAY BE REQUIRED TO TAKE ADEQUATE MEASURES.
  • Page 7 ENGLISH BEFORE YOU USE The power cord applicable to the local power specifications is attached. Be sure to use the power cord applicable to your local power specification. Do not leave this product under direct sunlight or by heaters, or this product may be discolored, deformed, or damaged.
  • Page 8 ENGLISH...

  • Page 9: Table Of Contents

    ENGLISH CONTENTS 1. PART NAMES AND FUNCTIONS Name of Each Part...63 Appearance...63 Functions ...64 Front Operating Panel ...64 Rear Panel ...65 Side Panel ...66 OSD (On-Screen Display) ...67 Camera Mode (Menu when camera image is in display)...67 SD Mode (Menu when image stored in an SD card is in display) ...69 Wireless Remote Control ...71 Receivable Range ...73 Battery Change ...73...
  • Page 10 CONTENTS Focus...91 Auto Focus...91 Manual Focus...92 Iris...93 Auto Brightness Adjustment...93 Manual Brightness Adjustment...93 State Presetting ...94 Presetting ...94 Calling...94 Mounting the LCD Optional Monitor ...95 6. RS-232C SPECIFICATIONS Setting Up ...96 Cable Connection...96 Data Format Specification...97 Operation Command (PC This product) ...97 Response Data Format (This product Transmission Specifications ...98 UART Communication Format ...98...

  • Page 11: Name Of Each Part

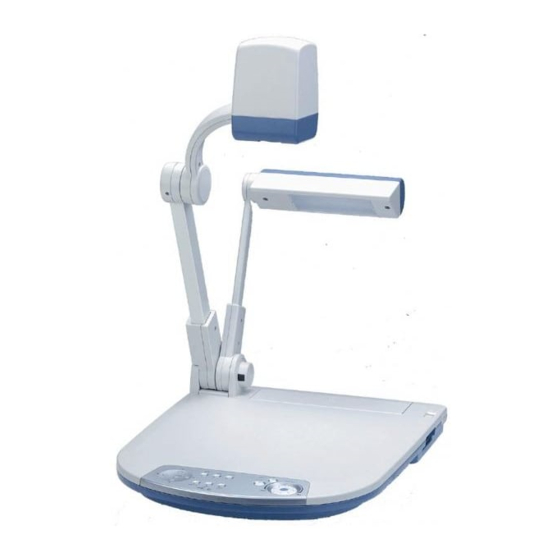

    ENGLISH PART NAMES AND FUNCTIONS Name of Each Part Appearance Front Front Name Camera head Lamp head Lamp column Camera column Infrared sensor Front operating panel Stage Wireless remote control Slide shooting adapter Rear/Side Rear/side Name Side panel Rear panel Cord cover Open this cover when connecting/ disconnecting a cord.

  • Page 12: Functions

    Functions Front Operating Panel * Hereinafter the menu items to be displayed/selected on the monitor or projection screen are referred to as "OSD (On-Screen Display)." Name q OSD ENTER (Fix) Opera- tion (Direction) To select the OSD item, move the selection frame (cursor) (Menu Delete) (Lamp) (White Balance)

  • Page 13: Rear Panel

    ENGLISH Rear Panel Name q DVI OUT To output digital video signal to the projector, the (DVI Output Terminal) PC monitor or other DVI input device w RGB OUT To output analog video signal to the projector, the (Analog RGB...

  • Page 14: Side Panel

    Side Panel Name q USB (Compliant with 2.0) (SD Card Slot) e Main Switch r LCD Monitor Mounting Seat ENGLISH Function To transfer the data recorded in an SD card to the connected PC, or to transfer image or control the main unit by using the software contained in the attached Utility Software CD-ROM To insert an SD card...

  • Page 15: Osd (On-Screen Display)

    The larger the value is, the stronger the effect is. = 0.63 To set the gamma value. = 0.56 Tone wedge can be changed according to = 0.50 the projector, the PC monitor and other = 0.45 image output devices. = 0.42 = 0.38 = 0.36 = 0.33...
  • Page 16 Name Top hierarchy 2nd hierarchy Posi/Nega Posi (Posi) (Posi/Nega) Nega (Nega) Color/B&W Color (Color) (Color/Black and B&W (Black and White) White) Text (Text) Image Rotation ON (180 rotate) (Image Rotate) OFF (0 ) Preset 1 (Memory No.1) (Position Save) 2 (Memory No.2) 3 (Memory No.3) 4 (Memory No.4) 5 (Memory No.5)
  • Page 17 ENGLISH OSD (On-Screen Display) Display example of the top and 2nd hierarchies SD Mode (Menu when image stored in an SD card is in display) Name Top hierarchy 2nd hierarchy 3rd hierarchy Delete Current (Delete) (Selected Image) YES P.82 All (All images) Lock Current (Lock)
  • Page 18 Name Top hierarchy 2nd hierarchy 3rd hierarchy Slide Effect Show (Effect of Image Random Settings Feed) Top down (Slide Show Left to right Set) Bottom up Right to left P.82 LT to RB RT to LB RB to LT LB to RT Random block Fade in/out Overlap...

  • Page 19: Wireless Remote Control

    ENGLISH Wireless Remote Control Name q PRESET (State Save) w CALL (State Call) e (Memory No.) Function To save the current setting state of the unit Use this function together with the memory No. To call the setting state Use this function together with the memory No. To indicate the memory No.
  • Page 20 Name r (OSD MENU (Menu) Operation) ENTER (Input) (Direction) (Menu Cancel) To cancel the OSD from the screen when the top OSD item i POSI/NEGA (Posi/Nega) o COLOR/B&W (Color/Black and White) !0 IRIS (Iris) NORMAL (Normal) To return the Auto Iris to the factory default setting OPEN (Open) CLOSE (Close) !3 ZOOM...

  • Page 21: Receivable Range

    ENGLISH Receivable Range Point the infrared emitting part of the wireless remote control at the infrared sensor of the main unit, and press the button for desired function. The receiving range may be reduced when the main unit is placed in direct sunlight, near an inverter fluorescent lamp or in any other unfavorable surrounding.

  • Page 22: Setting Up Setting Up

    SETTING UP Setting Up Lift the camera column. Simultaneously, the lamp column is also lifted. Turn the camera head. Move the lamp column and the lamp head to an appropriate position as shown in the right figure. ENGLISH...

  • Page 23: Connecting Of Video Cables

    The display position may be displaced from the center of the screen. In such case, adjust the horizontal and vertical positions manually from the connected device. Vertical stripes may appear on the LCD projector screen or the monitor screen. This phenomenon can be mitigated by adjusting the dot clock manually from the connected device.
  • Page 24 r Connecting to the unit having the analog RGB output terminal Connect the analog RGB cable to the [RGB IN] terminal on the rear panel. • Specifications of the analog RGB input terminal of this product Signal allocation 15 14 13 12 11 DSUB 15P shrink terminal (Female) Pin assignment...

  • Page 25: Storing

    ENGLISH STORING Storing As shown in the right figure, turn the lamp head and the lamp column and fold them down on the stage. Turn the camera head and the camera column and fold them down on the stage.

  • Page 26: Presentation Using Printed Materials

    Presentation using printed materials q Setting the main unit Set the main unit as show in the above figure, connect the main unit to the projector or the PC monitor, and then turn ON the power supply. w Adjusting the lamp position While watching the screen, adjust the angles of the lamp column and the lamp head until the illumination is provided uniformly over the stage.

  • Page 27: Presentation Using Films

    Presentation using films q Setting the main unit Fold down only the lamp on the main unit (Fig. [A]), connect the main unit to the projector or the PC monitor, and then turn ON the power supply. w Adjusting the slide shooting adapter Place the attached slide shooting adapter laying over the lamp head.

  • Page 28: Presentation Using Sd Card (Option)

    The SD card of Panasonic 128MB or 256MB is recommended. Resolution of saved image is 1024 768 (XGA). This product can store images up to 2048 pcs. ELMO is not liable for any damage caused by the loss of the data in the SD card or passive damage.

  • Page 29: Saving The Image

    Be sure to try out shooting and saving beforehand to confirm the normal saving of the image. If the image fails to be saved due to some problems in the camera or SD card, ELMO is not liable for any compensation for the recorded contents.

  • Page 30: Deleting The Image

    Deleting the Image (1) Press the [ ] button on the front operating panel or wireless remote control or press the [ ] button on the wireless remote control to have the images in the SD card displayed on the full-screen or split screen. (2) Select the image to be deleted with the direction buttons [ operating panel or wireless remote control.

  • Page 31: Presentation Using The Attached Software With The Usb-Connected Pc

    USB-connected PC Set [USB Mode] to [Application] on the OSD. "Utility Software" is downloadable from the homepage of ELMO or in the CD-ROM supplied from ELMO. "Utility Software" contains the PC link software “Image Mate for Presentation”, “Image Mate for Movie Creation”...

  • Page 32: Transferring The Images From The Sd Card Into The Usb-Connected Pc

    Transferring the images from the SD card into the USB-connected PC Set [USB Mode] to [Mass Storage] on the OSD. When this product is USB-connected to the PC, image data in the SD card can be transferred into the PC. The Operating System (OS) of the connected PC should be Microsoft Windows 2000(SP4 or newer)/XP(SP2 or newer).

  • Page 33: Shooting Off The Stage

    ENGLISH Shooting off the stage <Forward shooting> When the camera head is set horizontally, wall, distant view, etc. can be shot. When the object is in the distant view, open the close-up lens holder forward. To shoot horizontally, turn the image by 180° by pressing the [IMAGE ROTATION] button or setting the OSD accordingly.

  • Page 34: Various Functions And Operations Lighting

    VARIOUS FUNCTIONS AND OPERATIONS Lighting Front operating panel When the [ ] button on the front operating panel or wireless remote control is pressed, the fluorescent lamp lights up in 1 – 3 seconds. Each time the [ button is pressed, the fluorescent lamp turns ON/OFF alternately.

  • Page 35: Zoom

    ENGLISH Zoom Front operating panel When the zoom dial [ operating panel is turned or the zoom button [ ] on the wireless remote control is pressed, the document display range can be adjusted. According to the zoom dial turning angle, the zooming speed varies in 3 steps (3-step speed change).

  • Page 36: White Balance

    White Balance Front operating panel [Auto/One-Push] (Auto Track / Auto Adjust and Fix) The Auto (auto track) mode for adjusting the white coloring automatically according to the document or lighting condition and the One-Push (auto adjust and fix) mode for maintaining the automatically adjusted state can be switched alternately.

  • Page 37: Image Selection

    ENGLISH Image Selection Front operating panel Each time the [ operating panel or wireless remote control is pressed, the image is switched in order of the camera image to the image inputted in the analog RGB input terminal [RGB IN], then to the image in the SD card, and then to the camera image again.

  • Page 38: Or [S-Video Out]

    Input Image Signals to Analog RGB Input Terminal [RGB IN] That Enables Output from Video Output Terminal [VIDEO OUT] or [S-VIDEO OUT] Signal Frequency Horizontal Vertical Mode name VGA1 37.861 84.889 VGA2 37.861 85.080 VGA3 37.927 85.039 VGA@60Hz 31.469 59.941 VGA@72Hz 37.861 72.809...

  • Page 39: Focus

    ENGLISH Focus Front operating panel The focus on the object is adjusted. Auto Focus When the [AF] button on the front operating panel or wireless remote control is pressed, the camera is focused automatically. This product is of one-shot auto focus type. That is, once the camera is focused, the auto focus operation is released, and then focus position is maintained.

  • Page 40: Manual Focus

    Manual Focus When the focus button [FOCUS · NEAR] or [FOCUS · FAR] on the wireless remote control is pressed, the height on which the camera is focused changes. This function is used for focusing the camera on any portion of a 3D object or the like. Limit of focus adjustment: •...

  • Page 41: Iris

    ENGLISH Iris Front operating panel When the [IRIS · OPEN] button or [IRIS · CLOSE] button on the front operating panel or wireless remote control is pressed, the lens iris is adjusted for image brightness. This adjustment can be made in either of the following 2 modes, which are set in [Iris] on the OSD: Auto Brightness Adjustment...

  • Page 42: State Presetting

    State Presetting The setting position of this product can be saved/called. Up to 8 positions can be saved. The presets that can be saved are as follows: • Current zoom field angle • Iris state • White Balance state • Edge Effect settings •...

  • Page 43: Mounting The Lcd Optional Monitor

    ENGLISH Mounting the LCD Optional Monitor To mount the LCD monitor (LM-5011N) on option, the LCD monitor bracket (MS-30) is required. As show in the right figure, connect the composite video output terminal [VIDEO OUT] of this product to the LCD monitor (LM-5011N) with the video cable with RCA pin plug (supplied as an accessory on standard or available in the market).

  • Page 44: Setting Up

    RS-232C SPECIFICATIONS This product can be controlled from a PC connected to this product through the RS-232C terminal [RS-232C]. Setting Up q Connect this product to a PC with an RS-232C cable. When using an RS-232C cable available on the market, make sure that pin connections are the same as below.

  • Page 45: Data Format Specification

    ENGLISH Data Format Specification This command is executed in the form of 1-command/1-packet. The next command is not accepted until the previous processing is completed. • The communication command always starts with STX (Start of Text), and ends with ETX (End of Text).

  • Page 46: Transmission Specifications

    Transmission Specifications • Full duplex start-stop sync. mode • Start bit • Data bit • Stop bit • Parity bit • X parameter • Baud rate (Communication speed) : 9600bps UART Communication Format Commands, parameters and data are all transmitted in ASCII code. Function Command Parameter...
  • Page 47 ENGLISH Function Command Slide-show image 0 (All) feed effect 1 (Random) 2 (Top down) 3 (Left to right) 4 (Bottom up) 5 (Right to left) 6 (LT to RB) 7 (RT to LB) 8 (RB to LT) 9 (LB to RT) A (Random block) B (Fade in/out) C (Overlap)

  • Page 48: About Connection

    Function Command Parameter Image rotation 0 (0 ) 1 (180 ) Edge effect 0 (OFF) 1 (Low) 2 (Mid) 3 (High) White balance AW 0 (Manual) 1 (Auto) 2 (One Push) 3 (R_Up) 4 (R_Down) 5 (B_Up) 6 (B_Down) Text 0 (OFF) 1 (ON) Posi/Nega...

  • Page 49: Symptoms And Confirmation

    The image is striped. • This may be interference fringes between dots of printed matter • When using an LCD projector, vertical stripes may appear on the The brightness tone is • This may be mitigated by switching gamma settings.

  • Page 50: General

    SPECIFICATIONS General Item Power source 12VDC (AC adapter: 100 ~ 240VAC) Power consumption 30W (AC adapter included) Outside dimensions 377 482 180mm (14.8 19.0 7.1 in) (When folded) 377 482 582mm (14.8 19.0 22.9in) (When set up) Weight Approx. 4.7kg (10.4 lbs) (Main body only) Input selection Main body / External one system Output terminal...

  • Page 51: Main Camera

    ENGLISH Main Camera Item Lens Shooting speed Shooting area Limit of focus adjustment Optical zoom Digital zoom Focus Iris Image pick-up element Total picture elements Effective picture elements Synchronized signal Resolution DVI output Analog RGB output Composite video output S-video output White balance Video output selection Posi/Nega conversion...

  • Page 52: Supplied Accessories

    S-video cable (Mini DIN 4P connector) (2m) Analog RGB cable (DSUB 15P connector) (2m) DVI cable (2m) Infrared wireless remote control Batteries (Type R03, AAA) Instruction Manual for P30 Warranty Card for P30 USB cable (1.8m) Slide shooting adapter Utility Software Installation Manual...
