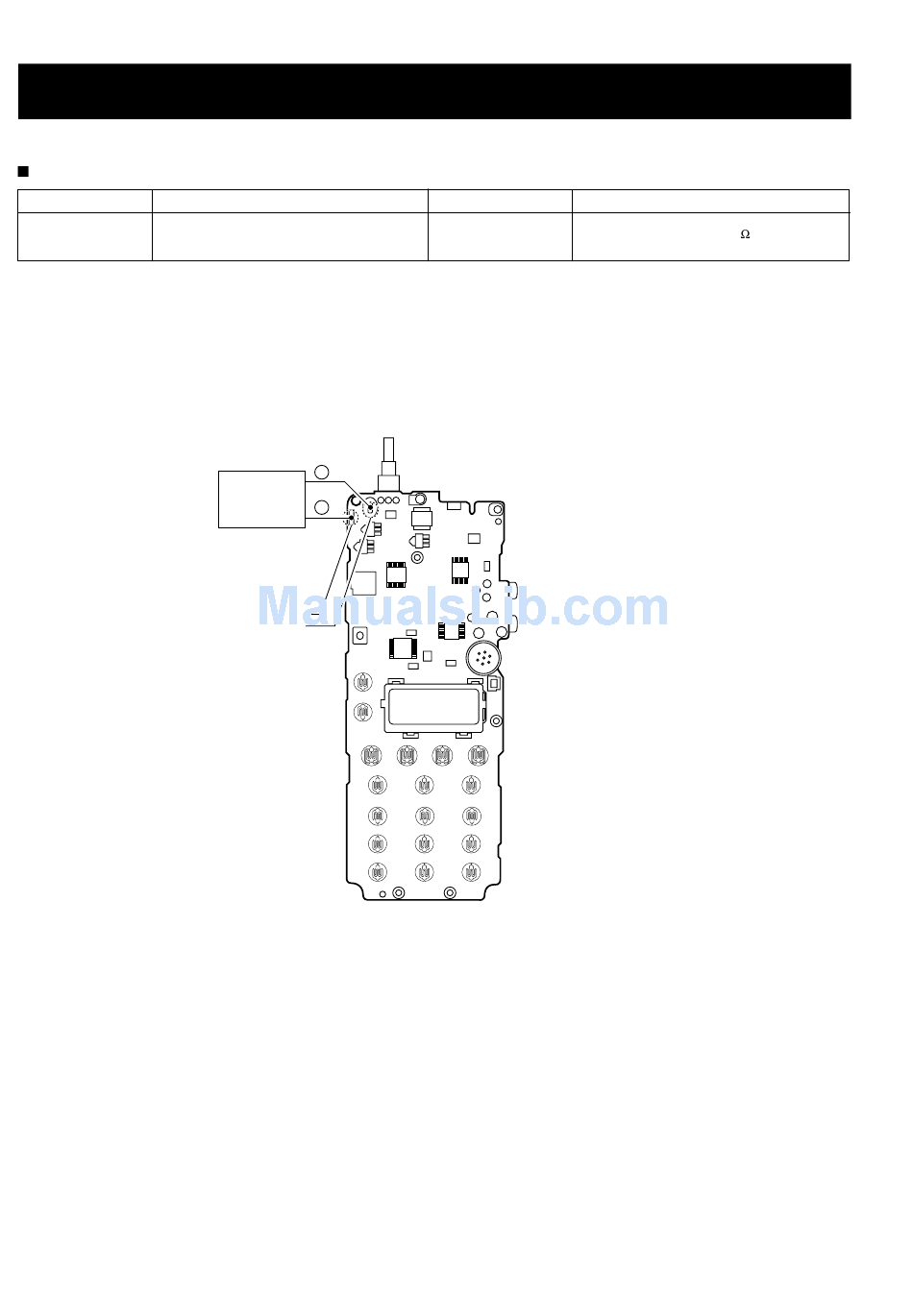

SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION
REQUIRED TEST EQUIPMENT
EQUIPMENT
Output voltage
DC power supply
Current capacity
• DC POWER CABLE CONNECTION
GRADE AND RANGE
: 7.2 V DC
: 5 A or more
+
DC POWER
—
SUPPLY
Soldering
DC cable here
EQUIPMENT
Digital multimeter
Top view
5 - 1
GRADE AND RANGE
Input impedance
: 10 M /V DC or better
