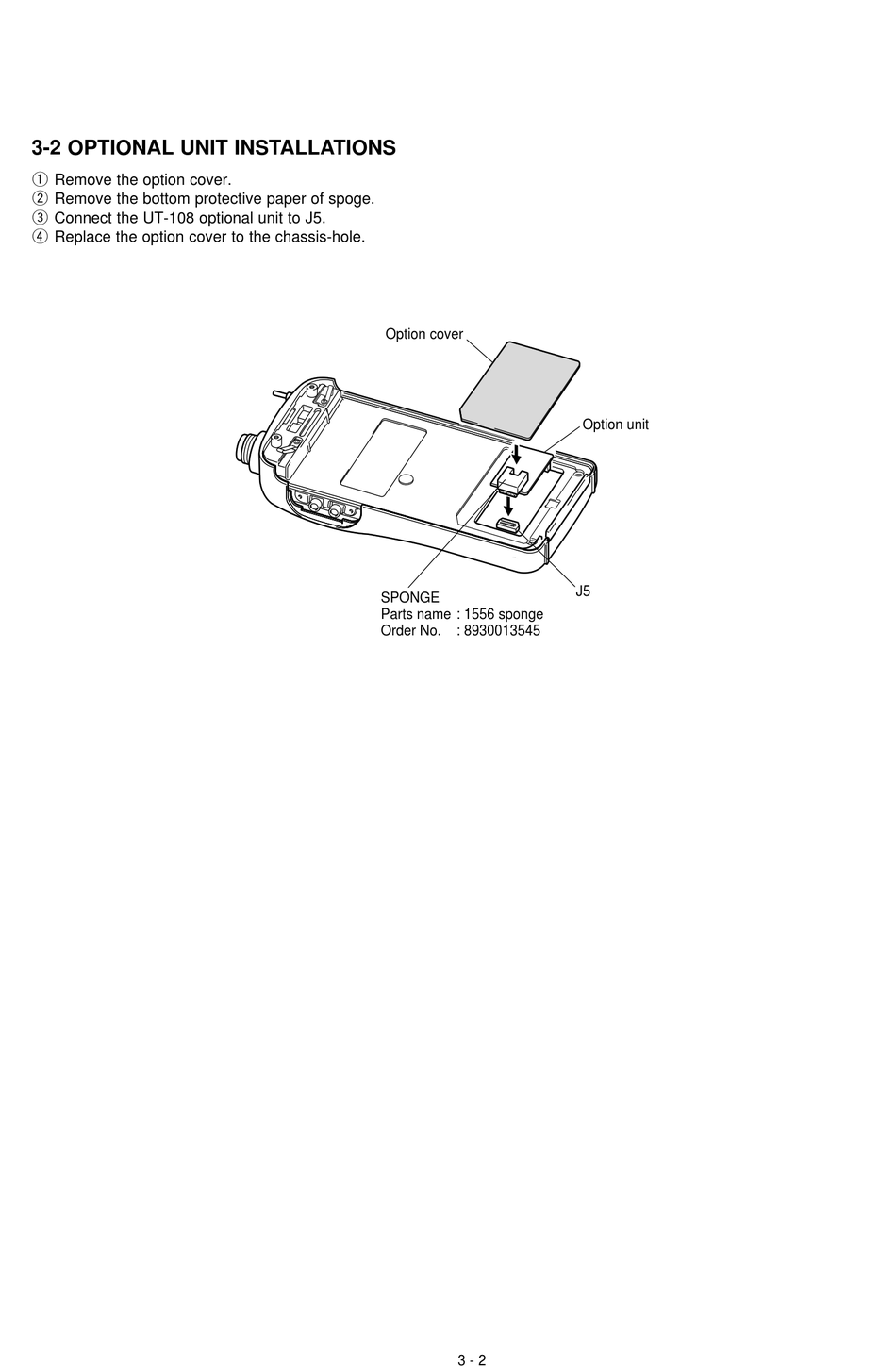

3-2 OPTIONAL UNIT INSTALLATIONS

1 Remove the option cover.

2 Remove the bottom protective paper of spoge.

3 Connect the UT-108 optional unit to J5.

4 Replace the option cover to the chassis-hole.

Option cover

SPONGE

Parts name : 1556 sponge

Order No.

: 8930013545

3 - 2

Option unit
