Ovia
mylevana.com
™
CAUTION: Keep small parts away from children.
ATTENTION: Gardez les petites pièces hors de la portée des enfants.
PRECAUCIÓN: Mantenga las piezas pequeñas fuera del alcance de los niños.
Manual / Manuel / Manual

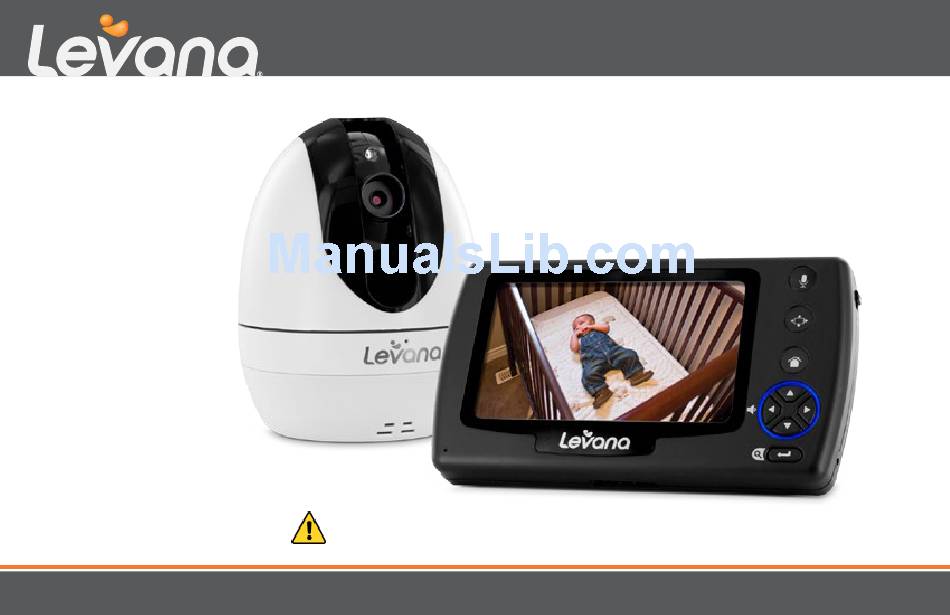

Digital Baby Video Monitor
Moniteur vidéo bébé numérique
Video Monitor Digital para Bebé
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Levana Ovia
Summary of Contents for Levana Ovia
- Page 1 Manual / Manuel / Manual Ovia Digital Baby Video Monitor ™ Moniteur vidéo bébé numérique Video Monitor Digital para Bebé CAUTION: Keep small parts away from children. ATTENTION: Gardez les petites pièces hors de la portée des enfants. PRECAUCIÓN: Mantenga las piezas pequeñas fuera del alcance de los niños.
-
Page 2: Safety Warnings
SaFeTY WaRnInGS This product cannot replace responsible adult supervision. CauTIOn: Keep small parts away from children. Strangulation Hazard: Children can become entangled in use only with provided power supply. cords. Power cords should be kept more than 3 feet away The socket-outlet shall be installed near the equipment and from the crib and baby’s reach at all times. -
Page 3: Fcc Statement
FCC STaTeMenT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC WaRnInG This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 4: Warranty
This warranty does not cover the shipping cost, insurance or any other incidental charges. You MUST contact LEVANA before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #). -
Page 5: Table Of Contents
TaBle OF COnTenTS SAFETY WARNINGS ............................................. 2 FCC STATEMENT ............................................3 WARRANTY ..............................................4 WHAT’S INCLUDED ............................................. 7 BUTTONS AND CONNECTIONS - MONITOR ..................................8 BUTTONS AND CONNECTIONS - CAMERA ................................... 9 SETUP ................................................10 Battery installation ........................................10 Connecting Power to the Monitor / Charging Battery ............................10 Connecting Power to the Camera ..................................11 Get the Most Out of Your Rechargeable Battery .............................. - Page 6 TaBle OF COnTenTS Capturing Video ......................................... 22 Viewing Saved Photos & Videos - Monitor ................................23 Viewing/Deleting Pictures - Monitor ..................................23 Viewing/Deleting Video - Monitor ..................................24 Viewing Saved Photos & Videos - Computer ............................... 25 Settings ............................................25 Checking SD card space ......................................26 Format SD card ...........................................26 Default Factory Settings ......................................
-
Page 7: What's Included
This product does not replace responsible adult supervision. Check on your child at regular intervals and make sure your monitor is always adequately charged. We reserve the right to change models, configuration, or specifications without notice or liability. Product may not be exactly as shown. ©2013 LEVANA . All rights reserved. LEVANA , the LEVANA logo, Ovia and other LEVANA marks may be registered. -
Page 8: Buttons And Connections - Monitor
MOnITOR lCD SCReen Pan / TIlT BuTTOn SELECTION / ZOOM BUTTON 11. MICROPHOne Menu SPeaKeR 12. POWeR On/OFF COlOR-CHanGInG leD RInG TaBle STanD 13. Ring changes color with sound TalK TO BaBY™ anTenna 14. intensity Press and hold to talk, release Extend to improve signal DIReCTIOnal aRROWS / VOluMe to listen BaTTeRY COMPaRTMenT... -
Page 9: Buttons And Connections - Camera
CaMeRa PHOTO SenSOR SPeaKeR anTenna PTZ CAMERA InVISIBle leDs POWeR leD MICROPHOne POWeR On/OFF POWeR InPuT mylevana.com... -
Page 10: Setup
SeTuP Install the battery Connecting Power to the Monitor / Charging Battery Connect the small end of power adapter marked MONITOR into the DC input on the side of the monitor as shown in the diagram. Connect the other end of the adapter into an available wall outlet. -
Page 11: Connecting Power To The Camera
SeTuP Connecting Power to the Camera Take the second power adapter and connect the small end of the power adapter marked CAMERA into the DC input on the side of the camera. For safety reasons, ONLY use the adapters included in the package. 2. -
Page 12: Get The Most Out Of Your Rechargeable Battery
SeTuP Get the Most Out of Your Rechargeable Battery • Fully charge battery (4 hours) before first use. • To maximize battery life, charge battery before battery is fully drained. • Avoid extreme heat or cold as this will affect the life of the battery. •... -
Page 13: Screen Icons
SCReen ICOnS LULLABIES PICTURE VIDEO PLAY PEEP MODE ZOOM CAMERA LED / SOUND SENSITIVITY BRIGHTNESS PAIRING SUPPORT SETTINGS mylevana.com... -
Page 14: Operation
OPeRaTIOn Turn the MOnITOR On/OFF • Press and hold the POWER button on the TOP of the monitor to turn the monitor ON. • Press and hold the POWER button again to turn OFF the monitor. Pairing the Camera(s) and Monitor The camera and monitor come paired (connected) to each other automatically. -
Page 15: Placement Of The Monitor
OPeRaTIOn Placement of the Monitor This monitor can be placed on a tabletop. • You can place the monitor on a tabletop by using the retractable table stand on the back of the monitor. When not in use, simply tuck the table stand away into the back of the monitor until you hear a "click". -
Page 16: Mounting The Camera On A Wall Safely
OPeRaTIOn Mounting the Camera on a Wall Safely: Before drilling the holes, it is important to check the reception and camera positioning in the intended location on the wall. Ensure you are hanging the camera no less than 3 feet away from baby’s crib. note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. -
Page 17: Night Vision
OPeRaTIOn night Vision The camera is equipped with NEW Invisible IR (infrared) LEDs which keep the nursery dark. The LEDs are located on the front of the camera and allow you to see up to 15 feet in complete darkness so you can check on your baby at any time of night. The night vision LEDs will activate automatically when the Light Sensor on the side of the camera detects that the light levels are too low. -
Page 18: Volume Control
OPeRaTIOn Volume Control (MUTE) note: Placing the monitor and camera too close together will create feedback. DeCReaSe or MuTe the volume and move the camera away from the monitor. VOluMe Decrease / Increase Using the ZOOM Function Option 1 From main viewing screen: Select Select Option 2 From main Menu:... -
Page 19: Using The Talk To Baby™ Two-Way Intercom
OPeRaTIOn using the Talk to Baby™ Two-Way Intercom With the simple press of a button you can talk to your child at any time without entering the nursery. 1. To talk, press and hold the button on the front of the monitor and release to listen. 2. -
Page 20: Using Peep Mode
OPeRaTIOn using PeeP Mode When in PEEP Mode, the monitor enters standby/sleep mode after 60 seconds of inactivity. When sound is detected, the screen changes to live view. In Quad Screen mode, use the to select the camera that will be triggered by sound. •... -
Page 21: Setting The Brightness
OPeRaTIOn Setting the Brightness Brightness Mode sets the brightness of the the screen. Brightness Mode also extends the battery life. Select Sound Sensitivity Settings Sensitivity Mode allows you to adjust the sensitivity of the sound the that the camera picks up. The leD Ring on the front of the monitor also indicates how loud the sound in the room is with colors. -
Page 22: Taking A Picture
OPeRaTIOn Record Video & Snap Photos Instantly Capture precious moments as they are happening with your choice of recorded video or still photos on the included 2GB micro SD card. No need to scramble for a camera! Simply select 1 of 4 camera views (if more than one camera is connected) and follow the instructions below. -
Page 23: Viewing Saved Photos & Videos - Monitor
OPeRaTIOn Viewing Saved Photos & Videos - Monitor You can view your saved photos and videos that are on the included SD card from the monitor or on your computer using the included SD Card Adapter. Viewing/Deleting pictures - Monitor To navigate Select / To Select... -
Page 24: Viewing/Deleting Video - Monitor
OPeRaTIOn Viewing/Deleting video - Monitor To navigate Select / To Select V01.SNX 00:04:00 Press to delete & Go back to Go back to previous screen previous screen To Select/Delete; press to Deselect mylevana.com... -
Page 25: Viewing Saved Photos & Videos - Computer
OPeRaTIOn Viewing Saved Photos & Videos - Computer You can view your saved photos and videos that are on the included SD card from your computer using the included SD Card Adapter. **If you do not have an SD card slot on your computer, an SD Card Reader (not included) will be required. Turn the monitor off and remove the battery cover on the back of the monitor. -
Page 26: Checking Sd Card Space
OPeRaTIOn Checking SD card space Select Go back to previous screen Format SD card Cancels / Exits function Select Go back to LAST CHANCE to previous screen NOTE: ONCE YOU HAVE Cancel / Exit function FORMATTED YOUR SD CARD, ALL OF YOUR SAVED PICTURES/ VIDEO WILL BE ERASED. -
Page 27: Default Factory Settings
OPeRaTIOn Default Factory Settings Cancels / Exits function Select Go back to previous screen Contacting Customer Support Customer Support is just a click away whenever you need it! Our customer support team can be reached by live web chat or on our website at www.mylevana.com/support. -
Page 28: Troubleshooting
TROuBleSHOOTInG ISSue POSSIBle SOluTIOn Equipment does not function • Confirm that the camera and monitor are ON • The battery may be depleted; charge battery • The power adapters may not be properly connected No reception • Camera and monitor may not be properly paired; follow PAIRING instructions •... -
Page 29: Specifications
SPeCIFICaTIOnS MOnITOR MOnITOR Monitor Type TFT LCD Microphone Screen Size 4.3” Talk to Baby Resolution 860x480 lullabies Frame Rate 20-25 FPS Battery Type Li-Ion lCD Brightness Adjustable: 1,2,3,4 Battery Capacity 1700 mAH Frequency 2.4GHz Battery Connection Charging Contact Private Signal Battery life (video + audio on) 5 hours Technology... - Page 30 SPeCIFICaTIOnS CaMeRa CaMeRa Image sensor CMOS Housing Material ABS Plastic Resolution 640 x 480 Wall Mountable Viewing angle 50 Degree Power adapter Input 100~240VAC, 50/60Hz 150mA Focal length 2.8mm Power adapter 5.9V, 1A DC Optimal Focal Distance 2-10ft Operating Temperature 0 to 50 Degree Celsius Dimensions 3.5 x 4.75 x 3.5’’...
- Page 31 POWeR Adapter (for FCC, IC): BLJ5W059100P—U ; Input: 100– 240VAC 50/60Hz 150mA; Output: 5.9V 1A; Adapter(for EU): BLJ5W059100P-V; Input: 100-240VAC 50/60 Hz 150 mA; Output: 5.9V, 1A WaRnInG 1. Use only with provided power supply; 2. The socket-outlet shall be installed near the equipment and shall be easily accessible; Battery: Model: 464854P, Li-ion battery, 3.7V 1700mAh 6.290Wh, Limited charge voltage: 4.2V.
