Levana Astra User Manual

Digital baby video monitor
Hide thumbs Also See for Astra:
Table of Contents

Advertisement

Quick Links

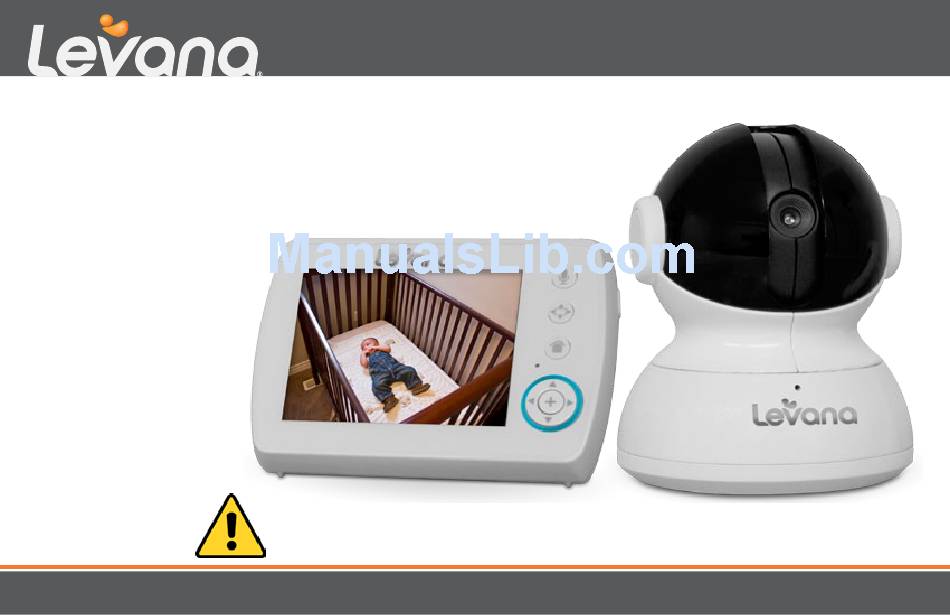

USER MANUAL
Astra
™
Digital Baby Video
Monitor
CAUTION: Keep small parts away from children.
mylevana.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Astra and is the answer not in the manual?

Questions and answers

Related Manuals for Levana Astra

Summary of Contents for Levana Astra

  • Page 1 USER MANUAL Astra ™ Digital Baby Video Monitor CAUTION: Keep small parts away from children. mylevana.com...

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS CAUTION: Keep small parts away from children. Strangulation Hazard: Children can become entangled in cords. Power cords should be kept more than 3 feet away from the crib and baby’s reach at all times. Baby monitors and cameras with power cords should never be hung on or near the crib.

  • Page 3: Fcc Statement

    FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Warranty

    This warranty does not cover the shipping cost, insurance or any other incidental charges. You MUST call LEVANA before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #).

  • Page 5: Table Of Contents

    TABLE OF CONTENTS SAFETY INSTRUCTIONS ..........................................2 FCC STATEMENT ............................................3 WARRANTY ..............................................4 WHAT’S INCLUDED ............................................. 6 BUTTONS AND CONNECTIONS - MONITOR ..................................7 BUTTONS AND CONNECTIONS - CAMERA ................................... 8 SETUP ................................................9 Battery installation ........................................9 Connecting Power to the Monitor / Charging Battery ............................10 Connecting Power to the Camera ..................................

  • Page 6: What's Included

    This product does not replace responsible adult supervision. Check on your child at regular intervals and make sure your monitor is always adequately charged. LEVANA does not endorse any LEVANA products for illegal activities. Levana is not responsible or liable in any way for any damage, vandalism, theft ® ® or any other action that may occur while a LEVANA product is in use by the purchaser.

  • Page 7: Buttons And Connections - Monitor

    MONITOR LOCK / UNLOCK BUTTON Disables ALL function buttons in the LOCK position LCD SCREEN POWER ON/OFF POWER INPUT TALK TO BABY™ Press and hold to talk, release to listen PAN / TILT / ZOOM BUTTON MENU MICROPHONE COLOR-CHANGING LED RING Ring changes color with sound intensity SELECTION / ZOOM BUTTON 10. DIRECTIONAL ARROWS / VOLUME CONTROL 11. ANTENNA 12.

  • Page 8: Buttons And Connections - Camera

    CAMERA PTZ CAMERA ANTENNA MICROPHONE POWER INPUT POWER LED POWER ON/OFF NIGHT VISION LIGHT SENSOR SPEAKER mylevana.com...

  • Page 9: Setup

    3. Avoid extreme heat or cold as this will affect the life of the battery. 4. Turn LCD screen OFF; press POWER button on the side of the monitor ONCE. 5. Astra menu settings that increase battery life: ™ Power Save Mode: After 1 minute of inactivity, monitor enters standby/sleep mode.

  • Page 10: Connecting Power To The Monitor / Charging Battery

    SETUP Connecting Power to the Monitor / Charging Battery Connect the small end of one power adapter into the DC input on the side of the monitor as shown in the diagram. Connect the other end of the adapter into an available wall outlet. LED Ring 2. Press and hold the POWER button on the side of the monitor to turn the monitor ON.

  • Page 11: Screen Icons

    SCREEN ICONS SIGNAL STRENGTH SOUND SENSITIVITY SETTING STRONG MEDIUM HIGH SIGNAL SIGNAL — — — — — — BATTERY STRENGTH VOLUME EMPTY CHARGING FULL LOUD POWER SAVE SUPPORT TALK TO BABY™ BRIGHTNESS DARK BRIGHT CAMERA CAMERA PAIRING PAIRING MODE MODE mylevana.com...

  • Page 12: Pairing The Camera(S) And Monitor

    OPERATION Turn the MONITOR ON/OFF Press and hold the POWER button on the side of the monitor to turn the monitor ON. Press and hold the POWER button again to turn OFF the monitor. ICONS ARE ORANGE Pairing the Camera(s) and Monitor WHEN SELECTED The camera and monitor come paired (connected) to each other automatically. However, if upon opening this package the devices do not automatically connect and transmit, you may do so manually.

  • Page 13: Placement Of The Monitor

    OPERATION Placement of the Monitor This monitor can be placed on a tabletop. • You can place the monitor on a tabletop by using the retractable table stand on the back of the monitor. When not in use, simply tuck the table stand away into the back of the monitor until you hear a "click".

  • Page 14: Mounting The Camera On A Wall Safely

    OPERATION Mounting the Camera on a Wall Safely: Before drilling the holes, it is important to check the reception and camera positioning in the intended location on the wall. Ensure you are hanging the camera no less than 3 feet away from baby’s crib. Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. Power cords should be kept no less than 3 feet away from the crib and the baby’s reach at all times. Pre-drill two holes in the wall using a 3/16”, 4.8mm drill bit.

  • Page 15: Night Vision

    OPERATION Night Vision INVISIBLE The camera is equipped with NEW Invisible IR (infrared) LEDs which keep the nursery LEDs dark. The LEDs are located on the front of the camera and allow you to see up to 12 feet in complete darkness so you can check on your baby at any time of night. The night vision LEDs will activate automatically when the Light Sensor on the side of the camera detects that the light levels are too low.

  • Page 16: Volume

    OPERATION Volume Use the navigational arrows to increase /decrease /mute the VOLUME. • Press the button to INCREASE the volume in LIVE VIEW; the VOLUME icon will display the volume level in the top left corner of the screen. • Press the button to DECREASE the volume;...

  • Page 17: Using Power Save Mode

    OPERATION Using Power Save When in Power Save Mode, the monitor enters standby/sleep mode after 1 minute of inactivity. When sound is detected, the screen changes to live view. • To access live view manually when the screen is off, press the POWER button ONCE.

  • Page 18: Setting The Brightness

    OPERATION Setting the Brightness Brightness Mode sets the brightness of the the screen. Brightness Mode also extends the battery life. To set the Brightness Mode, press the MENU button. Using the navigational arrows on the front of the monitor, highlight the BRIGHTNESS icon. Use the to toggle to the your desired brightness and press the SELECT button once to select.

  • Page 19: Contacting Customer Support

    OPERATION Contacting Customer Support Customer Support is just a click away whenever you need it! Our customer support team can be reached by phone, by email and live web chat. Our experts will be happy to assist you in English, French and Spanish. To access Customer Support, press the MENU button.

  • Page 20: Troubleshooting

    TROUBLESHOOTING ISSUE POSSIBLE SOLUTION Equipment does not function • Confirm that the camera and monitor are ON • The battery may be depleted; charge battery • The power adapters may not be properly connected No reception • Camera and monitor may not be properly paired; follow PAIRING instructions •...
