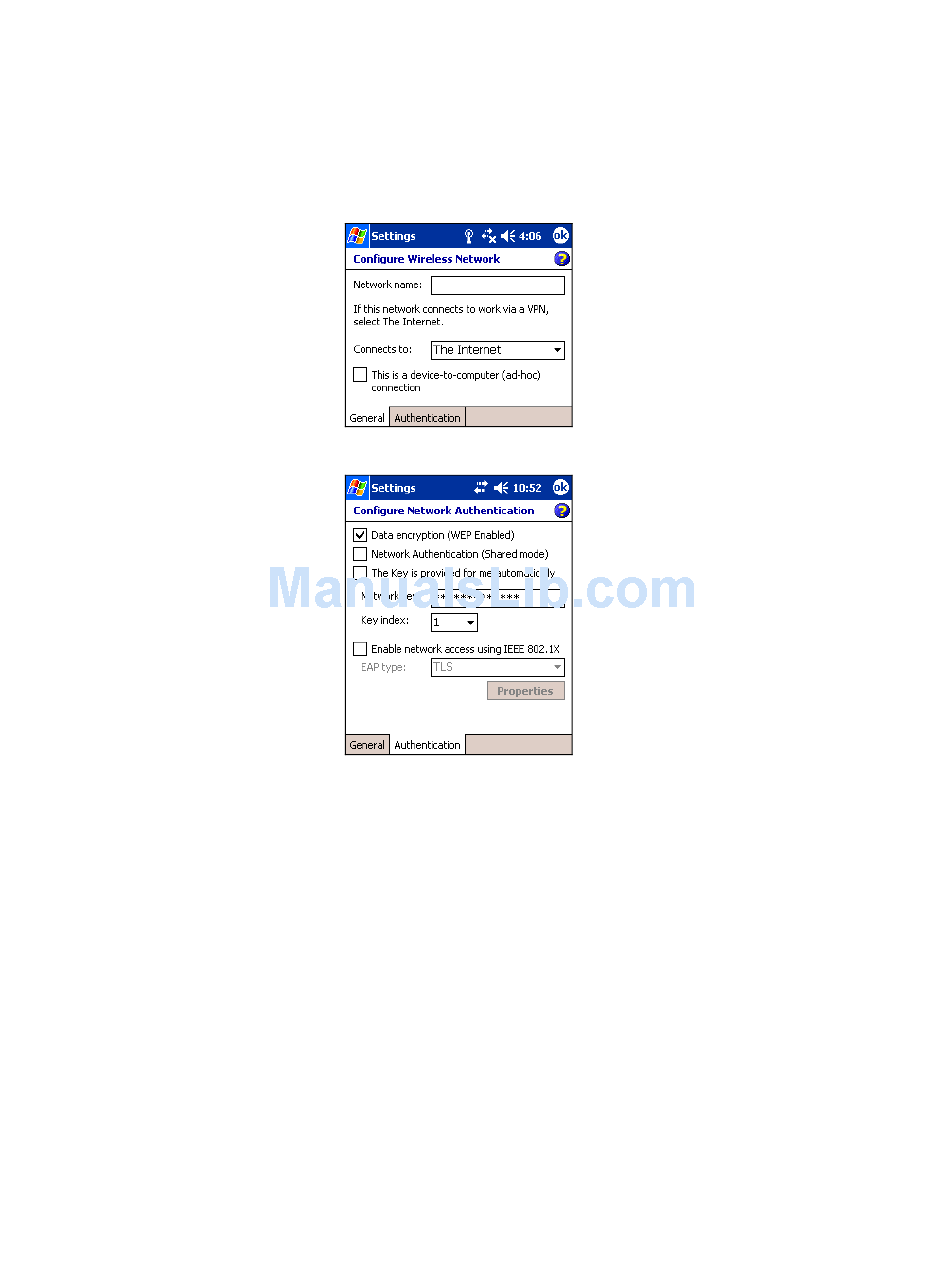

3. In the General screen, enter the Network name (ESSID/SSID). Note that
this name is case-sensitive. Select whether you want to connect to The
Internet or Work.
4. Tap on the Authentication tab. Enter the following:
Open System: Uncheck all boxes. Tap ok.
WEP-Enabled:
• Data encryption (WEP Enabled): Check.
• Network Authentication (Shared mode): Check if your network is set
up for this. In most cases, it should be unchecked.
• The key is provided to me automatically: Uncheck. Enter the Network
key in hexadecimal format and the Key index.
Note: For 40/64-bit WEP, the key length is 10 hex or 5 ASCII digits.
For 128-bit WEP, the key length is 26 hex or 13 ASCII digits.
• Enable network access using IEEE 802.1X: Uncheck.
• When done, tap ok.
12 | CHAPTER 3
Note: In most
cases, you should
select The Internet.
If your network has
a VPN/proxy
server, refer to the
Pocket PC 2003
manual for
instructions.
Note: This
screen shows
typical settings
for a WEP-
enabled
network.
