Socket 7Ci User Manual page 8

H F
ARDWARE EATURES

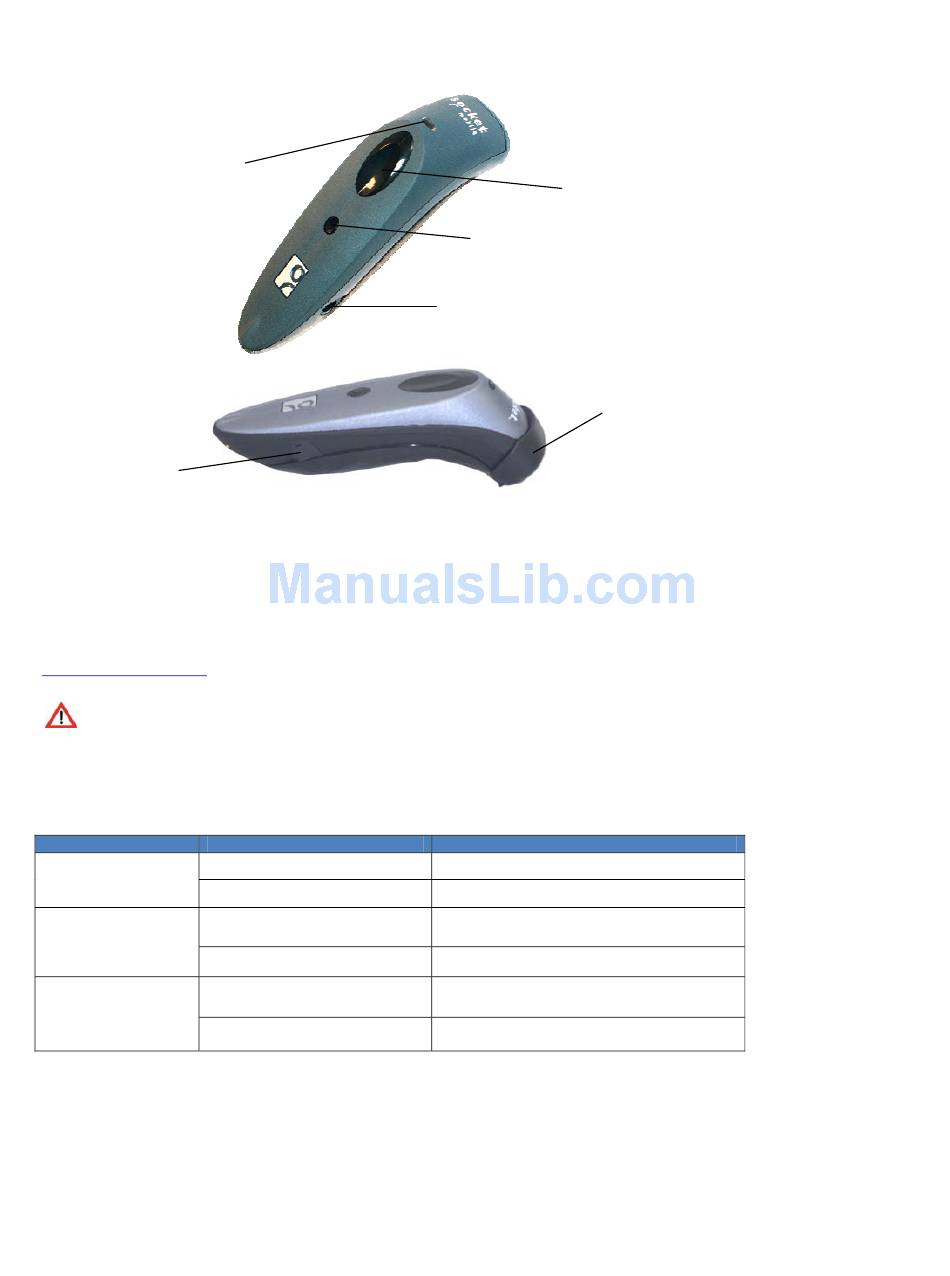

Product Diagram
Status indicator LED
Power connector
(For 7Di/7DiRx remove rubber
cap to access)
Antimicrobial Protection (CHS 7DiRx only)
The CHS 7DiRx is made with antimicrobial materials to provide an extra layer of protection to the
devices against the multiplication and spread of potentially harmful bacteria and microbes.
Socket Mobile recommends using Sani-Cloth
disinfectant wipe for the CHS 7DiRx. For more information about the wipes, please visit:
http://www.pdipdi.com
Do not use a bleach-based or Dispatch® brand cloth wipes, as they negate all antimicrobial
properties that have been added to the device.
To clean the scanner window, use an eye lens cleaner or clean, soft cloth.
Status Indicator LED
LED
Bluetooth (Blue)
Good Read (Green)
Battery (Red)
8
®
Plus brand disposable cloth wipes as the standard
LED Activity
1 blink per second
1 blink per 3 seconds
On
On and connected to charger
Blinking
Off
Trigger button
Power button
Power Connector
Protective rubber bumper
(7Di/7DiRx only)
Meaning
Bluetooth radio is on but not connected
CHS connected to host device
Data successfully scanned and transmitted to
host device
Battery full
20% or less battery capacity remaining
Off or Good Battery status
