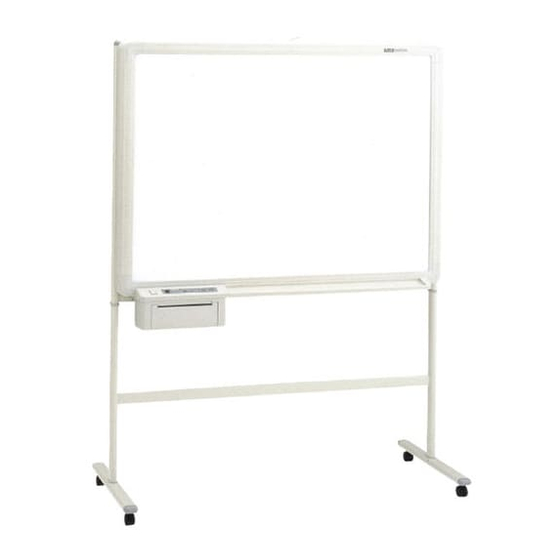

- Page 1 BF-SERIES COPYBPOARD BF-030 S / BF-041S / BF-035 BF-030PC / BF-030 W / BF-041W INSTALLATION MANUAL 9 6 1 0 S W S U N S H I N E C T . S U I T E 8 0 0 B E A V E R T O N , O R 9 7 0 0 5 8 0 0 - 2 1 1 - 9 0 0 1 •...
- Page 2 • To prevent electrical shock and insure safe wall mounting, please consult your authorized PLUS dealer on the copyboard assembling and wall mounting methods. Note: The wall must be capable of holding an object weighing more than 1010N [103 kgf (about 227 lbs)] for BF-030S, BF-030PC, BF-041S or 1137N [116 kgf (about 256 lbs)] for BF-030W, BF-035, BF-041W.
- Page 3 Checking Installation Position BF-Series Copyboard Wall Mounting Method 1. First, check that the wall can withstand the weight of the copyboard. • The mounting positions to the wall are shown below. • For the mounting surface, select a flat wall surface. Note: The wall must be capable of holding an object weighing more than 1010N [103 kgf (about 227 lbs)] for BF-030S, BF-030PC, BF-041S or 1137N [116 kgf (about 256 lbs)] for •...
- Page 4 3. Fit the board plates to the copyboard. • The spacing between the holes for fitting the board plates is 812 mm (32 in.) for BF-030, BF-030PC, BF-035, BF-041S or 812 mm (32 in.)/1220 mm (48 in.) for BF-030W and BF-030S, BF-035, BF-030PC, BF-041 1320mm (4 feet 3 in.) 31/32...
- Page 5 5. Mark the board plate fitting hole positions on the wall. (Fig. 5) 7. Install the pipe cap at the right and left of the copyboard. (Fig, 6) • Place the copyboard on the lower brackets. Note: After the copyboard is installed, check the integrity of the mounting by applying light force to the copyboard to confirm that is sufficiently mounted •...
