Summary of Contents for Plus BF-030 S

  • Page 1 OPERATION MANUAL BF-030S PLUS...
  • Page 2: Table Of Contents

    Should you have any questions whatsoever about this information, please call PLUS Corporation of America directly at (201)818- 2700 CONTENTS FEATURES ............
  • Page 3: Features

    BF-030S BOARD FAX CARTON CONTENTS Please be sure all of the following items are included in the carton with the BF-030S BOARD FAX Board Fax main unit ... 1 ACCESSORIES Set of Dry-eraseble markers (one each black, red and blue). Dry-Eraser (1) Fax Paper (30m(96ft) , 12mm(w/1/2") core) Operation Manual with warranty card...
  • Page 4: Product Features

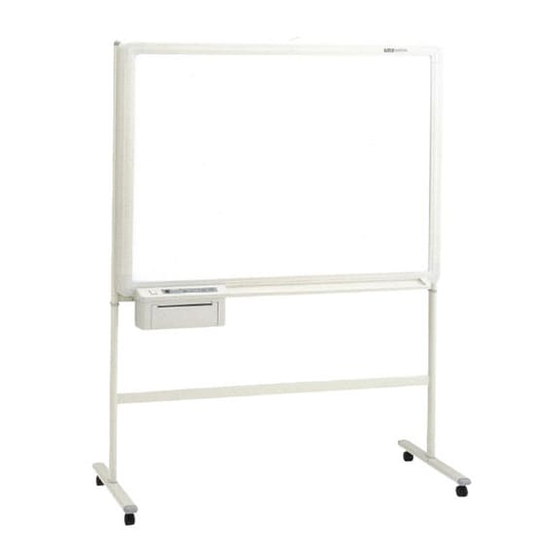

    PRODUCT FEATURES FRONT Board screen 50mm 50mm gridded surface area Tray Printer Operation panel T-shaped stand Printer cover Caster REAR Expansion slot (for optional upgrades) T-shaped stand Optional accessory sold separately: PC interface board - to enable down- loading of board information from the BF-030S to the PC...
  • Page 5: Control Functions

    CONTROL FUNCTIONS OPERATION PANEL Opening button ......Press this button to open the printer hatch when replacing the thermal paper. Power switch ......... Press "I" to turn ON the power when starting machine operation. Power lamp ........Press the switch, and the green lamp will blink on and off. The lamp will stay lit (green) when the read sensor inside the machine is ready for operation.
  • Page 6: How To Use

    HOW TO USE BEFORE USE... Press the caster lock switches ON and keep the casters in a locked position. Plug in and turn ON the power switch. After POWER ON the power lamp blinks for 2-3 seconds, it should turn green. PAPER OUT POWER WHEN COPYING...
  • Page 7 HOW TO USE WHEN SLIDING THE SCREEN FORWARD... Sliding by using key Press the feed/stop key. Then, the board screen slides to the left by one page and stops. It stops immediately when the feed/stop key is pressed during the sliding operation. Manual sliding It is also possible to slide the board screen manually.
  • Page 8 HOW TO USE Push both ends of the hatch closed until it locks with a clicking noise. At this time, make sure that the recording paper has not slipped. Cut off extra recording paper from the printer outlet. Replace the recording paper in the following situations When a red line appears at the edges of the recording paper.
  • Page 9: Maintenance/How To Store

    MAINTENANCE/HOW TO STORE Carry out the following maintenance procedures periodically to ensure high quality copying performance at all times. (1) Cleaning of the surface When the surface gets stained, wipe it off with a slightly damp cloth. Also, if the stain is particularly stubborn, use a solution of water-thinned neutral detergent to wipe it off.
  • Page 10: Check List Of Simple Failures

    HANDLING PRECAUTIONS 7. When replacing recording paper, do not place any objects on the open printer cover or do not put your elbows on it. 8. After use, make sure to turn OFF the power switch. In addition, when it is not to be used for a long time, make certain that the plug of the power cord is pulled out form the outlet.
  • Page 11: Specifications

    SPECIFICATIONS Item Specification Board surface size W1300 H920 mm (51-3/16 36 inch) Effective reading size W1240 H880 mm (48-7/8 34-3/4 inch) Number of pages 2 pages Screen driving method One direction endless drive Grid 50mm squares Writing instruments Special markers (black/red/blue) Reading method CCD sensor, plane scanning Recording method...
  • Page 12 PLUS CORPORATION 3-B22, NAKASE 1-CHOME, MIHAMA-KU, CHIBA 261-8501 JAPAN PHONE: 043-296-3056 FAX: 043-296-3025 TELEX: J22113 PLUSJIM, CABLE PLUSJIMUK TOKYO...
