USER'S MANUAL
BF - 041S/BF - 041W
First of all, we would like to thank you very much for
purchasing a PLUS Copyboard MODEL BF-041.
Please read this User's Manual before using the
copyboard to get the best performance out of the
product.
We recommend that you keep this manual for future
reference.
CONTENTS
FEATURES ....................................................... E-3
PRODUCT FEATURES .................................... E-4
CONTROL FUNCTIONS ................................... E-5
HOW TO USE ................................................... E-7
PLUS COPYBOARD SOFTWARE ................. E-12
MAINTENANCE/HOW TO STORE ................. E-16
HANDLING PRECAUTIONS ........................... E-16
TROUBLE SHOOTING ................................... E-18
SPECIFICATIONS .......................................... E-19
E-1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Plus BF-041S
Summary of Contents for Plus BF-041S
-
Page 1: Table Of Contents
BF - 041S/BF - 041W First of all, we would like to thank you very much for purchasing a PLUS Copyboard MODEL BF-041. Please read this User’s Manual before using the copyboard to get the best performance out of the product. -
Page 2: Package Contents
Should you have any questions whatsoever about this information, please call PLUS Corpora- tion of America directly at (503) 748-8700... -
Page 3: Features
FEATURES • The board size is BF-041S: W1300 mm × H920 mm (51.2 × 36.2 inches), BF-041W: W1800 mm × H920 mm (70.9 × 36.2 inches)-large enough to show all the ideas that you discuss during your meetings, without any omissions. -
Page 4: Product Features

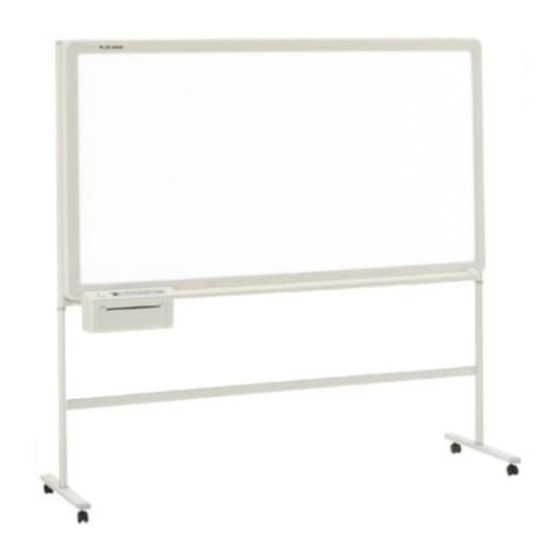

PRODUCT FEATURES FRONT Sheet Printer T-shaped stand (*optional) Caster REAR T-shaped stand (*optional) Power cable * Subject to change depends on sales area. 50mm × 50mm (2 × 2 inches) gridded effective reading area Dust tray Operation panel Printer cover Stabilizer Note: Please fix supplied sta-... -
Page 5: Control Functions
CONTROL FUNCTIONS OPERATION PANEL (BF-041S) OPEN A Opening button ... Press this button to open the printer cover when replac- B Power switch ... Press “ I ” to turn ON the power of the copyboard. C Power lamp ... Press the ON switch, and the green lamp will blink on and D Paper warning lamp ... - Page 6 CONTROL FUNCTIONS OPERATION PANEL (BF-041W) OPEN A Opening button ... Press this button to open the printer cover when replac- B Power switch ... Press “ I ” to turn ON the power of the copyboard. C Power lamp ... Press the ON switch, and the green lamp will blink on and D Paper warning lamp ...
-
Page 7: Before Use
A4/ Letter paper. When copying reduced two-page in one copy (BF-041S only): Press two-in-one page copy key. At this time the sheet scrolls by two pages, and the written contents are reduced to A4/Letter size and copied. - Page 8 HOW TO USE WHEN SCROLLING THE SHEET FORWARD . .. Scrolling by using key Press the feed/stop key. Then, the sheet scrolls to the left by one page and stops. It stops immediately when the feed/stop key is pressed during the scrolling operation. Manual scrolling It is also possible to scroll the sheet manually.
-
Page 9: Standby Mode
3. Install the dedicated USB driver into your computer. (It is required only at first time when you use the copyboard with the computer.) 4. Select “PLUS Copyboard BF-041” from “Choose TWAIN source” of “File” menu 5. Start “BF-041 Twain Driver” from “Acquire TWAIN source” of “File” menu 6. - Page 10 HOW TO USE How to customize the operating configuration (BF-041 Setup Utility Software) The following operating configurations of the BF-041 can be changed using the BF-041 Setup Utility Software. • Auto Power Off Time If no button is pressed after the power is turned on, the lamp automatically turns off after 120 minutes and the copyboard goes into standby mode.
-
Page 11: Quick Calibration
2. Start Quick Calibration 1) Turn off the power. 2) Turn on the power while pressing One-page copy key(BF-041S) or A4 size copy key(BF- 041W) 3) It goes into warm-up mode. Both Power lamp and Paper warning lamp blink simultaneously, and the fluorescent lamp lights. -
Page 12: Plus Copyboard Software
When installing on Windows XP, please install the software with “Computer Administrator” author- ity (account). Notice: Format for HELP The help for the PLUS Image Viewer and the Setup Utility the online help system that is used for Microsoft HTML Help. Operating Environment Supported OS:... - Page 13 PLUS COPYBOARD SOFTWARE Connection to a computer Turn the copyboard’s power on and connect the copyboard to the computer using the USB cable. Note: • Use a USB-IF certified shielded USB cable. • When connecting for the first time, the USB driver must be installed on the computer.
- Page 14 PLUS COPYBOARD SOFTWARE Saving the copyboard’s data on the computer The PLUS Image Viewer and TWAIN driver must be installed in order to save the data drawn on the copyboard onto the computer, display it and print it. Notice: When using a TWAIN compatible application, these operations are possible even if only the TWAIN driver is installed.
-
Page 15: Uninstalling The Software
The installer is launched. Follow the messages displayed on the screen to install. Launching On the computer, choose “Start” © “Programs” © “PLUS Copyboard” © “BF-041 Setup Utility”. The Setup Utility starts up. * For details on using the Setup Utility, see “BF-041 Setup Utility Help”. -
Page 16: Maintenance/How To Store
MAINTENANCE/HOW TO STORE Carry out the following maintenance procedures periodically to ensure high quality copying performance at all times. 1.Cleaning of the sheet surface When the surface gets stained, wipe it off with a slightly damp cloth. Also, if the stain is particularly stubborn, use a solution of water-thinned neutral de- tergent to wipe it off. - Page 17 HANDLING PRECAUTIONS 7. When replacing print paper, do not place any objects on the open printer cover or do not put your elbows on it. 8. After use, make sure to turn OFF the power switch. In addition, when it is not to be used for a long time, make certain that the plug of the power cable is pulled out from the outlet.
-
Page 18: Trouble Shooting
> Adjust the brightness using the setup utility. • The fluorescent lamp may be at the end of its service life. > Contact your store of purchase or a PLUS customer center to have the lamp replaced. • The USB driver is not registered in Device Manager. (! mark is shown.) >... -
Page 19: Specifications
Placing this unit next to equipment or buildings (such as broadcasting stations) where strong RF interference is generated may sometimes cause printing to become blurred or disordered when copies are made. This does not indicate a breakdown or problem in this unit. Specification (BF-041S) W1800 × H920 mm (70.9 × 36.2 inches) W1740 ×...
