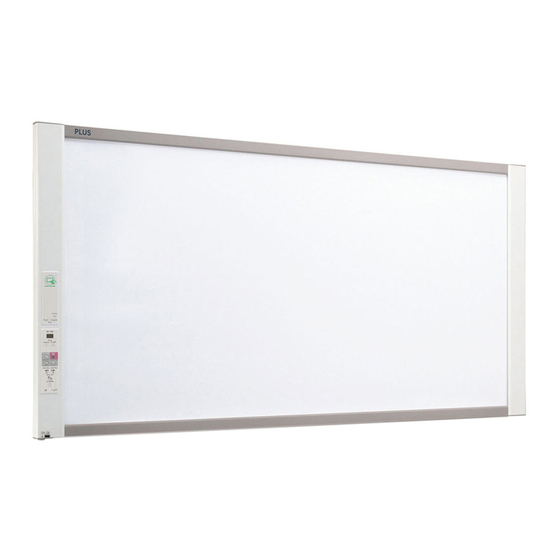

Copyboard
(Network board)

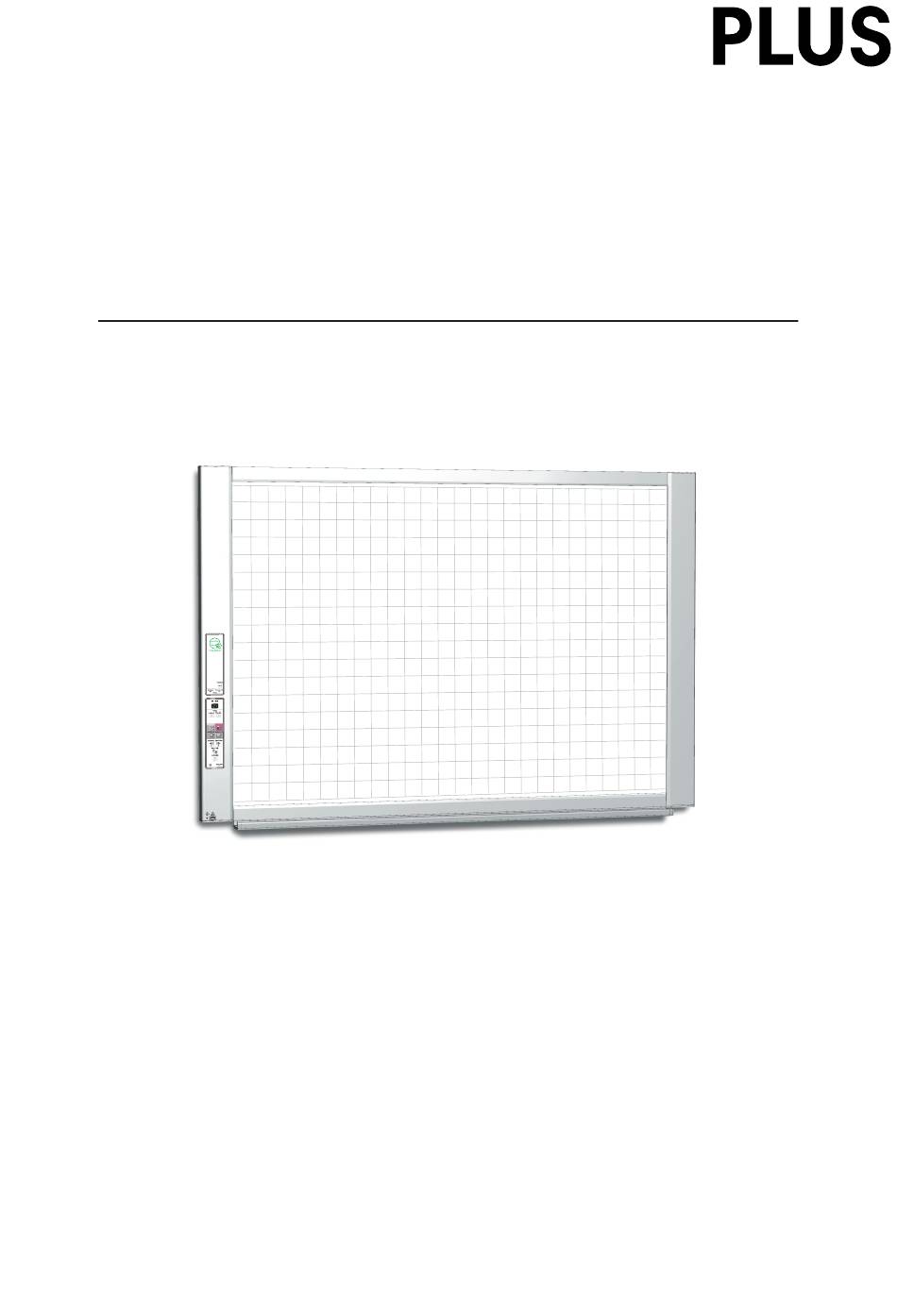

N - 32S/N - 32W/N - 324
User's Manual
Thank you for your purchase of the PLUS Copyboard.
Please read this User's Manual carefully before use to take full advan-
tage of the functions of this product. After you have finished reading
the manual, please keep it for future reference.
Advertisement
Table of Contents
Related Manuals for Plus N-32S
Summary of Contents for Plus N-32S
- Page 1 N - 32S/N - 32W/N - 324 User’s Manual Thank you for your purchase of the PLUS Copyboard. Please read this User’s Manual carefully before use to take full advan- tage of the functions of this product. After you have finished reading...
-
Page 2: Introduction
Introduction This manual is for the network board (model name: N-32S/N-32W/N-324). • The models are categorized into different types. Model Type N-32S Standard size for two screens N-32W Wide size for two screens N-324 Standard size for four screens The descriptions and diagrams in this manual refer to the model N-32S. For using a network, refer to “N-32 Series Network Manual”. * When functions or operations are specific to a certain model of network board, the model name is speci- fied. NOTE • Use only the power cord and AC power adapter supplied with the network board. -
Page 3: Table Of Contents
Table of Contents Using USB Memory ..........E-20 Introduction ...............E-2 Package Contents ............E-4 USB Memory Storage Procedure ......E-20 Names of the Parts ............E-5 Using the network board connected to a computer ..............E-22 Front ..............E-5 CB Setup (Operating the Network Board’s Input/output terminals ..........E-6 Buttons)..............E-24 Changing the Height of the Unit........ -
Page 4: Package Contents
Assembly and Setup Manual. * Depending on the type of product you have purchased, may be sold separately. Pen tray [1] Pen tray fixing screws (M4 × 20) (temporarily fastened on main unit) N-32S/N-324: 3 screws, N-32W: 4 screws (See the Assembly and Setup Manual for assembly instruc- Wall brackets [1 set] tions.) These are brackets for mounting the main unit on a wall. (See the Assembly and Setup Manual.) Upper wall brackets: 2 Lower wall brackets: 2 Main unit fixing screws (M4 × 12: 2) -
Page 5: Names Of The Parts
Names of the Parts Front Main unit Frame cover Sheet Dedicated markers are used on the sheet to draw diagrams and to write. NFC panel (See Page E-9) Control panel (See Page E-8) Pen tray Input/output terminals (see next page) * Located on the bottom surface. Printer table The printer* is placed here. (See the Assembly and Setup Manual.) * The printer is sold separately. AC adapter box Store the AC power adapters of the network * This illustration does not show the connection cords. board and printer here. (See the Assembly and Setup Manual.) Stand This stand supports the network board. (See the... -
Page 6: Input/Output Terminals
Names of the Parts Input/output terminals USB memory port (type A) Connect a commercially available USB memory device. Scanned images can be saved. (See page E-20) The connector is located on the bottom sur- face of the main unit. The diagram view is seen from the bottom. * This illustration does not show the printer or connection cords. DC input connector Connect this with the DC plug end of the AC power Personal computer (PC) dedicated USB adapter. (See Page E-33.) (Only connect the supplied port (Type B) AC power adapter; nothing else.) Connect this with the USB port (type A) of the PC. Used to do the Simple Network Settings for this product. (Refer to the separate “N-32 Series Network LAN terminal (RJ-45) Manual”.) Can also be used to copy scanned images Connect a commercially available LAN cable. -
Page 7: Changing The Height Of The Unit
Names of the Parts Changing the Height of the Unit This is the height adjustment when setting up the network board on the optional stand. The stand height can be adjusted to 3 levels by 100 mm. CAUTION • At least two persons should hold the main unit. If not, the main unit could drop or tip, resulting in accidental injury. • Lock the stand’s casters by pressing the bottom of the caster lock button. If not, the stand could move while the main unit is being mounted or removed, resulting in accidental injury. • After unplugging the power cord from the wall power outlet, disconnect all the connection cords from the set’s input/ output terminals. If the set is removed without disconnecting the cords, it could tip, resulting in accidental injury. • If a printer is mounted on the set, remove the printer before starting. If not, the stand could tip while the main unit is being mounted or removed, resulting in accidental injury due to the printer dropping or tipping over. -
Page 8: Control Panel
The control panel of the drawing refers to Model 5 Thumbnail ( ) ( on N-324) button N-32S/N-32W. Used to select the layout for printing thumbnails of mul- When pressing a button, please press the center area tiple screens on a single page. (the square bulge). The button may not work if it is The selected layout is indicated on the display window. - Page 9 Names of the Parts NFC panel When pressing the button, press the center area (the square bulge). The button may not work if it is pressed on a corner. 1 IC card read/write part Touch the IC card here. Performs reading of IC cards or writing onto dedicated IC cards. Touch the touch mark with the IC card. Touching other places than the touch mark may cause an error. 2 Cancel button Cancels successive transmission standby countdown and deletes the scanned data.
-
Page 10: Functions Of The Network Board
Functions of the Network board Printing Functions ① ② Printing Printing thumbnails of multiple screens on a single page Printing of thumbnails on single page Output to paper ③ ④ Printing or storing multiple screens con- Print to the network printer. secutively Consecutive printing or storing, one screen at a time FTP supported printer * Printing of thumbnails of 2 screens and consecutive on Model N-32S/N-32W. E-10... -
Page 11: Saving Functions
Functions of the Network board Saving Functions ⑤ ⑥ Storing on USB memory devices Capturing images on a computer Storing on USB memory device Storing of image on computer ⑦ ⑧ Using the dedicated IC Card to store imag- Sends mail with attached images using IC es on a specific folder on an FTP server. cards (employee ID cards, etc.), or saves it in an individual folder on the FTP server. Blip! Blip! FTP server SMTP server Viewing FTP server Registered email sddress Save location Save location E-11... -
Page 12: Operation Steps
Operation Steps The network board uses an image scanner to scan characters or diagrams drawn using special markers (four colors). The image can be printed out to the printer and be stored on a USB memory device or a computer. When connected to a network, completing the network settings makes it possible to transfer image files by e-mail, save them on the FTP server or print them on a network printer. -
Page 13: Setting The Time
Setting the Time Be sure to complete clock setting to print correct time and attach time and date information to the created digi- tal files. The time can also be set from a computer via a network (when connected to a LAN). In this section, operation for setting the time by using buttons on the network board is provided. - Page 14 Setting the Time While “F1” is displayed, press the Save button to enter. The display switches to “c1” (first 2 digits of year). If no buttons are operated for 10 seconds while in the time setting mode, the mode returns to the “CB Setup” mode. Press the Save button to move to the last dig- its of the year The display switches to “c2” (last 2 digits of year). Notice: The first two digits of the year (“20”) are fixed. Simply press the Save button to switch to the last 2 digits of the year setting position. Use the Network Print (Increase) and On Board Print (Decrease) buttons to select “18” (the last...
-
Page 15: Printing (Printer Sold Separately
Printing (printer sold separately) Use a printer to print out the image that has been drawn on the sheet surface. Use a PLUS-designated printer. Operations and names of parts differ from printer to printer. For details of operations, see your printer’s operat- ing instructions. The network board can print out to the printer connected to the network board or a network. -
Page 16: Basic Printing Operation
Printing Basic Printing Operation Preparation: Preparation: Check that the AC power plugs of the network board and printer are con- nected to wall power outlets. Press the ON/Standby button and switch on the power. Prepare the printer. (See the previous page.) Note • When turning on the power, wait about 5 seconds or more after the power plug has been connected before pressing the ON/Standby button. • Press the ON/Standby button to switch on the power. The LED of the display window will light. • Turn on the network board’s power before turning on the printer’s power. Press the Scroll/Stop or button and display the sheet surface you want to print. - Page 17 Printing Note • “01” is selected when the power is turned on. • Up to 10 copies can be specified and displayed on the display window. • The number of copies increases by 1 each time the Number of Copies button is pressed, and “ ” is displayed after “10” (this is used for test printing: see page E-30). When the button is pressed again, the display switches to “01”. The number switches continuously if the button is held in. • After setting the number of copies, proceed to step 4 within 1 minute. The number of copies is reset to “01” if no operation is performed within 1 minute. Press the Network Print or the On Board Print button to print. The reading operation is performed for a one-sheet portion (while the sheet is scrolled) and the printing operation is per- formed. To change printing color (Color or B/W), perform thumbnail printing or continuous printing, make each setting (see next page) and press the appropriate Print button. Notice • To use the network printing function, connect the FTP supported printer to the same network where the network board is located, and make the printer settings on the network board. Cancellation of the print operation in progress When the ON/Standby button is pressed, the reading of the sheet stops, and the partially read image data is printed. Wait until the sheet is expelled from the printer. Note • If the ON/Standby button is pressed while the sheet surface is being read, printing is interrupted and only part of the image will be printed. • The one-screen portion is reduced to A4 paper size and printed. For wide type network boards (model N-32W), the image is compressed about 75% in the horizontal direction. To print with the same proportions as the image on the sheet surface, see “CB Setup (Operating the Network Board’s Buttons)” (page E-24).
-
Page 18: Moving The Sheet Surface Manually
Printing Moving the sheet surface manually The sheet can be moved even when the power of the network board is switched off. The sheet can be moved with your hand either in left or right. Please place your hand at the vertical center and move the sheet slowly. Notice • Quick movement can cause damage to the drive mechanism of the network board. Note • When the Erase Reminder function is set to “Enable”, the Erase Reminder function may not operate properly if the sheet surface is moved by hand. Printing Thumbnails Multiple screens from the screen at the current position can be printed on a single page. • The thumbnail printing function is for printing only. Storing with the Save or Network button is not possible. Press the Thumbnail button and select the page layout. Display window status and page layout Thumbnail Movement of display win- Page layout (Button on model N-324) selection dow LEDs The mode switches in the following order each time the Thumbnails of 2 button is pressed. -
Page 19: Consecutive Printing
Printing Consecutive Printing Multiple screens from the screen at the current position can be printed (or stored). Press the Continue button and select the number of screens. Consecutive printing Consecutive printing number number indicators indicators One lit: Cancel (single- One lit: Cancel (single-screen printing/storing) screen printing/storing) Two lit: Screens 1 and 2 printed/stored consecutively Two lit: Screens 1 and 2 Three lit: Screens 1 to 3 printed/stored consecutively printed/stored consecu- Four lit: Screens 1 to 4 printed/stored consecutively (Button on model tively N-324) The mode switches in the following order each time the button is pressed. Screens 1 and 2 → Cancel ... (Screens 1 and 2 → Screens 1 to 3 → Screens 1 to 4 → Cancel ... on model N-324) The number of consecutive screens is indicated by the number of consecutive printing number indicators that are lit yellow. -
Page 20: Using Usb Memory
Using USB Memory The content of what has been drawn on the sheet surface of the network board can be saved in USB memory. Later, the saved image can be read into a personal computer and made into a document of the proceedings of the meeting, or affixed to a document. - Page 21 Using USB Memory Press the Save button to store. Flashing indicator “rotates” sequentially during USB memory storage operation. Display window • The reading operation is performed for a one-sheet portion (while the sheet is scrolled) and USB memory storage starts after the scrolling completes. • Multiple screens can be stored consecutively. (See Page E-19, “Consecutive Printing”.) • If the images are in PDF format, all the images are combined into1 file. For other image formats, the images are stored in multiple files with -1, -2 added to the end of the sequential file names. (Example: PV-001-1.png, PV-001-2.png). The (5 second) flashing “US” display indicates that the USB memory has not been inserted. Please insert the USB memory and then press the Save button.
-
Page 22: Using The Network Board Connected To A Computer
Using the network board connected to a computer When the network board and a computer are connected by USB cable, the network board is recognized as an external memory device (removable device). Below is the procedure for copying the “CBImage” file from this device onto the computer. Images can be stored in JPEG (.jpg), PNG (.png) or PDF (.pdf) format, selectable in the network board settings (“CB Setup”). - Page 23 Using the network board connected to a computer Launch Explorer and open this unit’s removable device. (1) When the device icon for the network board (displayed as a removable disk) is double-clicked, the network board’s internal memory opens. The “CBImage” file is the scanned image file (“.jpg”, “.png” or “.pdf”, according to setting). • The “setup” folder contains the simple network settings file. (2) Copy the “CBImage” file to [My Documents], etc., on the computer (“.jpg”, “.png” or “.pdf”, according to setting). Perform the USB disconnection operation on the computer before disconnecting the USB cable. Note that the image data in the network board’s computer storage memory is deleted if the operation for disconnecting the USB connection between the network board and computer is performed at this time. Note If both USB memory device and computer are connected to the network board, data is saved in memory for PC. Data is not saved in memory for USB. • The “setup” folder will be created in memory for PC. This folder contains the “setting.ini” file recording the firm- ware version, MAC address, network settings. For details, refer to the separate “N-32 Series Network Manual”. E-23...
-
Page 24: Cb Setup (Operating The Network Board's Buttons
CB Setup (Operating the Network Board’s Buttons) There are two ways to make the device settings: using the network board’s operation buttons to make the set- tings (“CB Setup”) and making the settings via the web on the computer connected to a network. The description here provides operation using the network board’s buttons. For using the network board connected to a network, refer to the separate “N-32 Series Network Manual”. -
Page 25: Table Of Function Numbers And Settings
CB Setup (Operating the Network Board’s Buttons) Table of Function Numbers and Settings Function Setting Item Description Setting Status Indicators Number The date and time are stamped on the printing paper Year, month, Not lit Time Setting and recorded in the file information when files are day, hours, stored. minutes Selection of whether to print in A4 paper size or letter Color Print size. (Lit) (Off) Paper Size • This operates when the network board is con- Letter Color Print nected to a printer. - Page 26 CB Setup (Operating the Network Board’s Buttons) Function Setting Item Description Setting Status Indicators Number Setting of whether or not to notify the user that char- Disable Color Print acters or diagrams drawn on the back side of the (Lit) (Off) network board’s sheet surface have not been erased. Enable Color Print This is effective for confidential meetings, etc. (Off) (Lit) Disable: T he Erase Reminder function does not work. (Setting upon factory shipment) Enable: W hen the ON/Standby button is pressed to Erase Reminder turn the power off, the display window on the network board’s operation panel flashes...
-
Page 27: Meaning Of Error Messages
When the “USb” letter display is • Did you press the ON/Standby button • A USB memory device is plugged into flowing...Warning that disconnec- while the USB memory device was plugged the main unit. When the USB memory tion of USB memory has been for- device is disconnected, the power will into the main unit? gotten be switched off and the unit will enter the standby mode. If the problem persists, please contact your nearby PLUS Corporation sales office, dealer, or store. E-27... - Page 28 Meaning of Error Messages Network (main unit) related errors Error Display Number Problem and Solution LAN cable dis- • No cable is connected to the LAN terminal. • Connect the LAN cable properly. connected FTP/SMTP/LDAP • The account name or password in the FTP, • Input the correct values. * server recognition SMTP or LDAP settings is wrong. error FTP/SMTP/LDAP • The FTP server’s IP address is wrong. • Consult your network administrator, then server connection • The SMTP or LDAP server’s address is make the proper settings. * failure wrong. FTP server writing • There is no FTP storage folder.
-
Page 29: Troubleshooting
PC does not recognize the the USB cable is connected properly. network board • Is the network board connected to the PC via a USB hub? (Connect the network board directly to the USB port of the PC.) The date is not updated. • The network board’s battery is dead. Contact your store of purchase. * If the problem persists, please contact your nearby PLUS Corporation sales office, dealer, or store. Condition Please Check The network board’s power turns on, but • Check whether the printer’s power plug (DC plug) is securely inserted. the printer’s power does not. If the power still does not turn on, check whether the printer’s AC power adapter side plug is unplugged from the AC power adapter. (For some print-... - Page 30 • Is “Caps Lock” set on the computer’s keyboard while inputting the user name and password? Printing is not possible when Network Print • Set the Printer Setting in the “Network Setting”*. button is pressed. * For setting or checking for network, refer to the separate “N-32 Series Network Manual”. Test Printing (checking the printing status of inkjet printers) 1) With the network board’s power on (with the display window lit), press the Number of Copies button repeatedly to display “ ” on the display window. 2) Press the Color / B/W button to select a printing color mode and press the On Board Print button. * Test printing starts. Check the print • Is the each color line printed uniformly? • Are there missing dots, pale lines, lines with thinner ink than others, etc.? Remedy • If the nozzle is partially clogged, follow manufacturer’s cleaning instruction. • If the quality of the print does not improve even though the nozzle has been cleaned, wipe off the ink on the surface of the nozzle. * Please see your printer manual for information about printing problems, printer maintenance, and details related to printing. Updating the network board’s internal program See the PLUS website for instructions on updating the program and to download the latest program. E-30...
-
Page 31: Scanning Adjustment (White Calibration
Scanning Adjustment (White Calibration) If dark lines (horizontal black lines) on a printed out hard copy or image on the screen are generated, you need to optimally adjust the sensitivity of reading the sheet surface. If the scanning image does not work due to generation of dark lines, update the program and perform the white calibration in the following steps. -
Page 32: Specifications
Specifications BOARD TYPE (Model name) Standard (N-32S) Wide (N-32W) 4-screen (N-324) Installation method Self-standing (T-shaped legs), or wall mounting External dimensions (T-shaped W1480 × D675 × H1947*² W1980 × D675 × H1947*² W1480 × D675 × H1947*² legs*¹) Form Main unit weight 20 kg*³... -
Page 33: Appendix
Appendix Connections and Wiring Diagram • The connections and wiring diagram below is included here for checking the connections. [Network board and Printer Connections Diagram] Network board front panel To Printer connector To DC INPUT connector USB cable (supplied with the printer) To USB connector Printer To DC connector Printer AC power adapter AC power adapter (supplied) (supplied with the printer) To wall power outlet * Appearance of printer is for illustration purposes. Note • The AC power adapters of accessories and printers that have been verified to be operation many differ from the ones shown on the connections diagram (they may be of the built-in or mounted-on type). - Page 34 26-4721-18A...
