- Page 1 OPERATION MANUAL BF-035 BOARD FAX English Français Deutsch Italiano Español 中国語 PLUS...
- Page 2 Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 OPERATION MANUAL BF-035 English PLUS...
-
Page 4: Table Of Contents
Should you have any questions whatsoever about this information, please call PLUS Corporation of America directly at (201)818- 2700 CONTENTS FEATURES ... -
Page 5: Features
BF-035 BOARD FAX CARTON CONTENTS Please be sure all of the following items are included in the carton with the BF-035 BOARD FAX Copyboard main unit ... 1 ACCESSORIES Set of Dry-eraseble markers (one each black, red and blue). Dry-Eraser (1) Fax Paper (30m(96ft) , 12mm(w/1/2") core) Operation Manual with warranty card OPTIONAL ACCESSORIES... -
Page 6: Product Features

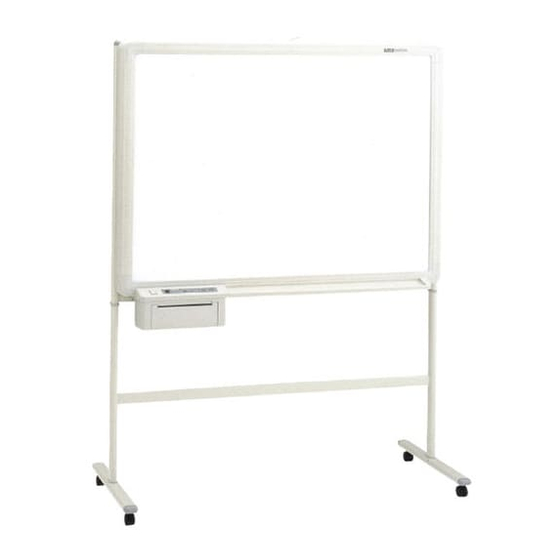

PRODUCT FEATURES FRONT Writing panel Printer T-shaped stand REAR Expansion slot (for optional upgrades) Optional accessory sold separately: （ PC interface board - to enable down- loading of board information from the BF-035 to the PC 50mm(2") × 50mm (2") gridded surface area Tray Operation panel... -
Page 7: Control Functions
CONTROL FUNCTIONS OPERATION PANEL PLUS BOARDFAX BF-035 POWER ON OPEN POWER PAPER OUT Opening button ... Press this button to open the printer hatch when replacing Power switch ... Press "I" to turn ON the power when starting machine Power lamp ... Press the switch, and the green lamp will blink on and off. -
Page 8: How To Use
HOW TO USE I BEFORE USE... G Engage the caster locks to prevent board movement. G Plug in and turn ON the power switch. G Turn on the power switch, and the panel will slide to show the first page. After blinking on and off 2-3 times, the power lamp remains lit. -
Page 9: Printer Cover
I WHEN SLIDING THE PANEL FORWARD... PAGE-L When page 1 is displayed, press the PAGE-L key, and the panel will move to page 2. The page number increases as many times as you press the key. The desired page (the page you wish to turn to) number will be indicated by the blinking LED. - Page 10 HOW TO USE As illustrated, set the new roll in so that the tip of thermal paper extends about 20cm (8") from the outlet. To close the cover, push both ends of it until it locks with a clicking noise. At this time, make sure that the thermal paper has not slipped off the edge.
-
Page 11: Maintenance/How To Store
MAINTENANCE/HOW TO STORE Carry out the following maintenance procedures periodically to ensure high quality printing performance at all times. (1) Cleaning of pages 1-4 When the surface gets stained, wipe it off with a slightly damp cloth. Also, if the stain is particularly stubborn, use a solution of water-thinned neutral detergent to clean. -
Page 12: Trouble Shooting
When characters written on the panel cannot be erased even using an eraser When copy is dirty ∗ If no satisfactory result can be achieved even after the above, contact your dealer or PLUS CORPORATION. HANDLING PRECAUTIONS 20mm... -
Page 13: Specifications
SPECIFICATIONS Item W1300 × H920 mm (51-3/16 × 36 inch) Board surface size W1240 × H800 mm (48-7/8 × 34-3/4 inch) Effective reading size Number of pages 5 pages (4 pages can be copied) The 5th page is a projection screen 1240 (50") × 880 (35") Screen Panel driving method Bi-directional scrolling method... - Page 14 14-4146-01A...
