2. SECURITY SYSTEM FLOOR PLAN

EXAMPLE SYSTEM

The example shows a typical DVS-1200
system.
Any or all of the accessories shown can be
used.
A total of 12 sensors (including keypads) can
be used with each Console.

DESIGN THE INSTALLATION

Create a floor plan of the installation.
Consider the security needs of the premises.
Determine which doors and windows are
vulnerable to intrusion.
Figure which interior areas an intruder might
go to if unlawful entrance is gained.
Indicate locations for door/window sensors,
interior motion detectors, keypads, glass
break detectors and external siren speakers.
Decide on a centralized location for the
security Console.
ES
MD
S
BED
S
MS
BATH
NOTE: IN NEW CONSTRUCTION, NFPA 71 REQUIRES A
SMOKE DETECTOR LOCATED INSIDE EACH BEDROOM
AS WELL AS A SMOKE DETECTOR ON EACH LEVEL.
4
GB S
WK
ENTRY
LIVING
DINING
SD
BED

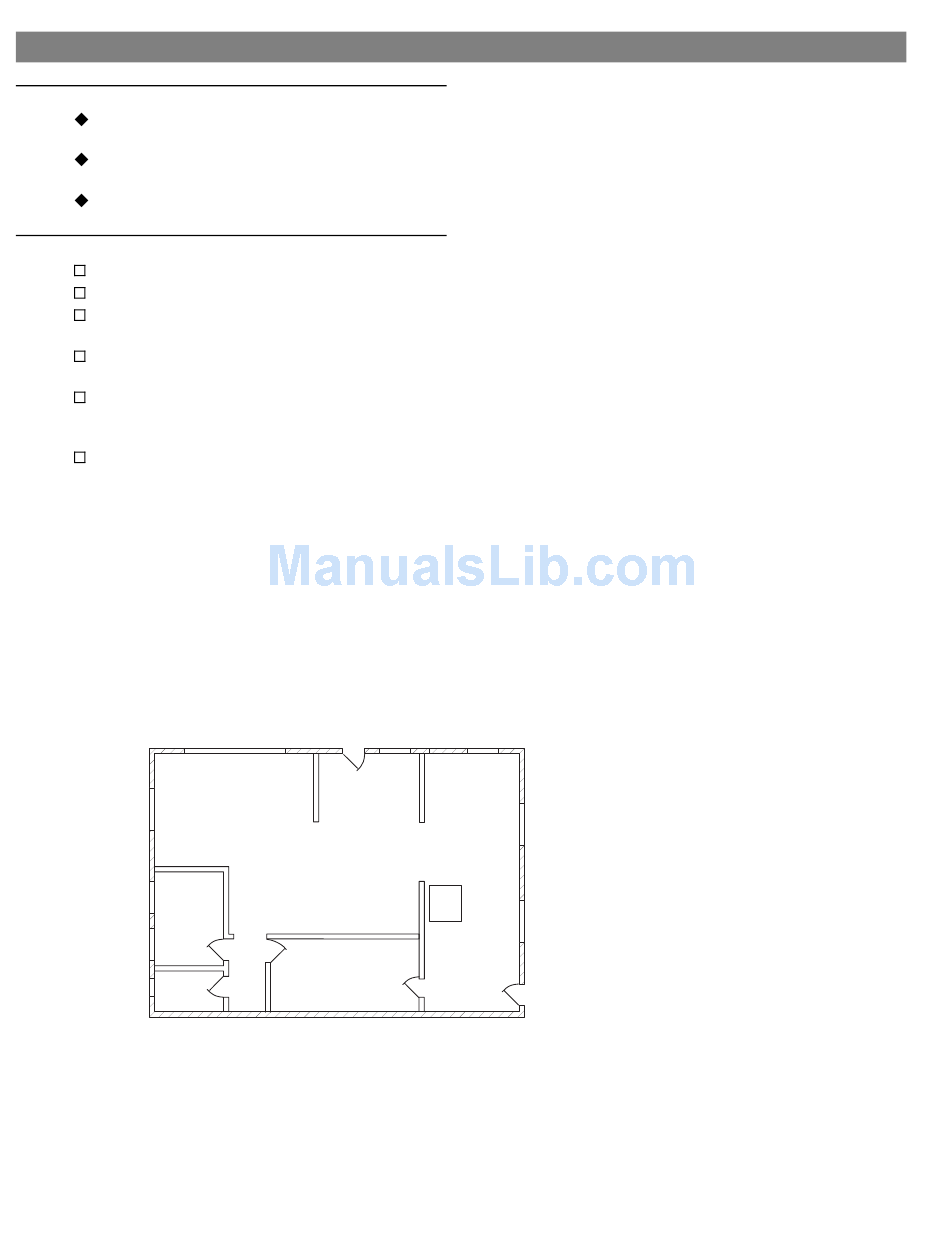

Example Residential Security System Floor Plan
CON - CONSOLE
MS
S - DOOR/WINDOW SENSOR
WK - WIRELESS KEYPAD
MD - MOTION DETECTOR
ES - EXTERNAL SIREN
SD - SMOKE DETECTOR
GB - GLASS BREAK SENSOR
KITCHEN MS - EXTERNAL MAGNETIC SWITCH
CON
MS
S
