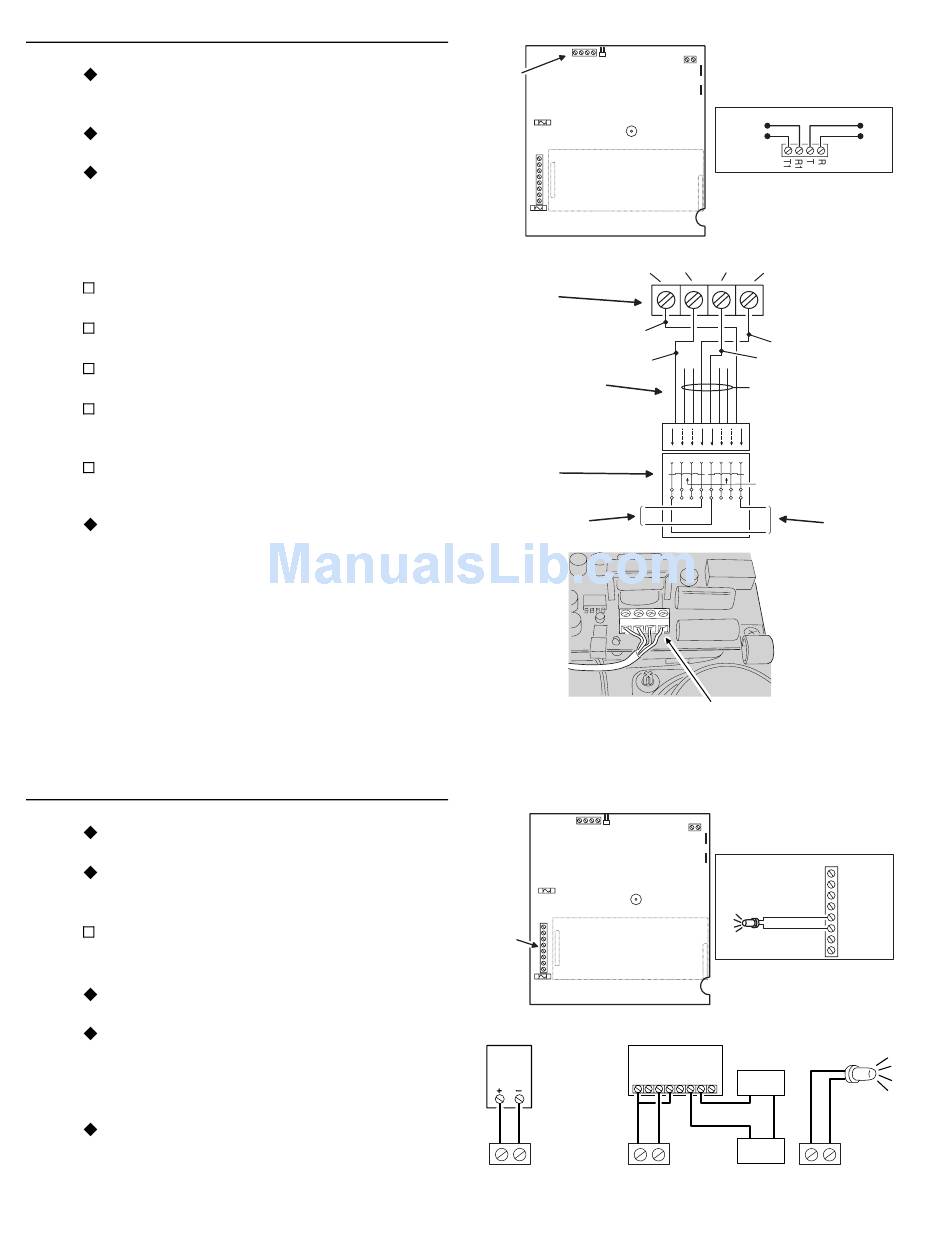

TELEPHONE LINE CONNECTION (OPTIONAL)

Connect the Console to the telephone line if
the system is monitored, requires 2-way
audio, or requires telephone remote command.
Telephone ring & tip terminals are for
connection to the incoming telephone line.
Seized telephone ring & tip are for connection
to local telephone sets. When the
communicator activates, all the local
telephone sets will be disconnected to prevent
an off-hook telephone on the premises from
blocking the communicator call.
Install a USOC RJ31-X or RJ38-X jack to the
telephone system near the Console.
Route an appropriate modular telephone line
cord from the jack to the Console.
Route the line cord through the Console's
wiring access hole.
Connect the incoming telephone line wires to
the Console's telephone terminal block TIP
and RING terminals.
Connect the local telephone set wires to the
Console's telephone terminal block SEIZED
TIP and SEIZED RING terminals.
When directly connecting (without a telephone
line) to the DVS-1200 with the RA-2400
remote access software (Version 1.3 or later),
disconnect the incoming telephone line and
connect the modem to the panel's TIP and
RING terminals (with the modem's red &
green phone line wires). Press the
[ EMERGENCY ] key while in Test Mode to
cause the panel to connect to the modem.

AUTOMATION OUTPUT CONNECTION (OPTIONAL)

The Console provides a Automation Output to
control lights, devices and appliances.
Automation Output can connect to most
popular home automation devices and other
simple electronic devices (see Figure).
Press [ (A) ] to turn the Automation Output on,
press [ (A) ] again to turn it off.
Programmable Options
There are many programmable options for the
Automation Output.
The Automation Output can be programmed
for a variety of useful functions, such as:
flashing during alarm, flashing after an alarm,
on while armed, or, on during exit/entry
delays.
See the "Advanced Programming" section of
this manual for details on changing the
function of the Automation Output.
10
TELEPHONE
TERMINAL
LINEAR SECURITY CONSOLE MODEL DVS-1200
BLOCK
OPTIONAL
VOICE MODULE
MODEL: VB-4
SEIZED
TIP (T1) RING (R1)
DVS-1200
TELEPHONE
TERMINAL
BLOCK
BROWN
GRAY
8-PIN
MODULAR
PHONE CORD
8-POSITION
USOC RJ31-X
(OR RJ38-X)
JACK
R
T
TO TELEPHONE
NETWORK
LINEAR SECURITY CONSOLE MODEL DVS-1200
MAIN
TERMINAL
BLOCK
OPTIONAL
VOICE MODULE
MODEL: VB-4
EXAMPLE AUTOMATION OUTPUT HOOK-UPS
X-10
LINEAR RB-90
BURGLAR ALARM
X-10
RELAY MODULE
INTERFACE
(CAN CONTROL
HOUSE LIGHTS
THROUGH X-10
SYSTEM)
H/A + H/A - H/A + H/A -
TELEPHONE TERMINAL BLOCK
SEIZED RING
SEIZED TIP
TO LOCAL TO PHONE
PHONES
SEIZED LINE LINE
TIP (T) RING (R)
RED
GREEN
BLUE, ORANGE
BLACK, AND
YELLOW NOT
USED
SHORTING BAR
R1 R T T1
SHORT REMOVED
ON PLUG
INSERTION
1 2 3 4 5 6 7 8
T1
TO LOCAL
TELEPHONE
R1
SETS
CONNECT TELEPHONE LINE
TO THE TELEPHONE
TERMINAL BLOCK
MINUS H/A TERMINAL WILL SWITCH
TO GROUND WHEN AUTOMATION
OUTPUT IS ACTIVATED
MAIN TERMINAL BLOCK
LIGHT EMITTING
DIODE (L.E.D.)
POSITIVE H/A TERMINAL PROVIDES
+12 VOLTS DC AND IS CURRENT
LIMITED AT 30 MILLIAMPS MAXIMUM
YOUR
LOAD
POWER
SOURCE
H/A + H/A -
TIP
RING
LINE
AC
AC
EXT. SPKR
(-)
H/A -
H/A +
RELAY N.O.
RELAY DRY
LIGHT
EMITTING
DIODE
(L.E.D.)
