- Page 1 Produktfamilie System board D1919 for TX200 S2 Technical manual Redakteur Fujitsu Siemens Computers GmbH München 81730 Munich e-mail: email: manuals@fujitsu-siemens.com Tel.: (089) 61001-??? Fax: (++49) 700 / 372 00000 A26361-D1919-Z120-1-7419 Sprachen: En Edition October 2004...
- Page 2 Gesellschaft für Technik-Dokumentation mbH www.cognitas.de Copyright and Trademarks Copyright © 2004 Fujitsu Siemens Computers GmbH. All rights reserved. Delivery subject to availability; right of technical modifications reserved. All hardware and software names used are trademarks of their respective manufacturers.
-
Page 3: Table Of Contents
Replacing the lithium battery ....37 Abbreviations ....... 39 A26361-D1919-Z120-1-7419... -
Page 5: Introduction

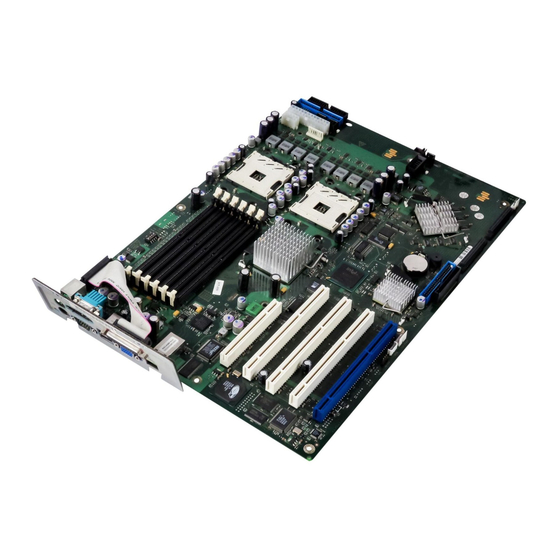

Introduction This technical manual describes the system board D1919, which can be ® equipped with one or two Intel processors. Further information about drivers is provided in the readme files on the hard disk, on the supplied "ServerSupport" or "ServerStart" CDs. -
Page 7: Important Notes
Information on which system expansions are suitable can be obtained from the customer service centre or your sales outlet. The warranty expires if the device is damaged during the installation or replacement of system expansions. A26361-D1919-Z120-1-7419... - Page 8 All batteries containing pollutants are marked with a symbol (a crossed-out garbage can). In addition, the marking is provided with the chemical symbol of the heavy metal decisive for the classification as a pollutant: Cd Cadmium Hg Mercury Pb Lead A26361-D1919-Z120-1-7419...
- Page 9 Use a grounding cable designed for this purpose to connect yourself to the system unit as you install/deinstall the board. Place all components on a static-safe base. You will find a detailed description for handling ESD components in the relevant European or international standards (EN 61340-5-1, ANSI/ESD S20.20). A26361-D1919-Z120-1-7419...
-
Page 10: Ce Certificate
Never use sharp objects (screwdrivers) for leverage. CE Certificate The shipped version of this board complies with the requirements of the EEC directive 89/336/EEC "Electromagnetic compatibility". Compliance was tested in a typical PRIMERGY configuration. A26361-D1919-Z120-1-7419... -
Page 11: Environmental Protection
Take-back, recycling and disposal For details on take-back and reuse of devices and consumables within Europe, contact your Fujitsu Siemens Computers branch office/subsidiary or our recycling centre in Paderborn: Fujitsu Siemens Computers... -
Page 13: Features
– VGA controller (ATI Rage XL) onboard with 8 MB SDRAM memory – SCSI controller U320 (2 channel LSI 53C1030) with IME function – Super I/O controller (SMSC LPC47M107) – Flash EPROM for: – SCSI-BIOS – BIOS – LAN – server management (SM) A26361-D1919-Z120-1-7419... - Page 14 – 2 serial ports (COM1, COM2) – 1 parallel port (optional) – 2 PS/2 interfaces for keyboard and mouse – 2 USB 2.0 ports with 480 Mbits/s (rear side) – 1 VGA port – 1 RJ45 LAN port A26361-D1919-Z120-1-7419...
- Page 15 – 120 MB floppy disk drive – CD-ROM – USB drive – LAN – no alert on LAN – console redirection support – OEM logo – CPU, memory disable – hotspare memory support Environmental protection battery in holder Form factor 292 x 415 mm A26361-D1919-Z120-1-7419...
-
Page 16: Main Memory
– Each pair must consist of identical memory modules (2 way interleaved mode). – The module capacity between pairs can differ: pair 0A/0B can be populated with two 512 Mbyte modules and pair 1A/1B with two 1 Gbyte modules. – Only single ranked modules are permitted. A26361-D1919-Z120-1-7419... - Page 17 Features Main memory Following table shows the mandatory population order: module pair 2A/2B module pair 1A/1B module pair 0A/0B populated empty empty populated populated empty populated populated populated A26361-D1919-Z120-1-7419...
-
Page 18: Pci Bus
2, depending on the slots’ population. – the PCI bus speed is 133 MHz, if only one of the two slots (or no slot) is populated. – the PCI bus speed is 100 MHz for all other population variants for slot 1 and 2. A26361-D1919-Z120-1-7419... -
Page 19: Isa Bus Resources
IDE controller (secondary) 170-177, 376 "IRQ" = interrupt assigned as shipped "Address" = this address can be used for your particular device "Address" = this DMA can be used for your particular device Default settings are shown in bold print A26361-D1919-Z120-1-7419... -
Page 20: Pci Resources
3, 4, 5, 6, 7, 9, 10, 11, 12, 14, 15 The selected ISA interrupt is assigned to the PCI interrupt. You may not select an ISA interrupt that is used by a component on the system board (e.g. controller) or an ISA board. A26361-D1919-Z120-1-7419... -
Page 21: Screen Resolution
Screen resolution Refresh rate (Hz) Max. number of colours 640x480 16,7 Mio. 800x600 16,7 Mio. 1024x768 16,7 Mio. 1152x864 16,7 Mio. 1280x1024 16,7 Mio. A26361-D1919-Z120-1-7419... -
Page 22: Temperature / System Monitoring
The temperature and system monitoring are controlled by an onboard controller developed by Fujitsu Siemens. The following functions are supported: Temperature monitoring Measurement of the processor temperature, measurement of the ambient temperature by a temperature sensor on the LED board. -
Page 23: Leds
Setup or via ServerView. LEDs L3-L6 L1, L2 CPU0 CPU1 Figure 4: LEDs L1 and L2 are visible from outside on the rear of the server. All the other LEDs are only visible, if the cover of the server is open. A26361-D1919-Z120-1-7419... - Page 24 CPU0 not populated L6 - board green flashing BMC - baseboard management controller is ok BMC not alive L7 - system green fan running fan 1 fan failure L8 - system green fan running fan 2 fan failure A26361-D1919-Z120-1-7419...
-
Page 25: Interfaces And Connectors
Features Interfaces and connectors Interfaces and connectors CPU0 CPU1 Figure 5: Schematic view of the system board D1919 1 = Printer (optional) 14 = redundant system fan 2 = DIP switch (see page 15 = System fan 2 3 = CPU fan (optional) -
Page 26: External Ports
Interfaces and connectors Features 3.7.1 External ports Figure 6: External ports of the system board D1919 1 = PS/2 mouse connector 5 = VGA port 2 = serial interface COM2 6 = serial interface COM1 3 = USB ports 0 and 1... - Page 27 Figure 7: LAN connectors LAN transfer rate green + yellow off transfer rate 10 Mbit/s (or no connection) green transfer rate 100 Mbit/s yellow transfer rate 1000 Mbit/s LAN link/aktivity green LAN connection no LAN connection flashing LAN transfer A26361-D1919-Z120-1-7419...
-
Page 28: Settings With Switches
Switch 2 is used to define whether the password is queried at system startup, if the password protection is enabled in BIOS Setup (in Security menu, the Password field must be set to Enabled). The password query is skipped. Passwords are deleted. The password query is effective (default setting). A26361-D1919-Z120-1-7419... - Page 29 To write and delete floppy disks, the write-protection in BIOS Setup must be disabled (in menu Security, the field Diskette Write must be set to Enabled). The floppy disk drive is write-protected. Floppy disks can be read, written and deleted (default setting). A26361-D1919-Z120-1-7419...
-
Page 31: Scsi/Ime Configuration Program
[ENTER] to accept a selection [ESC] to call the previous menu and to terminate the SCSI configu- ration program [F2] to jump into the menu line. This function is not available in all menus A26361-D1919-Z120-1-7419... - Page 32 Depending on the current menu level, you can display the previous menu by pressing the [ESC] key. If you have made changes in the current menu you will be prompted to store them. To quit the configuration program press the [ESC] key until a corresponding message is displayed. A26361-D1919-Z120-1-7419...
- Page 33 There can be only one RAID configured on the two channel SCSI controller. All the hard disks of this RAID must be connected to channel The administration of the RAID system can be set later by a tool in your operating system (see therefore the documentation "Global Array Manager"). A26361-D1919-Z120-1-7419...
- Page 34 SCSI controllers. In this case each SCSI controller may be assigned address 7, because each is connected to it's own SCSI bus. SCSI Bus Defines the scan order of the IDs on the SCSI bus. Scan Order A26361-D1919-Z120-1-7419...
- Page 35 SCSI controller. Termination The terminating resistors of the SCSI controller must be enabled. Control The default setting is Auto. The terminating resistor of the SCSI controller is automaticlly enabled, if SCSI devices are connected to the SCSI bus. A26361-D1919-Z120-1-7419...
- Page 36 SCSI device with this special address is connected to the bus. The default setting is Yes, i.e. the corresponding SCSI address is checked. Scan LUNs This option determines whether a SCSI device has multiple LUNs (Logi- >0 cal Unit Numbers). The default setting is (disabled). A26361-D1919-Z120-1-7419...
- Page 37 You can disable the function [No] if you have only connected one SCSI device. In this case, disabling disconnection improves performance slightly. SCSI Timeout The default setting is <10>. Queue Tags The default setting is [On] (enabled). With this setting the performance for devices, which support this function, is improved. A26361-D1919-Z120-1-7419...
- Page 38 The default setting is Color. This setting defines whether the menus of the SCSI confi- guration program are displayed in colour or in black and white. Support Interrupt The default setting is Hook interrupt, the Default. This setting defines the interrupt behaviour. A26361-D1919-Z120-1-7419...
- Page 39 SCSI/IME configuration program Boot Adapter List Boot Order This setting defines the boot order. Next Boot This setting defines, whether this controller is available as boot controller during the next boot. A26361-D1919-Z120-1-7419...
-
Page 41: Replacing The Lithium Battery
Press the locking spring into direction of of the arrow (1), so that the lithium battery jumps out of its socket. Remove the battery (2). Insert a new lithium battery of the same type into the socket (3) and (4). A26361-D1919-Z120-1-7419... -
Page 43: Abbreviations
Advanced Configuration and Power management Interface ASSR Automatic Server Recovery and Restart Advanced Technology Attachment Battery Backup Unit BIOS Basic Input Output System Baseboard Management Controller CMOS Complementary Metal Oxide Semiconductor COMmunication port Central Processing Unit Double Data Rate DIMM Dual In-line Memory Module A26361-D1919-Z120-1-7419... - Page 44 Electrical Erasable Programmable Read Only Memory EPROM Erasable Programmable Read Only Memory EMRL Embedded RAID Logic EVRD Enterprise VRD Hotplug Controller In Circuit Emulation Integrated (intelligent) Drive Electronics Integrated Mirror Enhanced IOOP Intelligent Organisation Of PCI IPMB Intelligent Platform Management Bus A26361-D1919-Z120-1-7419...
- Page 45 Light Emitting Diode Multi Processor Specification Non Maskable Interrupt Original Equipment Manufacturer OHCI Open Host Controller Interfache Operating System Peripheral Components Interconnect Prefailure Detection and Analyzing Programmed Input Output Programmable Logic Device PS(U) Power Supply (Unit) Puls Wide Modulation A26361-D1919-Z120-1-7419...
- Page 46 Real Time Clock SCSI Small Computer Systems Interfache SDDC Single Device Data Correction SDRAM Synchronous Dynamic Random Access Memory SHDG Server Hardware Design Guide System Management Bus Server Management Mode Symmetrically Multi Processing UHCI Unified Host Controller Interface Universal Serial Bus A26361-D1919-Z120-1-7419...
- Page 47 Abbreviations Video Graphics Adapter Voltage Regulator Down Voltage Regulator Module Wired for Management Wake up On LAN A26361-D1919-Z120-1-7419...
- Page 49 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 81730 Munich Germany Corrections Fax: (++49) 700 / 372 00000 email: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on System board D1919 Technical manual A26361-D1919-Z120-1-7419...
- Page 51 Comments Fujitsu Siemens Computers GmbH User Documentation Suggestions 81730 Munich Germany Corrections Fax: (++49) 700 / 372 00000 email: manuals@fujitsu-siemens.com http://manuals.fujitsu-siemens.com Submitted by Comments on System board D1919 Technical manual A26361-D1919-Z120-1-7419...
- Page 53 Information on this document On April 1, 2009, Fujitsu became the sole owner of Fujitsu Siemens Compu- ters. This new subsidiary of Fujitsu has been renamed Fujitsu Technology So- lutions. This document from the document archive refers to a product version which was released a considerable time ago or which is no longer marketed.
