Summary of Contents for Kramer PT-102VN
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: PT-102VN 1:2 Video DA... -
Page 2: Table Of Contents
Figure 2: Connecting the PT-102VN 1:2 Video DA Figure 3: Increasing the Inputs: Arranging a 4:2 DA Figure 4: Increasing the Outputs: Arranging a 1:10 DA Tables Table 1: Features and Functions of the PT-102VN 1:2 Video DA Table 2: Technical Specifications of the PT-102VN... -
Page 3: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com 4 For example: model number AD2512C, part number 2535-000251... -
Page 4: Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview Overview The Kramer PT-102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs. • Accepts a single input and distributes it to 2 identical outputs using BNC connectors •... -
Page 6: Your Pt-102Vn 1:2 Video Da

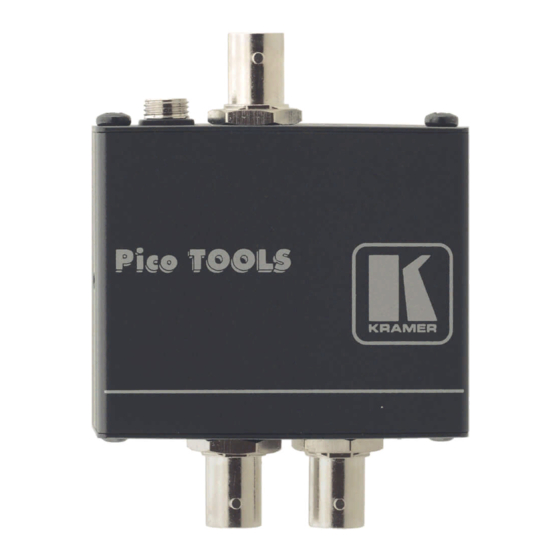

Your PT-102VN 1:2 Video DA Figure 1 Table 1 define the PT-102VN 1:2 Video DA: Figure 1: PT-102VN 1:2 Video DA Table 1: Features and Functions of the PT-102VN 1:2 Video DA Feature Function 12V DC +12V DC connector for powering the unit... -
Page 7: Using The Pt-102Vn 1:2 Video Da
4. If required, adjust the output signal level and/or cable compensation equalization level. 1 Switch OFF the power on each device before connecting it to your PT-102VN. After connecting your PT-102VN, switch on its power and then switch on the power on each device... -
Page 8: Increasing The Inputs
PT-102VN, if required. 1 A mechanical switcher that lets you select any input to route to one output via its INPUT SELECTOR buttons. Alternatively, you could connect the PT-102VN to a video switcher with more than four inputs KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Increasing The Outputs
For example, you can increase the number of outputs from two to ten, by connecting a PT-102VN 1:2 Video DA unit to two Kramer 105VB 1:5 High Resolution Video DA units, forming a 1:10... -
Page 10: Technical Specifications
Figure 4: Increasing the Outputs: Arranging a 1:10 DA Technical Specifications Table 2 includes the technical specifications: Table 2: Technical Specifications of the PT-102VN 1 Video, 1Vpp /75Ω o n a BNC connector INPUTS: 2 Video, 1Vpp /75Ω o n BNC connectors OUTPUTS: MAX. - Page 11 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 12 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
