Kramer PT-102VN User Manual
1:2 composite video distribution amplifier
Hide thumbs
Also See for PT-102VN:
- User manual (14 pages) ,
- User manual (12 pages) ,
- Quick start manual (2 pages)
Related Manuals for Kramer PT-102VN
Summary of Contents for Kramer PT-102VN
-
Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: PT-102VN 1:2 Video DA P/N: 2900-002160 Rev 2... -
Page 3: Table Of Contents
Technical Specifications Figures Figure 1: PT-102VN 1:2 Video DA Figure 2: Connecting the PT-102VN 1:2 Video DA Figure 3: Increasing the Inputs - Connecting a 4:2 DA Figure 4: Increasing the Outputs - Connecting a 1:10 DA PT-102VN – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer PT-102VN 1:2 Video DA, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer PT-102VN away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

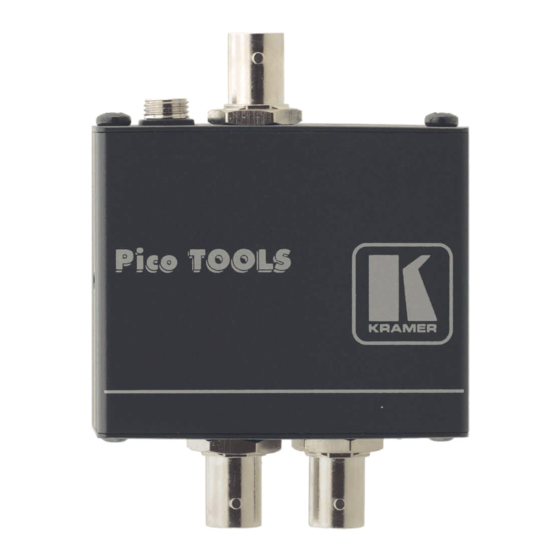

Overview The Kramer PT-102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs. Specifically, the PT-102VN: Accepts a single input and distributes it to 2 identical outputs using BNC connectors ... -
Page 8: Connecting The Pt-102Vn
To two 105VB 1:5 High Resolution Video DA units to increase the number of outputs (see Section 4.3) Connecting the PT-102VN 1:2 Video DA To connect the PT-102VN 1:2 Video DA, as the example in Figure 2 illustrates, connect the following: 1. Connect a composite video source (for example, a composite video player) to the INPUT BNC connector. -
Page 9: Increasing The Inputs
When it is necessary to handle more than one input, you can increase the number of inputs for example, from one to four, by connecting the Kramer 4x1VB 4x1 High Resolution Video Switcher (a mechanical switcher that lets you select any input to route to one output via its INPUT SELECTOR buttons. -
Page 10: Increasing The Outputs
For example, you can increase the number of outputs from two to ten, by connecting a PT-102VN 1:2 Video DA unit to two Kramer 105VB 1:5 High Resolution Video DA units, forming a 1:10 DA,... -
Page 11: Figure 4: Increasing The Outputs - Connecting A 1:10 Da
6. Adjust the output signal level and/or cable compensation equalization level of the PT-102VN, if required. 105VB PT-102VN 105VB Figure 4: Increasing the Outputs - Connecting a 1:10 DA PT-102VN - Connecting the PT-102VN... -
Page 12: Technical Specifications
6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H WEIGHT: 0.14kg (0.31lbs) approx. INCLUDED ACCESSORIES: Power supply, mounting bracket OPTIONS: RK-4PT 19" rack adapter Specifications are subject to change without notice at http://www.kramerelectronics.com PT-102VN - Technical Specifications... - Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
