Summary of Contents for Kramer DigiTOOLS 6808
- Page 1 Kramer Electronics, Ltd. USER MANUAL Models: 6808, SDI-AES De-Embedder 6809, SDI-AES Embedder...
-
Page 2: Table Of Contents
Figure 3: Connecting a 6808 SDI-AES De-Embedder Figure 4: Connecting a 6809 SDI-AES Embedder Figure 5: Connecting a 6809 SDI-AES Embedder to a 6808 SDI-AES De-Embedder Figure 6: Cascading SDI-AES De-Embedder / SDI-AES Embedder Units I Figure 7: Cascading SDI-AES De-Embedder / SDI-AES Embedder Units II... - Page 3 1 For example: model number AD2512C, part number 2535-000251 – No operator-serviceable parts inside unit. – Use only the Kramer Electronics input power – Disconnect power and unplug unit from wall 2900-9999992...
-
Page 4: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 5: About The 6809 Sdi-Aes Embedder
(often associated with low quality cables) Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer DigiTOOLS 6808 and/or 6809 away from moisture, excessive sunlight and dust Overview KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 6: Your Sdi-Aes De-Embedder / Sdi-Aes Embedder
Your SDI-AES De-Embedder / SDI-AES Embedder Your SDI-AES De-Embedder / SDI-AES Embedder Sections 4.1 and 4.2 define the 6808 SDI-AES De-Embedder, and the 6809 SDI-AES Embedder, respectively. 4.1 Your 6808 SDI-AES De-Embedder Figure 1 and Table 1 define the 6808 SDI-AES De-Embedder:... -

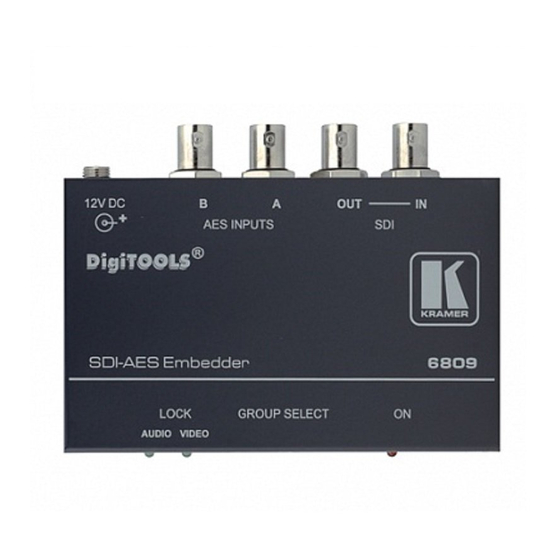

Page 7: Your 6809 Sdi-Aes Embedder
AUDIO Green LED Using the SDI-AES De-Embedder / SDI-AES Embedder Sections 5.1 and 5.2 describe how to connect the 6808 SDI-AES De-Embedder, and the 6809 SDI-AES Embedder, respectively. 1 In accordance with the standard, the audio digital stream contains 2 audio channels... -
Page 8: Connecting The 6808 Sdi-Aes De-Embedder
Figure 3: Connecting a 6808 SDI-AES De-Embedder 1 Switch OFF the power on each device before connecting it to your 6808. After connecting your 6808, switch on its power and then switch on the power on each device. Switching on the 6808, recalls the last status prior to powering down... -
Page 9: Connecting The 6809 Sdi-Aes Embedder
BNC connector. 2. Connect the SDI OUT BNC connector to an SDI and AES/EBU acceptor or to the SDI IN BNC connector on a 6808 SDI-AES De-Embedder unit (see Figure 6). 3. Connect an AES digital audio source (for example, DAT-Player A) to the AES INPUT A BNC connector (for channels 1-2). -
Page 10: Setting The Group Select Dipswitches
(cascading up to four 6809 units). 1 Item 7 in Figure 1 (the 6808 SDI-AES De-Embedder) and in Figure 2 (the 6809 SDI-AES Embedder) 2 The highest number DIP takes priority. For example, if DIP 2 and DIP 3 are both OFF, audio group 3 is chosen; if all DIPs are OFF, audio group 4 is chosen to choose the audio group. -
Page 11: Linking Sdi-Aes De-Embedder / Sdi-Aes Embedder Units
Linking SDI-AES De-Embedder / SDI-AES Embedder Units Linking SDI-AES De-Embedder / SDI-AES Embedder Units Section 6.1 describes how to connect a 6809 SDI-AES Embedder to a 6808 SDI-AES De-Embedder. Section 6.2 describes how to cascade 6809 SDI-AES Embedder / 6808 SDI-AES De-Embedder units. -
Page 12: Cascading Sdi-Aes De-Embedder / Sdi-Aes Embedder Units
SDI IN BNC connector on unit # 4 5 On 6808 unit # 1, connect the AES OUTPUT A BNC connector to the AES stream 1, and the AES OUTPUT B BNC connector to the AES stream 2. On 6808 unit # 2,connect the AES OUTPUT A BNC connector to the AES stream 3, and the AES OUTPUT B BNC connector to the AES stream 4. -
Page 13: Figure 6: Cascading Sdi-Aes De-Embedder / Sdi-Aes Embedder Units I
Linking SDI-AES De-Embedder / SDI-AES Embedder Units Figure 6: Cascading SDI-AES De-Embedder / SDI-AES Embedder Units I KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 14: Figure 7: Cascading Sdi-Aes De-Embedder / Sdi-Aes Embedder Units Ii
Linking SDI-AES De-Embedder / SDI-AES Embedder Units Figure 7: Cascading SDI-AES De-Embedder / SDI-AES Embedder Units II... -
Page 15: Technical Specifications
Technical Specifications Table 4 includes the technical specifications of the 6808 SDI-AES De-Embedder and the 6809 SDI-AES Embedder: Table 4: Technical specifications 6808 INPUTS: 1 x SDI @ 270Mbits/s OUTPUTS: 1 x SDI, 2 x AES/EBU CONTROLS: Group Select POWER SOURCE:... - Page 16 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 17 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
