- Page 1 Kramer Electronics, Ltd. PRELIMINARY USER MANUAL Model: 6809HD HD/SD-SDI AES Embedder...
-
Page 2: Table Of Contents
Figure 2: Connecting a 6809HD SDI-AES Embedder Figure 3: 6809HD Dipswitches Figure 4: Cascading Four 6809HD SDI-AES Embedder Units Tables Table 1: 6809HD HD/SD-SDI AES Embedder Features Table 2: GROUP SELECT Dipswitch Settings Table 3: Technical specifications of the 6809HD SDI-AES Embedder Contents... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... - Page 4 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 5: Overview
(often associated with low quality cables) Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer DigiTOOLS 6809HD away from moisture, excessive sunlight and dust Caution... -
Page 6: Your 6809Hd Hd/Sd-Sdi Aes Embedder

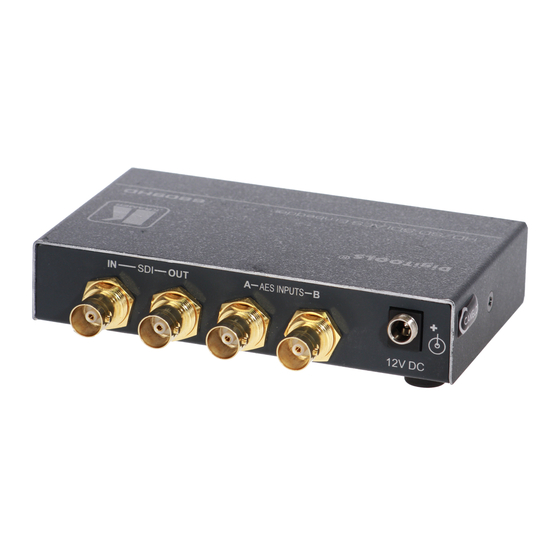

Your 6809HD HD/SD-SDI AES Embedder Your 6809HD HD/SD-SDI AES Embedder Figure 1 and Table 1 define the 6809HD HD/SD-SDI AES Embedder: Figure 1: 6809HD HD/SD-SDI AES Embedder Table 1: 6809HD HD/SD-SDI AES Embedder Features Feature 12V DC B BNC Connector... -
Page 7: Connecting The 6809Hd Hd/Sd-Sdi Aes Embedder
1 Switch OFF the power on each device before connecting it to your 6809HD. After connecting your 6809HD, switch on its power and then switch on the power on each device. Switching on the 6809HD, recalls the last status prior to powering down... -
Page 8: Setting The Group Select Dipswitches
Connecting the 6809HD HD/SD-SDI AES Embedder 5.1 Setting the GROUP SELECT Dipswitches Figure 3 shows the 6809HD GROUP SELECT dipswitches (by default, the dipswitches are set to "audio group 1"): Each group includes four audio channels (or two stereo audio channels). -
Page 9: Cascading 6809Hd Machines
2. Connect an SDI source to the SDI IN BNC connector on the 6809HD unit # 1 and interconnect 3. Connect the SDI OUT BNC connector on the 6809HD unit # 4 to an SDI+AES/EBU acceptor. 4. On each 6809HD unit, set the GROUP SELECT dipswitches to choose the audio group (see section 5.1). -
Page 10: Figure 4: Cascading Four 6809Hd Sdi-Aes Embedder Units
HD/SD Digital Video Player To SDI+AES/EBU Acceptor Figure 4: Cascading Four 6809HD SDI-AES Embedder Units Cascading 6809HD machines KRAMER: SIMPLE CREATIVE TECHNOLOGY 2 3 4 DAT Player B1 DAT Player A1 2 3 4 DAT Player B2 DAT Player A2... -
Page 11: Technical Specifications
Technical Specifications Table 3 includes the technical specifications of the 6809HD SDI-AES Embedder: Table 3: Technical specifications INPUTS: 1 x SDI, 2 x AES/EBU on BNC Connectors OUTPUT: 1 x SDI on a BNC Connector CONTROLS: Group select POWER SOURCE:... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
