Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: PS-1FW DV Interface /PSU... -
Page 2: Table Of Contents
Connecting a PS-1FW DV Interface / PSU Technical Specifications Figures Figure 1: PS-1FW DV Interface / PSU Figure 2: Connecting the PS-1FW DV Interface / PSU Tables Table 1: PS-1FW DV Interface / PSU Features Table 2: Technical Specifications of the PS-1FW... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 4: Quick Start
2.1 Quick Start This quick start chart summarizes the basic setup and operation steps. Laptop 12V Power Supply Getting Started Video Camera KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
(or external hard disk) on the other side, via 4-pin and 6-pin connectors respectively. The PS-1FW routes the data between the 4-pin connector and the appropriate pins on the 6-pin connector, while supplying power to the remaining two pins on the 6-pin connector to power the connected device. -
Page 6: Firewire Compliance
(often associated with low quality cables) Avoid interference from neighboring electrical appliances that may adversely influence signal quality and position your Kramer PS-1FW away from moisture, excessive sunlight and dust Caution... -
Page 7: Your Ps-1Fw Dv Interface / Psu

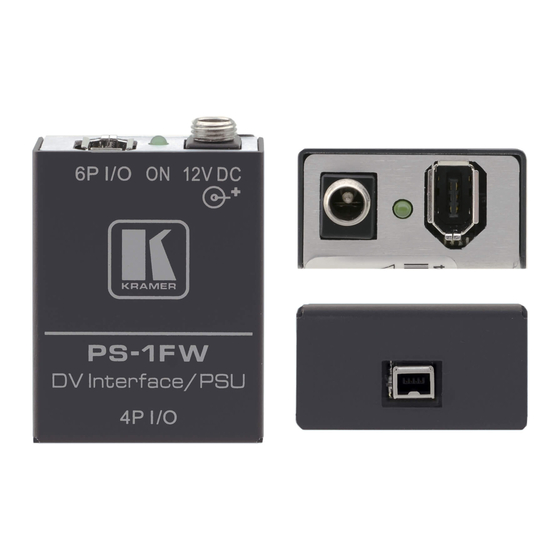

Your PS-1FW DV Interface / PSU Figure 1 and Table 1 define the PS-1FW DV Interface / PSU: Figure 1: PS-1FW DV Interface / PSU Table 1: PS-1FW DV Interface / PSU Features Feature 6P I/O 6-pin FireWire Connector ON LED... -
Page 8: Connecting A Ps-1Fw Dv Interface / Psu
1. Connect the FireWire port of a laptop, to the 4P I/O 4-pin FireWire connector on the PS-1FW via the 4-pin-to-4-pin cable supplied with the unit. 2. Connect the 12V DC power adapter to the power socket on the PS-1FW and connect the adapter to the mains electricity. -
Page 9: Technical Specifications
3.82cm x 2.12cm x 5cm (1.5" x 0.83" x 1.97") W, D, H WEIGHT: 0.15kg. (0.55lbs.) approx. ACCESSORIES: One 4-pin to 4-pin short cable, power adapter 1 Specifications are subject to change without notice 2 Some versions may be smaller in size Technical Specifications of the PS-1FW... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
