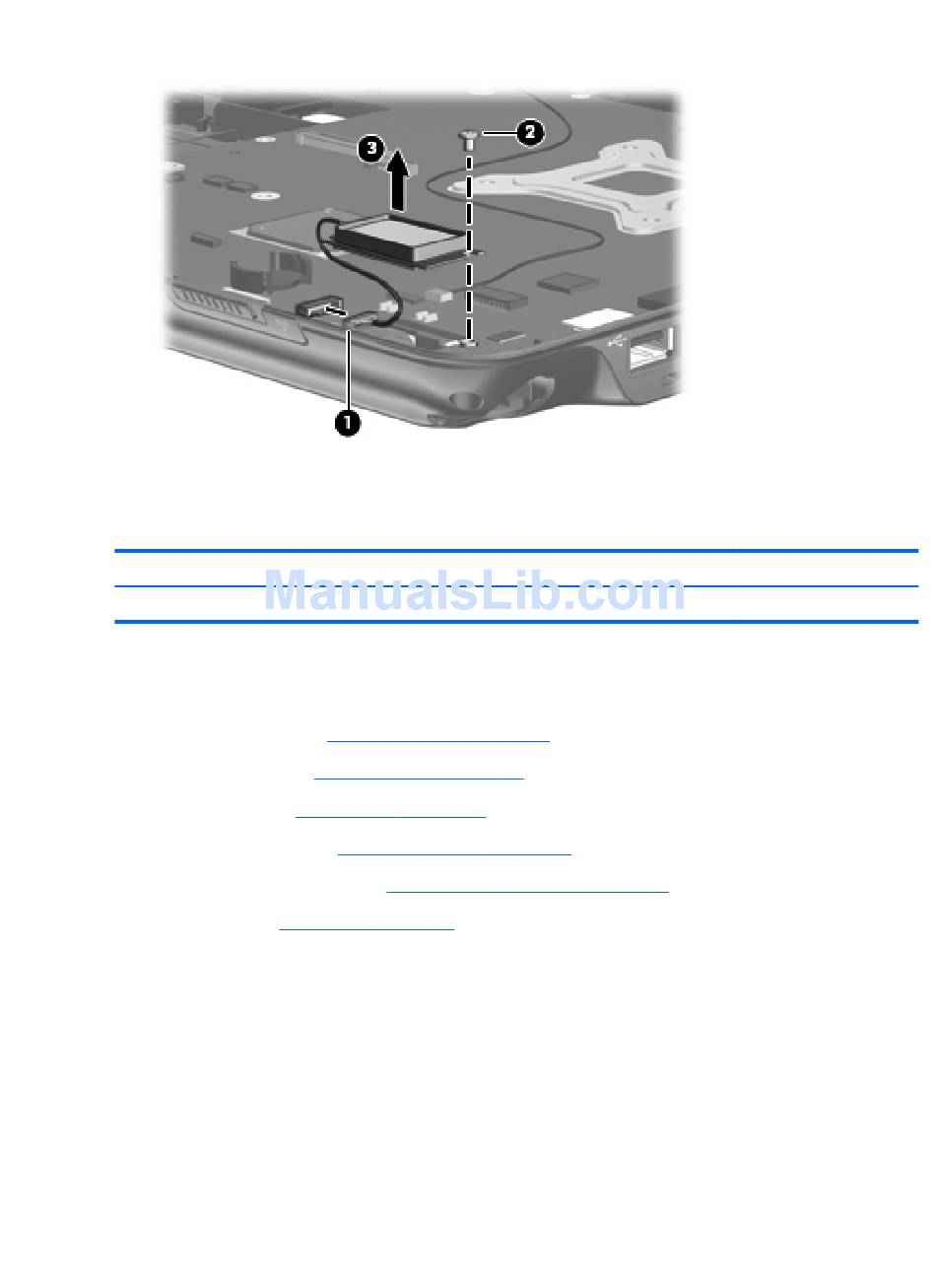

3. Remove the Bluetooth module (3).
Reverse this procedure to install the Bluetooth module.

System board

Description
System board (includes replacement thermal material)
When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:
●
Memory module (see
●
WLAN module (see
●
RTC battery (see
●
Bluetooth module (see
●
Fan/heat sink assembly (see
●
Processor (see
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power cord.
Memory module on page
WLAN module on page
RTC battery on page
Bluetooth module on page
Fan/heat sink assembly on page
Processor on page 69)
44)
46)
42)
60)
Component replacement procedures
Spare part number
504466-001
67)
61
