CONFIDENCE IS EVERYTHING.™ World Leader of In-Rack, Audio, Video, Data Monitoring, and Closed Captioning Solutions HRS-1S Half Rack Analog Stereo Audio Speaker Monitor User Guide Part Number 821535, Revision D...
Wohler Technologies, Inc. reserves the right to change or improve our products at any time and without notice. In no event will Wohler Technologies, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect in the hardware, software, or its documentation, even if advised of the possibility of such damages.
Introduction Overview The HRS-1S audio monitor provides self-powered, fidelity monitoring in the very smallest rack space possible. The HRS-1S contains two high performance transducers driven by two separate power amplifiers. One amplifier/driver combination handles midrange and high frequency information, while the other channel reproduces information below the 500 Hz crossover point.
H RS - 1 S U s e r G u i d e S a f e t y I n s tr u c ti o n s Safety Instructions Read, keep, and follow all of these instructions; heed all warnings. Do not use this equipment near water.

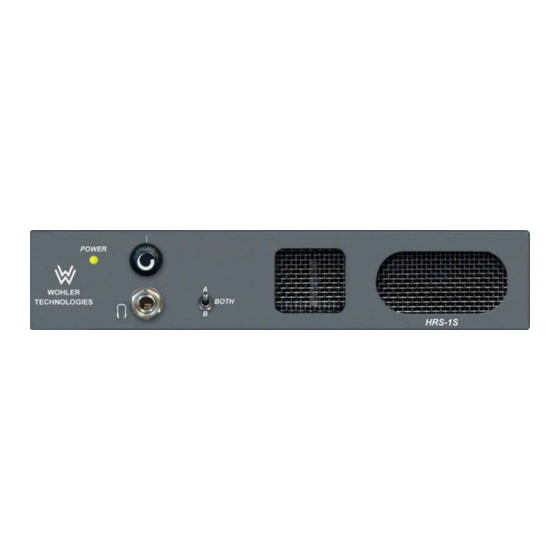

60Hz) to the IEC connector provided on the rear panel of the unit. Description The HRS-1S comes equipped with a ganged stereo volume control, power indication LED, stereo/mono toggle switch, and headphone output. Output limiter circuits are incorporated to protect the speakers, and extensive magnetic shielding allows placement immediately adjacent to video monitors with no color impurities.
H RS - 1 S U s e r G u i d e F e a t u r e s The HRS-1S features one pair of balanced XLR inputs and one pair of XLR loop-through connectors for connecting to downstream equipment.
HRS-1S User Guide S p e ci f i c a t i o n s Specifications The specifications of the HRS-1S are listed below. Table 1–1 HRS-1S Specifications Specification Domain Range Input Impedance (balanced) Input Level for Maximum 0 dBv balanced;...
Note that this switch has no effect on the line output. • Speakers: The HRS-1S internal speaker system is comprised of one mid-range/tweeter speaker and one woofer speaker. The mid-range speaker reproduces only the mid and high frequencies, while the woofer speaker reproduces the low frequencies.
HRS-1S User Guide R e a r P a n e l C o n n e c t o r s Rear Panel Connectors Figure 1–2 Rear Panel Connectors Left Input DC Power Right Input Left Output Right Output •...
T e c h n i c a l F u n c t i o n a l O v e r v i e w Figure 1–4 Male XLR Pin-Out Technical Functional Overview Figure 1–5 illustrates the functionality of the HRS-1S. Figure 1–5 HRS-1S Block Diagram Headphone Volume...
