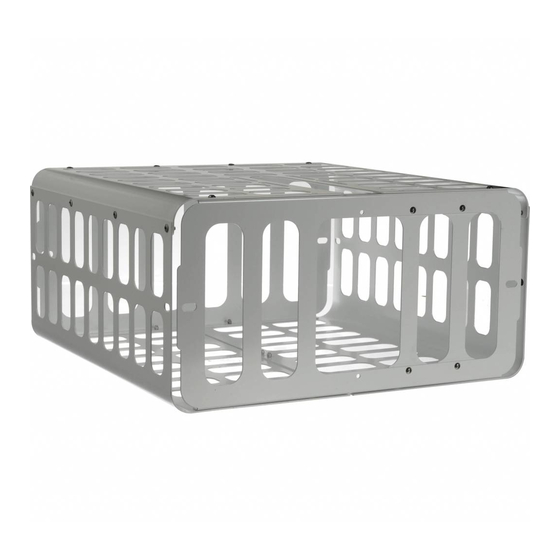

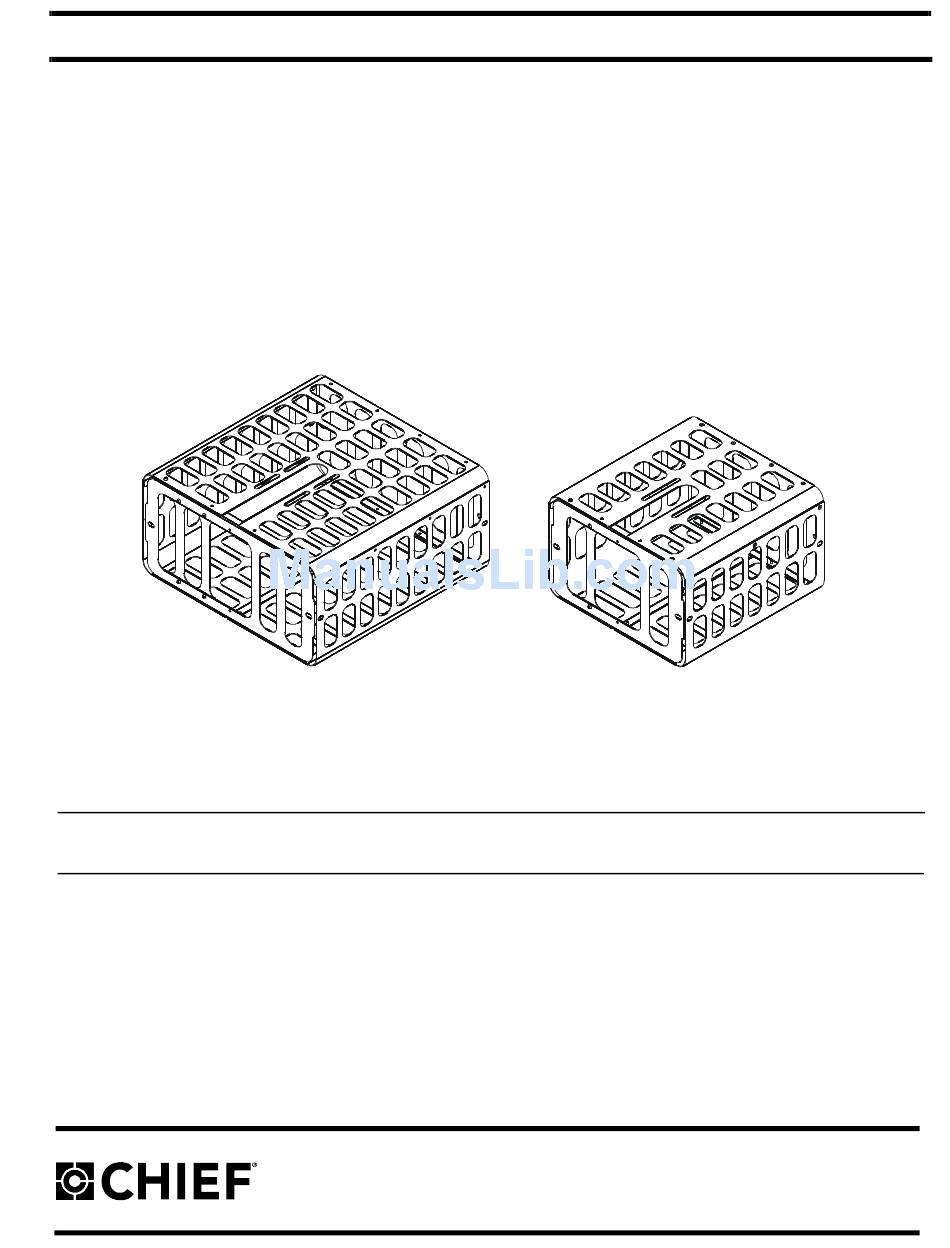

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Projector Guard Security Cage PG1A, PG2A...
- Page 2 RPM series mount reduces maximum height by 1.00". Maximum height using RPA series mount is 7.25" to 6.75". Maximum height using RPM series mount is 6.25" to 5.75". The PG1A weighs 19.95 lbs (9.06 kg) The PG2A weighs 15.20 lbs (6.88 kg)
- Page 3 Installation Instructions PG1A, PG2A PG1A PG2A [101.600] 4.00 [415.925] 16.38 1.5” NPSM COUPLER WILL ALLOW FOR 2.50” OF FRONT TO BACK ADJUSTABLE SHIFT [50.800] 2.00 [89.687] 3.53 [404.503] [406.400] 15.93 16.00 [258.589] [199.996] 10.18 7.87 FROM BOTTOM OF RPA TO SURFACE OF RIVETS [410.195]...
- Page 4 PG1A, PG2A Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 5: Tools Required For Installation
Installation Instructions PG1A, PG2A TOOLS REQUIRED FOR INSTALLATION 1/2" (12.7mm) PARTS B (1) A (1) (PG2A only) (PG1A only) E (1) D (2) C (1) F (1) G (4) L (2) M (2) P (4) H (4) I (4) J (2) - Page 6 Attach two interface brackets (D) to RPM using four 1/4-20 x 1-1/2" buttonhead cap screws (I) and four nylon spacers (N). (See Figure 3) NOTE: The PG1A and PG2A should not be used in a flush ceiling mount. (D) x 2 NOTE: The projector must be removed from the mount before installing this accessory.
- Page 7 Installation Instructions PG1A, PG2A (PG2A shown) Thumbnuts Threaded Studs Removable filler bar Leave two screws in to make a hinged door Filler Bar Security RPA/RPM Mount Screws Figure 5 Figure 6 Place projector inside the projector guard (See Figure 5)
- Page 8 PG1A, PG2A Installation Instructions Install the clamp and fasteners as follows: a. For 1-1/2" NPT install the clamp at the desired height and secure using the U-bolt, two flat (H) x 4 washers, two lock washers, and two 5/16-18 hex nuts (provided with U-bolt).
- Page 9 Installation Instructions PG1A, PG2A...
- Page 10 PG1A, PG2A Installation Instructions...
- Page 11 Installation Instructions PG1A, PG2A...
- Page 12 PG1A, PG2A Installation Instructions USA/International A 8401 Eagle Creek Parkway, Savage, MN 55378 P 800.582.6480 / 952.894.6280 F 877.894.6918 / 952.894.6918 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Asia Pacific A Room 30I, Block D, Lily YinDu International Building LuoGang, BuJi Town, Shenzhen, CHINA.
