I N S T A L L A T I O N
Projector
Lock
(PL-1)

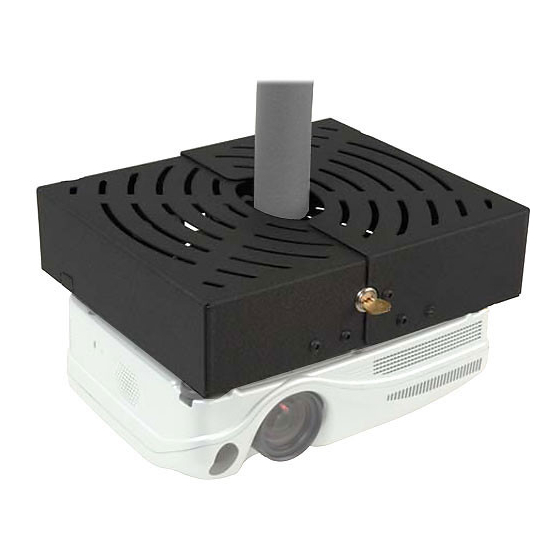

The PL-1 projector lock, constructed with heavy gauge
steel, is designed to prevent access to projector mounts.
The projector lock protects against disconnecting
projectors from their mounts in most high-risk
environments, minimizing the probabilities theft.
The design of the PL-1 ensures proper ventilation for
your projector while providing excellent security and
protection.
BEFORE YOU BEGIN
•
CAUTION: To prevent damage to your display, which could affect or void the Factory warranty,
thoroughly study all instructions and illustrations before you begin to install the mount brackets. Pay
particular attention to the "Important Warnings and Cautions" on Page 2.
•
If you have any questions about this installation, contact Chief Manufacturing.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
Chief Manufacturing, a division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918
I N S T R U C T I O N S
PL-1
8803-000065 Rev C
©2008 Milestone AV Technologies
05/08
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF PL-1
Summary of Contents for CHIEF PL-1
-
Page 1: Before You Begin
“Important Warnings and Cautions” on Page 2. • If you have any questions about this installation, contact Chief Manufacturing. Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. Chief Manufacturing, a division of Milestone AV Technologies P: 800.582.6480 / 952.894.6280 F: 877.894.6918 / 952.894.6918... -
Page 2: Dimensional Drawing
If not, reinforce the mounting surface structural members before installing the mount. • Make sure the mount is correctly oriented. WARNING • Check the unit for shipping damage before you begin the installation. CAUTION DIMENSIONAL DRAWING PL-1... -
Page 3: Parts List
Key C346A PL1B* Key C346B PL1C* Key C346C *The PL-1 is shipped with two matching keys: PL1A, or PL1B, or PL1C. To ensure security, the PL-1 is shipped with one of three different keys. INSPECT INSTALLATION LOCATION Because of the wide variety of possible mounting situations, Chief Manufacturing only provides general guidelines for the typical pole-mounted installation. - Page 4 5. Align set screw of RPA with key lock of cage (see Figure 1). 6. Tilt the lock side of the PL-1 down and route the RPA thru the hole in the PL-1 (see Figure 2). 7. Set PL-1 on RPA (see Figure 3).
- Page 5 Installation Instructions PL-1 INSTALLATION (CONT’D) 8. Install the projector (see Figure 4). 9. Tightening the center thumb screw first, make sure all thumb screws are tight.
- Page 6 11. Slide PL-1 halves together (see Figure 6). 12. Insert key. 13. To operate the lock, do the following: To lock the PL-1, turn the key (supplied) 90° clockwise. To unlock the PL-1, turn the key (supplied) 90° counterclockwise. 14. Remove key.
- Page 7 Installation Instructions PL-1...
- Page 8 Installation Instructions PL-1...
