A. Hinge pin
B. Phillips-head countersink screw
C. Hinge pin sleeve
A. Hex-head hinge screw
B. Hinge pin sleeve
C. Phillips-head countersink screw

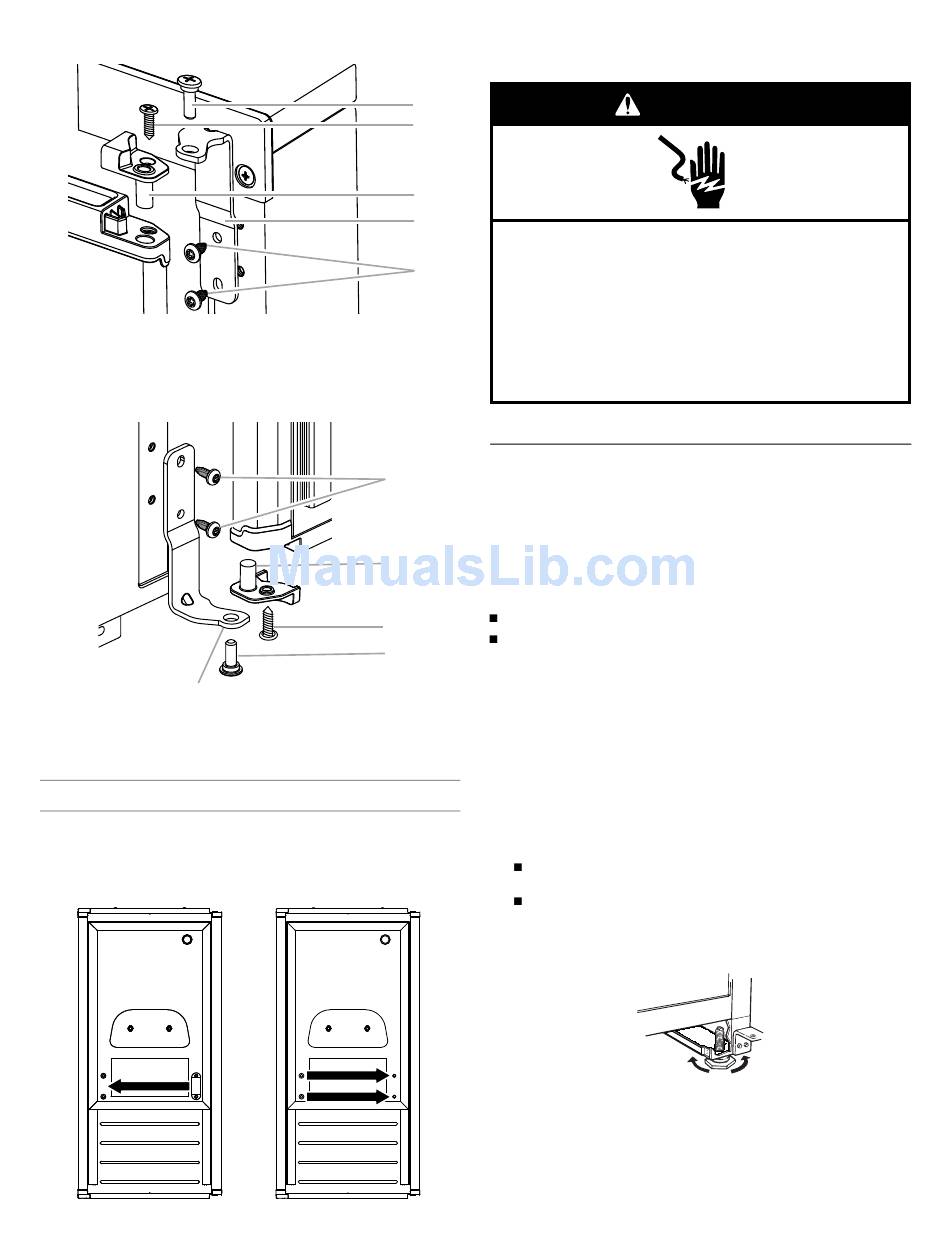

Reverse Door Catch
1. Remove the white decorative screws from the opposite side
of the door and set aside.
2. Remove the screws from the magnetic door catch and
replace it on the opposite side of the door.
E. Hex-head hinge screw
D. Hinge pin
3. Install the white decorative screws on the opposite side of the
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
4. Plug into a grounded 3 prong outlet.
It is important for the ice maker to be level in order to work
properly. Depending upon where you install the ice maker, you
may need to make several adjustments to level it. You may also
use the leveling legs to lower the height of the ice maker for
Gather the required tools and parts before starting installation.
NOTE: It is easier to adjust the leveling legs if you have another
person to assist you.
1. Move the ice maker to its final location.
NOTE: If this is a built-in installation, move the ice maker as
close as possible to the final location.
2. Place the level on top of the product to see whether the ice
maker is level from front to back and side to side.
3. Push up on the top front of the ice maker, and then locate the
leveling screws that are on the bottom front of the ice maker.
4. Using an adjustable wrench, change the height of the legs as
Turn the leveling leg to the right to lower that side of the
Turn the leveling leg to the left to raise that side of the ice
NOTE: The ice maker should not wobble. Use shims to add
stability when needed.
