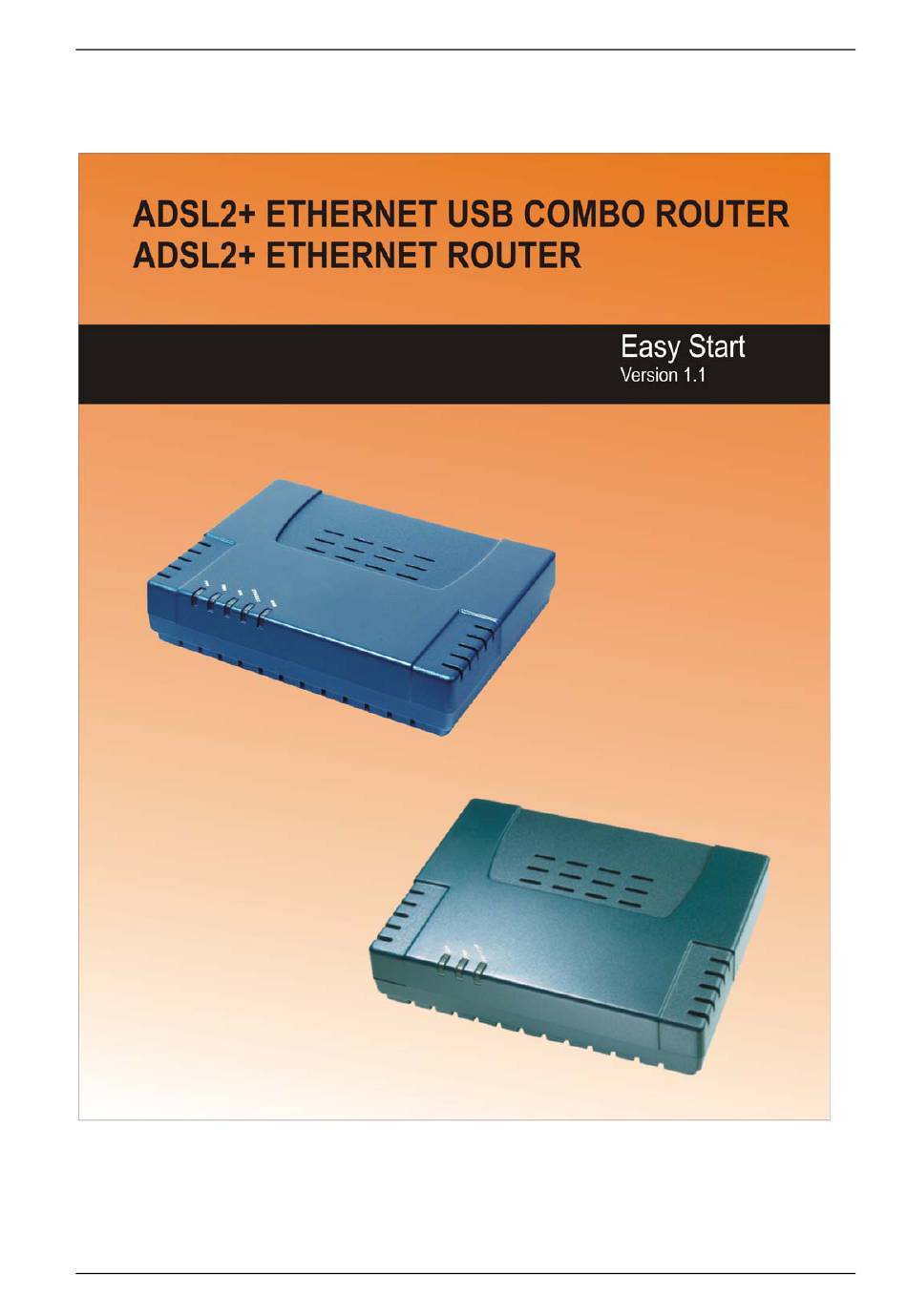

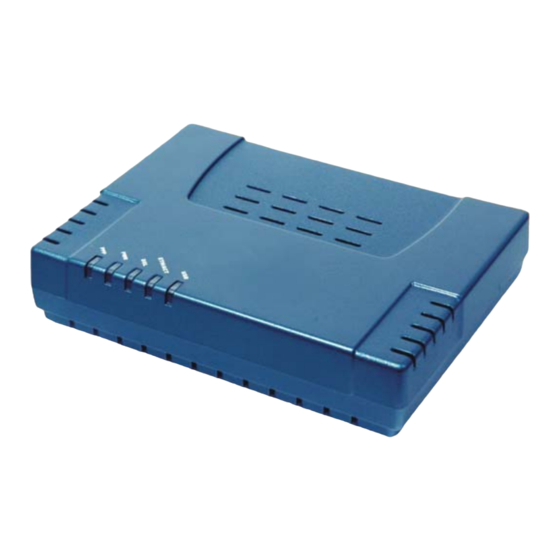

ADSL2+ Ethernet USB Combo Router – Easy Start
Page 1 of 42

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSL600E and is the answer not in the manual?

Questions and answers

Related Manuals for Aztech DSL600E

Summary of Contents for Aztech DSL600E

  • Page 1 ADSL2+ Ethernet USB Combo Router – Easy Start Page 1 of 42...

  • Page 2: Table Of Contents

    ADSL2+ Ethernet USB Combo Router – Easy Start Table of Contents Preliminary Pages Page Table of Contents .........................2 Chapter 1 – Introduction ....................5 Minimum Requirements..............5 ADSL Router Package ..............6 ADSL Router Overview ..............7 1.3.1 Front Indicators (Ethernet USB Combo Router)......7 1.3.2 Back Panel Indicators (Ethernet USB Combo Router) ....8 1.3.3...
  • Page 3 ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 6 – Router Setup Utility ..................31 Running Setup Utility..............31 Microsoft® Windows XP Professional x64 Edition ......36 Chapter 7 – Setup ADSL Router via Quick Start ............39 Chapter 8 – Maintenance....................41 Maintenance Concepts..............41 Preventive Maintenance ..............41 Preventive or Scheduled Maintenance (PM) Tasks......41 PM or Scheduled Maintenance Tasks ..........42...
  • Page 4 ADSL2+ Ethernet USB Combo Router – Easy Start Safety Summary Messages WARNING HIGH VOLTAGE is used in the equipment. Make sure equipment is properly grounded BEFORE opening. Failure to observe safety precautions may result in electric shock to user. CAUTION Check voltages before connecting equipment to power supplies.

  • Page 5: Chapter 1 - Introduction

    ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 1 – Introduction Thank you for purchasing our ADSL2+ Ethernet USB Combo Router. The ADSL Router provides you with a high-speed broadband Internet connection using your existing phone line that at the same time allows you to make phone calls. The ADSL Router can be connected to any computer/notebook with a USB Port (for Ethernet USB Combo router only) or 10/100 Base-T Ethernet card.

  • Page 6: Adsl Router Package

    ADSL2+ Ethernet USB Combo Router – Easy Start ADSL Router Package Fig 1-1 below shows the ADSL Router Package. For any missing items, please contact your dealer immediately. ADSL Router Utility CD Easy Start Manual USB Cable Telephone Cable (RJ11) CAT-5 UTP Straight Ethernet (For Ethernet USB Network Cable (RJ45)

  • Page 7: Adsl Router Overview

    ADSL2+ Ethernet USB Combo Router – Easy Start ADSL Router Overview 1.3.1 Front Indicators (Ethernet USB Combo Router) Fig 1-2 shows the front indicators of the Ethernet USB Combo Router. Figure 1-2 : Front Indicators (Ethernet USB Combo Router) Label Description Lights up when the PPP connection is established.

  • Page 8: Back Panel Indicators (Ethernet Usb Combo Router)

    ADSL2+ Ethernet USB Combo Router – Easy Start 1.3.2 Back Panel Indicators (Ethernet USB Combo Router) Fig 1-3 shows the back panel indicators of the Ethernet USB Combo Router. Figure 1-3 : Back Panel Indicators (Ethernet USB Combo Router) Label Description 1 DSL Telephone jack (RJ-11) to connect to your Telephone Wall Socket...

  • Page 9: Front Indicators (Ethernet Router)

    ADSL2+ Ethernet USB Combo Router – Easy Start 1.3.3 Front Indicators (Ethernet Router) Fig 1-4 shows the front indicators of the Ethernet Router. Figure 1-4 : Front Indicators (Ethernet Router) Label Description Lights up when power is supplied to the Router. 1 PWR 2 DSL Lights up when the ADSL connection is established.

  • Page 10: Back Panel Indicators (Ethernet Router)

    ADSL2+ Ethernet USB Combo Router – Easy Start 1.3.4 Back Panel Indicators (Ethernet Router) Fig 1-5 shows the back panel indicators of the Ethernet Router. Figure 1-5 : Back Panel Indicators (Ethernet Router) Label Description 1. DSL Telephone jack (RJ-11) to connect to your Telephone Wall Socket (ADSL line).

  • Page 11: Typical Adsl Router Connection

    ADSL2+ Ethernet USB Combo Router – Easy Start Typical ADSL Router Connection Fig 1-6 below shows a typical single user connection. Computer/Notebook with Ethernet Network Card or USB Port Ethernet / USB Cable Figure 1- 6 :Single User Connection Diagram To connect to multiple computers/notebooks, you may further expand one of the Ethernet Ports via an Ethernet Hub/Switch.

  • Page 12: Chapter 2 - Connecting The Adsl Router To Your Pc / Notebook

    ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 2 - Connecting the ADSL Router to Your PC / Notebook CAUTION ! Power off your Computer/Notebook or/and any connected devices before connecting to the ADSL Router! Connecting to the Ethernet Connect your computer(s)/notebook(s) to the ADSL Router as illustrated.

  • Page 13: Connecting To The Adsl Line

    ADSL2+ Ethernet USB Combo Router – Easy Start Connecting to the ADSL Line Fig 1-9 shows the connection of the ADSL Ethernet Modem to the ADSL Line. Back View of ADSL Router Telephone Wall Socket Telephone Cable Figure 1-9 : Connecting to the ADSL Line Fig 1-10 shows the connection of the ADSL Line and Telephone set.

  • Page 14: Checking Your Connections

    ADSL2+ Ethernet USB Combo Router – Easy Start Checking Your Connections NOTE: Please check your connections before proceeding. Ensure all connections are carefully plugged in as shown in Fig 1-11. Back view of ADSL Router To your Power Outlet To your Telephone Wall Socket (ADSL Line)

  • Page 15: Connecting To The Power Outlet

    ADSL2+ Ethernet USB Combo Router – Easy Start Connecting to the Power Outlet See Fig 1-13 for connection to the power outlet. Back View of the Connect the other end of ADSL Router the Power Adapter to the Power Figure 1-13 : Connecting Power Outlet Powering ON a) Power on the Power Outlet that is connected to your ADSL Router.

  • Page 16: Chapter 3 - Configuring Your Ethernet Network Card

    ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 3 – Configuring Your Ethernet Network Card If your computer/notebook is connected to the Ethernet Port of the ADSL Router, proceed with the following instructions. If your computer/notebook is connected to the USB Port of the ADSL Router, proceed with Chapter The illustrated screen shots serve only as examples.

  • Page 17: For Windows ® 2000 / Windows ® Xp

    ADSL2+ Ethernet USB Combo Router – Easy Start 4. Click the IP Address tab. 5. Select the option Obtain an IP address automatically and click OK to save the settings. See Fig 1-15. Figure 1-15 : TCP/IP Properties 6. Ensure that your ADSL Router is powered ON. 7.
  • Page 18 ADSL2+ Ethernet USB Combo Router – Easy Start NOTE: This is important especially if you have more than one Local Area Connection icons displayed at the Network and Dial-up Connections / Network Connections window. Ensure that you have selected the correct one.) 1.

  • Page 19: Chapter 4 - Installing Your Usb Driver (For Ethernet Usb Combo Router Only)

    ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 4 – Installing Your USB Driver (For Ethernet USB Combo Router Only) Setup utility will install the USB driver automatically. If it fails to install, follow the steps below for USB installation. Proceed with this section ONLY if your computer/notebook is connected to the USB Port of your ADSL Router.
  • Page 20 ADSL2+ Ethernet USB Combo Router – Easy Start 5. Select on CD-ROM drives option and click Next. See Fig 1-20. Figure 1-20: CD-ROM Selection NOTE: Depending on your system’s configuration, you may be prompted for your Windows CD-ROM during installation. At the prompt, replace the Installation CD in your CD-ROM Drive with your Windows CD-ROM and click OK.

  • Page 21: For Windows Me

    ADSL2+ Ethernet USB Combo Router – Easy Start ® For Windows Proceed with the steps below: 1. Power ON your computer to start the Windows Operating System. 2. Place the Installation CD into your CD-ROM Drive. 3. At the following prompt, select Specify the location of the driver (Advanced) option and click Next.

  • Page 22: For Windows 2000

    ADSL2+ Ethernet USB Combo Router – Easy Start 5. Click Next again to proceed installation with the indicated driver. 6. Click Finish to complete the USB driver installation. 7. Restart your system when prompted. 8. Proceed to Chapter ® For Windows 2000 Proceed with the steps below: 1.

  • Page 23: For Windows Xp

    ADSL2+ Ethernet USB Combo Router – Easy Start 5. Click CD-ROM drives option and click Next. 6. At the next prompt, click Next to proceed installation with the indicated driver. 7. You may be prompted with Digital Signature Not Found dialog box during installation. (This happens when Windows detects your driver has a new version).
  • Page 24 ADSL2+ Ethernet USB Combo Router – Easy Start 4. Click Search removable media option and click Next. See Fig 1-26. Figure 1-26 : Search removable media 5. You may be prompted with Hardware Installation dialog box. (This happens when Windows detects your driver as a new version). 6.

  • Page 25: For Macintosh ® Os 10.2 & Above

    ADSL2+ Ethernet USB Combo Router – Easy Start For Macintosh ® OS 10.2 & above Proceed with the steps below: 1. Power on your computer to start Mac OS X (10.2 & above). 2. Place the Installation CD into your CD-ROM Drive. 3.
  • Page 26 ADSL2+ Ethernet USB Combo Router – Easy Start 5. Installation program will start. Click Continue to proceed with the installation. See Fig 1-30. Figure 1-30 : Installation program 6. Select a destination disk to install the software. Click Continue to proceed with the installation.
  • Page 27 ADSL2+ Ethernet USB Combo Router – Easy Start 7. Click Install to perform the installation. See Fig 1-32. Figure 1-32 : Easy Install 8. The system will prompt you to restart your computer when installation is completed. Click Continue Installation to proceed. See Fig 1-33. Figure 1-33 : Continue Installation prompt Page 27 of 42...
  • Page 28 ADSL2+ Ethernet USB Combo Router – Easy Start 9. Click Restart to finish installing the software. See Fig 1-34. Figure 1-34 : Software installed successfully 10. The system will bootup upon restart. Select System Preferences from the dock. Select Network to choose the network adaptor connected to the router. See Fig 1-35. Select This Figure 1-35 : System Preferences Page 28 of 42...
  • Page 29 ADSL2+ Ethernet USB Combo Router – Easy Start 11. Select Ethernet Adaptor (enXX) as your adaptor under Show option. Your IP Address, subnet mask, router IP should appear. Click Apply Now. See Fig 1-36. Figure 1-36 : Network settings 12. Proceed to Chapter Page 29 of 42...

  • Page 30: Chapter 5 - Configuring Your Internet Browser

    ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 5 – Configuring Your Internet Browser Microsoft® Internet Explorer™ (based on IE 5.5) 1. From your Windows desktop, double-click on your Internet Explorer icon to launch your Browser. 2. From the Menu, click Tools and select Internet Options..3.

  • Page 31: Chapter 6 - Router Setup Utility

    ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 6 – Router Setup Utility (For Windows 98 SE/ ME/ 2000/ XP Users ONLY) NOTE: This chapter is for Windows User only. Please use the Setup Utility Installation CD provided to setup the USB driver and Internet connection. For Windows 98 SE user, you may be prompted for your Windows CD- ROM during installation.
  • Page 32 ADSL2+ Ethernet USB Combo Router – Easy Start Upon clicking on the above options, you will come to the Welcome screen. If you are setting up your router for the first time, please click “Setup Wizard” to setup your DSL router. See Fig 1-38.
  • Page 33 ADSL2+ Ethernet USB Combo Router – Easy Start Setup Wizard will proceed to install the USB driver. Plug in USB cable when prompt (For Windows XP Professional x64 Edition, refer to Chapter 6.2). If you are using Ethernet cable, click “Cancel”. See Fig 1-40. At this point, plug in your telephone cable. Remember to switch on the power of your router! Figure 1-40 : Driver Installation Setup Wizard will begin to check your router and DSL connection.
  • Page 34 ADSL2+ Ethernet USB Combo Router – Easy Start For connecting to the Internet, please enter the Username and Password, VPI and VCI provided by your ISP. You need to select the protocol. Click “Continue” to proceed. Please contact your ISP if you are unsure of what to enter. See Fig 1-42. Figure 1-42 : Internet Connection Setup Setup wizard will try to connect to the Internet.
  • Page 35 ADSL2+ Ethernet USB Combo Router – Easy Start Upon successful connection, a summary of your settings will be displayed. You can choose to print or save the settings. To print, you need to have a printer installed. Click “Continue” to proceed.

  • Page 36: Microsoft® Windows Xp Professional X64 Edition

    ADSL2+ Ethernet USB Combo Router – Easy Start Microsoft® Windows XP Professional x64 Edition Upon plugging in your USB cable after the system prompt, a Found New Hardware Wizard dialog box will appear. Select No, not this time and click Next. See Fig 1-46. Figure 1-46 : Found New Hardware Wizard Select Install the software automatically (Recommended) and click Next.
  • Page 37 ADSL2+ Ethernet USB Combo Router – Easy Start Please wait until the wizard installs the USB driver. See Fig 1-48. Figure 1-48 : Installation in progress You may be prompted with Hardware Installation dialog box. (This happens when Windows detects your driver as a new version). Click Continue Anyway to proceed with the installation.
  • Page 38 ADSL2+ Ethernet USB Combo Router – Easy Start After installation of USB driver has completed, click Finish. See Fig 1-50. Figure 1-50 : Installation Complete Setup utility will resume to check your router and DSL connection, and try to connect to the Internet.

  • Page 39: Chapter 7 - Setup Adsl Router Via Quick Start

    ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 7 – Setup ADSL Router via Quick Start a) From your Internet Browser, key in 192.168.1.1 at the address bar and hit <Enter>. See Fig 1-51. Figure 1-51 : Logging-In Upon successful login, this page will be displayed. See Fig 1-52. You need to enter the Username, Password, VPI and VCI provided by the ISP.
  • Page 40 ADSL2+ Ethernet USB Combo Router – Easy Start Upon successful connection to the Internet, the screen as shown in Fig 1-53 will appear. This would show the connection status information. Figure 1-53 : Status Information Page 40 of 42...

  • Page 41: Chapter 8 - Maintenance

    ADSL2+ Ethernet USB Combo Router – Easy Start Chapter 8 – Maintenance This section explains the maintenance concepts and provides instructions on preventive maintenance necessary to ensure that the system and equipment are maintained at its optimum operating condition. Maintenance Concepts This Maintenance concept is categorized into one (1) main category: Preventive Maintenance (PM) Preventive Maintenance...

  • Page 42: Pm Or Scheduled Maintenance Tasks

    ADSL2+ Ethernet USB Combo Router – Easy Start PM or Scheduled Maintenance Tasks PM tasks are to be performed at intervals recommended as in Table 1-1. When performing PM cleaning tasks: a) Use a lint-free, non-abrasive cloth to perform cleaning – DO NOT use any solvent, abrasive cleaning agents or tissue paper.
