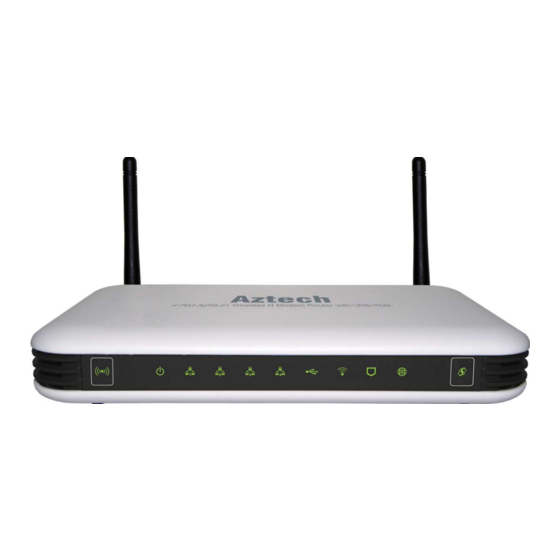

ADSL2+ 4-Ports 300Mbps Wireless-N
Modem Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSL5008ENX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aztech DSL5008ENX

  • Page 1 DSL5008EN(X) ADSL2+ 4-Ports 300Mbps Wireless-N Modem Router...

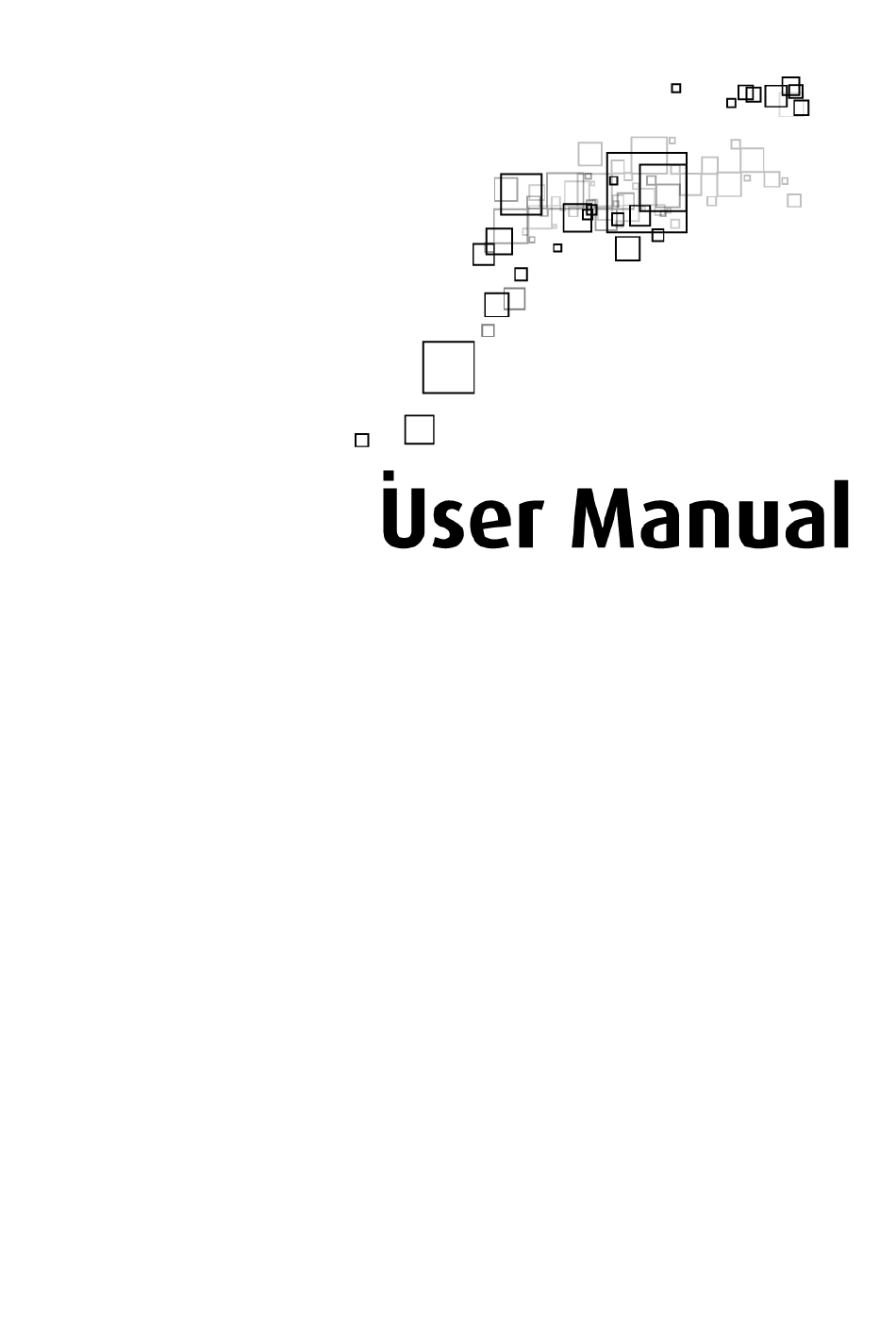

  • Page 2 User Manual © Copyright 2011 All rights reserved. No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
  • Page 3: Table Of Contents

    User Manual Contents About the Router......................4 Firmware Features..................5 Requirements....................8 Package Contents ..................8 Device Design ....................9 Front Panel ........................9 Back Panel.......................10 Getting Started......................11 Planning Your Network ................12 Remove or Disable Conflicts ..............13 Internet Sharing, Proxy, and Security Applications..........13 Configuring TCP/IP Settings ...................14 Configuring Internet Properties ................14 Removing Temporary Internet Files ..............15...
  • Page 4: About The Router

    QoS, high speed IEEE802.11b/g/n Wireless LAN Access point and USB host (optional) for network printing and NAS. Aztech DSL5008EN is TR-069 compliant. TR-069 is a DSL forum technical specification report that defines the remote control/configuration of CPE from ACS (Auto Configuration Server), TR-069 is also well-known as "CPE WAN Management Protocol".
  • Page 5: Firmware Features

    User Manual Firmware Features ADSL/ATM ADSL/ATM ADSL/ATM ADSL/ATM • ANSI T1.413 issue 2, ITU-T G.992.1 (G.dmt) and G.992.2 (G.lite) compliant • G.992.3 (ADSL2), G.992.5 (ADSL2+), RE-ADSL2(Annex L) • Annex A, B, I, J and M • Support Erasure Decoding and Impulse Noise Monitoring •...
  • Page 6 User Manual • DNS Relay Agent • DMZ support • SIP ALG (Application Layer Gateway) support • Multiple Sessions IP Sec and PPTP/L2TP VPN pass through support • PPP Always on • PPP Dial on Demand with configurable timeout • Universal Plug and Play Support •...
  • Page 7 User Manual • WPS support • Cisco CCX Support (optional) • Operating Range of >300 Meters (Open Air) • WDS Support (optional) • MAC Address Filtering • Multiple BSSID Support (optional) • Low Power and Advanced Power Management Management Management Management Management •...
  • Page 8: Requirements

    User Manual Requirements Your computer must meet the following minimum requirements. Any operating system can be used Web Browser CDROM drive 233MHz processor Ethernet network adapter An active DSL Internet account Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately.
  • Page 9: Device Design

    User Manual Device Design Front Panel Label Label Icon Icon Action Action Description Description Label Label Icon Icon Action Action Description Description Wireless interface disabled WIRELESS ON/OFF button/LED WIRELESS ON/OFF button/LED WIRELESS ON/OFF button/LED WIRELESS ON/OFF button/LED Steady green Wireless interface enabled No power is supplied to the device Steady green POWER...
  • Page 10: Back Panel

    User Manual Back Panel Label Label Label Label Description Description Description Description 9 9 9 9 POWER POWER POWER POWER Power ON/OFF button DC In DC In 10 10 DC In DC In 12V 1.0A DC Input port 11 11 RESET RESET RESET...
  • Page 11: Getting Started

    User Manual Getting Started Setting up the device is easy. The flowchart below provides an outline of the steps needed to complete the installation. Brief descriptions appear beside each step. Detailed instructions are provided in the subsequent pages. Plan your Network Remove/Disable You may need to check some setting or disable some application...
  • Page 12: Planning Your Network

    User Manual Planning Your Network Before moving ahead to setup your network, it is a good idea to draw out a network diagram to help identify your network devices and plan out how to connect these devices. The illustration below is an example of a network diagram. Each port in the router can be used for different connections.
  • Page 13: Remove Or Disable Conflicts

    User Manual Remove or Disable Conflicts To make sure the router installation moves on smoothly, you need to remove or disable conflicts that may interfere the installation. Probable conflicts may include: Internet sharing applications Proxy software Security software TCP/IP settings Internet properties Temporary Internet files Internet Sharing, Proxy, and Security Applications...
  • Page 14: Configuring Tcp/Ip Settings

    User Manual Configuring TCP/IP Settings Check if your computer uses the default TCP/IP settings. To check the TCP/IP properties: 1. Select Start > Run. This opens the Run dialog box. 2. Enter control ncpa.cpl and then click OK. This opens the Network Connections in your computer.
  • Page 15: Removing Temporary Internet Files

    User Manual Removing Temporary Internet Files Temporary Internet files are files from Web sites that are stored in your computer. Delete these files to clean the cache and remove footprints left by the Web pages you visited. To remove temporary Internet files: 1.
  • Page 16: Setup The Device

    User Manual Setup the Device When installing the router, find an area where there are enough electrical outlets for the router, the main computer, and your other computer devices. To setup the router: 1. Plug one end of the Ethernet cable from the router’s ETHERNET ETHERNET ETHERNET port and then plug ETHERNET...
  • Page 17: Connecting To The Internet

    User Manual Connecting to the Internet You can use the Web Interface to setup your Internet connection. Connecting Via Quick Setup To connect to the Internet via the User mode GUI: 1. Launch the web browser and input 192.168.1.1 on the address bar. 2.
  • Page 18 User Manual 6. Enter the Wireless Settings. f. Ensure that WLAN Enabled and Broadcast SSID are checked g. Enter your desired Wireless Network Name or SSID h. Put a check on WPA/WPA2 Enabled to setup a secured wireless network i. Enter your desired wireless password or Passphrase 7.
  • Page 19: Advanced Setup

    User Manual Advanced Setup Advanced Setup provides configuration options for other router functions. Accessing the Advanced Web Interface To access the Advanced Web Interface: 1. Launch your web browser. 2. Input 192.168.1.1 on the address bar and press Enter. 3. There will be an authentication request where you need to key in a username and password.
  • Page 20: Menus

    User Manual Menus The Web User Interface includes the following menus: Network Wireless Applications System Status Network Local Configure the DSL Router IP Address and Subnet Mask for LAN interface. You may also configure the DHCP server settings of your router. Page 20 of 41...
  • Page 21 User Manual Internet The initial page will show all the settings of your existing WAN connection configured on your router. You have an option to Add and Edit WAN interface configurations. To add a WAN interface: 1. Select an available Virtual Circuit from the drop-down box 2.
  • Page 22 User Manual To edit an existing WAN interface: 1. Select the Virtual Circuit that you want to Edit from the drop down box 2. Make the necessary amendments 3. Click the Apply button to commit the settings ADSL Settings The DSL page allows you to select the modulation, the phone line pair and the capability. Quality of Service Quality of Service or QoS provides different priority to different applications, users, or data flows, to guarantee a certain level of performance.
  • Page 23 User Manual Management TR TR TR TR- - - - 069 client 069 client – – – – Configuration (CWMP) Configuration (CWMP) 069 client 069 client Configuration (CWMP) Configuration (CWMP) WAN Management Protocol (TR-069) allows an Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and diagnostics to this device.
  • Page 24 User Manual Routing If your LAN consists of multiple subnets and you want to manually define the data transmitting paths, Static Route is to be used. The key settings for adding a new Static Route are explained: Destination Network Address Destination Network Address Enter the network address to which the data packets Destination Network Address Destination Network Address...
  • Page 25 User Manual Use Gateway IP Address Use Gateway IP Address If you wish to use a specific gateway to reach the Use Gateway IP Address Use Gateway IP Address destination network, select this checkbox and then enter the IP address of the gateway.
  • Page 26: Wireless

    User Manual Wireless Settings This page allows you to configure basic features of the wireless LAN interface. You can enable or disable the wireless LAN interface, hide the network from active scans, set the wireless network name (also known as SSID), restrict the channel set based on country requirements, and all other configurations relating to the wireless LAN interface.
  • Page 27 User Manual MAC Filter This page allows you to set a filter to Allow or Deny specific wireless clients by entering the MAC address and selecting the Access Control List mode. Page 27 of 41...
  • Page 28: Applications

    User Manual Applications Port Forwarding Port Forwarding allows you to direct incoming traffic from the Internet to a specific computer in your local network. A maximum 9 entries can be configured. As an example, to setup a web server on a computer using 192.168.1.88 as its IP Address, select HTTP as Service and enter 192.168.1.88 as the Server IP Address.
  • Page 29 User Manual MAC Filtering The router supports MAC Filtering, which allows you to easily set up rules to control incoming and outgoing Internet traffic. Choose MAC from the Rule Type drop down box to configure MAC Filtering. Key in the following parameters: IP Filter Rule Index IP Filter Rule Index Select the index of the filter rule.
  • Page 30 User Manual Protocol Protocol Select the IP protocol to block. Protocol Protocol Click Save/Apply to take effect the settings. The new rule will then be displayed in the Outgoing IP Filtering table list. Click Delete button to delete a corresponding rule. Blocking Control (Parental Control) Parental Control allows you to apply router access restrictions among LAN devices within specific times in a day.
  • Page 31 User Manual URL Filter URL Filter enables you to block certain websites. Select a URL Index, activate the service, and enter the URL of the website that you want to block. Click the Apply button to commit the settings. A maximum of 16 entries can be configured. Click Delete button to delete a corresponding rule.
  • Page 32 User Manual Access Control Select which Services to allow and whether to allow from the LAN or the WAN. Click Delete button to delete a corresponding rule. NAT (Network Address Translation) This page allows you to enable/disable NAT on the modem-router. DDNS The router offers a Dynamic Domain Name System (DDNS) feature.
  • Page 33: System

    User Manual Using DynDNS.org Key in the following parameters: Service provider Select www.DynDNS.org. Service provider Service provider Service provider My Hostname Enter the hostname. My Hostname My Hostname My Hostname DynDNS Settings DynDNS Settings Enter your dyndns.org Username and password. DynDNS Settings DynDNS Settings System...
  • Page 34 User Manual UPnP This page allows you to enable/disable UPnP feature on the modem-router. Settings Restore To import a previously saved configuration file from your PC and update the settings of your router, click Browse to locate the romfile.cfg upgrade file. Then click the Restore button.
  • Page 35 User Manual Firmware Upgrade Allow you to update the firmware of your router. To Update the router’s firmware: 1. Click Browse 2. Choose the firmware file and click OK 3. Click the Upgrade button Reboot This feature allows the router to enable new network configuration to take effect or to clear problems with the router’s network connection.
  • Page 36: Status

    User Manual Status Device Statistics The router will show you detailed statistical information regarding the different connections on your router. This will include statistics for ADSL, WLAN and your Local Area Network. ADSL Status The router shows detailed status information of its DSL connection. Page 36 of 41...
  • Page 37 User Manual System Log System log shows detailed information about the processes running in the router. Diagnostics Your modem is capable of testing your DSL connection. The individual tests are listed below. If a test displays a fail status, click "Rerun Diagnostic Tests" at the bottom of this page to make sure the fail status is consistent.
  • Page 38 User Manual Network Tools Network tools will help you troubleshoot Internet connection problems by verifying your connection. Page 38 of 41...
  • Page 39 User Manual Safety Precautions Do not open, service, or change any component. Only qualified technical specialists are allowed to service the equipment. Observe safety precautions to avoid electric shock Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment.
  • Page 40: Fcc Notice

    The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Aztech could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules.
  • Page 41 It is the responsibility of users requiring service to report the need for service to our Company or to one of our authorized agents. Service can be facilitated through our office at: Aztech Labs Inc Aztech Labs Inc Aztech Labs Inc Aztech Labs Inc 4005, Clipper Court, Fremont, CA, 94538.
