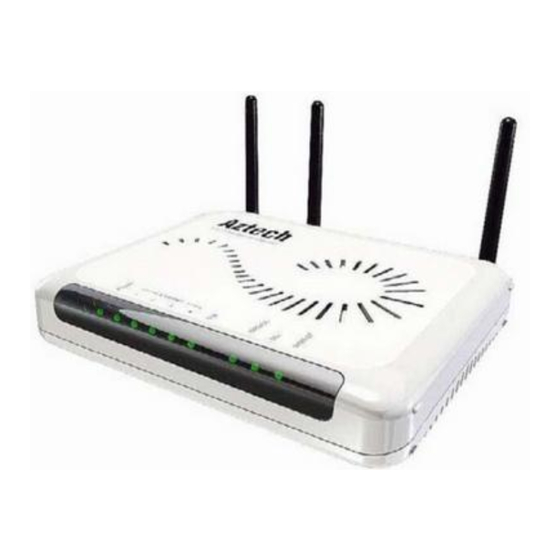

Aztech DSL1015EN User Manual

Adsl2/2+ wireless 802.11n 4 port modem router
Hide thumbs Also See for DSL1015EN:

Advertisement

Quick Links

Download this manual
User Manual
Aztech DSL1015EN
ADSL2/2+ Wireless 802.11n 4 Port Modem Router

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSL1015EN and is the answer not in the manual?

Questions and answers

Related Manuals for Aztech DSL1015EN

Summary of Contents for Aztech DSL1015EN

  • Page 1 User Manual Aztech DSL1015EN ADSL2/2+ Wireless 802.11n 4 Port Modem Router...
  • Page 2 User Manual 2 of 64 Page...
  • Page 3 User Manual © Copyright 2008 All rights reserved. No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
  • Page 4 User Manual 4 of 64 Page...

  • Page 5: Table Of Contents

    User Manual Contents About the Router 8 Requirements 9 Package Contents 9 Device Design 10 Getting Started 11 Planning Your Network 12 Remove or Disable Conflicts 13 Internet Sharing, Proxy, and Security Applications 13 Configuring TCP/IP Settings 14 Configuring Internet Properties 14 Removing Temporary Internet Files 15 Setup the Device 16 Connecting to the Internet 17...
  • Page 6 User Manual DNS Server 28 Dynamic DNS Client 29 Port Triggering 32 Port Forwarding 33 Port Mapping 34 DMZ Host 35 TR069 Client 35 Access Control Services 36 Print Server 36 Quality of Service 45 Queue Config 45 QoS Classification 46 Routing 47 Default Gateway 47 Static Route 47...
  • Page 7 User Manual 7 of 64 Page...

  • Page 8: About The Router

    User Manual About the Router Your router offers an easy way of integrating your computer and other network devices into a single network. Here are some of the benefits you can obtain from using the router in your home or office: Integrated Modem Feature Your router is an ideal solution for high speed Internet connectivity.

  • Page 9: Requirements

    User Manual Requirements Your computer must meet the following minimum requirements. Any operating system can be used Internet Explorer 4.0 or Netscape Navigator 3.02 233MHz processor CD-ROM Drive Ethernet network adapter An active DSL Internet account Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately.

  • Page 10: Device Design

    User Manual Device Design 10 of 64 Page...

  • Page 11: Getting Started

    User Manual Getting Started Setting up the device is easy. The flowchart below provides an outline of the steps needed to complete the installation. Brief descriptions appear beside each step. Detailed instructions are provided in the subsequent pages. Plan your Network Remove/Disable You may need to check some setting or disable some application...

  • Page 12: Planning Your Network

    User Manual Planning Your Network Before moving ahead to setup your network, it is a good idea to draw out a network diagram to help identify your network devices and plan out how to connect these devices. The illustration below is an example of a network diagram. To create a network diagram: For wireless devices, identify the wireless devices you want to include in the network...

  • Page 13: Remove Or Disable Conflicts

    User Manual Remove or Disable Conflicts To make sure the router installation moves on smoothly, you need to remove or disable conflicts that may interfere the installation. Probable conflicts may include: Internet sharing applications Proxy software Security software TCP/IP settings Internet properties Temporary Internet files Internet Sharing, Proxy, and Security Applications...

  • Page 14: Configuring Tcp/Ip Settings

    User Manual Configuring TCP/IP Settings Check if your computer uses the default TCP/IP settings. To check the TCP/IP properties: 1. Select Start > Run. This opens the Run dialog box. 2. Enter control ncpa.cpl and then click OK. This opens the Network Connections in your computer.

  • Page 15: Removing Temporary Internet Files

    User Manual Removing Temporary Internet Files Temporary Internet files are files from Web sites that are stored in your computer. Delete these files to clean the cache and remove footprints left by the Web pages you visited. To remove temporary Internet files: 1.

  • Page 16: Setup The Device

    User Manual Setup the Device When installing the router, find an area where there are enough electrical outlets for the router, the main computer, and your other computer devices. To setup the router: 1. Plug one end of the Ethernet cable from the router’s ETHERNET port and then plug the other end into the Ethernet port in your computer.

  • Page 17: Connecting To The Internet

    User Manual Connecting to the Internet There are two ways to connect to the Internet. You can either use the Web Interface or the Utility Wizard. Connecting Via Quickstart To connect to the Internet via the Web Interface: 1. Open your browser. 2.

  • Page 18: Connecting Via The Setup Utility Wizard

    User Manual Connecting Via the Setup Utility Wizard The Setup Utility Wizard can be used to configure your router. However, this only runs on Windows operating systems with a CD-ROM drive. To connect to the Internet thru Setup Utility Wizard: 1.

  • Page 19: Connecting Wireless Devices

    User Manual Connecting Wireless Devices After you setup the device settings through the main computer, you can connect other devices with wireless capabilities. Wireless devices relieve you from the task of laying out cables and allow you to use the Internet connection from your router. To the connect with wireless devices: 1.

  • Page 20: About The Web User Interface

    User Manual About the Web User Interface The Web Interface is used to configure the router settings. Accessing the Web User Interface To access the Web User Interface: 1. Open your browser. 2. On the address bar type http://192.168.1.1 3. Enter the User name and Password, and then click OK. The default User name and admin Password is 20 of 64...

  • Page 21: Menus

    User Manual Menus The Web User Interface includes the following menus: Basic Advanced Basic Advanced 21 of 64 Page...

  • Page 22: Basic

    User Manual Basic Home Displays the summary and provides an overview of the operating parameters used in your device. 22 of 64 Page...

  • Page 23: Quickstart

    User Manual Quickstart Quickstart is used to establish an internet connection. 23 of 64 Page...

  • Page 24: Advanced

    User Manual Advanced WAN allows you to add, edit, or remove WAN connections. New Connection To create a new WAN connection: 1. Click WAN. 2. Click New Connection. 3. Enter the connection settings: a. Enter the ATM PVC Configuration, QoS Setting, and then click Next. 24 of 64 Page...
  • Page 25 User Manual b. Select the Connection Type, Encapsulation, and then click Next. c. Enable/Disable Bridge Service d. Check the settings. Click Back to apply modifications. 4. Click Save. 25 of 64 Page...

  • Page 26: Adsl Modulation

    User Manual ADSL Modulation The ADSL Modulation page allows you to select the modulation, the phone line pair and the capability. Connection Summary Advanced Setup provides configuration options for other router functions. Provides a view of the connections made and the status of the connections. 26 of 64 Page...

  • Page 27: Lan

    User Manual LAN Configuration LAN allows you to modify the settings for your local network. LAN Clients Displays all the DHCP clients connected to the router. 27 of 64 Page...

  • Page 28: Application

    User Manual Application SNTP Enable the SNTP client to automatically synchronize your time with a time server. SNMP Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from the SNMP agent in this device. DNS Server DNS (Domain Name System) is an Internet service that translates domain names into IP addresses.

  • Page 29: Dynamic Dns Client

    User Manual To use your preferred DNS servers, disable the Enable Automatic Assigned DNS checkbox and key in the IP address of your Primary DSN server. Adding a Secondary DNS server is optional. Dynamic DNS Client The router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP Address.
  • Page 30 User Manual Using DynDNS.org Key in the following parameters: D-DNS provider Select DynDNS.org. Hostname Enter the hostname. Interface Select an interface. DynDNS Settings Enter your dyndns.org Username and password. 30 of 64 Page...
  • Page 31 User Manual Using TZO Key in the following parameters: D-DNS provider Select TZO. Hostname Enter the hostname. Interface Select an interface. TZO Settings Enter your TZO e-mail and key. 31 of 64 Page...

  • Page 32: Port Triggering

    User Manual Port Triggering Some applications require that the specific ports in the router’s firewall be opened for access by the remote parties. For instance, an application uses port 25 for requests and port 113 for replies. If a computer on the LAN connects to port 25 on a remote server hosting this application, using Port Triggering on the router, incoming connections to port 113 (from the remote server) could be redirected to the PC which initiated the request.

  • Page 33: Port Forwarding

    User Manual Port Forwarding Virtual Server allows you to direct incoming traffic from the Internet to a specific computer in your local network. A maximum 32 entries can be configured. Click Add to create a Virtual Server. As an example, to setup a web server on a computer using 192.168.1.88 as its IP Address, select HTTP as Service and enter 192.168.1.88 as the Server IP Address.

  • Page 34: Port Mapping

    User Manual Port Mapping Port Mapping allows you to create groups composed of the various interfaces available in your router. Click Add to create a port mapping group. 34 of 64 Page...

  • Page 35: Dmz Host

    User Manual DMZ Host The DMZ host computer will receive all the IP packets from WAN that are not configured to go to other computers through virtual servers or port forwarding. TR069 Client As a TR-069 capable router, the Internet service provider can remotely update the settings of the device.

  • Page 36: Access Control Services

    Select which Services to allow and whether to allow from the LAN or the WAN. Print Server The DSL1015EN is equipped with a USB Host print server on board. To use the print server on the DSL1015EN, you need to accomplish the following tasks: 1.
  • Page 37 4. Input the Printer Name and Printer Make and Model on the fields. 5. To commit and save the changes, click on Save/Apply button. CONNECTING THE PRINTER 1. Turn OFF the DSL1015EN. 2. Connect the Printer on the USB port and switch it ON. 37 of 64...
  • Page 38 FOR WINDOWS XP Before you continue, ensure that you’ve installed the printer drivers on this computer and the printer is attached to the DSL1015EN. 1. Click on the Start Button > Control Panel > Printers and Other Hardware > Printers and Faxes.
  • Page 39 User Manual 3. Click on Next on the Add Printer Wizard page. 4. Choose A network printer, or a printer attached to another computer and click Next, on the Local or Network Printer page. 5. Choose Connect to a printer on the Internet or on a home or office network:, on the Specify a Printer page.
  • Page 40 User Manual 7. Once the computer detects the printer on the Print Server, it will ask for the printer manufacturer and model, a list of printers will be shown, select the your printer from the list and click OK. 8. Click Finish, on the Completing the Add Printer Wizard page. 40 of 64 Page...
  • Page 41 User Manual PRINTING A TEST PAGE AFTER INSTALLATION 1. Open the Printers and Faxes page from Control Panel. 2. Right click on the new printer and click on Properties. 3. Click on the Print Test Page button on the Printer properties page, the test page will be printed on the network printer.
  • Page 42 User Manual 4. Click on Add a network, wireless or Bluetooth printer. 5. Click on Stop on Searching for available printers… page. 6. Click on The printer that I want isn’t listed. 7. Click on Select a shared printer by name on the Find a printer by name on TCP/IP address, and input the following URL on the field and click on Next.
  • Page 43 User Manual 8. Once the computer detects the printer on the Print Server, it will ask for the printer manufacturer and model, a list of printers will be shown, select the your printer from the list and click OK. 9. Click Next on the Type a Printer Name page. 43 of 64 Page...
  • Page 44 DSL1015EN, Print function is the only feature that will work on these printers type when connected to the DSL1015EN. 3. Refrain from connecting a USB Hub on the USB port on the DSL1015EN. 44 of 64...

  • Page 45: Quality Of Service

    User Manual Quality of Service Queue Config Click Add to create a QoS Queue Configuration. 45 of 64 Page...

  • Page 46: Qos Classification

    User Manual QoS Classification You can add or remove QoS Classification rules. Click Add to create a Network Traffic Class Rule. 46 of 64 Page...

  • Page 47: Routing

    User Manual Routing Default Gateway The Enable Automatic Assigned Default Gateway checkbox is ticked by default. The router will accept the first received Default Gateway assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s). Static Route If your LAN consists of multiple subnets and you want to manually define the data transmitting paths, Static Route is to be used.

  • Page 48: Ipsec

    User Manual To create a new Static Route, click Add. The Routing-Static Route Add page will shows up. The key settings for adding a new Static Route are explained: Destination Network Address Enter the network address to which the data packets are to be sent.

  • Page 49: Certificate

    User Manual Certificate Certificates are used to verify the identity of you and your peers. You can either create or import a Certificate Request. Local 49 of 64 Page...
  • Page 50 User Manual Create Certificate Request Import Certificate 50 of 64 Page...

  • Page 51: Trusted Ca

    User Manual Trusted CA Trusted CA is used to verify the certificate of your peers. Click Import Certificate. 51 of 64 Page...

  • Page 52: Wireless

    User Manual Wireless Setup The Setup page allows you to enable the wireless network and configure its basic settings. Security The router supports all the popular wireless security protocols. 52 of 64 Page...

  • Page 53: Management

    User Manual Management Wireless Management allows you to add or remove the MAC Address of devices which will be allowed or denied access to the wireless network. Click Add to add a MAC Address. WDS allows you to configure the router’s access point as a bridge. 53 of 64 Page...

  • Page 54: Station Info

    User Manual Station Info Station Info scans wireless stations and displays their status. 54 of 64 Page...

  • Page 55: Diagnostics

    User Manual Diagnostics The router has a diagnostic feature to test your DSL connection. You can use the diagnostic menu to perform the following test functions from the router. Testing the connection to your local network Testing the connection to your DSL service provider. Testing the connection to your Internet service provider.

  • Page 56: Security

    User Manual Security Access IP Control The Access IP Control Mode is disabled by default. To allow remote management based on an authorized IP address, select Enable and click Add. Key in the IP address of the PC from which a user will be allowed to access the web configuration menu.

  • Page 57: Status

    User Manual Status Connection Status Connection status displays a statistical summary of the data transaction for each connection. Modem Status Modem Status displays a statistical summary of the ADSL connection. 57 of 64 Page...

  • Page 58: Local Network Statistics

    User Manual Local Network Statistics LAN displays a statistical summary of the data transaction for each interface. System Log This feature provides you a comprehensive list of log entries reporting events which you have configured for viewing. To view the log, click View System Log. Remote Log Remote Log page allows you to send the events on the router to a remote syslog system.

  • Page 59: Dhcp Clients

    User Manual DHCP Clients DHCP clients page displays all the DHCP clients connected to the router. Product Information Shows information about the product’s model number, firmware, firmware build and software version. 59 of 64 Page...

  • Page 60: Usb Device

    User Manual USB Device The USB port on the DSL1015EN is capable of sharing the contents of your USB storage device to the network. The following steps should be accomplished to share your files on the network. 1. Ensure that the DSL1015EN is OFF, connect the USB storage device and switch it ON.
  • Page 61 3. You can safely remove the device once you see the Mount button displayed on the table for USB Information. Note: 1. The USB Storage feature on the DSL1015EN can only support devices that are formatted with FAT/FAT32 file systems. NTFS and other file systems are currently not supported.

  • Page 62: System Password

    User Manual System Password When you configure the router through an Internet browser, the system requires you to enter your user name and password to validate your access permission. By default, the Username is set to “admin” and the Password to “admin”. 62 of 64 Page...

  • Page 63: Firmware Upgrade

    User Manual Firmware Upgrade The router’s software is stored in the FLASH memory and can be upgraded as new software is released. Click Browse to locate the software file and then click Update Software. Restore to Defaults This page allows you to do the following: Backup router Settings Restore router Settings Restore original router factory settings...

  • Page 64: Safety Precautions

    User Manual Safety Precautions Do not open, service, or change any component. Only qualified technical specialists are allowed to service the equipment. Observe safety precautions to avoid electric shock Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment.
