  • Page 1 Korenix JetNet 3508G-LVDC Series JetNet 3508-LVDC/ 3508G-LVDC Industrial Ethernet Switch User’s Manual Version: 1.0 www.korenix.com...
  • Page 2 Korenix JetNet 3508G-LVDC Series JetNet 3508-LVDC / 3508G-LVDC Industrial Ethernet GbE Switch Copyright Notice Copyright © 2019 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited. Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 3: Table Of Contents

    LED Indicators ....................9 2.2 Wiring the Power Inputs .................. 9 2.4 Wiring Earth Ground ..................10 2.5 Rotary Switches (Ignition Function) ............... 10 3. Appendix ........................13 3.1 Product Specification ..................13 3.2 Revision History ....................15 Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 4: Introduction

    1. Introduction Korenix JetNet 3508G-LVDC Series is a power over Ethernet rail switch that is specially designed for industrial or commercial applications. The following topics are covered in this chapter: 1.1 Overview 1.2 Product Features Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 5: Overview

    Gigabit bandwidth uplink for large image traffic, but also support CoS to adjust the priority of data transmission. The compact size with IP-41 steel metal case allows JetNet 3508G-LVDC series to be reliably operated in -40~75℃ extreme environment.

  • Page 6: Hardware Installation

    2. Hardware Installation 2.1 Hardware Introduction Dimensions JetNet 3508-LVDC dimensions: 116(H) x 146(W) x 58(D) Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...
  • Page 7 JetNet 3508G-LVDC dimensions: 116(H) x 146(W) x 58(D) Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 8: Front Panel

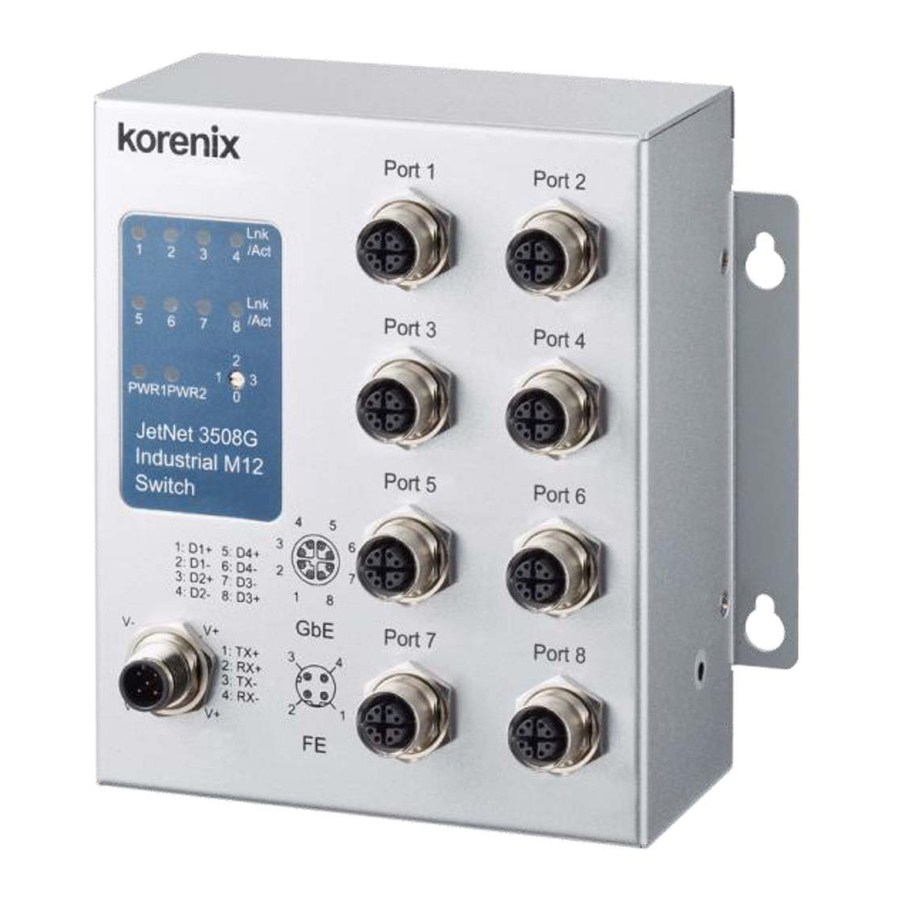

    Front Panel JetNet 3508-LVDC/ 3508G-LVDC include system power LED x1, and 8 LEDs for the port operating status. JetNet 3508-LVDC / JetNet 3508G-LVDC (Don’t have PoE LED) Lnk/Act LED PWR LED Power Ignition Ignition Input Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 9: Connector Definition

    Connector definition Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 10: Led Indicators

    IMPORTANT: Do make sure that different models must connect to the corresponding supply voltage. Guarantee will not apply to the damage caused by wrong input power. Note: The product intended to be supplied by LPS power supply. Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 11: Wiring Earth Ground

    2.5 Rotary Switches (Ignition Function) 4-Pin rotary switch is one of components to trigger delay off into standby mode function, the detail shows in table 1, how does ignition function work. It is showed in diagram 1. Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...
  • Page 12 (Table 1) Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...
  • Page 13 (Diagram 1) Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 14: Appendix

    2 Mega bits shared packet buffer Broadcast storm Default enabled control: Traffic threshold: 25M bps@1000Mbps; 10M bps@100Mbps; 1M bps@10 Mbps Jumbo frame Up to 10K Bytes Transfer 14,880 pps @10Mbps performance 148,800 pps @100Mbps 1,488,100 pps @1000Mbps Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...
  • Page 15 Wall Mounting Enclosure Material Steel Metal with textured paint Ingress Protection IP-41 (IP54 available by request) Dimension (mm) 116 mm (H) x 140 mm (W) x 58 mm (D) (without wall mount clip) Weight (Kg) 1.105 Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...

  • Page 16: Revision History

    EMS:EN50121-3-2/EN50121-1, IEC/EN61000-6-2 IEC/EN61000-4-2, IEC/EN61000-4-3, IEC/EN61000-4-4, IEC/EN61000-4-5, IEC/EN61000-4-6, IEC/EN61000-4-8, IEC/EN61000-4-9 Variation/Shock IEC 61373 Free Fall IEC 60068-2-32 with package Note-1 MTBF (hrs) 379,940 Warranty 5 Years 3.2 Revision History Edition Date Modifications V1.0 09/04/2019 New edition Korenix JetNet 3508-LVDC/ JetNet 3508G-LVDC...
