Korenix JetNet 6059G Series User Manual

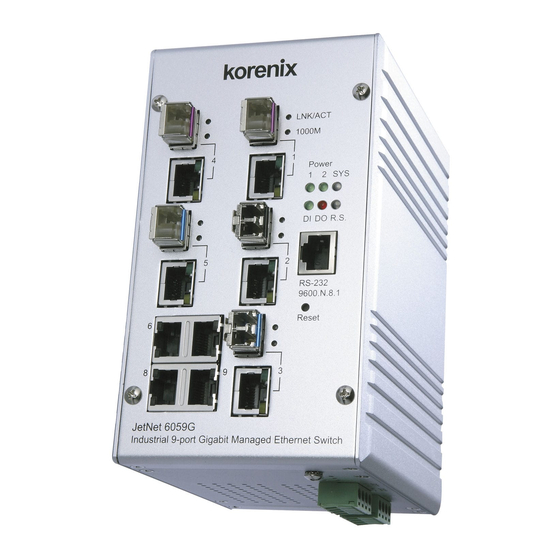

Jetnet 6059g series 9-port gigabit managed ethernet switch
Hide thumbs Also See for JetNet 6059G Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
JetNet 6059G Series
9-Port Gigabit Managed Ethernet Switch
User's Manual
V0.3, DEC-2010
Firmware V0.1.39
www.korenix.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JetNet 6059G Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Korenix JetNet 6059G Series

Summary of Contents for Korenix JetNet 6059G Series

  • Page 1 JetNet 6059G Series 9-Port Gigabit Managed Ethernet Switch User’s Manual V0.3, DEC-2010 Firmware V0.1.39 www.korenix.com...
  • Page 2 JetNet 6059G Series Industrial Managed Gigabit Ethernet Switch User’s Manual Copyright Notice Copyright © 2010 Korenix Technology Co., Ltd. All rights reserved. Reproduction in any form or by any means without permission is prohibited.
  • Page 3 Declaration of CE This product has passed the CE certification for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products.

  • Page 4: Table Of Contents

    Index Introduction ....................2 Overview ..................2 Major Features................3 Package List ..................4 Hardware Installation ................5 Hardware Introduction..............6 Wiring the Power Inputs ..............9 Wiring Digital Input ............... 11 Wiring Digital Output ..............11 Wiring Earth Ground ..............12 Wiring Gigabit Ethernet RJ-45 Ports ..........13 Wiring Combo Ports –...
  • Page 5 Korenix SFP family..............127 Korenix Private MIB ..............128 Revision History .................130 About Korenix ................131...

  • Page 6: Introduction

    JetNet 6059G series, Industrial 9-port Managed Gigabit Ethernet Switches, have 4 10/100/1000Base-TX ports and 5 combo ports, respectively 10/100/1000 RJ-45 / 100-FX / Gigabit SX/LX. JetNet 6059G is especially designed to operate under harsh environmental conditions. The switches provide solid foundation for a highly fault-tolerant and easily-managed network.

  • Page 7: Major Features

    32Gbps switch Fabric, 8K MAC address to ensure High Quality Data transmission Isolated out-band management interface for negative power system. Korenix patented MSR® pattern aggregates up to 4 x 1000M Rings for critical data stream redundancy IEEE 802.1AB LLDP and optional JetView Pro i2NMS software for...

  • Page 8: Package List

    Package List Korenix JetNet 6059G Series products are shipped with following items: JetNet 6059G x1 One DIN-Rail clip (attached to the switch) One wall mounting plate One RS-232 DB-9 to RJ-45 console cable CD User manual x 1 Quick Installation Guide (QIG)

  • Page 9: Hardware Installation

    2 Hardware Installation This chapter includes hardware introduction, installation configuration information. Following topics are covered in this chapter: 2.1 Hardware Introduction Dimension Panel Layout Bottom View 2.2 Wiring Power Inputs 2.3 Wiring Digital Input 2.4 Wiring Relay Output 2.5 Wiring Ethernet Ports 2.6 Wiring Combo Ports 2.7 Wiring RS-232 console cable 2.8 DIN-Rail Mounting Installation...

  • Page 10: Hardware Introduction

    Hardware Introduction Dimension JetNet 6059G Industrial 9-port Gigabit managed Switch dimension is: 95mm x 167.65mm x 127.2mm (W x H x D), w/o DIN Rail 95mm x 167.65mm x 146.9mm (W x H x D), w/o DIN Rail Clip...
  • Page 11 Front Panel Layout The front panel includes 10/100/1000Mbps Gigabit Ethernet ports, SFP slot, RS232 console port, Reset button and LEDs for system and port indication The LED function is decribed as following table: Function Behaviors Power 1,2 Indicates the power input status On: the input connector is on applying power.
  • Page 12 Bottom View The bottom view of the JetNet 6059G Industrial 9-port Gigabit Managed Switch consists of two terminal block connectors with two DC power inputs, one Digital Input (DI), one Relay Output (DO) and one Chassis Grounding screw.

  • Page 13: Wiring The Power Inputs

    Wiring the Power Inputs Follow below steps to wire JetNet 6059G redundant DC power inputs. Insert positive and negative wires into V+ and V- contacts respectively of the terminal block connector Tighten the wire-clamp screws to prevent DC wires from being loosened.
  • Page 14 Note 3: If the 2 power inputs are connected, JetNet 6059G will be powered from the highest connected voltage. The unit will alarm for loss of power, either PWR1 or PWR2. Note 4: To use the UL Listed Power supply with output Rating 10.5-60 Vdc, minimum 2 A.

  • Page 15: Wiring Digital Input

    Wiring Digital Input JetNet 6059G provides one digital input. It allows users to connect the termination units’ digital output and manage/monitor the status of the connected unit. The Digital Input pin can be pulled high or low; thus the connected equipments can actively drive these pins high or low.

  • Page 16: Wiring Earth Ground

    JetNet 6059G with Earth Grounding. On the bottom side of JetNet 6059G, there is one earth ground screw. Loosen the earth ground screw by screw drive; then tighten the screw after earth ground wire is well...

  • Page 17: Wiring Gigabit Ethernet Rj-45 Ports

    Wiring Gigabit Ethernet RJ-45 Ports The JetNet 6059G adopts 9 ports RJ-45 connectors which support 10/100Mbps Half/Full duplex, 1000Mbps full duplex with auto MDI/MDI-X functions and auto negotiation; there are 5 in 9 ports RJ-45 are combo with SFP socket which supports optical fiber communication that can support 100Mbps and 1000Mbps SFP Transceiver with Digital Diagnostic Monitor (DDM) feature to achieves fiber signal quality control.

  • Page 18: Wiring Combo Ports - Sfp

    Wiring Combo Ports – SFP JetNet 6059G includes 5 RJ-45/ SFP socket combo ports. The speed of the gigabit Ethernet RJ-45 port supports 10Base-T, 100Base-TX and 1000Base-T. JetNet 6059G also equips 5 gigabit SFP ports combo with gigabit Ethernet RJ-45 ports. The speed of the SFP port supports 100Base-FX and 1000Base-SX/LX and accepts standard MINI GBIC SFP transceiver.

  • Page 19: Din-Rail Mounting Installation

    The DIN-Rail clip is already screwed tighten on the rear side of JetNet 6059G when shipping. If the DIN-Rail clip is not screwed on the JetNet 6059G. The DIN rail clip supports EN50022 standard. In the diagram following includes the dimension of EN50022 DI rail for your refer.

  • Page 20: Wall-Mounting Installation

    Follow the steps below to install JetNet 6059G with the wall mounting plate. 1. To remove DIN-Rail clip from JetNet 6059G, loosen the screws from DIN-Rail clip. 2. Place the wall mounting plate on the rear panel of JetNet 6059G.
  • Page 21 screw and tight the wall-mount kit onto the rear side of the JetNet switch. The specification of screw is M3 in 6 mm length.

  • Page 22: Preparation For Management

    RS232 console port via serial cable attached in the package if you don’t attach your admin PC to your network, or if you lose network connection to the target JetNet 6059G. This is so-called out-band management. It wouldn’t be affected by network performance.

  • Page 23: Preparation For Serial Console

    In JetNet 6059H package, Korenix attached one RS-232 DB-9 to RJ-45 console cable. Please attach RS-232 DB-9 connector to your PC COM port, connect RJ-45 to the Console port of the JetNet 6059G. If you lose the cable, please follow the console cable PIN assignment to find one.

  • Page 24: Preparation For Web Interface

    Interface for web management. 3.2.1 Web Interface Korenix web management page is developed by JAVA. It allows you to use a standard web-browser such as Microsoft Internet Explorer, or Mozila, to configure and interrogate the switch from anywhere on the network.
  • Page 25 Users have to directly modify the browser settings to selectively enable Java applets to use network ports. Note 2: The Web UI connection session of JetNet 6059G will be logged out automatically if you don’t give any input after 30 seconds. After logged out, you should re-login and key in correct user name and password again.
  • Page 26 Sample of JetNet 5010G The login screen will appear next. Key in the user name and the password. The default user name and password is admin. Click on Enter or OK. Welcome page of the web-based management interface will then appear. Once you enter the web-based management interface, all the commands you see are the same as what you see by HTTP login.

  • Page 27: Preparation For Telnet Console

    The SSH connection can secure all the configuration commands you sent to the switch. SSH is a client/server architecture while JetNet 6059G is the SSH server. When you want to make SSH connection with the switch, you should download the SSH client tool first.
  • Page 28 2. After click on Open, then you can see the cipher information in the popup screen. Press Yes to accept the Security Alert 3. After few seconds, the SSH connection to JetNet 6059G is opened. You can see the login screen as the below figure.
  • Page 29 4. Type the Login Name and its Password. The default Login Name and Password are admin / admin. All the commands you see in SSH are the same as the CLI commands you see via RS232 console. The next chapter will introduce in detail how to use command line to configure the switch...

  • Page 30: Feature Configuration

    IP address. Then you can remotely connect to its embedded HTML web pages or Telnet console. Korenix web management page is developed by JAVA. It allows you to use a standard web-browser such as Microsoft Internet Explorer, or Mozila, to configure and interrogate the switch from anywhere on the network.

  • Page 31: Command Line Interface Introduction

    Command Line Interface Introduction The Command Line Interface (CLI) is the user interface to the switch’s embedded software system. You can view the system information, show the status, configure the switch and receive a response back from the system by keying in a command. There are some different command modes.
  • Page 32 Global Configuration Mode: Press configure terminal in privileged EXEC mode. You can then enter global configuration mode. In global configuration mode, you can configure all the features that the system provides you. Type interface IFNAME/VLAN to enter interface configuration mode, “exit “to leave this configuration level and “? “...
  • Page 33 Type “exit” to leave this current level. Type “? “ to show the command list Available command lists of the global configuration mode. Switch(config)# interface gi1 Switch(config-if)# acceptable Configure 802.1Q acceptable frame types of a port. auto-negotiation Enable auto-negotiation state of a given port description Interface specific description duplex...
  • Page 34 Summary of the 5 command modes Command Main Function Enter and Exit Method Prompt Mode Enter: Login successfully User EXEC This is the first level of access. Switch> Exit: exit to logout. User can ping, telnet remote Next mode: Type enable to device, and show some basic information enter privileged EXEC mode.
  • Page 35 Ctrl+Z To exit configuration mode. Alert message when multiple users want to configure the switch. If the administrator is in configuration mode, then the Web users can’t change the settings. JetNet 6059G allows only one administrator to configure the switch at same time.

  • Page 36: Basic Setting

    Basic Setting The Basic Setting group provides you to configure switch information, IP address, User’s name/Password of the system. It also allows you to do firmware upgrade, backup and restore configuration, reload factory default, and reboot the system. Following commands are included in this group: 4.2.1 Switch Setting 4.2.2 Admin Password 4.2.3 IP Configuration...
  • Page 37 MIB in MIB browser. (Note: When you attempt to view private MIB, you should compile private MIB files into your MIB browser first.) System Description: JetNet 6059G Industrial Management Ethernet Switch is the name of this product. Firmware Version: Display the firmware version installed in this device.
  • Page 38 Figure 4.2.2.2 Popup alert window for Incorrect Username. 4.2.3 IP Configuration This function allows users to configure the switch’s IP address settings DHCP Client: You can select to Enable or Disable DHCP Client function. When DHCP Client function is enabled, an IP address will be assigned to the switch from the network’s DHCP server.
  • Page 39 *Note: Please enable one synchronization protocol (PTP/NTP) only. The JetNet 6059G also provides Daylight Saving function for some territories use. Manual Setting: User can select Manual setting to change time as user wants.
  • Page 40 current time from the NTP server you assigned. IEEE 1588: select the PTP State to enable this function and select one operating mode for the precision time synchronizes. Auto mode: the switch performs PTP Master and slave mode (Bindary mode) Master mode: switch performs PTP Master only.
  • Page 41 22 (GMT-02:00) Mid-Atlantic 23 (GMT-01:00) Azores 24 (GMT-01:00) Cape Verde Is. 25 (GMT) Casablanca, Monrovia 26 (GMT) Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London 27 (GMT+01:00) Amsterdam, Berlin, Bern, Rome, Stockholm, Vienna 28 (GMT+01:00) Belgrade, Bratislava, Budapest, Ljubljana, Prague 29 (GMT+01:00) Brussels, Copenhagen, Madrid, Paris 30 (GMT+01:00) Sarajevo, Skopje, Sofija, Vilnius, Warsaw, Zagreb 31 (GMT+01:00) West Central Africa 32 (GMT+02:00) Athens, Istanbul, Minsk...
  • Page 42 Once you finish your configuration, click on Apply to apply your configuration. 4.2.5 DHCP Server You can select to Enable or Disable DHCP Server function. JetNet 6059G will assign a new IP address to link partners. DHCP Server configuration After selecting to enable DHCP Server function, type in the Network IP address for the DHCP server IP pool, Subnet Mask, Default Gateway address and Lease Time for client.
  • Page 43 Remove. DHCP Leased Entries: JetNet 6059G provides an assigned IP address list for user check. It will show the MAC and IP address that was assigned by JetNet 6059G.
  • Page 44 DHCP Relay Agent You can select to Enable or Disable DHCP relay agent function, and then select the modification type of option 82 field. Relay policy drop: Drops the option 82 field and do not add any option 82 field. Relay policy keep: Keeps the original option 82 field and forwards to server.
  • Page 45 both CLI and Web UI. TFTP Server IP Address: You need to key in the IP address of your TFTP Server here. Backup/Restore File Name: Please type the correct file name of the configuration file. Configuration File: The configuration file of the switch is a pure text file. You can open it by word/txt read file.
  • Page 46 Figure 4.2.6.2 Bacup/Restore Configuration - Local File mode. Click on Folder icon to select the target file you want to backup/restore. Note that the folders of the path to the target file do not allow you to input space key. Figure 4.2.6.3 Backup/Restore Configuration - TFTP Server mode Type the IP address of TFTP Server IP.
  • Page 47 4.2.7 Firmware Upgrade In this section, you can update the latest firmware for your switch. Korenix provides the latest firmware in Korenix Web site. The new firmware may include new features, bug fixes or other software changes. We’ll also provide the release notes for the update as well.
  • Page 48 Firmware File Name: The file name of the new firmware. The UI also shows you the current firmware version and built date of current firmware. Please check the version number after the switch is rebooted. Figure 4.2.7.2 Firmware Upgrade - Local File mode. Click on Folder icon to select the target firmware file you want to upgrade.
  • Page 49 4.2.8 Factory Default In this section, you can reset all the configurations of the switch to default setting. Click on Reset the system will then reset all configurations to default setting. The system will show you popup message window after finishing this command.
  • Page 50 4.2.9 System Reboot System Reboot allows you to reboot the device. Some of the feature changes require you to reboot the system. Click on Reboot to reboot your device. Note: Remember to click on Save button to save your settings. Otherwise, the settings you made will be gone when the switch is powered off.
  • Page 51 Switch(config)# hostname System Name WORD Network name of this system Switch(config)# hostname JN6059G SWITCH(config)# SWITCH(config)# snmp-server location Taipei System Location SWITCH(config)# snmp-server contact korecare@korenix.com System Contact SWITCH# show snmp-server name Display SWITCH# SWITCH# show snmp-server location Taipei SWITCH# show snmp-server contact korecare@korenix.com...
  • Page 52 ip route 0.0.0.0/0 192.168.10.254/24 Time Setting SWITCH(config)# ntp peer NTP Server enable disable primary secondary SWITCH(config)# ntp peer primary IPADDR SWITCH(config)# ntp peer primary 192.168.10.120 SWITCH(config)# clock timezone 26 Time Zone Sun Jan 1 04:13:24 2006 (GMT) Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London Note: By typing clock timezone ?, you can see the timezone list.
  • Page 53 Switch(config-dhcp)# ip dhcp relay information option Enable DHCP Relay policy Switch(config-dhcp)# ip dhcp relay information policy replace drop Relay Policy keep Drop/Keep/Replace option82 field replace Switch# show ip dhcp server statistics Show DHCP server Switch# show ip dhcp server statistics information DHCP Server ON Address Pool 1...
  • Page 54 Reload OK! Switch# reboot System Reboot Switch# reboot Reboot...

  • Page 55: Port Configuration

    Port Configuration Port Configuration group enables you to enable/disable port state, or configure port auto-negotiation, speed, and duplex, flow control, rate limit control and port aggregation settings. It also allows you to view port status and aggregation information. Following commands are included in this group: 4.3.1 Port Control 4.3.2 Port Status 4.3.3 Rate Control...
  • Page 56 of this port. Below are the selections you can choose: Gigabit Ethernet Port 1~9: (gi1~gi9) : AutoNegotiation, 10M Full Duplex(10 Full), 10M Half Duplex(10 Half), 100M Full Duplex(100 Full), 100M Half Duplex(100 Half), 1000M Full Duplex(1000 Full), 1000M Half Duplex(1000 Half).
  • Page 57 4.3.2 Port Status Port Status shows you current port status. In the firmware version 2.2, it supports Small Form Factory (SFP) fiber transceiver with Digital Diagnostic Monitoring (DDM) function that provides real time information of SFP transceiver and allows user to diagnostic the optical fiber signal received and launched.
  • Page 58 Unknown info, it may mean that the vendor doesn’t provide their information or that the information of their transceiver can’t be read. 2. if the plugged DDM SFP transceiver is not certified by Korenix, the DDM function will not be supported. But the communication will not disable.
  • Page 59 IEEE standard, 802.3ad. The aggregated ports can interconnect to the other switch which also supports Port Trunking. Korenix Supports 2 types of port trunking. One is Static Trunk, the other is 802.3ad. When the other end uses 802.3ad LACP, you should assign 802.3ad LACP to the trunk. When the other end uses...
  • Page 60 non-802.3ad, you can then use Static Trunk. There are 2 configuration pages, Aggregation Setting and Aggregation Status. Aggregation Setting Trunk Size: The switch can support up to 4 trunk groups. Each trunk group can support up to 8 member ports. The member ports should use same speed and link duplex mode.
  • Page 61 Aggregation Status This page shows the status of port aggregation. Once the aggregation ports are negotiated well, you will see following status. Group ID: Display Trunk 1 to Trunk 5 set up in Aggregation Setting. Type: Static or LACP set up in Aggregation Setting. Aggregated: When LACP links well, you can see the member ports in aggregated column.
  • Page 62 4.3.5 Command Lines for Port Configuration Feature Command Line Port Control Switch(config-if)# shutdown -> Disable port state Port Control – State Port1 Link Change to DOWN interface fastethernet1 is shutdown now. Switch(config-if)# no shutdown -> Enable port state Port1 Link Change to DOWN Port1 Link Change to UP interface fastethernet1 is up now.
  • Page 63 Operating Status : Connected Duplex : Full Speed : 100 Flow Control :off Default Port VLAN ID: 1 Ingress Filtering : Disabled Acceptable Frame Type : All Port Security : Disabled Auto Negotiation : Disable Loopback Mode : None STP Status: forwarding Default CoS Value for untagged packets is 0.
  • Page 64 Note: The interface list is gi1-9 Note: different speed port can’t be aggregated together. Switch(config)# trunk group 2 gi6-7 Static Trunk Trunk group 2 enable ok! Swhitch# show lacp internal Display - LACP LACP group 1 is inactive LACP group 2 is inactive LACP group 3 is inactive LACP group 4 is inactive LACP group 5 is inactive...

  • Page 65: Network Redundancy

    Multiple Super Ring (MSR) technology is Korenix’s 3 generation Ring redundancy technology. This is patented and protected by Korenix and is used in countries all over the world. MSR ranks the fastest restore and failover time in the world, 0 ms for restore and about milliseconds for failover for copper.

  • Page 66: Bridge Configuration

    This page allows you to enable/disable RSTP, configure the global setting and port settings. RSTP Mode: You must first enable STP/RSTP mode, before configuring any related parameters. Parameter settings required for both STP and RSTP are the same. Note that 802.1d refers to STP mode, while 802.1w refers to faster RSTP mode.

  • Page 67: Port Configuration

    root bridge in an amount of time equal to Max Age, then JetNet will reconfigure itself as a root bridge. Once two or more devices on the network are recognized as a root bridge, the devices will renegotiate to set up a new spanning tree topology.
  • Page 69 The most common industrial network redundancy is to form a ring or loop. Typically, the managed switches are connected in series and the last switch is connected back to the first one. In such connection, you can implement Korenix Super Ring, Rapid Super Ring, and Multiple Super Ring technology.
  • Page 70 “RingID”. Version: The version of Ring can be changed here. There are three modes to choose: Rapid Super Ring as default; Super ring for compatible with Korenix 1 general ring and Any Ring for compatible with other version of rings.
  • Page 71 Ring Port2: Assign another port for ring connection Path Cost: Change the Path Cost of Ring Port2 Rapid Dual Homing: Rapid Dual Homing is an important feature of Korenix 3 generation Ring redundancy technology. When you want to connect multiple RSR or form redundant topologies with other vendors,RDH could allow you to have maximum 7 multiple links for redundancy without any problem.
  • Page 72 one of the link in this Ring is broken, then the status will be Abnormal. RM MAC: The MAC address of Ring Master of this Ring. It helps to find the redundant path. Blocking Port: This field shows which is blocked port of RM. Role Transition Count: This means how many times this switch has changed its Role from nonRM to RM or from RM to nonRM.
  • Page 73 Root Address 0012.7701.0386 Priority 4096 Root Path Cost : 200000 Root Port : 7 Root Times : max-age 20 sec, hello-time 2 sec, forward-delay 15 sec Bridge Address 0012.77ff.0102 Priority 4096 Bridge Times : max-age 10 sec, hello-time 2 sec, forward-delay 15 sec Aging time : 300 Port Role...
  • Page 74 default set default Switch(config)# super-ring priority 100 Ring Port Switch(config-multiple-super-ring)# port IFLIST Interface list, ex: fa1,fa3-5,gi1-9 cost path cost Switch(config-multiple-super-ring)# port gi1,gi2 Ring Port Cost Switch(config-multiple-super-ring)# port cost <0-255> valid range is 0 or 255 default set default (128)valid range is 0 or 255 Switch(config-multiple-super-ring)# port cost 100 <0-255>...

  • Page 75: Vlan

    Layer 2 switch, without actually disconnecting these devices from their original switches. JetNet 6059G Series Industrial Ethernet Switch supports 802.1Q VLAN. 802.1Q VLAN is also known as Tag-Based VLAN. This Tag-Based VLAN allows VLAN to be created across different switches (see Figure 1). IEEE 802.1Q tag-based VLAN makes use of VLAN control information stored in a...
  • Page 76 4.5.1 VLAN Port Configuration VLAN Port Configuration allows you to set up VLAN port parameters to specific port. These parameters include PVID, Accept Frame Type and Ingress Filtering. Figure 4.5-2 Web UI of VLAN configuration. PVID: The abbreviation of the Port VLAN ID. Enter port VLAN ID here. PVID allows the switches to identify which port belongs to which VLAN.
  • Page 77 4.5.2 VLAN Configuration In this page, you can assign Management VLAN, create the static VLAN, and assign the Egress rule for the member ports of the VLAN. Figure 4.5-3 Web UI of the VLAN Configuration. Management VLAN ID: The switch supports management VLAN. The management VLAN ID is the VLAN ID of the CPU interface so that only member ports of the management VLAN can ping and access the switch.
  • Page 78 VLAN; otherwise the administrator can’t access the switch via the network. Note: Currently JetNet 6059G only support max 256 VLAN groups. Static VLAN Configuration You can see the created VLANs and specify the egress (outgoing) port rule to be Untagged or Tagged here.
  • Page 79 Figure 4.5.2.4 Configure Egress rule of the ports. -- : Not available U: Untag: Indicates that egress/outgoing frames are not VLAN tagged. T : Tag: Indicates that egress/outgoing frames are to be VLAN tagged. Steps to configure Egress rules: Select the VLAN ID. Entry of the selected VLAN turns to light blue.
  • Page 80 GVRP Protocol: Allow user to enable/disable GVRP globally. State: After enable GVRP globally, here still can enable/disable GVRP by port. Join Timer: Controls the interval of sending the GVRP Join BPDU. An instance of this timer is required on a per-Port, per-GARP Participant basis Leave Timer: Control the time to release the GVRP reservation after received the GVRP Leave BPDU.
  • Page 81 4.5.5 CLI Commands of the VLAN Command Lines of the VLAN port configuration, VLAN configuration and VLAN table display Feature Command Line VLAN Port Configuration VLAN Port PVID Switch(config-if)# switchport trunk native vlan 2 Set port default vlan id to 2 success Port Accept Frame Switch(config)# inter gi1 Type...
  • Page 82 Create VLAN (2) Switch(config)# vlan 2 vlan 2 success Switch(config)# interface vlan 2 Switch(config-if)# Note: In CLI configuration, you should create a VLAN interface first. Then you can start to add/remove ports. Default status of the created VLAN is unused until you add member ports to it.
  • Page 83 disable Disable GVRP feature globally on the switch enable Enable GVRP feature globally on the switch Switch(config)# gvrp mode enable Gvrp is enabled on the switch! Configure GVRP timer Switch(config)# inter gi1 Switch(config-if)# garp timer Join timer /Leave timer/ <10-10000> LeaveAll timer Switch(config-if)# garp timer 20 60 1000 Note: The unit of these timer is centisecond...

  • Page 84: Traffic Prioritization

    Traffic Prioritization Quality of Service (QoS) provides traffic prioritization mechanism which allows users to deliver better service to certain flows. QoS can also help to alleviate congestion problems and ensure high-priority traffic is delivered first. This section allows you to configure Traffic Prioritization settings for each port with regard to setting priorities.
  • Page 85 In JetNet management switch, users can freely assign the mapping table or follow the suggestion of the 802.1p standard. Korenix uses 802.1p suggestion as default values. You can find CoS values 1 and 2 are mapped to physical Queue 0, the lowest queue.
  • Page 86 After configuration, press Apply to enable the settings 4.6.3 DSCP-Queue Mapping This page is to change DSCP values to Physical Queue mapping table. Since the switch fabric of JetNet only supports 4 physical queues, Lowest, Low, Middle and High. Users should therefore assign how to map DSCP value to the level of the physical queue.
  • Page 87 <cr> Queue Scheduling - Switch(config)# qos queue-sched wrr Switch(config)# interface fa1 Port Setting – CoS (Default Port Priority) Switch(config-if)# qos cos DEFAULT-COS Assign an priority (7 highest) Switch(config-if)# qos cos 7 The default port CoS value is set 7 ok. Note: When change the port setting, you should Select the specific port first.
  • Page 88 Switch(config)# qos cos-map 1 QUEUE Assign an queue (0-3) Note: Format: qos cos-map priority_value queue_value Map CoS 0 to Queue 1 Switch(config)# qos cos-map 0 1 The CoS to queue mapping is set ok. Map CoS 1 to Queue 0 Switch(config)# qos cos-map 1 0 The CoS to queue mapping is set ok.

  • Page 89: Multicast Filtering

    Multicast Filtering For multicast filtering, JetNet6059G uses IGMP Snooping technology. IGMP (Internet Group Management Protocol) is an Internet Protocol that provides a way for internet device to report its multicast group membership to adjacent routers. Multicasting allows one computer on the internet to send data to a multitude of other computers that have identified themselves as being interested in receiving the originating computers data.
  • Page 90 Disable IGMP Snooping for certain VLANs. IGMP Snooping Table: In the table, you can see multicast group IP address, VLAN ID it belongs to, and member ports of the multicast group. JetNet 6059G supports 256 multicast groups. Click on Reload to refresh the table.
  • Page 91 4.7.2 IGMP Query This page allows users to configure IGMP Query feature. Since JetNet 6059G can only be configured by member ports of the management VLAN, IGMP Query can only be enabled on the management VLAN. If you want to run IGMP Snooping feature in several VLANs, you should notice that whether each VLAN has its own IGMP Querier first.
  • Page 92 discarded. 4.7.4 CLI Commands of the Multicast Filtering Command Lines of the multicast filtering configuration Feature Command Line IGMP Snooping IGMP Snooping - Switch(config)# ip igmp snooping Global IGMP snooping is enabled globally. Please specify on which vlans IGMP snooping enables IGMP Snooping - VLAN Switch(config)# ip igmp snooping vlan VLANLIST allowed vlan list all existed vlan...
  • Page 93 Switch# show running-config …. interface vlan1 ip address 192.168.10.17/24 ip igmp no shutdown ……. Force filtering Enable Force filtering Switch(config)# mac-address-table multicast filtering Filtering unknown multicast addresses ok! Disable Force filtering Switch(config)# no mac-address-table multicast filtering Flooding unknown multicast addresses ok!

  • Page 94: Snmp

    With Read and Write privilege, you have the ability to read and set the values of MIB tables. Default community string is Private. JetNet 6059G allows users to assign 4 community strings. Type the community string and select the privilege. Then press Apply.
  • Page 95 (Secure Hash Algorithm) hash functions refer to five Federal Information Processing Standard-approved algorithms for computing a condensed digital representation. JetNet 6059G provides 2 user authentication protocols in MD5 and SHA. You will need to configure SNMP v3 parameters for your SNMP viewer with the same authentication method.
  • Page 96 IP, Community name, and trap Version V1 or V2. After configuration, you can see the change of the SNMP pre-defined standard traps and Korenix pre-defined traps. The pre-defined traps can be found in Korenix private MIB. 4.8.4 CLI Commands of the SNMP...
  • Page 97 community string add ok SNMP Trap Enable Trap Switch(config)# snmp-server enable trap Set SNMP trap enable ok. SNMP Trap Server IP Switch(config)# snmp-server host 192.168.10.33 without specific SNMP trap host add OK. community name SNMP Trap Server IP Switch(config)# snmp-server host 192.168.10.33 version 1 with version 1 and private community...

  • Page 98: Security

    Security JetNet 6059G provides several security features for you to secure your connection. The features include Port Security and IP Security. Following commands are included in this group: 4.9.1 Port Security 4.9.2 IP Security 4.9.3 IEEE 802.1x 4.9.4 CLI Commands of the Security 4.9.1 Port Security...
  • Page 99 Once you finish configuring the settings, click on Apply / Add to apply your configuration. 4.9.2 IP Security In IP Security section, you can set up specific IP addresses to grant authorization for management access to this JetNet via a web browser or Telnet.
  • Page 100 IEEE 802 LANs. It is port-base network access control. With the function, JetNet 6059G could control which connection is available or not. System AuthControl: To enable or disable the 802.1x authentication. Authentication Method: Radius is an authentication server that provide key for authentication, with this method, user must connect switch to server.
  • Page 101 802.1x Port Configuration 4.9.3.2 After the configuration of Radius Server or Local user list, user also need configure the authentication mode, authentication behavior, applied VLAN for each port and permitted communication. The following information will explain the port configuration. Port control: Force Authorized means this port is authorized; the data is free to in/out.
  • Page 102 Re-Auth Period: control the Re-authentication time interval, available number is 1~65535. Quiet Period: When authentication failed, Switch will wait for a period and try to communicate with radius server again. Tx period: the time interval of authentication request. Supplicant Timeout: the timeout for the client authenticating Sever Timeout: The timeout for server response for authenticating.
  • Page 103 Port Security Switch(config)# interface fa1 Switch(config-if)# switchport port-security Disables new MAC addresses learning and aging activities! Note: Rule: Add the static MAC, VLAN and Port binding first, then enable the port security to stop new MAC learning. Disable Port Security Switch(config-if)# no switchport port-security Enable new MAC addresses learning and aging activities! Display...
  • Page 104 RADIUS Accounting Port number NOT given. (default=1813) Secondary RADIUS Server IP : 192.168.10.250 Secondary RADIUS Server Key : 5678 Secondary RADIUS Server Port : 1812 Secondary RADIUS Accounting Port : 1813 User name/password Switch(config)# dot1x username korenix passwd korenix vlan for authentication...

  • Page 105: Warning

    Currently, the Relay can have one event type. Event Type: DI State DI Number: Select which DI you want to monitor, the JetNet 6059G only supports one DI input. DI State: High or Low. Select the power voltage you want to monitor.
  • Page 106 How to configure: Select the DI Number you want to monitor and DI State, High or Low. For example: When DI 1 and High are selected, it means when DI 1 is pulled high, the system will short Relay Output and light DO Event Type: Dry Output On Period (Sec): Type the period time to turn on Relay Output.
  • Page 107 Turn on the relay output Turn off the relay output Event Type: Power Failure Power ID: Select Power 1 or Power 2 you want to monitor. When the power is shut down or broken, the system will short Relay Out and light the DO LED.
  • Page 108 Hold Time (Sec): Waiting time to ping the target device for the duration of remote device boot How to configure: After selecting Ping Failure event type, the system will turn Relay Output to short state and continuously ping the target device. When the ping failure occurred, the switch will turn the Relay Output to open state for a period of Reset Time.
  • Page 109 4.10.2 Event Selection Event Types can be divided into two basic groups: System Events and Port Events. System Events are related to the overall function of the switch, whereas Port Events related to the activity of specific ports System Event Warning Event is sent when…..
  • Page 110 JetNet 6059G, local mode and remote mode. Local Mode: In this mode, JetNet 6059G will print the occurred events selected in the Event Selection page to System Log table of JetNet 6059G. You can monitor the system logs in [Monitor and Diag] / [Event Log] page.
  • Page 111 [Monitor and Diag] / [Event Log] page. 4.10.4 SMTP Configuration JetNet 6059G supports E-mail Warning feature. The switch will send the occurred events to remote E-mail server. The receiver can then receive notification by E-mail. The E-mail warning is conformed to SMTP standard.

  • Page 112: Cli Commands

    Field Description SMTP Server IP Address Enter the IP address of the email Server Authentication Click on check box to enable password User Name Enter email Account name (Max.40 characters) Password Enter the password of the email account Confirm Password Re-type the password of the email account You can set up to 4 email addresses to receive email alarm from JetNet Rcpt E-mail Address 1...
  • Page 113 Ping Failure Switch(config)# relay 1 ping 192.168.10.33 <cr> reset reset a device Switch(config)# relay 1 ping 192.168.10.33 reset <1-65535> reset time Switch(config)# relay 1 ping 192.168.10.33 reset 60 <0-65535> hold time to retry Switch(config)# relay 1 ping 192.168.10.33 reset 60 60 Port Link Failure Switch(config)# relay 1 port PORTLIST port list...

  • Page 114: Syslog Configuration

    Switch(config)# smtp-server server 192.168.10.100 admin@korenix.com SMTP Email Alert set Server: 192.168.10.100, Account: admin@korenix.com ok. Receiver mail Switch(config)# smtp-server receipt 1 korecare@korenix.com SMTP Email Alert set receipt 1: korecare@korenix.com ok. Authentication with Switch(config)# smtp-server authentication username admin username and password admin password...

  • Page 115: Monitor And Diag

    4.11 Monitor and Diag JetNet 6059G provides several types of features for you to monitor the status of the switch or diagnostic for you to check the problem when encountering problems related to the switch. The features include MAC Address Table, Port Statistics, Port Mirror, Event Log and Ping.
  • Page 116 Click on Remove to remove the static Unicast/Multicast MAC address. Click on Reload to refresh the table. New learnt Unicast/Multicast MAC address will be updated to MAC address table. 4.11.2 Port Statistics In this page, you can view operation statistics for each port. The statistics that can be viewed include Link Type, Link State, Rx Good, Rx Bad, Rx Abort, Tx Good, Tx Bad and Collision.
  • Page 117 4.11.3 Port Mirroring Port mirroring (also called port spanning) is a tool that allows you to mirror the traffic from one or more ports onto another port, without disrupting the flow of traffic on the original port. Any traffic that goes into or out of the Source Port(s) will be duplicated at the Destination Port.
  • Page 118 4.11.4 Event Log In the 4.10.3, we have introduced System Log feature. When System Log Local mode is selected, JetNet 6059G will record occurred events in local log table. This page shows this log table. The entry includes the index, occurred data and time and content of the events.
  • Page 119 4.11.5 Topology Discovery JetNet 6059G supports topology discovery or LLDP (IEEE 802.1AB Link Layer Discovery Protocol) function that can help user to discovery multi-vendor’s network devices on same segment by NMS system which supports LLDP function; With LLDP function, NMS can easier maintain the topology map, display port ID, port description, system description, VLAN ID…...

  • Page 120: Ping Utility

    4.11.6 Ping Utility This page provides Ping Utility for users to ping remote device and check whether the device is alive or not. Type Target IP address of the target device and click on Start to start the ping. After few seconds, you can see the result in the Result field.

  • Page 121: Port Mirroring

    Destination Address Address Type Vlan Destination Port ------------------- --------------- ------- ------------------------ 000f.b079.ca3b Dynamic 0012.7701.0386 Dynamic 0012.7710.0101 Static 0012.7710.0102 Static 0012.77ff.0100 Management ***** MULTICAST MAC ADDRESS ***** Vlan Mac Address Status Ports ---- --------------- ---- ------- -------------------------- 0100.5e40.0800 0100.5e7f.fffa gi4,gi6 Show MAC Address Switch# show mac-address-table dynamic Table –...
  • Page 122 Transmitted traffic Switch(config)# mirror source gi1-2 both Mirror source gi1-2 both set ok. Note: Select source port list and TX/RX/Both mode. Select Destination Port Switch(config)# mirror destination gi6 both Mirror destination gi6 both set ok Display Switch# show mirror Mirror Status : Enabled Ingress Monitor Destination Port : gi6 Egress Monitor Destination Port : gi6 Ingress Source Ports :gi1,gi2,...

  • Page 123: Device Front Panel

    4.12 Device Front Panel Device Front Panel command allows you to see LED status of the switch. You can see LED and link status of the Power, DO, DI, R.M. and Ports Feature On / Link UP Off / Link Down Other Power Green...

  • Page 124: Save To Flash

    4.13 Save to Flash Save Configuration allows you to save any configuration you just made to the Flash. Powering off the switch without clicking on Save Configuration will cause loss of new settings. After selecting Save Configuration, click on Save to Flash to save your new configuration. Command Lines: Feature Command Line...

  • Page 125: Logout

    4.14 Logout The switch provides 2 logout methods. The web connection will be logged out if you don’t input any command after 30 seconds. The Logout command allows you to manually logout the web connection. Click on Yes to logout, No to go back the configuration page.

  • Page 126: Appendix

    5 Appendix Product Specifications. Technology Standard IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3u 100Base-FX Fast Ethernet Fiber IEEE 802.3ab 1000Base-T IEEE 802.3z Gigabit Fiber IEEE 802.3x Flow Control and Back-pressure IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1p Class of Service (CoS) IEEE 802.1Q VLAN and GVRP IEEE 802.1D-2004 Rapid Spanning Tree Protocol (RSTP)

  • Page 127: System Management

    IP address SNMP MIB MIBII, Bridge MIB, Ethernet-like MIB, VLAN MIB, IGMP MIB, Korenix Private MIB Korenix Utility Supports JetView and JetView Pro with IEEE 802.1AB Link Layer Discovery Protocol for device finding and link topology discovery...
  • Page 128 Integrate port aggregate function in ring path to get higher throughput ring architecture MultiRing Couple or multiple up to 16 Rapid Super Rings, JetNet 6059G supports up to 4 Gigabit Rings in one Switch. Rapid Spanning Tree IEEE802.1D-2004 Rapid Spanning Tree Protocol. Compatible with Legacy Spanning Tree and IEEE 802.1w...

  • Page 129: Power Requirements

    Power connector: 4-pin removable terminal block Cables 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable, EIA/TIA-568B 100-ohm (100m) 100 Base-TX: 2-pair UTP/STP Cat. 5 cable, EIA/TIA-568B 100-ohm (100m) 1000 Base-T: 4-pair UTP/STP Cat. 5 cable, EIA/TIA-568B 100-ohm (100m) RS-232 serial interface Isolated serial interface LED Indicators 10/100/1000 RJ-45 port: Link (Green on) / Activity (Blinking),...

  • Page 130: Ordering Information

    Warranty Global 5 years Note-1: Available in the further version software. Note-2: pending Note-3: Korenix’s internal testing Note-4: For the latest version specification, please contact your sales window or distributor. Ordering Information JetNet 6059G Industrial 9-port Gigabit Managed Ethernet Switch, 4 TX, 5...

  • Page 131: Korenix Sfp Family

    Korenix SFP family Korenix certificated many types of SFP transceiver. These certificated SFP transceivers can be identified by JetNet 6059G and displayed in the UI. The SFP transceivers we certificated can meet up the industrial critical environment needs. We recommend you to use Korenix certificated SFP transceivers when you constructing your network.

  • Page 132: Korenix Private Mib

    Korenix provides many standard MIBs for users to configure or monitor the switch’s configuration by SNMP. But, since some commands can’t be found in standard MIB, Korenix provides Private MIB to meet up the need. Compile the private MIB file by your SNMP tool. You can then use it.

  • Page 134: Revision History

    Revision History Edition Date Modifications V 0.1 22,Oct,2010 New edittion39 Firmware version V0.1.39 with more system information, ex date of manufacture, serial number. V0.2 10-DEC,2010 Modify: 1. power input range 10.5~60V DC 2. relay contactor voltage: 1A / DC24V 3. modify interface name to gigaethernet 13-DEC,2010 1.
