Summary of Contents for Inline IN3546R

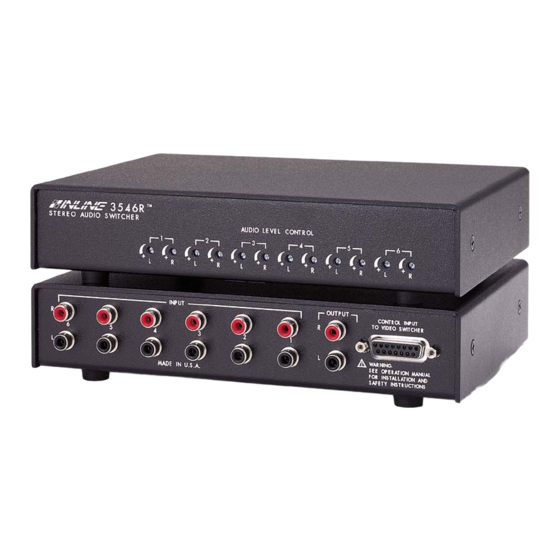

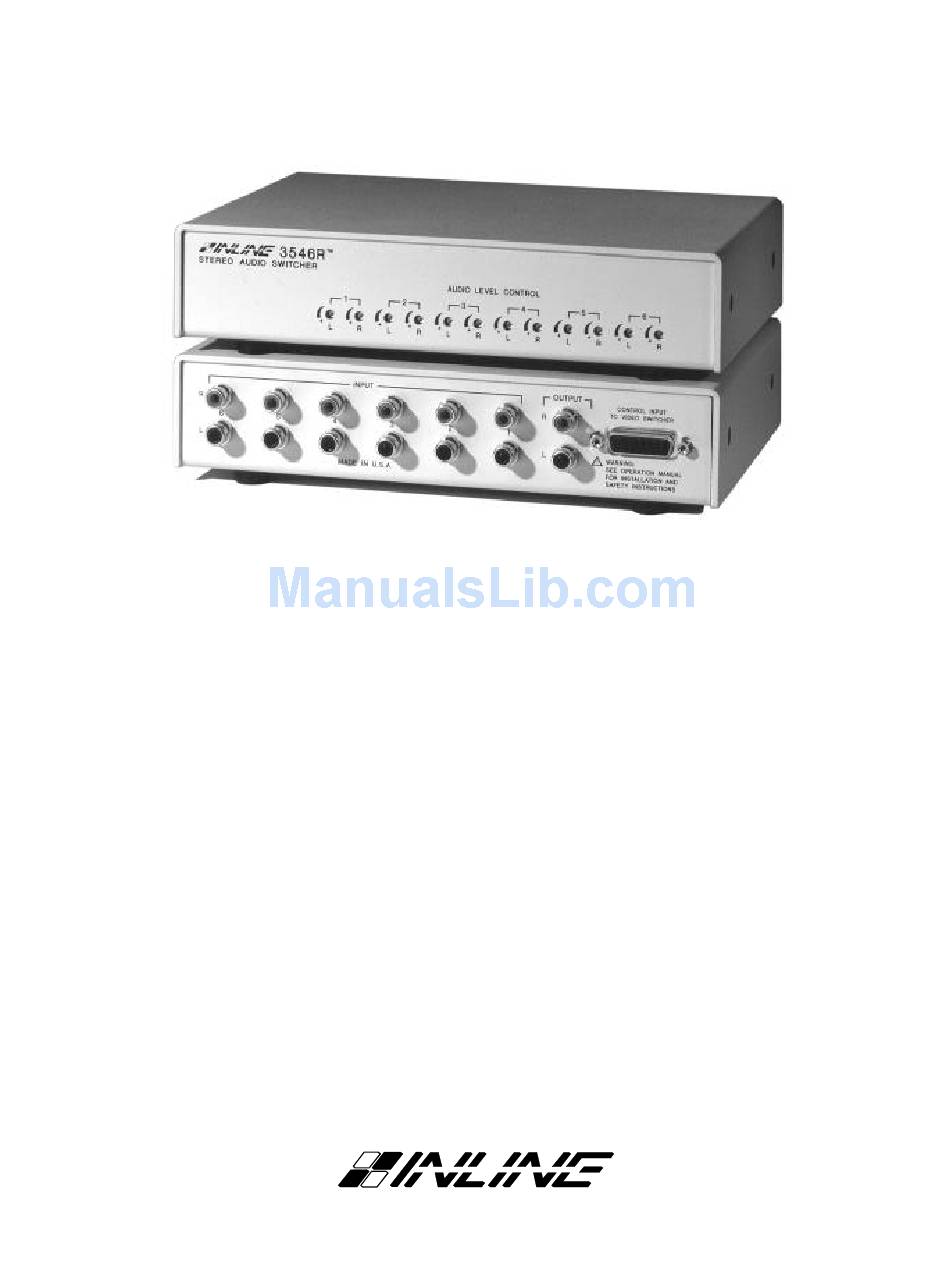

- Page 1 IN3546R Operation Manual 6 Input 1 Output Stereo Audio Switcher ®...
- Page 2 Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
- Page 3 Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.
-
Page 4: Fcc Compliance
CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92... - Page 5 DESCRIPTION The IN3546R is a 6 input / 1 output stereo audio switcher designed to work in tandem with the INLINE IN3500 / IN3600 Series switchers. When input channels are selected on the RGB switcher, the IN3546R will automatically switch to the corresponding stereo audio input, adding audio-follow-video capabilities to the RGB switcher.
-
Page 6: Installation
5. The installer must also provide a 9 volt 300 mA (min.) power source to power the unit. The power from the 9V supply is applied to pin #8 on the IN3546R control port. The unit contains an internal 9V to 5V power transformer. Do not apply any voltage to pin #9. -
Page 7: Operation
OPERATION The IN3546R is designed to switch up to 6 stereo audio signals. After hooking up all cables as described in the Installation section, the unit will automatically switch to various input channels, mirroring the channels selected on the attached IN3500 / IN3600 series RGB switcher. The IN3546R will power up when the attached RGB video switcher is switched on. -
Page 8: Specifications
Pin 11 Channel #5 Pin 5 No Connection Pin 12 Channel #4 Pin 6 No Connection Pin 13 Channel #3 Pin 7 Ground Pin 14 Channel #2 Pin 15 Channel #1 IN3546R OPERATION MANUAL - REV. 2.1 12/01/98 ©1998 - INLINE, INC. -
Page 9: Troubleshooting
The information in this manual has been carefully checked and is believed to be accurate. However, Inline, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Inline, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
