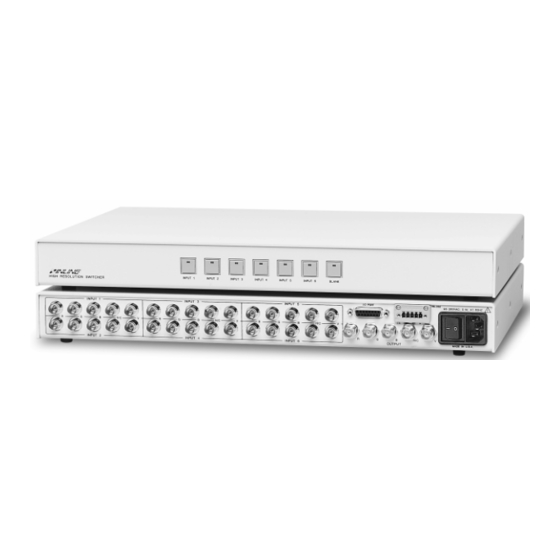

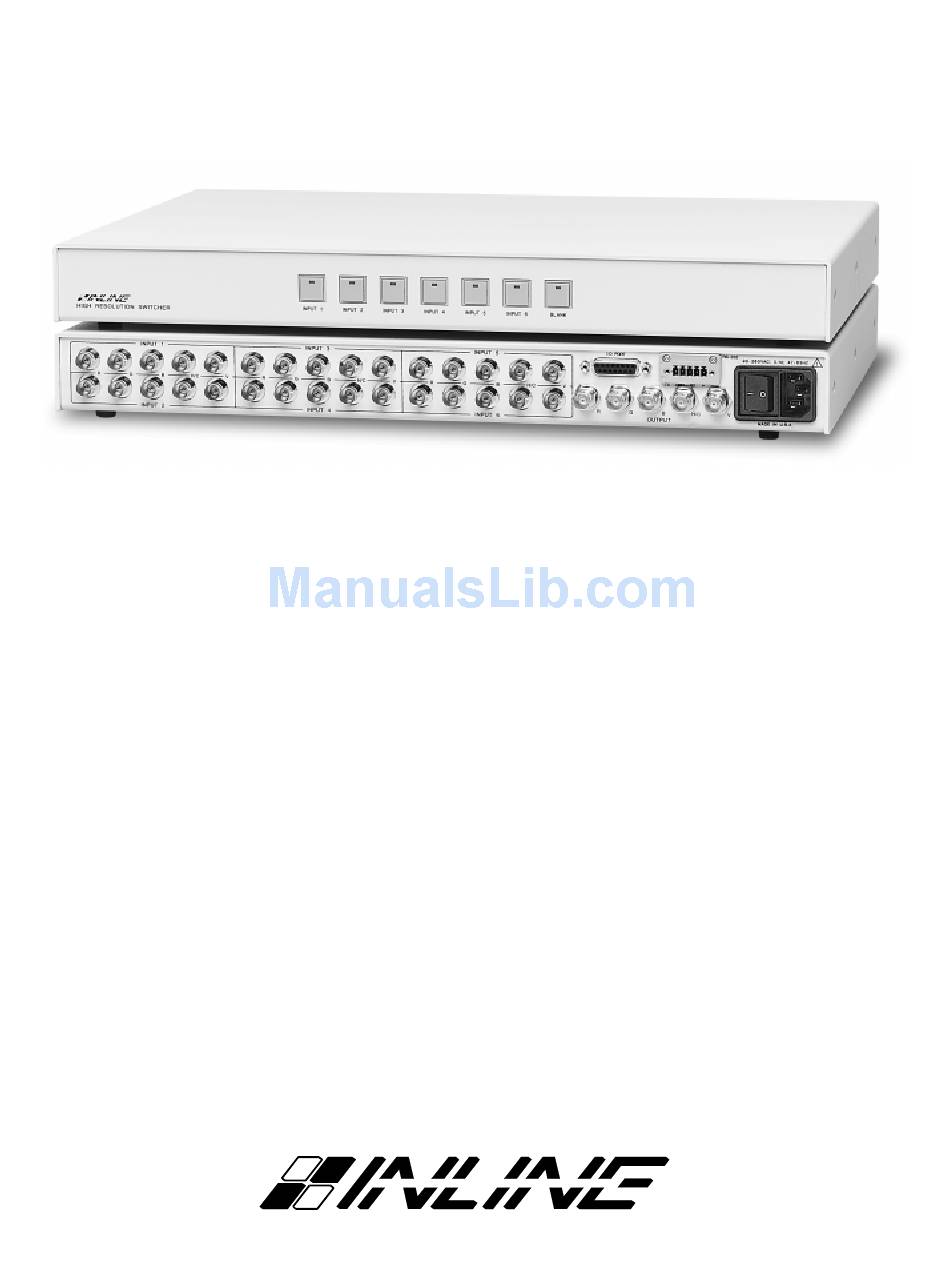

- Page 1 Preliminary Operation Manual IN3600 Series 6-Input Switchers IN3606 RGBS Switcher IN3654 / IN3656 RGBHV Switchers IN3666 VGA Switcher ®...
- Page 2 Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
- Page 3 Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.
-
Page 4: Fcc Compliance
CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92... - Page 5 Wide flexibility in programming for various configurations. COMPATIBILITY The IN3606 / IN3656 / IN3666 switchers are active devices which will switch a wide variety of signals. The four switcher models are very similar in operation and have the following differences:...
-
Page 6: Installation
In all modes, the following options are available: ♦ Blank = nothing or sync ♦ Front Panel = enabled or disabled ♦ RS232 communication baud rates of 1200, 2400, 4800 or 9600 IN3606 / IN3656 / IN3666 OPERATION MANUAL - REV. 1.1 11/27/99 ©1998 - INLINE, INC. -
Page 7: Power On Settings
INPUT1 on = Master mode INPUT2 on = Slave mode F. Depressing BLANK button saves this part of configuration and Blank LED turns off. © 1998 - INLINE, INC. IN3606 / IN3656 / IN3666 OPERATION MANUAL - REV. 1.1 11/27/99... - Page 8 D. Depressing BLANK button saves configuration and Blank LED goes off Calling these up will also show present settings. (i.e. INPUT2 settings, INPUT2 LED may be on showing that the front panel is already enabled) IN3606 / IN3656 / IN3666 OPERATION MANUAL - REV. 1.1 11/27/99 ©1998 - INLINE, INC.
- Page 9 4.5 seconds 5.0 seconds 5.5 seconds 6.0 seconds 6.5 seconds 7.0 seconds 7.5 seconds Scan0 Disable Scanning Scan1 Enable Scanning Scan2,3,4,5,6 Scan to Channels 2,3,4,5,6 © 1998 - INLINE, INC. IN3606 / IN3656 / IN3666 OPERATION MANUAL - REV. 1.1 11/27/99...
-
Page 10: Remote Control Operation
IN3590 - An optional hard wired remote designed to work with IN3600 Series switchers. IN6901 / IN6902 RS232 to Contact Closure Converters - allow IN3600 Series switchers and other INLINE devices with contact closure control ports to be controlled by RS232 sources such as control systems and computer serial ports. -
Page 11: Specifications
REMOTE CONTROL port and receives both power and switching commands from the control port. IN3590 Wired Remote Control with 25’ Long Cable Control Allows Remote Channel Selection for IN3600 Series Switchers © 1998 - INLINE, INC. IN3606 / IN3656 / IN3666 OPERATION MANUAL - REV. 1.1 11/27/99... -
Page 12: Troubleshooting
INLINE warrants the equipment it manufactures to be free from defects in materials and workmanship. ♦ If equipment fails because of such defects and INLINE is notified within two (2) years from the date of shipment, INLINE will, at its option, repair or replace the equipment at its plant, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
