Inline IN3564HR Operation Manual

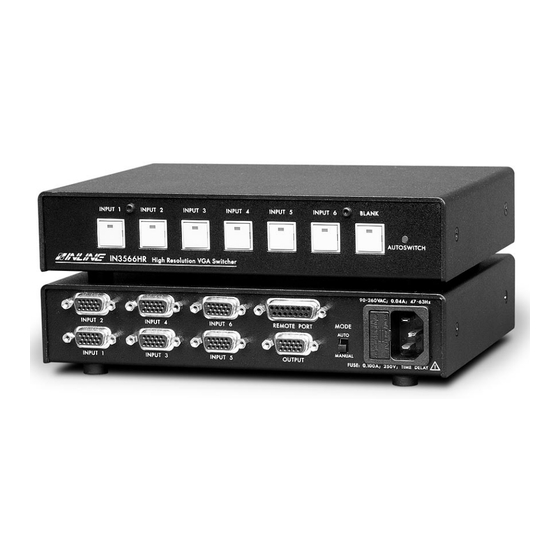

High resolution vga switchers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
High Resolution VGA Switchers:
IN3564HR - 4 In 1 Out VGA Switcher
IN3566HR - 6 In 1 Out VGA Switcher

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN3564HR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Inline IN3564HR

Summary of Contents for Inline IN3564HR

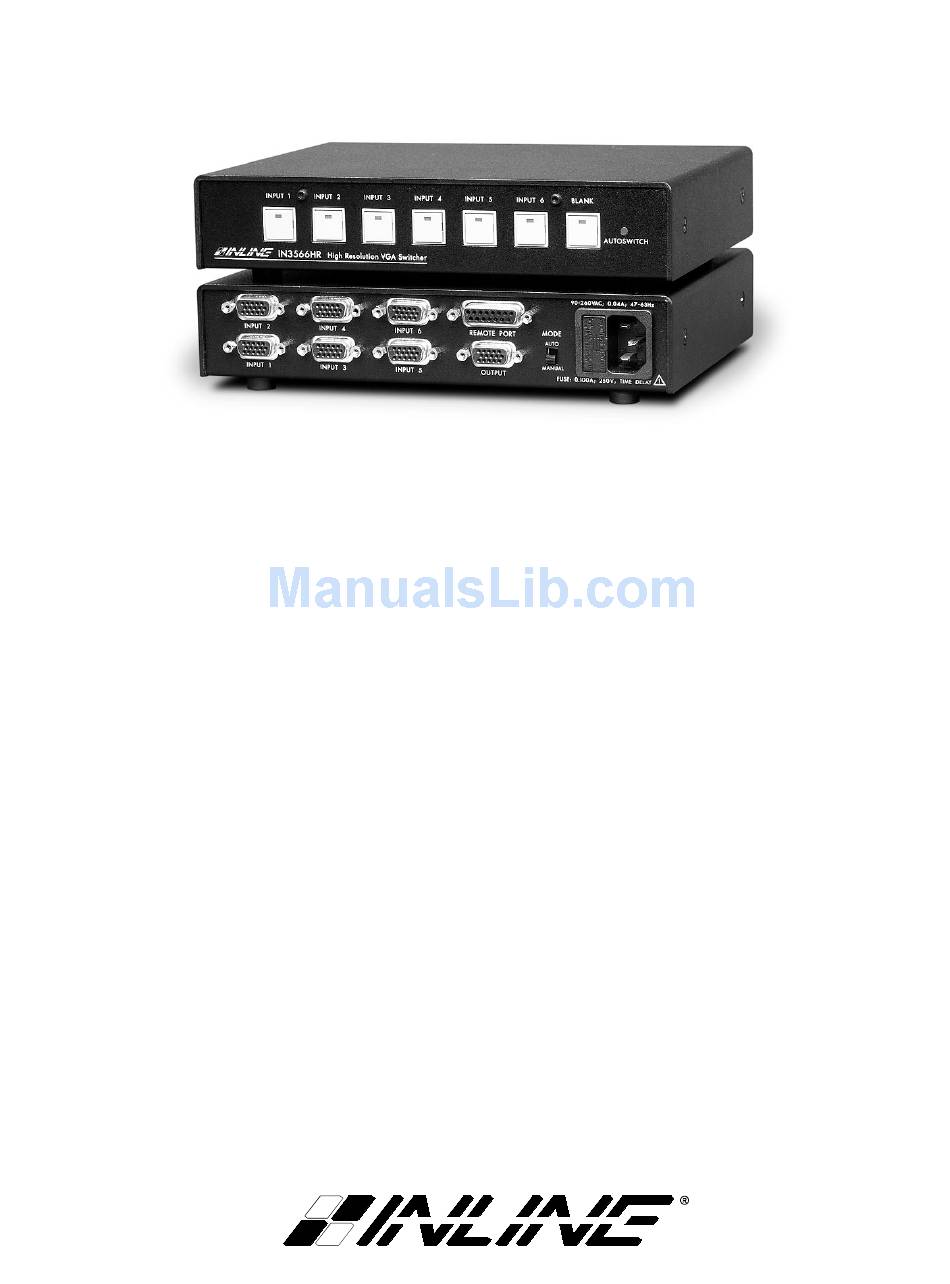

  • Page 1 Operation Manual High Resolution VGA Switchers: IN3564HR - 4 In 1 Out VGA Switcher IN3566HR - 6 In 1 Out VGA Switcher...
  • Page 2 Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
  • Page 3 Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.

  • Page 4: Fcc Compliance

    CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92...

  • Page 5: Product Overview

    The switcher features five discrete signal paths per input, making it compatible with analog signals in a variety of formats including RGBHV, RGBS, RGsB, RsGsBs and monochrome high- resolution video. In addition, the IN3564HR / IN3566HR is also compatible with NTSC / PAL / SECAM signals in component, Y/C or composite video formats.
  • Page 6 5 BNC). Stereo Audio-Follow-Video - capability may be achieved using an optional IN3546R Stereo Audio Switcher in conjunction with the IN3564HR / IN3566HR. The IN3546R attaches to the remote port, receiving both power and switching commands from the attached VGA switcher.

  • Page 7: Installation

    OUTPUT The output signal of the IN3564HR / IN3566HR is analog RGB video with TTL sync on a 15- pin HD VGA female connector. This output signal is compatible with high-resolution data grade monitors and data / graphics projectors, making it ideal for use with LCD projectors and other data display devices which require that all VGA sync formats and polarities remain unchanged from the original source signal.
  • Page 8 IN3564HR / IN3566HR APPLICATION DIAGRAM © 1999 - INLINE Inc. IN3564HR / IN3566HR Operation Manual - Preliminary 7/30/99...

  • Page 9: Remote Control Operation

    REMOTE CONTROL OPERATION The IN3564HR / IN3566HR Switcher has a Remote Port located on the back of the unit. Channels can be selected through the Remote Port by providing contact closures between the appropriate pins.
  • Page 10 * Used only on IN3566HR IN3546R STEREO AUDIO SWITCHER The IN3546R Stereo Audio Switcher may be attached to the IN3564HR / IN3566HR via the Remote Control Port. This provides a +5V power supply for the IN3546 Switcher and a control link. When...

  • Page 11: Specifications

    FCC class A; CE: EN50022 (1987), EN50081-1 (1991), EN50082-1 (1992 & 1994), EN60950-92 Parts Included (1) IN3564HR or IN3566HR VGA Switcher (1) IN9230 IEC Power Cable, 6’ long (USA only) (1) Operations Manual IN3564HR / IN3566HR Operation Manual - Preliminary 7/30/99 © 1999 - INLINE Inc.

  • Page 12: Troubleshooting

    IN9088 - Half-Rack Blank Plate IN9348 - Engraveable Plastic Input Labeling Plate Troubleshooting The display device connected to the IN3564HR / IN3566HR output has a bad / scrambled image. Solution 1: Verify that the correct input cable is being used.

  • Page 13: Warranty

    The information in this manual has been carefully checked and is believed to be accurate. However, INLINE, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will INLINE, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.

This manual is also suitable for:

In3566hr
