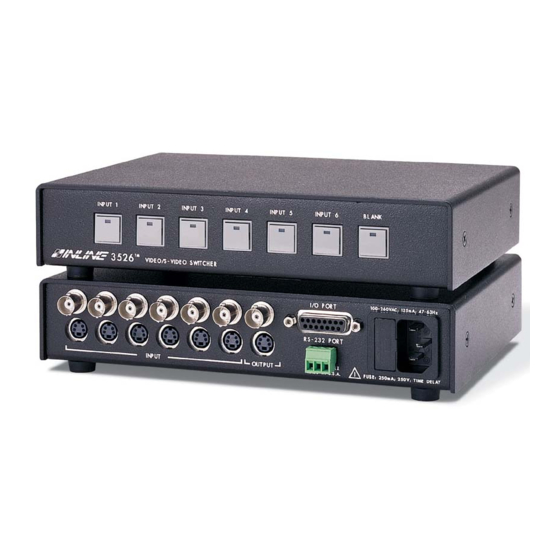

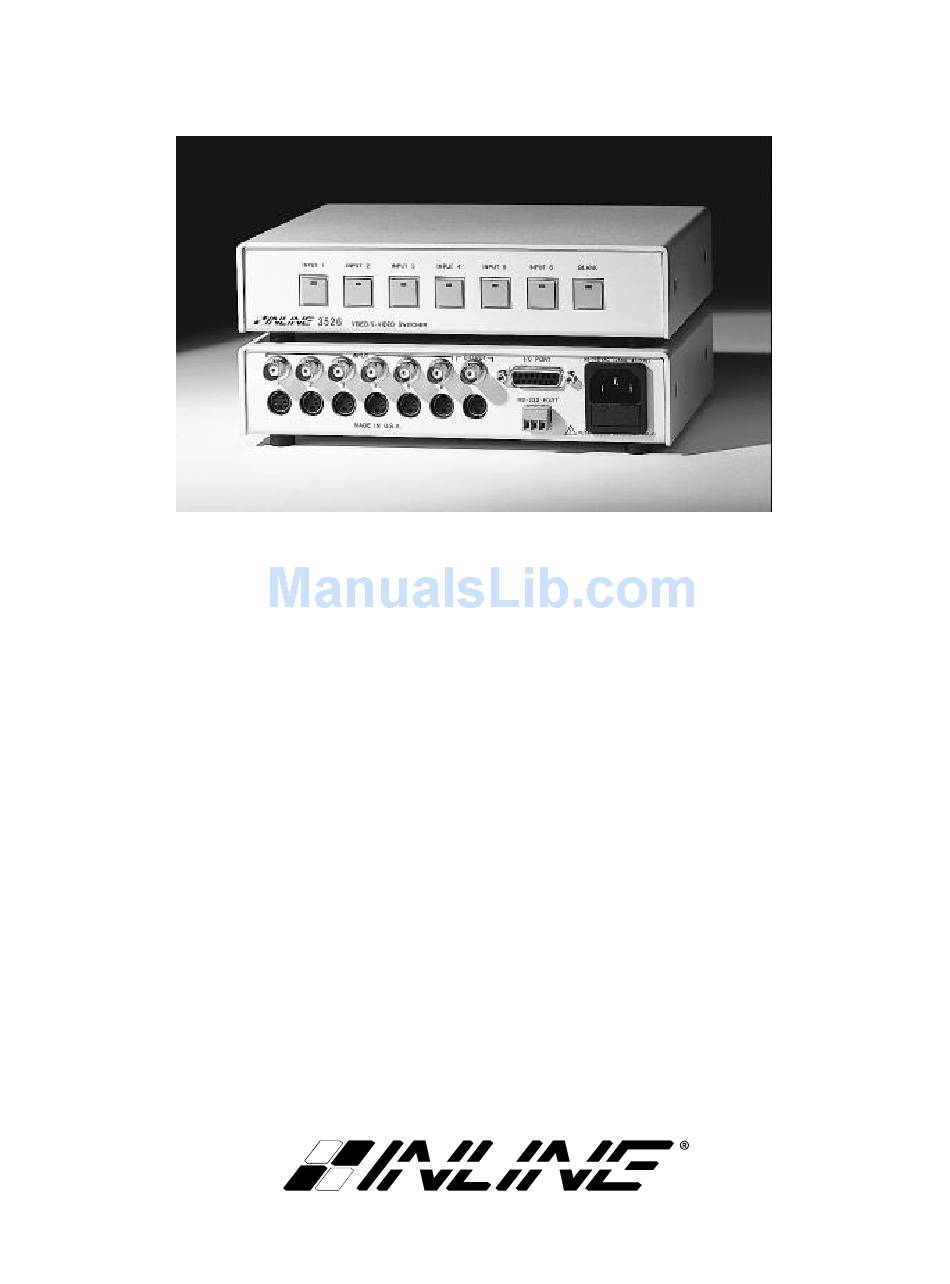

- Page 1 Operation Manual IN3526vi - Composite / S-Video Switcher with Vertical Interval Switching...
- Page 2 Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.
- Page 3 Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.
-
Page 4: Fcc Compliance
CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92... -
Page 5: Installation
Composite Video and S-Video (Y/C) signals, it can also switch high resolution computer video signals. The IN3526vi shares the composite video and Luma (Y) channel, so it is not designed to handle both signal formats at the same time. However, if your display device can switch between composite and S-Video, you can have some inputs be composite and others be S-Video (although you will need to switch your display to view the proper signal.) -
Page 6: Front Panel Operation
Send sync to the output with no video (the sync is stripped off of Input 1.) REMOTE CONTROL OPERATION The IN3526vi switcher has an I/O port and an RS-232 port. The functions of these ports are described in this section. - Page 7 Select Blank Using the IN3546R Stereo Audio Switcher The IN3546R Stereo Audio Switcher may be attached to the IN3526vi via the REMOTE CONTROL port. This provides a +5V power supply for the IN3546R Switcher and a control link. When the...
- Page 8 All commands sent to the unit must contain a leading character, the actual command, and an ending character. Each command must be completely executed by the IN3526vi before it will accept a new command. When a command is executed, the unit provides the response [OK] to indicate that the command was received and executed.
-
Page 9: Advanced Settings
The IN3526vi uses the sync signal from input 1 to generate its sync reference. When a switch is made, the unit waits for the next vertical sync pulse and then executes the switch. If a vertical sync pulse is not received within approximately 71 msec (the time for about 4 fields), the switch is made. -
Page 10: Power-On Settings
3 seconds. These settings are not selectable when the unit is already powered up (except through RS-232 commands.) Once set, these settings are stored in the IN3526vi so that the unit will return to this mode on power down/up. - Page 11 Press INPUT 6 or BLANK button to select the BLANK setup: BLANK Send nothing to output when BLANK is selected INPUT 6 Send sync from INPUT 1 to output when BLANK is selected © 1997 - INLINE, INC. IN3526VI OPERATION MANUAL - REV. 2 12/01/98...
-
Page 12: Rs-232 Command Protocol
[CH2] [CH1] Get status of input selected [INF1] Disable Front Panel operation [FP0] [OK] Change baud rate to 4800 [ACI5] [OK] Change command codes to { } [CMDCD1] {OK} IN3526VI OPERATION MANUAL - REV. 2 12/01/98 ©1997 - INLINE, INC. -
Page 13: Universal Power Supply
UNIVERSAL POWER SUPPLY The IN3526vi switcher employs a universal (switch mode) power supply which automatically adjusts to accept input voltages worldwide. Input voltages can range between 90 and 260 VAC and the frequency may range from 47 to 63 Hz. The power supply entry module uses an IEC standard male connector for power connection. U.S domestic units are shipped with a standard IEC female to Edison male power cable. -
Page 14: Warranty
The information in this manual has been carefully checked and is believed to be accurate. However, Inline, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Inline, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.
