- Page 1 PRESENTATION SWITCHER SWP 1 23 OPERATION MANUAL High Resolution Video Products • A/V System Integration Tools • Interactive Training Systems...
-
Page 2: Fcc Compliance
Para prevenir un incendio, reemplace solo con el mismo tipo de fusible. CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following... -
Page 3: Table Of Contents
Table of Contents Table of Contents ..........................1 Product Overview .........................2 Description........................2 Product Features........................2 Compatibility ..........................4 Video Inputs........................4 Audio Inputs........................4 Analog Audio Signals ..................4 Video Outputs ........................4 Audio Outputs ........................4 Analog Audio Signals ..................4 Installation .............................5 Operation ............................9 Front Panel Controls ......................9 Switching Procedures......................10 To select a different input: ................10 To blank the output: ..................10... -
Page 4: Product Overview

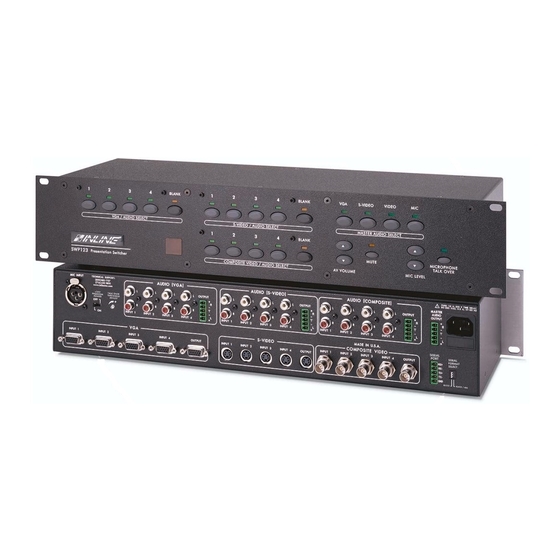

Product Overview Description SWP123 is a presentation switcher combining three A/V switchers and a master audio switcher with a microphone pre-amplifier into one product. It is ideal for permanent installations, rentals, complex staging operations, and any other display system requiring a high performance, economical composite video/VGA/S-Video stereo audio presentation switcher. - Page 5 Internal Universal Power Supply with Double Fuse Operates with A/C Power Voltages Worldwide: 50/60 Hz; 90 - 260 VAC IR Remote Control Capability — Enables user to remotely control switching and volume functions using the optional CTL120 IR Remote Control 2002 - INLINE, INC. SWP123 OPERATION MANUAL - v1.1 5/21/02...
-
Page 6: Compatibility
Compatibility The SWP123 consists of three separate 4 x 1 A/V switchers and an audio master switcher. Each switcher or group is individually labeled as inputs 1–4. Video Inputs The SWP123 presentation switcher provides: Four female 4-pin mini DIN inputs that accept S-Video signals on all four inputs... -
Page 7: Installation
Note: power supply cord connected to the unit 1. Place/Install the SWP123 at the desired location. Seat the unit on a flat surface or is securely installed in a standard 19” equipment rack. 2. Connect Composite Video, S-Video and VGA source signals to the appropriate inputs. - Page 8 Set dipswitches located near the control port accordingly for communications via RS-232 or RS-422/RS-485 communications. 8. Connect power to the SWP123 using the IN9230 IEC power cable (included). 9. Turn on the video/audio sources, the display device and the audio system.
-
Page 9: Application Diagram
A U DIO [ S- VIDE O] AUDIO [CO MPO SITE] 90-260 VAC; 0.3 A; 47-63 HZ ( 800) 882 -7 1 1 7 ( 714) 450 -1 8 0 0 MASTER ww w. inline i nc . co m AUDIO OUTPUT OUTPUT OUTPUT OUTPUT... - Page 10 SWP123-2 PRESENTATION SWITCHER CONNECTORS & CONTROLS VGA Switcher Controls S-Video / Audio Select Master Audio Switcher BLANK BLANK S-VIDEO VIDEO VGA / AUDIO SELECT S-VIDEO / AUDIO SELECT MASTER AUDIO SELECT BLANK MICROPHONE MUTE TALK OVER VOLUME MIC LEVEL SWP123...
-
Page 11: Operation
Talk-Over Threshold Adjust: Determines the input signal level required to engage the microphone talk-over function. The threshold level adjustment can be optimized to accommodate the microphone output level, voice volume, and ambient background noise level. 2002 - INLINE, INC. SWP123 OPERATION MANUAL - v1.1 5/21/02... -
Page 12: Switching Procedures
Press and release the appropriate Volume button to raise or lower the volume level by one step, or press and hold the appropriate Volume button to change the level continuously. SWP123 OPERATION MANUAL - v1.1 5/21/02 2002 - INLINE, INC. -
Page 13: To Adjust The Input Audio Volume Level (Input Trim Level)
Adjust the pot counter-clockwise to decrease sensitivity at the microphone input. Note: Care should be taken when making this adjustment, as the range of the pot is ¾ of a turn. 2002 - INLINE, INC. SWP123 OPERATION MANUAL - v1.1 5/21/02... -
Page 14: Serial Port Pin-Outs
*Factory default Power-on Settings To power the SWP123 up, simply plug the unit it the outlet. There is no power on/off switch. Reset to Factory Default Soft Reset - To restore all parameters (except input volume settings) to the default factory setting, press the 1 and 4 VGA Audio Select input buttons. -
Page 15: Remote Operation
The SWP123 recognizes [ and ] as leading and ending characters, also called Command Codes. The factory default for the Command Code is [ ]. Some sample command codes follow. For example: This part of the command string... -
Page 16: Serial Commands
If the switcher is being used in RS-232 mode (no other devices connected in parallel) there is no need to assign an address for this unit. If you are using multiple Inline products connected in parallel to a single serial port using RS-422 or RS-485 communications, you will need to assign an address for each unit. -
Page 17: Switching Commands
= + (plus sign) to increment volume level x = - (minus sign) to decrement volume level x = @ to return volume level to factory default x = ? to request current volume level 2002 - INLINE, INC. SWP123 OPERATION MANUAL - v1.1 5/21/02... - Page 18 = 01 for master audio, 02 for microphone audio x = + (plus sign) for volume ramp up x = - (minus sign) for volume ramp down Stop volume ramp function. [VOLSTOP] SWP123 OPERATION MANUAL - v1.1 5/21/02 2002 - INLINE, INC.
- Page 19 Used to enable/disable microphone talk-over. [MTOx] x = 0 to disable microphone talk-over, 1 to enable microphone talk-over x = ? to request current state x = (left blank) to toggle current state 2002 - INLINE, INC. SWP123 OPERATION MANUAL - v1.1 5/21/02...
- Page 20 CTL120-3 REMOTE CONTROL CONNECTORS & CONTROLS SWP Switchers PROJECTOR POWER Button SWITCHER (SWP125 only) Sends the associated projector 1st BUTTON TO PRESS ON/OFF code to the display SWP SWITCHER Button NOTE: Projector ON/OFF code must be Press this button first to pre-programmed using the SWP set the CTL120 to control serial port...
-
Page 21: Specifications
19" W x 5.5" D x 3.50" H (excluding mounting flanges) Weight 5 lbs. Regulatory Compliance Safety UL 1950, 3 Ed.; CE: EN60950-92; CAN/CSA-22.2 No. 950 3 FCC class A; CE: EN50081-1, EN55022, EN50082-1 2002 - INLINE, INC. SWP123 OPERATION MANUAL - v1.1 5/21/02... - Page 22 SWP123-2 PRESENTATION SWITCHER PRODUCT DIMENSIONS 6.24" 5.45" 3.66" 0.20" right side view 19.00" MIC INPUT FUSE: 1.6A; 250V; TIME DELAY T ECHNICA L SU PPORT: AUDIO [VGA] AUDIO [S-VIDEO] AUDIO [COMPOSITE] (8 00 ) 8 82 -7 11 7 90-260 VAC; 0.3 A; 47-63 HZ...
-
Page 23: Warranty
If equipment fails because of such defects and INLINE is notified within three (3) years from the date of shipment, INLINE will, at its option, repair or replace the equipment at its plant, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
