Summary of Contents for Inline IN3554

  • Page 1 (217) 352-9330 | Click HERE Find the INLINE IN3554 at our website:...
  • Page 2 Operation Manual IN3554 4-Input RGBHV Switcher IN3556 6-Input RGBHV Switcher Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 3: Installation And Safety Instructions

    Installation and Safety Instructions For Models without a Power Switch: The socket outlet shall be installed near the equipment and shall be accessible. For Models with 110 / 220V Power Selector: Caution: Before applying power to this unit, the voltage selector must be set to the appropriate setting to match local A/C line voltage.

  • Page 4: Installations Und Sicherheitshinweise

    Installations und Sicherheitshinweise Für Geräte ohne Netzschalter: Die Netzsteckdose soll in de Nähe des Gerätes installiert und frei zugänglich sein. Für Geräte mit 110 / 220V Spannungswähler: Achtung: Bevor Sie dem Gerät Spann ung zuführen, muß der Spannungswähler entsprechend der Spannung des lokalen Wechselspannungsnetzes eingestellt werden.

  • Page 5: Fcc Compliance

    CE COMPLIANCE All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to comply with EU Council Directive 89/336/EEC. These devices conform to the following standards: EN50081-1 (1991), EN55022 (1987) EN50082-1 (1992 and 1994), EN60950-92...

  • Page 6: Installation

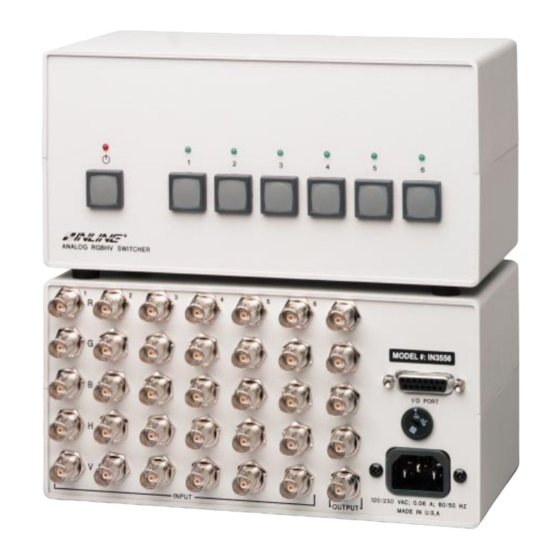

    Front Panel Power Switch for easy operation in rack mounted installations COMPATIBILITY The IN3554 and IN3556 switchers are passive devices which will switch a wide variety of signals. These switchers feature a set of five BNCs for each input and output connection and can switch five discrete signal components for each input.

  • Page 7: Remote Control Operation

    REMOTE CONTROL OPERATION The IN3554/56 RGB switchers have a REMOTE CONTROL port which allows these units to be remotely controlled. Channels can be selected through the remote port by providing contact closures between the appropriate pins.
  • Page 8 OUTPUT IN1024 ® Scan Doubler MENU ENTER INPUTS RS-232 POWER COMPOSITE COMPOSITE S-VIDEO PORT Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 9: Internal Fuses

    INTERNAL FUSES The IN3554/IN3556 switchers contain two internal fuses. If power is applied to the unit and the front panel power LED will not light after the POWER switch has been activated, these fuses may be blown.

  • Page 10: Specifications

    82 KHz. Check the operations manual on both the computer graphics card and the display device to ensure that they are compatible. © 1996-1997 - INLINE, INC. IN3554 / IN3556 OPERATION MANUAL - REV. 2.1 02/19/00 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 11: Warranty

    The information in this manual has been carefully checked and is believed to be accurate. However, Inline, Inc. assumes no responsibility for any inaccuracies that may be contained in this manual. In no event will Inline, Inc. be liable for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages.

This manual is also suitable for:

In3556
