Clipper C65B Owner's Manual

Concrete saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

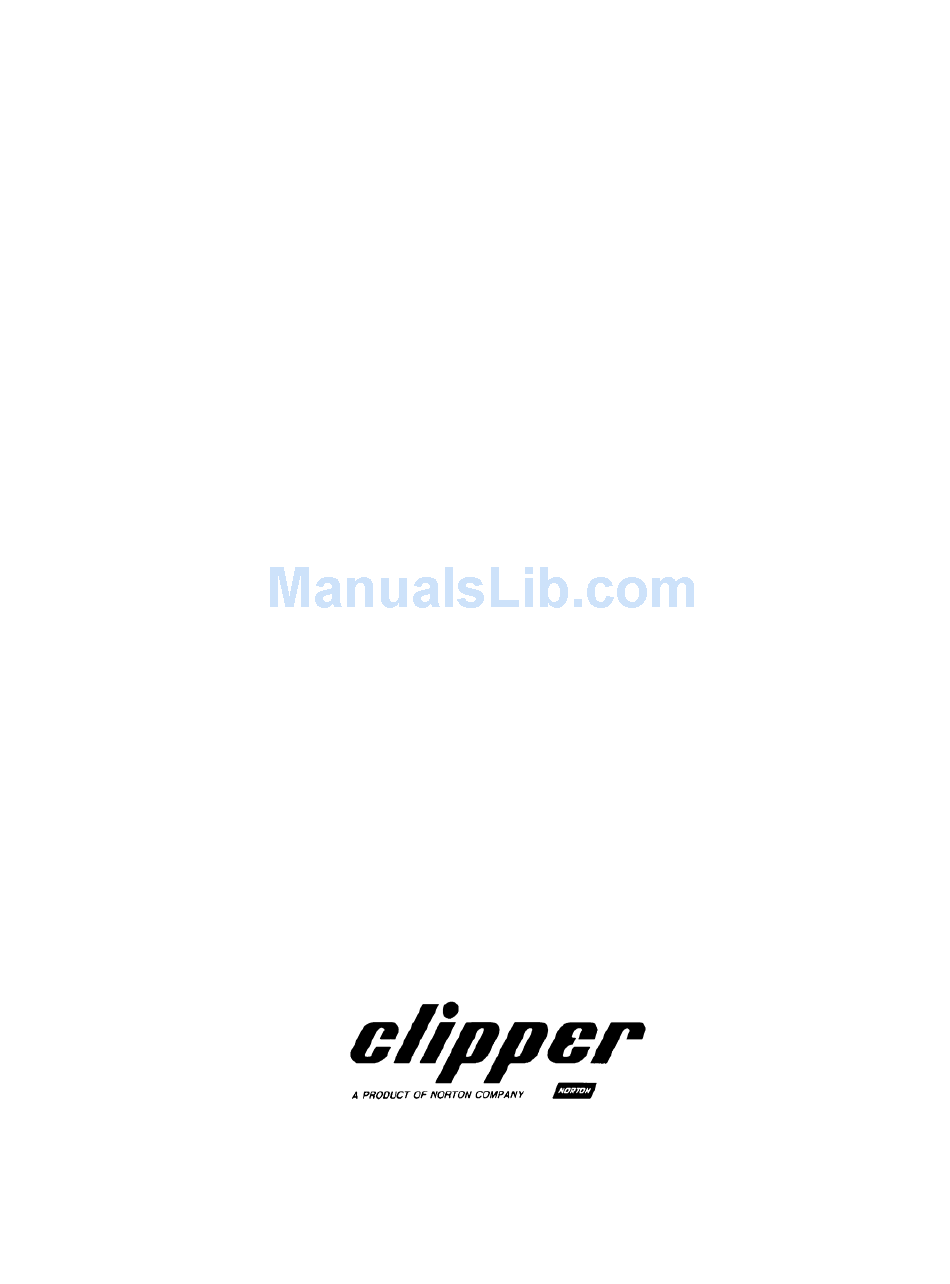

OWNER'S
MANUAL
CONCRETE
SAW
MODEL
C65B
FORM 5313 12/03/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C65B and is the answer not in the manual?

Questions and answers

Related Manuals for Clipper C65B

Summary of Contents for Clipper C65B

  • Page 1 OWNER’S MANUAL CONCRETE MODEL C65B FORM 5313 12/03/01...
  • Page 2 C-65B WARRANTY Norton Construction Products warrants all products manufactured by it against defects in workmanship or materials for a period of one (1) year from the date of shipment to the customer. The responsibility of Norton Construction Products under this warranty is limited to replacement or repair of defective parts at Norton Construction Products' Gainesville, Georgia factory, or at a point designated by it, of such part as shall appear to us upon inspection at such point, to have been...

  • Page 3: Table Of Contents

    OWNER’S MANUAL TABLE OF CONTENTS CONTENTS PAGE Preparing To Saw Safety Precautions Operating Instructions Main Frame Group 9-10 Engine & Gauge Panel Group 11-13 Transmission & Rear Axle Drive Group 14-16 Depth Stop, Depth Indicator & Front Axle Group 17-18 Control Levers Group 19-20 Electro-Hydraulics Group...

  • Page 4: Preparing To Saw

    PAVEMENT SAW OPERATING INSTRUCTIONS PREPARING TO SAW 1. Perform daily maintenance to saw (see chart). 2. Fuel saw if required. Use good grade of regular gasoline (14). 3. Remove blade guard and mount blade securely on blade shaft. For saws equipped with arborlock one piece outer collar blade shaft, insert the outer collar through the blade and into the female inner collar.

  • Page 5: Safety Precautions

    Safety Precautions Important! The following safety precautions must always be observed. Hazard Symbols Fuel (gasoline) is extremely flammable and its vapors can explode if ignited. Store gasoline only in approved containers; in well ventilated; unoccupied areas approved; and away from sparks or flames.

  • Page 6: Dust And Silica Warning

    Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheet and/or consult your employer, the material manufacturer/supplier, governmental agencies such as OSHA...

  • Page 7: Operating Instructions

    1. Before mounting any blade on the saw: the blade should be inspected for any damage which might have occurred during shipment, handling or previous use. 2. The blade collars and arbors should be cleaned and examined for damage before mounting the blade.
  • Page 8 (Diameter). STRAIGHT LINE SAWING ADJUSTMENT Your C65B is equipped with rear axle adjustment to adjust for blade lead off. The adjustment nut is located at the back of the saw on the lower left frame. To adjust saw, stop saw, stop forward drive, remove blade from cut and STOP ENGINE.

  • Page 9: Main Frame Group

    C65B MAIN FRAME GROUP...
  • Page 10 C65B MAIN FRAME GROUP ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. LIFT FRAME N1E0066 BELTGUARD 14-26" N1E0322 NUT, 3/8-16 N1D0039 BOLT, 5/16-18 X ¾ 8041026 BOLT, 3/8-16 x1 8041050 SHAFT GUARD N1E0323 WELDMNT BOLT, 3/8-16 N1D0058 NUT, 5/16-18 N1D0037...
  • Page 11 C65B GAUGE PANEL GROUP “New Style”* Item Description Part No Ignition Switch Keyed N1C0892 Ignition Switch Boot N1C0893 Switch Boot N1C0072 Switch Water Safety, water Pump, Night Light N1C0071 Oil Pressure Guage N1C0889 Volt Meter N1C0888 Tachometer/Hour Meter N1C0887 Instrument Panel N1E0657 Screw 10-24 x ½”...

  • Page 13: Engine & Gauge Panel Group

    C65B ENGINE & GAUGE PANEL GROUP DESCRIPTION PART NO. DESCRIPTION PART NO. Engine V-465D N1C0037 Oil Pressure Gauge N1C0174 Pipe nipple N1D0018 Oil Pressure Line Fitting N1D0003 Muffler Clamp N1C0026 Oil Pressure Line N1C0074 Muffler N1C0439 Hour Meter N1c0073 Hose Clamps #75...

  • Page 15: Transmission & Rear Axle Drive Group

    C65B TRANSMISSION & REAR AXLE DRIVE GROUP ITEM DESCRIPTION PART NO. DESCRIPTION PART NO. #40 DRIVE CHAIN N1C0050 BOLT N1D0065 #40 CONNECTOR LINK N1C0051 LOCK WASHER ½” 8176014 CHAIN SPROCKET N1COO55 MOUNT FOOT R.H. N1E0048 SET SCREW N1D0085 HYDRAULIC FITTING...
  • Page 16 C65B TRANSMISSION & REAR AXLE DRIVE GROUP ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. MOUNT FOOT, L.H. N1E0053 BUSHING & FASTENER N1C0053 SPACER PLATE N1E0074 LINK BELT TOOL N1C0057 BOLT, 5/16-18 X ¾ N1D0053 FLAT WASHER 5/8 8172013 LOCK WASHER 5/16...

  • Page 17: Depth Stop, Depth Indicator & Front Axle Group

    DEPTH STOP, DEPTH INDICATOR & FRONT AXLE GROUP DEPTH STOP, DEPTH INDICATOR & FRONT AXLE GROUP...
  • Page 18 ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. DEPTH STOP HNDL N1C0078 CABLE CLAMP N1C0085 ROLL PIN N1D0088 SPRING N1C0083 FLATWASHER 1/2" N1D0025 COTTER PIN N1D0081 FRICTION WASHER N1D0090 SET COLLAR N1C0087 SPRING WASHER N1D0091 FLATWASHER 1" N1D0028 DEPTH STOP N1E0054 FRONT WHEEL N1C0847...

  • Page 19: Control Levers Group

    C65B CONTROL LEVERS GROUP...
  • Page 20 ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. SWITCH BOOT N1C0072 NUT 3/8-24 N1D0040 RAISE/LOWER SW N1C0088 BELL CRANK N1E0071 WIRE ASSY N1C0089 LOCKWASHER 3/8 N1D0032 SWITCH MNT. PL N1E0243 NUT 3/8-16 N1D0038 SCREW N1D0240 BOLT, 3/8-16 N1D0109 SP. CONT. LEVER N1E0328 THREADED ROD N1E0081...

  • Page 22: Electro-Hydraulics Group

    C65B ELECTRO HYDRAULICS GROUP ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. HYDRAULIC PUMP N1C0194 BOLT, 3/8-16X1 N1D0057 CLOSE NIPPLE 3/8 N1D0009 LOCKWASHER 3/8" N1D0032 PIPE COUPLING N1D0010 BREATHER CAP N1C0180 N1D0110 SOLINOID MAGNET N1C0181 SOLINOID VALVE N1C0182 CABLE ASSY...

  • Page 23: Blade Shaft & Drives Group

    C65B PARTS LIST BLADE SHAFT & DRIVES GROUP ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO.
  • Page 24 ENG. SHEAVE 14" N1E0035 SET SCREW N1D0097 ENG. SH. 18-26" N1E0814 BLADESHAFT N1E0003 SET SCREW 5/16 N1D0085 OUTER COLLAR N1E0019 N1E0094 FLATWASHER 5/8 8172013 BOLT 5/8-11X2 N1D0070 BOLT 5/8-11X4 RH THD N1D0073 LOCKWASHER 5/8 N1D0034 BOLT 5/8-11X4 LH THD N1D0263 BRG.

  • Page 26: Blade Guard Group

    C65B PARTS LIST BLADE GUARD GROUP ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. WATER HOSE 1/2" N1C0114 BLD. GD. ASSY. 48" JS N1B0085 HOSE CLAMP N1C0113 SPRING ASSY. N1C0476 Y FITTING N1D0095 BOLT N1D0058 WATER HOSE 1/2" N1C0114 NUT (not shown) N1D0038 ELBOW 1/4"...

  • Page 28: Jackshaft Drive Group

    C65B PARTS LIST 30" & 36" JACKSHAFT DRIVE GROUP ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. ENG.SH. 4.12 DIA N1E0035 OUTER COLLAR 6" N1E0025 SET SCREW N1D0085 DRIVE PIN N1C0095 N1E0094 FLATWASHER 5/8 8172013 BELT GD. 30-36" N1E0332 LOCKWASHER 5/8...

  • Page 30: 42" & 48" Jackshaft Drive Group

    C65B PARTS LIST42" & 48" JACKSHAFT DRIVE GROUP ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. ENG SH 4.0 DIA N1E0033 DRIVE PIN N1C0095 SET SCREW N1D0085 FLATWASHER 5/8 8172013 N1E0094 LOCKWASHER 5/8 N1D0034 BELT GD 42-48" N1E0336 BOLT 5/8-11X4...
  • Page 32 C65B PARTS LIST OPTIONAL LIGHT KIT GROUP ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. LIGHT, 12 VOLT N1C0149 TEE 1/2" PIPE N1D0015 LIGHT MOUNT BAR N1E0057 NIPPLE 1/2" N1D0017 LT. BAR MNT BRK N1E0056 PIPE BUSHING N1D0008 LOCK KNOB...

  • Page 37: Power Transmission Matrix

    2935 2935 9,228 2935 2935 10,766 2326 2617 10,969 2326 2617 12,188 2262 2545 14,224 26 Clipper Blades 1760 2000 11,989 26 Target Blades 2262 2545 15,409 1512 1700 11,884 30 W/ JACK SHAFT 1512 2935 11,884 36 W/ JACK SHAFT...
  • Page 38 NON-JACKSHAFT MODELS JACK SHAFT MODELS BLADE DIAMETER 14" 18" 26" 30" 36" 30"JS 36"JS 42"JS 48"JS Maximum Cut Depth 4-5/8" 6-5/8" 10-5/8" 12-5/8" 14-5/8" 12-5/8" 14-5/8" 17-3/8" 20" 2935 2617 2545 1700 1975 2935 2545 2935 2800 No Load Engine RPM No Load B/S RPM 2935 2326...
  • Page 39 NOTES...
  • Page 40 PO Box 2898, Gainesville, Georgia 30503 Phone: 800-554-8003 or 770-967-3954 (8:00 A.M. to 7:00 P.M. Eastern Time) Fax: 800-443-1092 or 770-967-4287 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
