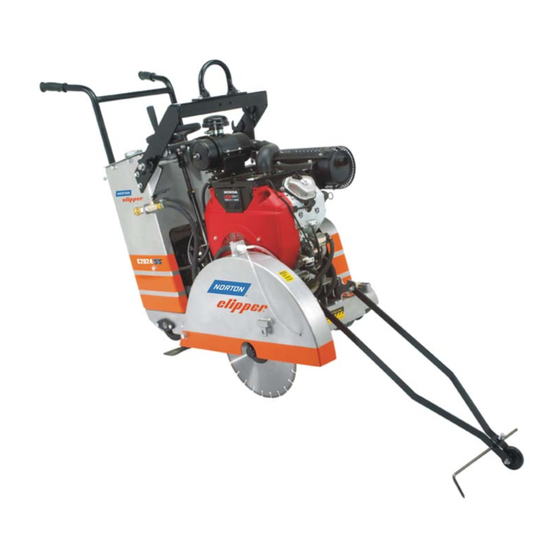

OWNERS
MANUAL
MEDIUM CONCRETE SAWS
C1316SS
C1320SS
MODELS:
C1316SM
C1320SM
C2016SS
C2020SS
C2024SS
FORM C2020SS rev 5-11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1316SS and is the answer not in the manual?

Questions and answers

Related Manuals for Clipper C1316SS

Summary of Contents for Clipper C1316SS

  • Page 1 OWNERS MANUAL MEDIUM CONCRETE SAWS MODELS: C1316SS C1316SM C2016SS C1320SS C1320SM C2020SS C2024SS FORM C2020SS rev 5-11...
  • Page 2 WARRANTY Norton warrants all products manufactured by it against defects in workmanship or materials for a period of one (1) year from the date of shipment to the customer. The responsibility of Norton under this warranty is limited to replacement or repair of defective parts at Norton's Stephenville, Texas facility, or at a point designated by it, of such part as shall appear to us upon inspection at such point, to have been defective in material or workmanship, with expense for transportation borne by...

  • Page 3: Table Of Contents

    Table of Contents CONTENTS PAGE I. Preparation A. Safety Precautions B. Assembly C. Concrete Saw Specifications II. Operation A. Blade Installation 9-11 B. Changing the Blade Side 12-14- C. Starting The Engine D. Water Supply 14-15 E. Controls 15-17 F. Operating The Saw 17-19 G.

  • Page 4: Preparation

    I. PREPARATION A. Safety Precautions Important! The following safety precautions must always be observed. Hazard Symbols Fuel (gasoline) is extremely flammable and its vapors can explode if ignited. Store gasoline only in approved containers, in well ventilated, unoccupied areas approved, and away from sparks or flames.

  • Page 5: Dust And Silica Warning

    Dust and Silica Warning Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust, mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with the risks associated with the particular process and/or material being cut or the composition of the tool being used, review the material safety data sheet and/or consult your employer, the material manufacturer/supplier, governmental agencies such as OSHA and...
  • Page 6 1. Before mounting any blade on the saw, the blade should be inspected for any damage which might have occurred during shipment, handling or previous use. 2. The blade collars and arbors should be cleaned and examined for damage before mounting the blade. 3.

  • Page 7: Assembly

    I. PREPARATION B. Assembly The self-propelled concrete saws are shipped completely assembled and ready for use except for diamond blade, gasoline, oil, and handle bar. Inspect the saw for shipping damage. If any damage is found, contact the shipper immediately and file a freight claim. The Norton Company is not responsible for any freight-related damages.

  • Page 8: Concrete Saw Specifications

    C. C13xx/C20xx Concrete Saw Specifications C1316SS C1316SM C2016SS Dimensions/Weight C1320SS C1320SM C2020SS C2024SS Length (Transport) 56 inch (1142 mm) 56 inch (1142 mm) 56 inch (1142 mm) Width 26 inch (660 mm) 26 inch (600 mm) 26 inch (600 mm)

  • Page 9: Operation

    II. OPERATION Read and understand this manual before running or using the machine! A. Installing the Blade 1. Insure that the Ignition Power Key Switch is in the OFF position and then disconnect the spark plug. 2. Remove the blade shaft nut, (NOTE: Operator’s Right side is a left hand thread and the Operator’s Left side is right hand thread), and remove the outside collar.

  • Page 10: Blade Installation

    In addition check that the blade is the correct specification for the application. Use only Clipper Diamond Blades. This machine was not designed for the use with abrasive blades. 5. Place the blade on the blade shaft, lining up the drive pin hole in the blade with the drive pinhole in the inside collar.
  • Page 11 Observe rotation arrow on blade and do not exceed maximum RPM stamped on blade. NOTE: Organic bonded blades (A) must have a blotter. The blotter (B) must extend past the blade collar contact area as shown. Blades Use Only Norton Clipper Diamond Blades...

  • Page 12: Changing The Blade Side

    B. Changing the Blade Side: 1. Insure that the Ignition Power Key Switch is in the OFF position and then disconnect the spark plug. 2. Remove the blade shaft nut, (NOTE: Operator’s Right side is a left hand thread and the Operator’s Left side is right hand thread), and remove the outside collar.
  • Page 13 Blade Shaft Guard Blade Shaft Guard Removal 7. Place the blade on the blade shaft, lining up the drive pin hole in the blade with the drive pinhole in the inside collar. NOTE: Diamond blades are direction dependent so verify the direction of rotation of the blade.

  • Page 14: Water Supply

    C. Engine Operation Prior to attempting to operate the engine, read the information contained in the engine owner's manual. An engine owner’s manual is supplied with every gasoline powered concrete saw. 1. Check Oil: Add oil if low. Refer to the engine owner's manual for the recommended SAE viscosity grades.

  • Page 15: Controls

    E. Controls Depth Control Emergency Kill Hand Wheel Switch Tachometer/Hour Meter Raise Levantar Blade Speed Chart Engine Ignition Tabla de Velocidad 3600 RPM Del Disco Switch Blade Shaft Pulley Dia Eng Pulley Blade Shaft Blade Dia Eng rpm Lower Diámetro en Diameter Diametro de Flecha Disco...
  • Page 16 Transmission Engage/Disengage Lever: Controls the Engagement and Disengagement of the Transmission. Push down to Engage and pull up to disengage the transmission. Only operate the Transmission Engage/Disengage Lever when the machine is NOT moving. Operation of the Transmission Engage/Disengage Lever while the machine is moving may damage the Rear Wheels.

  • Page 17: Operating The Saw

    Engine Ignition Switch: The Engine Ignition Switch allows the operator to start and stop the engine. Tachometer/Hour Meter: The Tachometer/Hour Meter shows the engine RPM only when the Engine is running. The total Engine operating hours (run time) are shown when the Engine is turned off.
  • Page 18 Engine and Blade Speed Chart Engine Blade Shaft Blade Engine Pulley Blade Pulley Diameter Diameter Shaft RPM Diameter 14" 4.5" (356mm) 3600 RPM 3.15" (80mm) 2520 RPM (114mm) 16" 4.5" (406mm) 3600 RPM 3.15" (80mm) 2520 RPM (114mm) 20" 4.5" (508mm) 3600 RPM 3.15"...

  • Page 19: Cutting Technique

    Caution: Do Not Engage Or Disengage The Transmission While The Machine Is In The Forward Or Reverse Positions! G. Cutting Technique Lower the blade into the concrete to the required depth by turning the hand wheel clockwise. Ease the handle slowly forward. Retard the forward pressure if the saw begins to stall.

  • Page 20: Lead-Off Adjustment

    G. Lead-Off Adjustment If the saw tends to pull to one side (lead off), it may be steered by applying slight pressure to the left or right hand handles.

  • Page 21: Maintenance

    III. MAINTENANCE A. Engine Maintenance Follow the below schedule for engine maintenance. NOTE: Check the Honda Engine manual that came with the engine for any changes to the maintenance schedule. If the charts have any differences, follow the chart in the Honda Engine Manual.
  • Page 22 Always refer to the engine manual for more detailed information on checking the oil, changing oil, and oil capacity, air filter changes, and fuel type to use. Use only Honda air filters. Do not clean the air filter with gasoline or other flammable solvents.

  • Page 24: Bearings

    B. Bearings Re lubrication type bearings must be relubricated daily to assure long life. The grease used should conform to the NLGI grade two consistencies and be free of any chemical impurities such as free acid or free alkali, dust rust, metal particles or abrasives.

  • Page 25: V-Belts

    C. V-Belts Warning: Never make adjustments to belts or pulleys while engine is running! 1. The best tension for a belt drive is the lowest tension at which the belts will not slip under full load. 2. Simply take up the drive until the belts are snug in the grooves.

  • Page 26: Depth Control

    D. Depth Control The depth control (raising screw) consists of a threaded rod which feeds into a brass nut. In order to keep the two parts working smoothly it is necessary to keep the rod free from dirt and sludge as much as possible. Cleaning the threaded rod with a rag after each use will prevent sludge from collecting in the tube assembly and protect the threads.
  • Page 27 Raise Levantar Blade Speed Chart Tabla de Velocidad 3600 RPM Del Disco Blade Shaft Pulley Dia Eng Pulley Blade Shaft Blade Dia Eng rpm Lower Diámetro en Diameter Diametro de Flecha Disco Polea de Bajar Motor rpm Diámetro en Disco Flecha Disco RPM/Hours (RPM/Horas) Polea Motor...
  • Page 28 7. Start and test the machine. 8. If any problems are found repeat steps 1 to7. Transmission Engage/Disengage Lever: Transmission Engage/Disengage lever has two (2) positions onto which it can be moved: Engaged position (Down) allows the transmission to operate the rear drive wheels by the means of rear wheel friction rollers, the Disengage position (Up) release the rear wheel friction rollers from the rear drive wheel (the saw can be “Free Wheeled”...
  • Page 29 G. ELECTRICAL DIAGRAM C1316SS & C1320SS: 13HP Manual Start Models Only Honda Engine Honda Part# 36100-ZE1-015 Kill SGA# 227115 Switch (BL) (BL) BL (238038) BL (238039) Oil Alert Transistorized Oil Level Unit Ignition Switch Spark Plug Unit...
  • Page 30 G. ELECTRICAL DIAGRAM C1316SM & C1320SM: 13HP Electric Start Models Only Circuit Rectifier G (238020) (GR) Breaker 15 Amp Change Honda Switch Fuse White Wire Ring Terminal To Female Bullet Kill Connector 0.156" Switch R (238031) (BL/R) (BL) R (238032) O (238033) BL (238035) Oil Alert...
  • Page 31 G. ELECTRICAL DIAGRAM C2016SS, C2020SS, C2024SS: 20HP Electric Start Models With Honda GX620TXF2 Machine Serial Numbers 07051033 and Higher Charge Coil (GR*) (GR*) (BL/Y) Regulator/ Rectifier (W/BU) (W/BU) - Not Used (BL) (BL) 25 Amp Inline Fuse (BL/R*) Inside Motor (BL/Y*) Connect to BL/R Kill...

  • Page 32: Parts List Section

    In The Description Where x= The Quantity Included. For example 232087 BELT 3VX355 (4) four (4) Belts are included. Blades Use Only Clipper Diamond Blades. Contact your local Clipper Distributor or Clipper at 254-918-2310 for the best blade for the application.
  • Page 33 C13xx and C20xx Frame Common...
  • Page 34 C13xxx and C20xx Frame Common Req Part No. Item Description LIFT FRAME 238171 LIFT FRAME HOOK 238175 SCR 3/8-16 X 1 1/4 HEX HD CAP 8041051 WASHER 3/8 SPRING LOCK 8177012 WASHER 3/8 SAE 8172009 FRONT POINTER FRAME 238177 SCR 5/16-18 X 2 ½ 8041034 WASHER 5/16 SAE 8172008...
  • Page 35 C13xxx and C20xx Raise Axle...
  • Page 36 C13xx and C20xx Raise Axle Req PART No. ITEM DESCRIPTION RAISE AXLE MOUNT 238134 REAR AXLE BUSHING 238129 REAR WHEEL SPACER 238124 WASHER 3/4 SAE 8172015 WHEEL 6 X 2 X 3/4 W/ROLLER BEARING 238005 (REAR WHEEL SOLD EACH) WHEEL 5 X 2 X 3/4 W/ROLLER BEARING 238004 (FRONT WHEEL SOLD EACH) RAISE AXLE WELDMENT...
  • Page 37 Detail "A" See Detail "A" C13xxx and C20xx Transmission...
  • Page 38 C13xxx and C20xx Transmission ITEM DESCRIPTION PART No. SPROCKET 35B12 X 17mm 229144 SCR 1/4-20 X 1/4 SET CUP 407035 ROLLER (1) 238150 BEARING FLANGE 3/4 B 210071 SPROCKET 35B48 X 34 B 238152 MASTER LINK 238145 CHAIN # 35 238146 KEY 3/16 X 2 9201086...
  • Page 39 ITEM DESCRIPTION PART No. WASHER 1/4 SPRING LOCK 8177010 INTERNAL RETAINING RING 1 5/16" 237388 CONTROL LEVER PIN 238258 TRANSMISSION CONTROL 238226 SCR 3/8-16 X 2 HEX HD CAP 8041054...
  • Page 40 22 23 C13xxx and C20xx Blade Shaft & Engine Group...
  • Page 41 C13xxx and C20xx Blade Shaft & Engine Group ITEM DESCRIPTION PART No. BLADE SHAFT 238179 TIGHT COLLAR RIGHT SIDE 227159 (LEFT HAND THREADS) TIGHT COLLAR LEFT SIDE 227190 (RIGHT HAND THREADS) LOOSE COLLAR OUTER FLANGE 227247 (INCLUDES DRIVE PIN) NUT BLADE SHAFT 3/4-16 LH x 1” LONG 227156 (OPERATOR”S RIGHT SIDE) NUT BLADE SHAFT 3/4-16 RH x 1”...
  • Page 42 C13xxx and C20xx Blade Guard and Water System Group...
  • Page 43 C13xx and C20xx Blade Guard and Water System Group Req PART No. ITEM DESCRIPTION 1 HOSE SWIVEL N1D0082 2 WATER VALVE 1/2" N1C0021 3 HOSE BARB 1/2" x ½”MPT 9602012 4 HOSE CLAMP N1C0113 5 SCR 1/4-20 X 1 HEX HD CAP 8041006 6 WASHER 1/4 SAE 8172007...
  • Page 44 C13xxx and C20xx Controls and Console Group...

  • Page 45: Controls And Console Group

    C13xx and C20xx Controls and Console Group Req PART No. ITEM DESCRIPTION HANDLE BAR 238120 HANDLE BAR GRIP N1C0004 SCR 3/8-16 X 1 1/4 HEX HD CAP 8041051 WASHER 3/8 SAE ZN PLT 8172009 NUT 3/8-16 HEX LOCK 8162003 SCR 1/4-20 X 1 HEX HD CAP 8041006 WASHER 1/4 SPRING LOCK 8177010...

  • Page 46: Depth Adjustment Group

    19 21 C13xxx and C20xx Depth Adjustment Group...
  • Page 47 C13xxx and C20xx Depth Adjustment Group Req PART No. ITEM DESCRIPTION DEPTH SCREW TUBE 238164 GREASE ZERK 1/8 238234 SCR 1/4-20 X 1/4 SET CUP 407035 NUT 3/4-10 HEX HEAD 238163 RAISE SCREW 238165 DEPTH STOP BUSHING 238166 BEARING FLANGE 3/4 B 210071 NUT 1/2-13 HEX HEAD 8143005...

  • Page 48: Optional Water Tank Group

    To Blade Guard C13xxx and C20xx Optional Water Tank Group...
  • Page 49 C13xxx and C20xx Optional Water Tank Group PART ITEM DESCRIPTION WATER TANK KIT -NA- 238001 (INCLUDES: Items 1, and 3 to 10) WATER TANK W/CAP 83357 CAP FOR WATER TANK 82794 BRACKET FOR WATER TANK 238174 SCR 3/8-16 UNC x 1-1/4 HEX HEAD CAP 8041051 8177012 WASHER 3/8 SPRING LOCK...
  • Page 50 Saint-Gobain Abrasives 2770 West Washington Stephenville, TX 76401 Phone: 254-918-2310 Fax: 254-918-2312...
