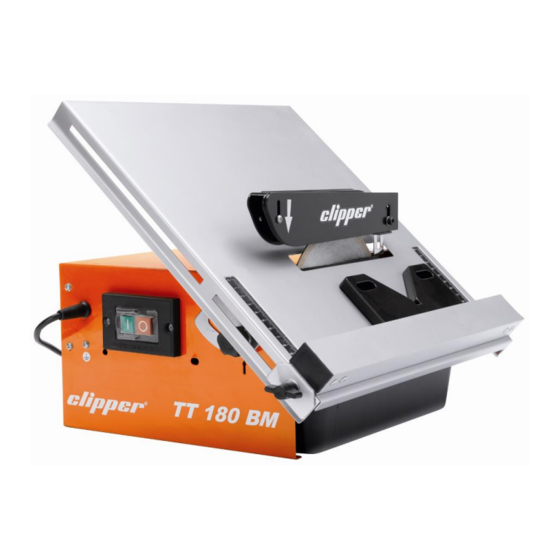

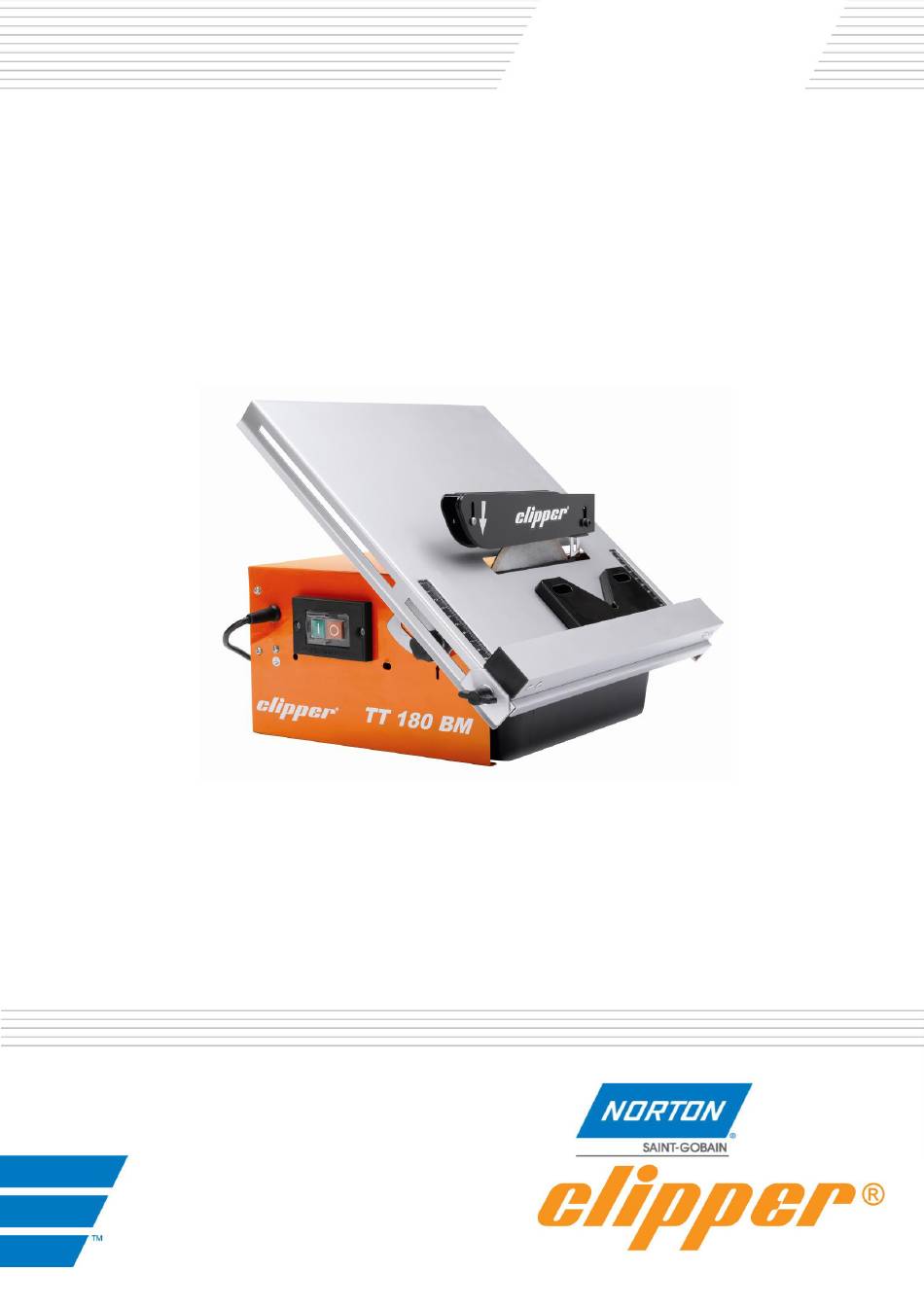

  • Page 1 TT 180 BM OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 L- 4930 BASCHARAGE Declares that this product: TT 180 BM 230V 70184625699 Tile saw: Code: TT 180 BM 230V UK 70184626958 TT 180 BM 110V UK 70184628690 is in conformity with the following Directives:  "MACHINES" 2006/42/CE  "LOW VOLTAGE" 2006/95/CE ...

  • Page 3: Table Of Contents

    VERS. 2017.06.01 TT 180 BM _MAN_EN TT 180 OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data 2.5 Statement regarding the vibration emission...

  • Page 4: Basic Safety Instructions

    VERS. 2017.06.01 TT 180 BM _MAN_EN 1 BASIC SAFETY INSTRUCTIONS The TT180 is exclusively designed for the cutting of tiles mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user.

  • Page 5: Machine Plate

     Always cut with the blade guard in position.  Only fit CLIPPER diamond blades with continuous rim to the machine! The use of other tools can damage the machine!  Read the blades’ specifications carefully to choose the correct tool for your application.

  • Page 6: Machine Description

    The TT180 Tile saw is designed for durability and high performance for onsite wet and dry cutting operations of a wide range of tiles. As with all other CLIPPER products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. The machine and its component parts are assembled to high standards assuring long life and minimum maintenance.

  • Page 7: Technical Data

    VERS. 2017.06.01 TT 180 BM _MAN_EN Frame (1) The frame is made of steel to ensure perfect rigidity. It supports the motor, the cutting table and the switch. Cutting table (2) Zink coated steel top for an excellent corrosion resistance.

  • Page 8: Statement Regarding The Vibration Emission

    VERS. 2017.06.01 TT 180 BM _MAN_EN 2.5 Statement regarding the vibration emission Declared value of vibration emission following EN 12096. Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code TT 180 BM...

  • Page 9: Statement Regarding Noise Emission

    VERS. 2017.06.01 TT 180 BM _MAN_EN 2.6 Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level...

  • Page 10: Assembly And Commissioning

    3.1 Tool assembly Only CLIPPER continuous rim blades with a maximum diameter of 180 mm can be used with the TT180. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed.

  • Page 11: Starting The Machine

    VERS. 2017.06.01 TT 180 BM _MAN_EN 3.4 Starting the machine Press the green button to start the machine. Press on the red button to stop the machine. The red button is also the emergency switch. 3.5 Water cooling system ...

  • Page 12: Operating The Machine

    VERS. 2017.06.01 TT 180 BM _MAN_EN 5 OPERATING THE MACHINE 5.1 Site of work 5.1.1 Siting the machine  Remove from the site anything, which might hinder the working procedure!  Make sure the site is sufficiently well lit! ...

  • Page 13: Maintenance And Servicing

    VERS. 2017.06.01 TT 180 BM _MAN_EN 6 MAINTENANCE AND SERVICING To ensure a long-term quality from the cutting with the TT180, please follow the maintenance plan below: Whole machine Visual control (general aspect, watertightness) Clean Flange and blade fixing devices...

  • Page 14: Faults: Causes And Cures

    VERS. 2017.06.01 TT 180 BM _MAN_EN 7 FAULTS: CAUSES AND CURES Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician.

  • Page 15: Customer Service

    VERS. 2017.06.01 TT 180 BM _MAN_EN 7.3 Customer service When ordering spare parts, please mention:  The serial number (7 digits).  The code of the part.  The exact denomination.  The number of parts required.  The delivery address.
  • Page 16 VERS. 2017.06.01 TT 180 BM _MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:...
  • Page 17 VERS. 2017.06.01 TT 180 BM _MAN_EN...
