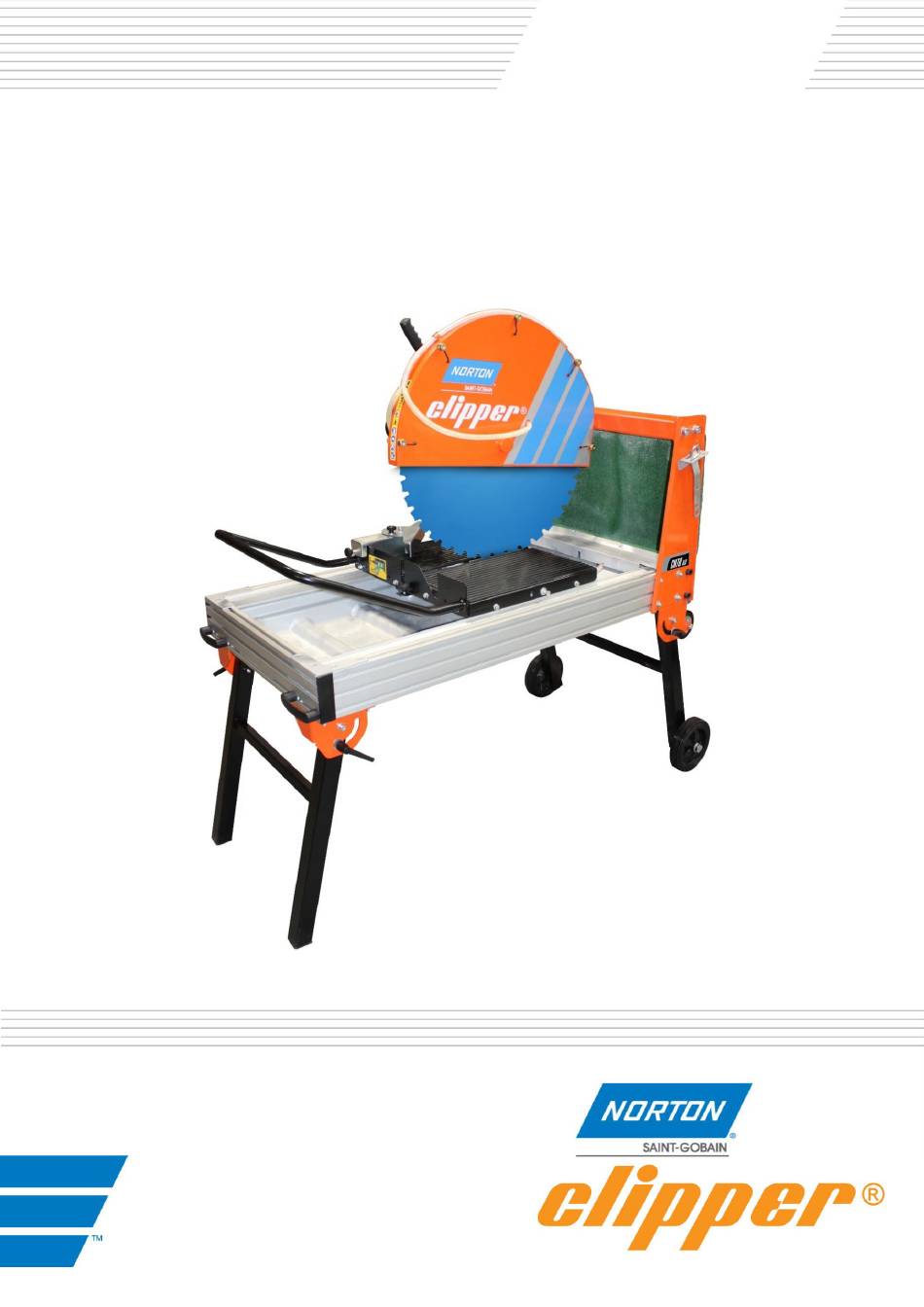

CM70 ALU
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM70 ALU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clipper CM70 ALU

Summary of Contents for Clipper CM70 ALU

  • Page 1 CM70 ALU OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS. 2018.05 CM70 ALU_MAN_EN...
  • Page 3 Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: CM70 ALU 230V 70184602669 Masonry Saws: Code: is in conformity with the following Directives:  "MACHINES" 2006/42/CE  "LOW VOLTAGE" 2014/35/UE ...
  • Page 4 VERS. 2018.05 CM70 ALU_MAN_EN...

  • Page 5: Table Of Contents

    VERS. 2018.05 CM70 ALU_MAN_EN CM70 ALU : OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data...

  • Page 6: Basic Safety Instructions

    VERS. 2018.05 CM70 ALU_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CM70 ALU is exclusively designed for the cutting of construction products mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user.

  • Page 7: Machine Plate

    VERS. 2018.05 CM70 ALU_MAN_EN 1.2 Machine plate Important data can be found on the following plate located on the machine: Maximum blade diameter Year of production Weight Bore Machine Code Machine Model diameter Safety standard Blade speed Machine type Power Serial number 1.3 Safety instructions for particular operating phases Before commencing work...

  • Page 8: Machine Description

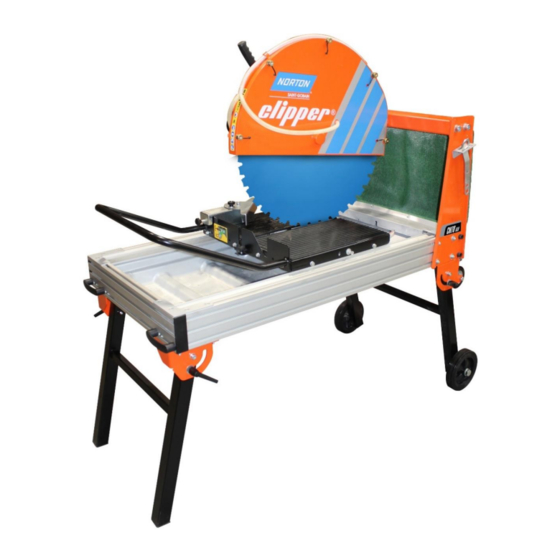

    • All motor bearings are sealed which gives them maximum service life. 2.1 Short description The CM70 ALU block saw is designed for durability and high performance for onsite wet cutting operations of a wide range of masonry, refractory and natural stone products.

  • Page 9: Layout

    VERS. 2018.05 CM70 ALU_MAN_EN 2.3 Layout 1. Quick release handle. 2. Spring. 3. Switch. 4. Blade protection. 5. Legs 6. Handle. 7. Cooling sustem. 8. Motor. 9. Block stopper. 10. Trolley 11. Water tray. 12. Chasis. 13. Leg stopper. 14. Anti splash curtain.

  • Page 10: Technical Data

    VERS. 2018.05 CM70 ALU_MAN_EN Electrical Motor Motor with 3 kW. Low voltage trigger (NVR) prevents the motor to restart for example after a power cut. The electric motor has overload protection. Thermal overload tripping can occur for two reasons: a. tripping under light load If connection is incorrect If a phase is not under load Check the connections and the phase voltage before restarting the machine.

  • Page 11: Statement Regarding The Vibration Emission

    Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code CM70 ALU PRO UNIVERSAL <2.5 70184602669 LASER  The vibration value is lower and does not exceed 2.5 m / s. ...

  • Page 12: Statement Regarding Noise Emission

    (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744 NF EN ISO 3744) EN ISO 11201) CM70 ALU 100dB(A) 2.5 dB(A) 116 dB(A) 4 dB(A) 70184602669  Values determined using the procedure described in the standard EN 12418.

  • Page 13: Assembly And Commissioning

    3.1 Tool assembly Only NORTON blades with a maximum diameter of 700 mm can be used with the CM70 ALU. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed.
  • Page 14 VERS. 2018.05 CM70 ALU_MAN_EN 5. Install the blocking Wheel so that the legs cannot collapse in transport. 6. Install the upper wheels. 7. Install the transport handle. 8. Install the antisplash carpet 9. Install the ruler on the cutting surface. 10.

  • Page 15: Electrical Connections

    3.2 Electrical connections Electrical connections The electrical equipment of the CM70 ALU cutting tables manufactured by Norton Clipper has an IP54 protection degree. The power supply on this machine has an under-voltage coil to prevent the machine from starting up unexpectedly. When there is a power cut or voltage drop that causes the machine to stop, and once the normal power conditions have been re-established, the motor does not start until the green button is pressed.

  • Page 16: Transport And Storing

    The tank is equipped with a drain plug which facilitates this task. 4 TRANSPORT AND STORING Take the following measures in order to transport the CM70 ALU securely. 4.1 Securing for transport Before transporting or lifting the machine, always remove the blade and empty the water pan.

  • Page 17: Operating The Machine

    VERS. 2018.05 CM70 ALU_MAN_EN 5 OPERATING THE MACHINE 5.1 Site of work 5.1.1 Siting the machine  Remove from the site anything, which might hinder the working procedure!  Make sure the site is sufficiently well lit!  Observe manufacturer's conditions for connecting to power supplies! ...
  • Page 18 5.2.3 General advice for the cutting  Material weighing under 30 kg and having dimensions smaller than 600x500x265mm can be cut with the CM70 ALU.  Before commencing work make sure tools are firmly seated! ...

  • Page 19: Maintenance And Servicing

    VERS. 2018.05 CM70 ALU_MAN_EN 6 MAINTENANCE AND SERVICING To ensure a long-term quality from the cutting with the CM70 ALU, please follow the maintenance plan below: Whole machine Visual control (general aspect, watertightness) Clean Flange and blade fixing devices Clean...
  • Page 20 VERS. 2018.05 CM70 ALU_MAN_EN The conveyor cart has an anti-tipping system so that it does not derail. If you want to remove the cart for any maintenance operation, you should loosen the red bolt as shown in the image. Then you must slide the anti-tipping system to extract the cart from the slides.

  • Page 21: Faults: Causes And Cures

    VERS. 2018.05 CM70 ALU_MAN_EN 7 FAULTS: CAUSES AND CURES Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician.

  • Page 22: Circuit Diagram

    VERS. 2018.05 CM70 ALU_MAN_EN Circuit diagram  2P+ T...

  • Page 23: Customer Service

    VERS. 2018.05 CM70 ALU_MAN_EN 7.4 Customer service When ordering spare parts, please mention:  The serial number.  The code of the part.  The exact denomination.  The number of parts required.  The delivery address.  Please indicate clearly the means of transportation required such as "express" or "by air". Without specific instructions, we will forward the parts through the means which seem appropriate to us --- but which is not always the quickest way.
  • Page 24 VERS. 2018.05 CM70 ALU_MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:...
