Page 1: Conveyor Cart Assembly Figure

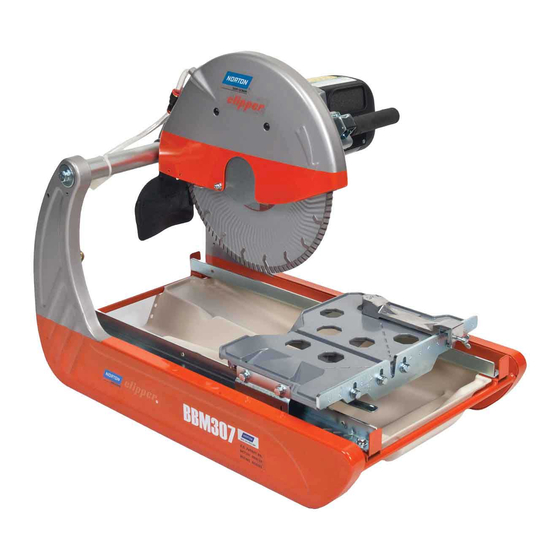

OWNERS MANUAL BLOCK BUSTER MINI MASONRY SAW MODELS BBM307 YBM307 A PRODUCT OF NORTON COMPANY Revised 9-2003... -
Page 2: Conveyor Cart Assembly Figure
Shown In Standard Configuration Shown With Dust Collecting & Dust Vacuum System A PRODUCT OF NORTON COMPANY... - Page 3 WARRANTY Norton warrants to the purchaser that each unit will be free from defects in materials or workmanship for one hundred eighty (180) days from the original purchase date from Norton when used for commercial, institutional or professional use: or for thirty (30) days from the original purchase date from Norton when used for rental purposes.
-
Page 4: Table Of Contents
BBM307/YBM307 OWNER'S MANUAL CONTENTS PAGE Safety Precautions Specifications and Features Items Included Cutting Angle Spring Lock Pin Dust Collection Pan Conveyor Cart Assembly Electric Motor Electrical Safety 12-15 Carbon Brush Air Filter Conveyor Cart Assembly Figure 1 Conveyor Cart Assembly Figure 2... -
Page 5: Safety Precautions
Head Protection Protection Protection The BBM307/YBM307 is designed as a masonry (Block, and Brick) saw and is not designed for non-masonry classified material. Use steel center Diamond Blades Only with this machine. For best preformance use steel center Diamond Blades with a soft bond and a low diamond concentration that are specified for masonry products. - Page 6 Lift Here Lift Here Machine Lifting Points: Only lift machine by the approved lifting points. 1. Before mounting any blade on the saw, the blade should be inspected for any damage which might have occurred during shipment, handling or previous use. 2.
-
Page 7: Specifications And Features
Specifications and Features BBM307/YBM307 Specifications Horse Power 3 HP (2,238 kW) Peak Volts 115 -volts Amps 14 A Hertz (Cycles) 60 Hz Motor Type Air Cooled Carbon Brush Bearing Type Heavy Duty Sealed Blade Shaft Speed 3,600 rpm Maximum Blade Size... -
Page 8: Items Included
Items Included The compact BBM307/YM307 Masonry saws are shipped completely assembled and ready for use except for the diamond blade. Inspect the saw for shipping damage. If any damage is found, contact the shipper immediately and file a freight claim. The Norton Company is not responsible for any freight related damages. -
Page 9: Cutting Angle Spring Lock Pin
Cutting Angle Spring Lock Pin The BBM307/YBM307 Block Buster Mini Masonry saw is designed with three different cutting heights for jam cutting, a moving head for chop (or plunge cutting), and a moving cart combined with the moving head for step cutting to help make any cutting task easier. -
Page 10: Dust Collection Pan
Dust Collection Pan The Dust Collection Pan is assembled to the machine from the factory. The following procedure is to remove or to replace the Dust Collection Pan Assembly: 1. Remove Conveyor Cart (see page 11 Conveyor Cart Assembly for instructions) and then remove the four (4) sets of Hardware (Bolt, Lock Washer, and Washer) from each corner of the machine frame and remove the rails from the frame (see Figure 2-1: Removing the Rails). -
Page 11: Conveyor Cart Assembly
Conveyor Cart Assembly The BBM307 Conveyor Cart Assembly is specially designed with the following unique features: Dust extraction. The rear of the Conveyor Cart is designed to help extract dust out of the back of the · machine when dry cutting Four heavy duty rolling wheels with bearings, roll smooth and provide for a long life. -
Page 12: Electric Motor
Electric Motor The BBM307/YBM307 Block Buster Mini Masonry Saw electrical information: Motor Specifications: Voltage: 115-volt Cycles: 60Hz Amperage: 14Amp Horsepower: 3HP Peak Watts: 2,238 watt Extension Cords: Most motor trouble is the result of too small gauge or too long of extension cord. Cords must be one piece and as short as possible. - Page 13 Electrical Safety This tool is intended for use on a circuit that has an outlet that looks like the one shown below: Grounding Instructions: In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.
- Page 14 Electrical Safety 12. SECURE WORK. Use clamps or vise to hold work when practical. It’s safer than using your hand and it frees both hands to operate tool. 13. DON’T OVERREACH. Keep proper footing and balance at all times. 14. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.
- Page 15 Electrical Safety Position of Saw: 1. To avoid the possibility of the receptacle getting wet, position the saw on one side of a wall mounted receptacle to prevent water from dripping onto the receptacle or plug. The user should arrange a “Drip Loop”...
-
Page 16: Carbon Brush
Carbon Brush The BBM307/YBM307 Block Buster Mini Masonry Saw uses a high horsepower low amperage air over brush motor. Replace the brushes when the motor begins to lose power. Brushes typically need to be replaced During the life of the saw. -
Page 17: Air Filter
Air Filter The BBM307/YBM307 Block Buster Mini Masonry Saw is equipped with a specially designed air filter to help protect the motor from damage due to dust intake. For Best Performance: Clean Air Filter Before Each Use · Inspect Air Filter and Replace Filter if Damaged ·...
