4.6 Select POWER

In Fig. 4-10, select the POWER name from the listing frame and it will be OK.

4.7 Select PC to POWER Control Instructions

1.) Methods 1
As in Fig. 4-11, there are four control instructions in total.
Explanation: The system defaulting control instruction is the PC CONTROL state. And when the system is
closed or the POWER is switching, the system will automatically set to POWER SELF state.
2.) Methods 2

4.8 Set the Voltage Range

There are two methods to set the voltage range: one is by using the rotary button (1~36) and the other is by
using the keyboard (0.004~36.000). If you want to set accurately, please use the keyboard. In general state, you
can use the rotary button.
Fig. 4-12 Using the Rotary Button
1) Using the rotary button: Move the mouse to the icon and then rotate the button.
2) Using the keyboard: Select the "V" button, enter the data and then select the "OK" button.

4.9 Set the Max Current

There are two methods to set the voltage range: one is by using the rotary button (1~36) and the other is by
using the keyboard (0.004~36.000). If you want to set accurately, please use the keyboard. In general state, you
can use the rotary button.
3645A Programmable Power Supply
ARRAY ELECTRONIC CO.,LTD 2002.3

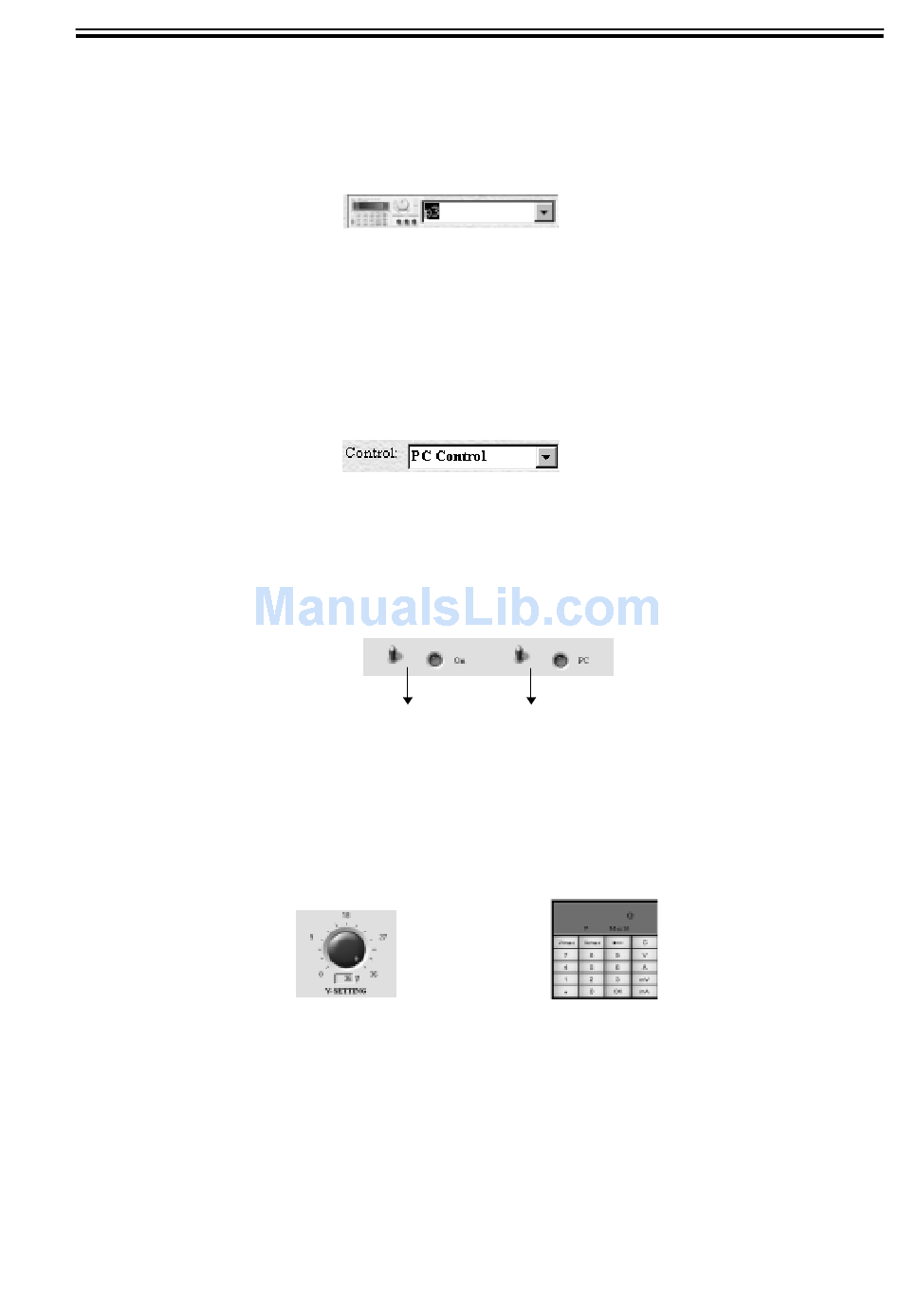

Fig. 4-10 Selecting the POWER
CLOSE POWER
PC CONTROL
Fig. 4-11-1 Select the Control Instruction
POWER ON/OFF Set
Fig. 4-11-2 Selecting Control Instruction
3645A-TYPE USER'S MANUAL
OPEN POWER
POWER SELF
POWER Control Set
Fig. 4-13 Using the Keyboard
