Rocktron CHAMELEON User Manual

Programmable 24-bit dsp guitar preamp
Hide thumbs
Table of Contents

Advertisement

Quick Links

P R O G R A M M A B L E
2 4 - B I T
D S P
G U I T A R
P R E A M P
®

Advertisement

Table of Contents
loading

Related Manuals for Rocktron CHAMELEON

Summary of Contents for Rocktron CHAMELEON

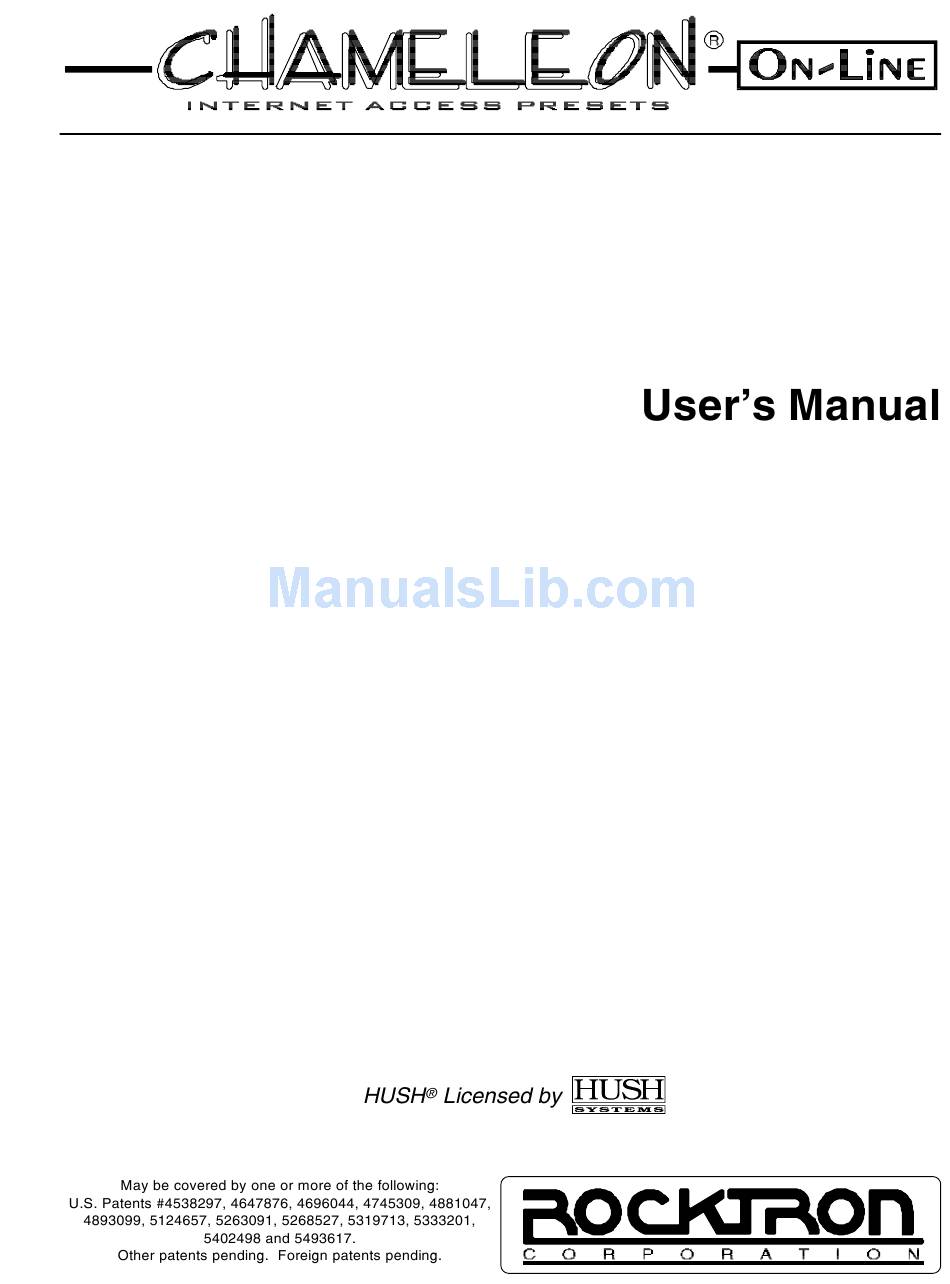

  • Page 1 P R O G R A M M A B L E 2 4 - B I T D S P G U I T A R P R E A M P ®...
  • Page 2 Your Chameleon Online has been tested and complies with the following Standards and Directives as set forth by the European Union: Council Directive(s): 89/336/EEC Electromagnetic Compatibility Standard(s): EN55022, EN50082-1 This means that this product has been designed to meet stringent guidelines on how much RF energy it can emit, and that it should be immune from other sources of interfer- ence when properly used.
  • Page 3 1. Introduction ....................1 2. Quick Reference ..................3 3. Front Panel ....................4 4. Rear Panel ....................6 5. Connections ....................8 6. Operating Format ..................10 7. Chameleon Configurations ..............31 8. Operating the Chameleon ................ 67 9. Appendix ....................98...
  • Page 4 For a thorough explanation of the Chameleon Online and its features, please read this manual carefully and keep it for future reference. After removing the Chameleon from the box, save all packing materials in case it becomes necessary to ship the unit.
  • Page 5 NOTE: IT IS VERY IMPORTANT THAT YOU READ THIS SECTION TO PROVIDE YEARS OF TROUBLE FREE USE. THIS UNIT REQUIRES CAREFUL HANDLING. • All warnings on this equipment and in the operating instructions should be adhered to and all operating instructions should be followed. •...
  • Page 6 STEP 9 When storing into a different preset location, effect or utility function. the Chameleon will display "COPY TITLE TOO?". If you wish to copy the title from the STEP 5 Use the PARAMETER ADJUST control to previous preset, press STORE a third time.
  • Page 7 The DISPLAY panel provides 16 characters consisting of 14 segments each. EFFECT BYPASS button/led When lit, the Pre and Post effects are bypassed and only the Compressor/Preamp signal is passed to the Chameleon outputs This button does not affect the condition of the Speaker Simulator. COMPARE button The COMPARE button may be used to compare an altered parameter value to its stored value.
  • Page 8 This will help you to guard against clipping the output of the mixer at the digital- to-analog converter. 15 INPUT LEVEL control This control adjusts the unit's gain to match the signal level at the input of the Chameleon. Use the INPUT LEVEL meter to determine the setting of this control. 16 INPUT jack This standard, unbalanced mono 1/4"...
  • Page 9 (L) UNBALANCED OUTPUT jack This 1/4" unbalanced RTS jack provides the left unbalanced output of the Chameleon for use with a guitar amplifier or rack system setup. In addition, this jack also allows for the connection of stereo headphones (600ohms impedance or greater).
  • Page 10 MIDI cable which connects from the Rocktron MIDI foot controller to the MIDI IN jack on the rear panel of the Chameleon. This eliminates the need to find an AC outlet near where the footpedal would be placed during a performance, or the need to run an extension cord out to the footswitch.
  • Page 11 Using the Chameleon with a stereo power amp and guitar cabinets...
  • Page 12 Using the Chameleon direct into a mixing console...
  • Page 13 To see the configuration of each preset, press the CONFIG button on the front panel of the Chameleon - the LED above the CONFIG button will light and the display will show the configuration for the current preset. Turning the PRESET control will then scroll through each successive preset (displaying its configuration instead of its preset number and title).
  • Page 14 It is the setting of each of the parameters which determines the overall sound of each preset. The Chameleon is set up to allow you to first access each function (via the FUNC- TION SELECT control), then the parameter list for each function (via the PARAMETER SELECT control) and finally the adjustable value for each parameter (via the PARAM- ETER ADJUST control).
  • Page 15 - as the active guitar would require a higher Threshold level in all presets. MUTE The MUTE parameter allows you to mute the output of the Chameleon. This feature is ® especially useful when changing guitars during a live set. If a Rocktron All Access used in remote mode with the Chameleon, a single All Access button can be configured as a momentary switch which will mute the output when it is held down.
  • Page 16 The next function displayed after turning the FUNCTION SELECT control is the Mixer function. The Mixer function parameters are included in all presets - regardless of which configuration is currently recalled - although the parameter values stored in this function are only for the currently recalled preset. This digital mixer allows you to control most signal levels pertaining to each preset's configuration and stores these levels for each preset.
  • Page 17 The VARIAC ADJUST parameter adjusts the level at which the preamp stage in the Chameleon begins to distort. A Variac is a voltage attenuating device that plugs into an AC wall outlet and adjusts the voltage level to any device which is plugged into it. For years, many guitarists have plugged their amplifier heads into a Variac and reduced the voltage coming into the amplifier from the AC wall outlet.
  • Page 18 The LOW GAIN function is only accessible in configurations which display "L-GAIN" in the configuration title. The preamp stage in these configurations provides four distortion types, and can also be used for clean tones. The PARAMETER SELECT control will allow you to access these Low Gain parameters: GAIN The GAIN parameter determines the gain value in the distortion stage.
  • Page 19 A/D converter. This ensures a quiet input signal to the preamp section. Because the preamp section of the Chameleon is digital, it is virtually noise-free (even in the high-gain mode). Therefore, a quiet input signal to the preamp will result in a quiet output signal.
  • Page 20 The PRE EQ (EXPERT) function is available in all presets—regardless of which configuration is currently recalled. This function allows you to shape the tone prior to the distortion stage. Considerable tone variations can be achieved by modifying these pre-distort EQ parameters. The PARAMETER SELECT control will allow you to access these PRE EQ parameters: LF LEVEL The pre-LF (low frequency) LEVEL parameter allows you to cut or boost the low frequen-...
  • Page 21 The POST EQ (EXPERT) function is available in all presets - regardless of which configuration is currently recalled. This function allows you shape the tone after it has passed through the distortion stage. These post-distortion EQ parameters have a more dramatic effect on the overall tone than the pre-distortion parameters. The PARAMETER SELECT control will allow you to access these POST EQ parameters: BASS LVL The post-BASS LEVEL parameter allows you to cut or boost the low frequencies by 15dB...
  • Page 22 The COMPRESSOR function is available only in configurations which display "L-GAIN" in the configuration title. This function allows you to compress the signal prior to the distortion stage. Compression is often used to maintain an even level when using clean tones, and also to increase sustain when using distorted tones. The PARAMETER SELECT control will allow you to access these COMPRESSOR parameters: COMPRESSOR I/O The COMPRESSOR IN/OUT parameter determines whether the compressor is active for...
  • Page 23 The SPEAKER SIMULATOR function is included in all presets and provides a realistic approximation of a miked speaker cabinet for applications involving connecting the Chameleon directly to a mixing board, recording system or other full range system. When a preset is recalled which has the Speaker Simulator on for either the left channel or both channels, the front panel SPKR SIM LED will light.
  • Page 24 The WAH-WAH function is available only in configurations which display "WAH" in the configuration title. The Chameleon has an internal wah-wah which allows for an expression pedal to be used as a wah-wah pedal through continuous Control changes. Use of this feature eliminates the need to run long audio cables out to a conventional wah-wah pedal.
  • Page 25 The PHASER function is available only in configurations displaying "PHAS" in the configuration title. Phase shifting involves splitting the input signal into two signals, then shifting the phase of different frequencies of one signal and mixing it back with the original signal. The PARAMETER SELECT control will allow you to access these PHASER parameters: PHASER I/O The PHASER IN/OUT parameter determines whether the Phaser is active for the current...
  • Page 26 The FLANGER function is available only in configurations displaying "FLAN" in the configuration title. Flanging involves splitting the input signal into at least two individual delayed signals (Voice 1 and voice 2), then modulating these delayed signals so that, when summed back with the direct signal, phase cancellations will occur at some frequencies while peaks in the response will occur at others.
  • Page 27 The TREMOLO function is available only in configurations displaying "TREM" in the configuration title. The Tremolo effect continuously varies the volume of the signal. The PARAMETER SELECT control will allow you to access these TREMOLO parameters: TREMOLO I/O The TREMOLO IN/OUT parameter determines whether the Tremolo is active or by- passed for the current preset.
  • Page 28 The PAN parameter allows you to pan the shifted signal to the left or right channel. PITCH The PITCH parameter selects what harmony note the Chameleon will produce based on the input note. The value displayed for this parameter represents the number of cents that the signal will be shifted (adjustable in 20-cent increments).
  • Page 29 This allows for smooth pitch change when an expression controller (such as a volume pedal used with a ® ™ Rocktron All Access or MIDI Mate foot controller) is assigned to the PITCH parameter to change the pitch by...
  • Page 30 The CHORUS function is available only in configurations displaying "CRS" in the configuration title. The Chorus effect in the Chameleon is produced by using two delayed signals (Voice 1 and Voice 2), detuning these delayed signals (slightly changing their pitch), then modulating the detune effect so that the amount of pitch detune is constantly varying.
  • Page 31 Delay is a reproduction of the input signal, occurring at a prescribed time (usually expressed in milliseconds) following the input signal. The Chameleon provides two discrete delays (Delay 1 and Delay 2), each of which has its own parameters to determine its particular characteristics.
  • Page 32 Delay 1 signal will begin. The DELAY TIME can be adjusted via the ADJUST control, MIDI controller changes or via the Tap Delay feature (see "Operating the Chameleon" for detailed descriptions of each). REGEN 1 The REGENERATION 1 parameter determines the number of times the Delay 1 signal will repeat itself.
  • Page 33 The REVERB function is available in all presets. Reverb is a multitude of echoes spaced so close together that, to the human ears seem as a single continuous sound. These echoes gradually decrease in intensity until they are ultimately absorbed by the boundaries and obstacles within a room.
  • Page 35 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) 0 to 127 LEFT OUT LVL (Left Channel Output Level) - +6dB...
  • Page 36 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB CHORUS CHORUS (Chorus In/Out Status)
  • Page 38 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 39 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB FLANGER FLANGER (Flanger In/Out Status)
  • Page 41 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 42 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB TREMOLO TREMOLO (Tremolo In/Out Status)
  • Page 44 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 45 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB PITCH SHIFT PITCH SHIFT (Pitch Shift In/Out Status)
  • Page 47 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 48 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB WAH-WAH WAH-WAH (Wah-Wah In/Out Status)
  • Page 50 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 51 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB PHASER PHASER (Phaser In/Out Status)
  • Page 53 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 54 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB COMPRESSOR COMPRESSOR (Compressor In/Out)
  • Page 56 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 57 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB COMPRESSOR COMPRESSOR (Compressor In/Out)
  • Page 59 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 60 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB COMPRESSOR COMPRESSOR (Compressor In/Out)
  • Page 62 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 63 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB COMPRESSOR COMPRESSOR (Compressor In/Out)
  • Page 65 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 66 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB COMPRESSOR COMPRESSOR (Compressor In/Out)
  • Page 68 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) GLOBAL OUTPUT (Output Level) Stereo, Mono SPKR SIM (Speaker Simulator Lock) Unlock, Lock Off, Lock L, Lock B HUSH OFFSET -10dB to +30dB MIXER VOLUME (Volume Level) - to 0dB LEFT OUT LVL (Left Channel Output Level) - to +6dB...
  • Page 69 FUNCTION PARAMETER LIST RANGE (via FUNCTION SELECT) (via PARAMETER SELECT) (via PARAMETER ADJUST) SPEAKER SIM SPKR SIM (Speaker Simulator Status) Off, Left, Both SPKR TYPE (Speaker Type) 15, 12, 10, 8, Full MIC POSITION (Microphone Position) -15dB to +15dB REACTANCE (Reactance Level) -15dB to +15dB COMPRESSOR COMPRESSOR (Compressor In/Out)
  • Page 70 Step 1 Turn the PRESET control to the desired preset you wish to recall. The display will flash the selected preset number and title and "PRESS RECALL FOR" alternately. Step 2 Press the RECALL button to recall the preset you have selected.
  • Page 71 Step 1 Turn the FUNCTION SELECT control to select the function heading which contains the parameter(s) you wish to change. Step 2 Turn the PARAMETER SELECT control to the specific parameter you wish to change. Step 3 Turn the PARAMETER ADJUST control to alter the parameter value. The LED above the STORE button will light, indicating that the preset has had a parameter altered from its stored value.
  • Page 72 1,3,4 Step 1 While viewing a function or parameter title, press the STORE button to start the store procedure. The display will now alternate between the destination preset number and title and "STORE AT PRESET". Step 2 Turn the PRESET control to select the desired preset number to store the new parameter values into. (If you wish to store the new parameter values into the current preset number, this step is not necessary.) The display will now alternate between the new preset number and "STORE AT PRESET".
  • Page 73 Step 4 After the parameter values have been stored, the Chameleon will display "COPY TITLE TOO?". This message is displayed only when storing into a new preset number and allows you to copy the title from the altered preset into the new preset location. To copy the title from the altered preset, press the STORE button a third time and the display will again flash "STORED".
  • Page 74 Note: The new configuration will not take effect until it is stored. Step 4 Press the STORE button to initiate the store procedure. The Chameleon display will alternate between the current preset number/title and "STORE AT PRESET".
  • Page 75 Press the STORE button a second time to store the selected configuration into the selected preset. The Chameleon will display "STORED" briefly. When a new configuration is stored into a preset, each of the parameters contained in the new configuration that were contained in the previous configuration will retain the same values.
  • Page 76 Step 1 To begin the Title Edit function, turn the FUNCTION SELECT control clockwise until the Chameleon displays "TITLE EDIT". Step 2 Turn the PARAMETER SELECT control clockwise to initiate the Title Edit mode. Turning this control will also select the character location to be edited. A flashing decimal will follow the character currently selected.
  • Page 77 STORE button will erase any editing that was done in Title Edit. Also, after flashing "STORED", the Chameleon will remain in the Title Edit mode. You may either (a) turn the PRESET control to display and edit other preset titles without exiting and reentering Title Edit,...
  • Page 78 The Controller Assignment function allows for specific Chameleon adjustable parameters to be mapped (or assigned) to a MIDI controller for real-time control by an expression pedal. The Controller Assignment option also lets you store an upper and lower parameter value limit which the controller cannot exceed. For example, when using an expression pedal with a Rocktron All Access ®...
  • Page 79 The Chameleon will flash "STORED" briefly. NOTE: The Chameleon allows you to select an upper and lower value limit which the parameter cannot exceed. For example, if a parameter has a value range from - to 0dB, yet you would like the range of the parameter to vary from only -12dB to -2dB, you may set a lower limit of -12 and an upper limit of -2 via the Upper and Lower Limit parameters.
  • Page 80 Step 9 Use the PARAMETER ADJUST control to choose the highest value that the parameter is not to exceed through MIDI control changes. Step 10 After selecting a value for the upper limit, press the STORE button to save it. "STORED" will flash briefly on the display.

  • Page 81: Tap Delay

    Footswitch function is activated, tapping the footswitch will change the current delay time based on the amount of time that passes between taps. The Chameleon will detect the amount of time between any two taps that are less than one second apart (i.e., if more than one second passes after the first tap, two more taps - less than one second apart - will be required to change the delay time again).
  • Page 82 Step 3 Turn the PARAMETER ADJUST control to select the footswitch type that you will be using (normally "OPEN" or "CLOSED"). Step 4 Press the STORE button to save the altered Footswitch Type setting. "STORED" will flash briefly on the display.
  • Page 83 Program Changes allow for different MIDI program numbers to be assigned to Chameleon preset numbers. For example, MIDI program #58 can be mapped to Chameleon preset #34. Then, when program #58 is selected from a MIDI ® transmitting device (such as a Rocktron All Access foot controller), preset #34 will be recalled on the Chameleon.
  • Page 84 MIDI program number on the left is received). Turn the PARAMETER adjust CONTROL to select the preset number to map to. Chameleon Preset Number * The preset number to map to can also be set to "OFF"—thereby not responding to that program change command.
  • Page 85 The Chameleon can receive MIDI commands from other MIDI transmitting devices, as well as transmit MIDI program changes to other MlDI-based equipment when a preset is recalled on the Chameleon via the front panel RECALL button. The MIDI Channels function allows you to select the MIDI channels that the Chameleon will receive and transmit MIDI information on.
  • Page 86 Turn the PARAMETER SELECT control one step further to access the MIDI Transmit Channel status. Step 6 Turn the PARAMETER ADJUST control to select the channel that the Chameleon will transmit a MIDI program change on. you may select channels 1-16 or OFF (will not transmit a MIDI program change).
  • Page 87 Any or all of the Chameleon presets may be dumped to a sequencer or another Chameleon via system exclusive messages. The information exchanged when performing a MIDI Dump consists of parameter values, title characters and controller assignment/limit information. When dumping a single preset into another Chameleon, the dumped preset may be loaded into any preset location on the receiving Chameleon.
  • Page 88 Step 4 Turn the PRESET control on the transmitting Chameleon to the preset that is to be dumped into the receiving Chameleon. As the PRESET control is turned, the preset number will be displayed in the first three characters of the display.
  • Page 89 To dump the Chameleon memory into a sequencer: Step 1 Connect a standard MIDI cable from the MIDI OUT of the transmitting Chameleon to the MIDI IN on the receiving sequencer. IMPORTANT: Do not allow a looping connection from the MIDI OUT/THRU of the receiving Chameleon back to the MIDI IN of the transmitting Chameleon.
  • Page 90 255 contains program mapping information; and string 256 contains miscellaneous information). Step 6 After the Chameleon displays "TRANS COMPLETE", stop the sequencer. The sequencer should have recorded all of the data that was dumped from the Chameleon. Keep this data stored on a disk in a...
  • Page 91 IMPORTANT: Do not allow a looping connection from the MIDI OUT/THRU of the receiving Chameleon back to the MIDI IN of the transmitting sequencer. Step 2 Turn the FUNCTION SELECT controls on both the receiving Chameleon until "MIDI DUMP/ Step 3 LOAD" is displayed.
  • Page 92 Only the transmission string where the error occurred is corrupted. When receiving a Bulk Load, it is important that the data loaded to the Chameleon is not transmitted faster than it was originally dumped from the Chameleon. If information is sent too fast to the Chameleon, an error will occur.
  • Page 93 The Factory Restore function allows you to restore altered Chameleon presets to their original condition as shipped from the factory. Either the entire Chameleon memory can be restored, a single preset can be restored to any preset location, or the controller information alone can be restored.
  • Page 94 "ERRORS 0". This represents the number of bytes that the Chameleon found did not initialize properly. Any number of errors other than "0" means that the Chameleon may not have initialized properly and the process should be repeated.
  • Page 95 Step 3 Turn the PARAMETER SELECT control two steps clockwise to "ALL RESTORE 0". A specific code number must be entered to restore the Chameleon memory. Use the PARAMETER ADJUST control to enter the number "243". ! ! WARNING ! ! Pressing the STORE button at this time will permanently erase all user presets and replace them with the original factory presets.
  • Page 96 Chameleon may not have initialized properly and the process should be repeated. The Chameleon will remain in this condition until the FUNCTION SELECT control is turned to exit the Factory Restore function. The preset currently recalled will be the preset most recently restored into the current location.
  • Page 97 The Chameleon allows you to store a Power On preset which will always be recalled when the unit is turned on. Step 1 Turn the PRESET control to the preset number you wish to be recalled each time the unit is turned on.
  • Page 98 A Rocktron All Access MIDI footswitch can act as a dedicated remote control for the Chameleon - allowing direct access to specific Chameleon features and parameters from the footswitch at any time. Step 1 To use an All Access footswitch as a dedicated remote, connect the MIDI OUT of the All Access to the REMOTE jack of the Chameleon using a 7-pin MIDI cable.
  • Page 99 Switch 13 switches in or out the reverb effect. Switch 14 can be pressed and held to mute the output of the Chameleon for as long as the switch is held down. This is especially useful when switching guitars during a live set.
  • Page 100 Upon proper setup and connection of the units, the All Access will provide the functions shown in the graphic above.
  • Page 101 Message Possible Reason Corrective Action...
  • Page 102 ® Chameleon Online Date: January 20, 1997 Version 1.0 FUNCTION TRANSMITTED RECOGNIZED REMARKS Actual MIDI program value sent is 0-253, corresponding to presets 1-254. ** The control number may be from 0-120, or OFF. An upper and lower range may also be...
  • Page 103 XLR balanced Left and Right MIDI In 7-pin DIN MIDI Thru/Out 5-pin DIN Power Requirements 9VAC / 2A Dimensions 19" x 7" x 1¾" Rocktron Corporation 2870 Technology Drive Rochester Hills, MI 48309 Phone: (810) 853-3055 Fax: (810) 863-5937 World Wide Web: www.rocktron.com...
