Summary of Contents for Rocktron Velocity 100

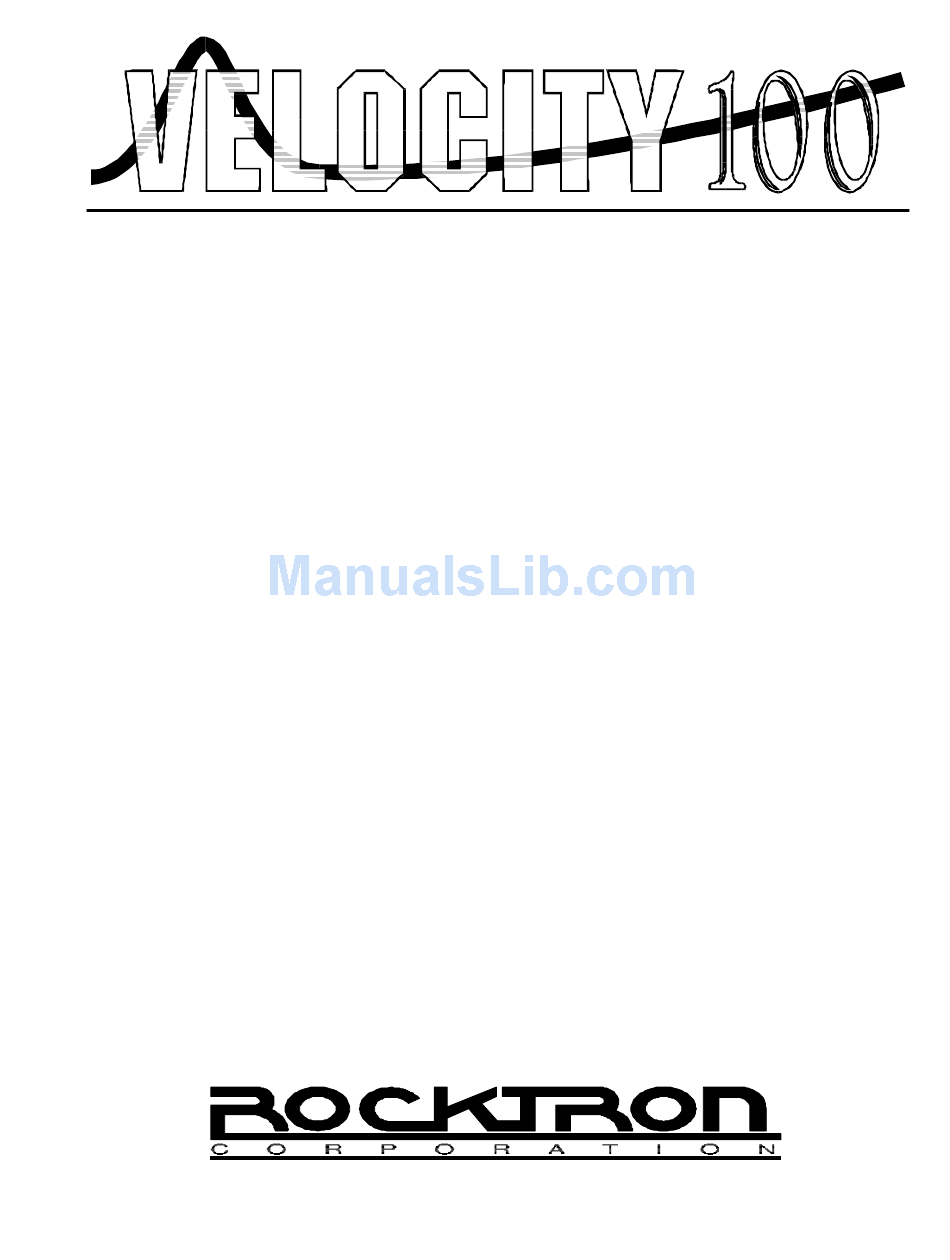

- Page 1 ANUAL May be covered by one or more of the following: U.S. Patents #4538297, 4647876, 4696044, 4745309, 4881047, 4893099, 5124657, 5263091, 5268527, 5319713, 5333201, 5402498, 5493617 and 5638452. Other patents pending. Foreign patents pending.
- Page 2 Also, bundle audio cables separately from the AC power cables. These steps will help insure compliance with the Directive(s). For more information about other Rocktron products, please see your local dealer or one of our importers closest to you (listed on the enclosed warranty sheet).
- Page 3 Introduction ... 1 Front Panel ... 2 Rear Panel ... 3 Connections ... 4 Operating Precautions ... 5 Fuse Replacement ... 6 Specifications ... 7...
- Page 4 In addition, the amplifier incorporates thermal protection circuitry, as well as protection from overvoltage, undervoltage and any shorts to the power supplies. This manual will introduce you to the Velocity 100 and its features, please keep it for future reference.
- Page 5 POWER switch/LED When lit, the LED indicates that the Velocity 100 is powered and ready for operation. Note: There are no volume adjustments on the Velocity 100. To ensure speaker life, use the output level of the unit connected to the Velocity 100's inputs as the master volume control.
- Page 6 Velocity 100 output channel does not equate to a combined impedance of 2 or less. POWER module This module provides a connection for the power cord and also houses the main fuse of the unit.
- Page 8 Although operation of the Velocity 100 is simple once the proper connections have been made, attention to the following precautions is essential to protect your equipment against failure and ensure the long life of your Velocity The Velocity 100 is capable of producing the following power output levels...
- Page 9 Always replace the main fuse with an identically rated replacement. Your Velocity 100 amplifier uses a 5x20mm, 4A amp, 250V slow-blow fuse (2A, 250V slow-blow for 230VAC). The fuse is located immediately below the line cord inlet on the rear panel and can be ac- cessed by removing the fuse cover module as shown below.
- Page 10 (both channels driven @ 1% THD) Rocktron Corporation 2870 Technology Drive Rochester Hills, MI 48309 Customer Service: (248) 853-3055 (248) 853-5937 Fax Number: World Wide Web: http://www.rocktron.com Email: rocktron@eaglequest.com Input Impedance Maximum Input +20dBu Maximum Gain 26dB Dynamic Range over 100dB Frequency Response ±1dB, 20Hz - 20kHz...
