User's Manual

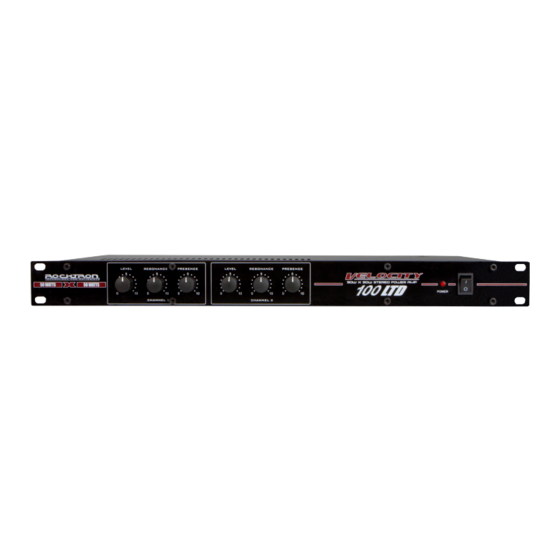

100 Watt Power Amp
50 Watts x 50 Watts
Single Rack Space
1

Advertisement

Table of Contents
loading

Related Manuals for Rocktron Velocity 100LTD

Summary of Contents for Rocktron Velocity 100LTD

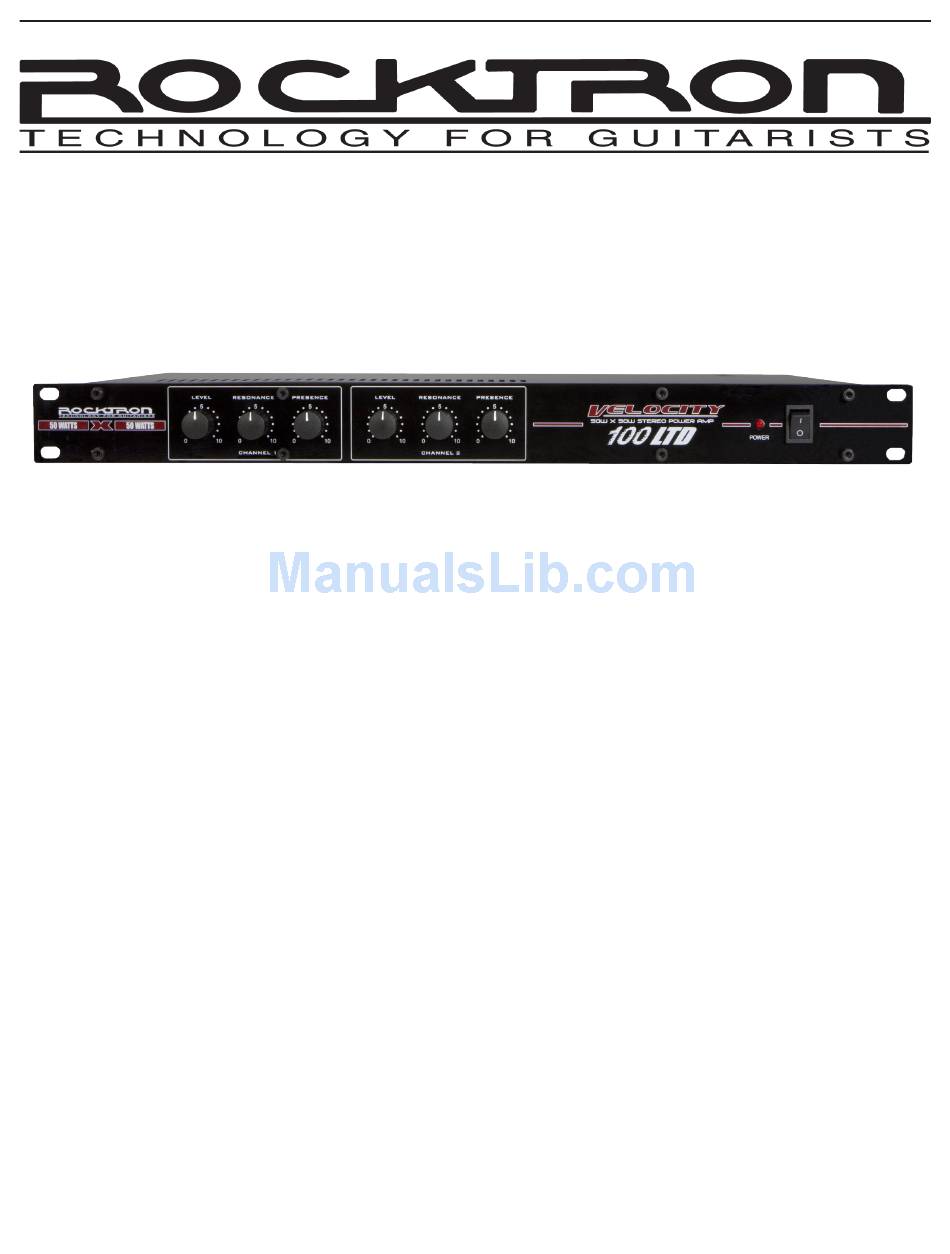

  • Page 1 User's Manual 100 Watt Power Amp 50 Watts x 50 Watts Single Rack Space...
  • Page 2 In addition, the Velocity 100LTD incorporates thermal protection circuitry, as well as output short circuit protection. This manual will introduce you to the Velocity 100LTD and its features, please keep it for future reference. Your Rocktron Velocity 100LTD power amplifier has been tested and complies with the following...

  • Page 3: Operating Temperature

    Precautions - Please read!! NOTE: IT IS VERY IMPORTANT THAT YOU READ THIS SECTION TO PROVIDE YEARS OF TROUBLE FREE USE. THIS UNIT REQUIRES CAREFUL HANDLING. Read all instructions contained in this manual Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water.

  • Page 4: Front Panel

    Channel 2. This control opens up the treble and higher end, offering more "voice" for solo playing. POWER LED: This is the "POWER" LED. When the Velocity 100LTD is "ON" the LED will be lit or "ON". POWER SWITCH: This switch powers up the Velocity 100LTD.

  • Page 5: Rear Panel

    Velocity 100LTD output channel does not equate to a combined impedance of 2 Ohms or less. INPUT jack (Ch.2): This ¼" jack provides an input to Channel 2 from the output of a preamp or the device in an effects chain.
  • Page 6 Connections MONO Application...
  • Page 7 Connections STEREO Application...

  • Page 8: Operating Precautions

    Operating Precautions Although operation of the Velocity 100LTD is simple once the proper connections have been made, attention to the following precautions is essential to protect your equipment against failure and ensure the long life of your Velocity amplifier. ®...

  • Page 9: Fuse Replacement

    Fuse Replacement Always replace the main fuse with an identically rated replacement. Your Velocity 100LTD am- plifier uses a 5x20mm, (4A amp, 250V slow-blow fuse 118VAC) (2A, 250V slow-blow for 230VAC). The fuse is located immediately below the line cord inlet on the rear panel and can be accessed by removing the fuse cover module as shown below.

  • Page 10: Specifications

    Specifications Input Impedance 10KΩ Maximum Input +20dBu Maximum Gain 26dB Dynamic Range over 100dB Frequency Response ±1dB, 20Hz - 20kHz Output Power 55 watts @ 4Ω (both channels driven @ 1% THD) 40 watts @ 8Ω 28 watts @ 16Ω Power Consumption 402 watts, 3.5A @ 115VAC Dimensions...
  • Page 12 Rocktron -A Division of GHS Corporation 2813 Wilber Avenue Battle Creek MI 49037 Rocktron Phone: 1-(269)-968-3351 Email: info@rocktron.com Check us out on the web at: www.rocktron.com 2014-0001 Rev. 4/4/14...
