Technical Manual - English

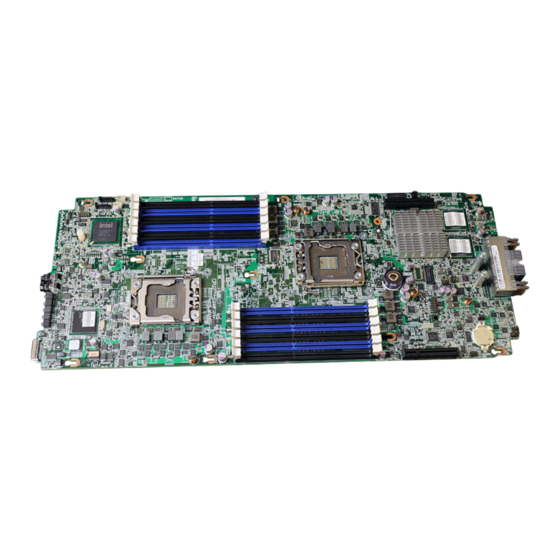

System Board D2861
for BX922 S2
Technical Manual
Edition March 2011

Advertisement

Table of Contents
loading

Related Manuals for Fujitsu D2861

Summary of Contents for Fujitsu D2861

  • Page 1 Technical Manual - English System Board D2861 for BX922 S2 Technical Manual Edition March 2011...
  • Page 2 – The contents of this manual may be revised without prior notice. – Fujitsu assumes no liability for damages to third party copyrights or other rights arising from the use of any information in this manual. – No part of this manual may be reproduced in any form without the prior written permission of Fujitsu.
  • Page 3 The device has not been designed or manufactured for uses which demand an extremely high level of safety and carry a direct and serious risk of life or body if such safety cannot be assured. Technical Manual D2861 (BX922 S2)
  • Page 4 (hereafter, "high safety use"). Customers should not use this product for high safety use unless measures are in place for ensuring the level of safety demanded of such use. Please consult the sales staff of Fujitsu if intending to use this product for high safety use.
  • Page 5 Only for the Japanese market: Although described in this manual, some sections do not apply to the Japanese market. These options and routines include: – USB Flash Module (UFM) – CSS (Customer Self Service) – Replacing the lithium battery Technical Manual D2861 (BX922 S2)
  • Page 6 Technical Manual D2861 (BX922 S2)

  • Page 7: Table Of Contents

    Settings with switches and jumpers ... . . 36 Replacing the lithium battery ....39 Technical Manual D2861 (BX922 S2)
  • Page 8 Contents Technical Manual D2861 (BX922 S2)

  • Page 9: Preface

    DVDs (see Installation DVD of ServerView Suite - ServerView Software Products). You will find further information about the BIOS setup in the "D2861 BIOS Setup Utility for PRIMERGY BX922 S2 Server Blade" manual.
  • Page 10 Preface Technical Manual D2861 (BX922 S2)

  • Page 11: Important Notes

    You can find out which expansions are suitable from the customer service center or your sales outlet. If you cause a defect on the device by installing or exchanging expansions, the warranty will be invalidated. Technical Manual D2861 (BX922 S2)
  • Page 12 If the lithium battery is replaced incorrectly, there is a risk of explosion. Batteries must only be replaced with types that are identical or that are recommended by the manufacturer. Please observe the information in chapter "Replacing the lithium battery". Technical Manual D2861 (BX922 S2)
  • Page 13 When installing or removing components on the board, use a suitable grounding cable. Place all components on a static-proof base. For a detailed description of how to handle ESD components, see the relevant European or international standards (EN 61340-5-1, ANSI/ESD S20.20). Technical Manual D2861 (BX922 S2)

  • Page 14: Ce Conformity

    The shipped version of this board complies with the requirements of the EC directives 2004/108/EC "Electromagnetic Compatibility" and 2006/95/EC "Low Voltage Directive". The board therefore qualifies for the CE marking (CE=Communauté Européenne). Conformity has been tested in a typical configuration of a PRIMERGY server. Technical Manual D2861 (BX922 S2)

  • Page 15: Environmental Protection

    In accordance with EU directives, batteries must not be disposed of with unsorted domestic waste. They can be returned free of charge to the manufacturer, dealer or an authorized agent for recycling or disposal. Technical Manual D2861 (BX922 S2)
  • Page 16 Details regarding the return and recycling of devices and consumables within Europe can also be found in the "Returning used devices" manual, via your local Fujitsu Technology Solutions branch or from our recycling center in Paderborn: Fujitsu Technology Solutions Recycling Center D-33106 PaderbornGermany Tel.

  • Page 17: Performance Features

    – TPM 1.2 Infineon SLB9635 TT1.2 (optional) – iRMC S2 (integrated Remote Management Controller) with integrated graphics controller – 2 MB Flash ROM – 32Mx16 DDR2 667 SRAM for iRMC S2 – ADT7462 temperature/system monitoring controller Technical Manual D2861 (BX922 S2)
  • Page 18 – HD/SSD LED support (SAS, SATA) – Inventory Identification Control – CSS functionality – Energy consumption control – Console redirection (text console) – Graphic console redirection (Advanced Video Redirection - AVR) – Provision of remote memory media (Remote Storage) Technical Manual D2861 (BX922 S2)
  • Page 19 – Hard disk (SSD, SATA, SAS, SCSI, USB) – USB stick – CD/DVD (USB) – LAN – Console Redirection support – OEM logo – CPU, memory deactivation – Mirroring and spare memory support Environmental protection Battery in holder for recycling Technical Manual D2861 (BX922 S2)
  • Page 20 This feature is not available for the japanese market. By the manufacturer the system board is equipped with a slot for a UFM (USB Flash Module). The module can be used as optional memory for software (e.g. VMware) or as a software dongle. Technical Manual D2861 (BX922 S2)
  • Page 21 TPM or the system board is faulty you will not be able to access your data. – If a failure occurs, please inform your service about the TPM activation before it takes any action, and be prepared to provide them with your backup copies of the TPM content. Technical Manual D2861 (BX922 S2)

  • Page 22: Main Memory

    The memory modules are organized in 3 channels with 2 slots each per CPU. Channels A-C are controlled by CPU 1, and channels D-F are controlled by CPU 2. x4 or x8 organized registered (RDIMMs) or unbuffered (UDIMMs) memory modules with ECC are supported. Technical Manual D2861 (BX922 S2)
  • Page 23 Depending on the mode of operation there are different population require- ments (see figure 3 on page 24). For system relevant information please refer to the configurator of the server: https://sp.ts.fujitsu.com/dmsp/docs/cnfgbx922s2.pdf (for the EMEA market) http://primeserver.fujitsu.com/primergy/system.html (for the Japanese market) Technical Manual D2861 (BX922 S2)

  • Page 24: Independent Channel Mode

    Always start by populating the main memory at CPU 1. If CPU 2 is installed, the following applies: – For CPU 2, there must be at least one DIMM module (DIMM 1D) installed. – The DIMM slots must be fitted in the following sequence: Technical Manual D2861 (BX922 S2)
  • Page 25 CPU, the modules with the lower memory capacity must be installed first (see also the following figure). Small memory modules Large memory modules DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM DIMM Technical Manual D2861 (BX922 S2)
  • Page 26 DIMM 2D Channel 0 Slot 0 DIMM 1D Slot 1 DIMM 2E Channel 1 Slot 0 DIMM 1E Slot 1 DIMM 2F Channel 2 Slot 0 DIMM 1F Figure 5: Fitting in Mirrored Channel Mode Technical Manual D2861 (BX922 S2)
  • Page 27 Figure 6: Fitting in Performance Channel Mode CAUTION! If only one CPU is installed, the empty DIMM slots must be fitted with dummy DIMM modules to ensure sufficient cooling of the system (this does not apply if two CPUs are installed). Technical Manual D2861 (BX922 S2)
  • Page 28 DIMM 2D Channel 0 Slot 0 DIMM 1D Slot 1 DIMM 2E Channel 1 Slot 0 DIMM 1E Slot 1 DIMM 2F Channel 2 Slot 0 DIMM 1F Figure 7: Fitting in Spare Channel Mode Technical Manual D2861 (BX922 S2)

  • Page 29: Memory Speed

    Mix of SR + DR * SR = single rank, DR = dual rank, QR = quad rank ** No memory modules released for this configuration *** Lost LV-mode memory will automatically switch to 1,5 V Vcc Technical Manual D2861 (BX922 S2)

  • Page 30: Supported Screen Resolutions

    Temperature monitoring Measurement of processor temperature and the internal system temperature by an onboard temperature sensor, measurement of ambient temperature by an C temperature sensor. Fan control The fans are regulated according to the temperature. Technical Manual D2861 (BX922 S2)
  • Page 31 The events could be retrieved in the BIOS Setup, in the Management Blade Web interface, via the iRMC S2's Web interface or via ServerView Operations Manager. Diagnostic LEDs The system board contains LEDs to signal errors. Technical Manual D2861 (BX922 S2)

  • Page 32: Led Indicators

    CPU 2 CPU 1 DIMM 2D DIMM 1D DIMM 2E DIMM 1E DIMM 2F DIMM 1F Figure 8: LEDs on the D2861 system board Pos. Name Meaning lighting Mezzanine board 1 yellow Error on mezzanine board 1 CSS button none...

  • Page 33: External Leds

    Performance features LED indicators 3.5.2 External LEDs Figure 9: External ports of the D2861 system board Pos. Name Pos. Name lighting lighting Power on green Connection LED green Power off orange Fabric 1 Identification LED blue Connection LED green Fabric 2...

  • Page 34: Ports, Switch And Plugged Connectors

    DIMM 2D DIMM 1D DIMM 2E DIMM 1E DIMM 2F DIMM 1F Figure 10: Schematic diagram of the D2861 system board 1 Battery 6 UFM 2 TPM 7 Data connectors for SSD 0 or SATA HDD 0 (bottom) and SSD 1...
  • Page 35 Performance features Ports, switch and plugged connectors External ports Figure 11: External ports of the D2861 system board 4-way port USB, VGA, serial (Y cable) Technical Manual D2861 (BX922 S2)

  • Page 36: Settings With Switches And Jumpers

    BIOS setup (the Password on boot field is set to enabled in the SECURITY menu). The password prompt is skipped. The user-defined BIOS passwords are deleted. The password prompt is active (default setting). Technical Manual D2861 (BX922 S2)
  • Page 37 The system starts from the "BIOS flashing medium" (ODD, USB stick) and reprograms the system BIOS on the board. The system starts with the system BIOS of the system board (default setting) Switch 4 - TBS Override This switch currently has no function. Technical Manual D2861 (BX922 S2)
  • Page 38 Settings with switches and jumpers Performance features Technical Manual D2861 (BX922 S2)

  • Page 39: Replacing The Lithium Battery

    Ê Insert a new lithium battery of the same type into the socket (3) and (4). After replacing the battery date and time have to be set again. BIOS settings are set to default values. Technical Manual D2861 (BX922 S2)
  • Page 40 Replacing the lithium battery Technical Manual D2861 (BX922 S2)
