312
WELLS MANUFACTURING COMPANY
2 ERIK CIRCLE, P. O. Box 280
Verdi, NV 89439
Customer Service (775) 345-0444 Ext.502
fax: (775) 345-0569
www.wellsbloomfield.com

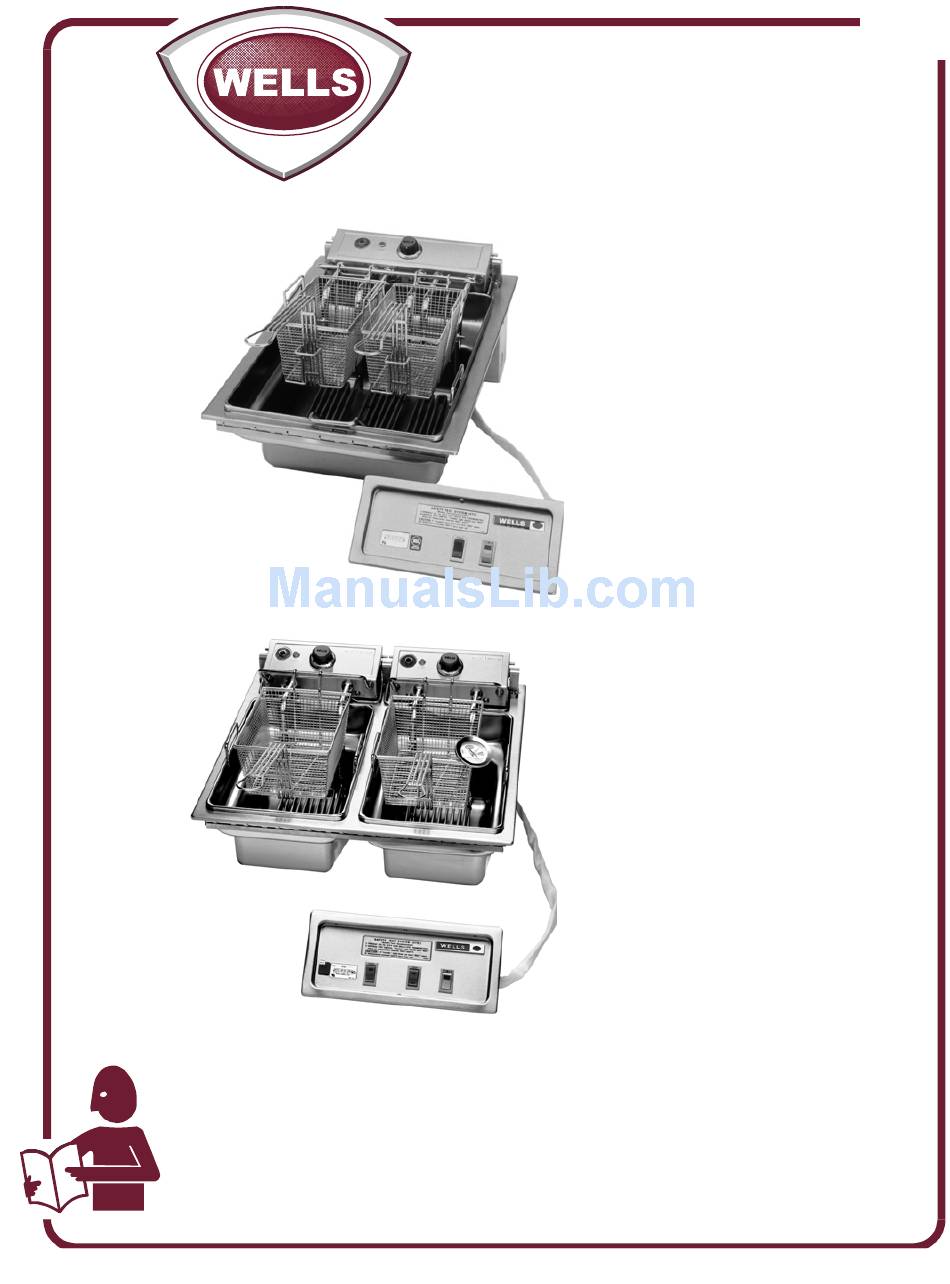

OPERATION MANUAL
MODEL

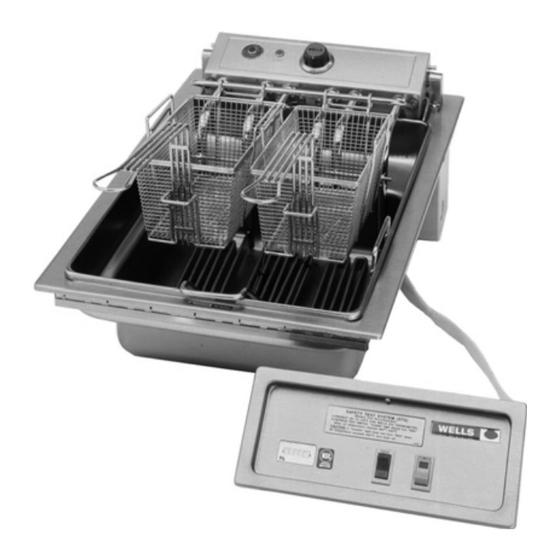

F-556 STS
F-1016
SINGLE HEAD
and
F-856
Model F-1016
DUAL HEAD
BUILT-IN
FRYERS
with
SAFETY TEST
SYSTEM™
Includes
INSTALLATION
USE & CARE
Model F-856
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
p/n 304360 Rev. (-)
M312 010702 cps
