Wells F-856 Specifications

W M
E L L S A N U F A C T U R I N G
F-856 BUILT-IN FRYER
F-856

Specifications

Overall Dimensions:
Width
Depth
Oil Capacity:
F-856
Temperature Range:
F-856
Pre-Heat Time to 350° F: 4 1/2 minutes
Watts Per Hour to Maintain 350° F:
Typical Production:
French Fries
(2 oz. servings)
Chicken
(pounds)
Weights:
Installed
Shipping
Accessories / Options
Basket, half-size (2 per fry pot), 20161
Basket, full-size (1 per fry pot), 20162
Crumb Cradle, 20690
Fry Pot, replacement, 20169
Fry Pot Cover, 21010
Export
The following model is available for export and
meets the standards for CE:
• F-856EU, 380-415V, 3NAC, 11.1 KW

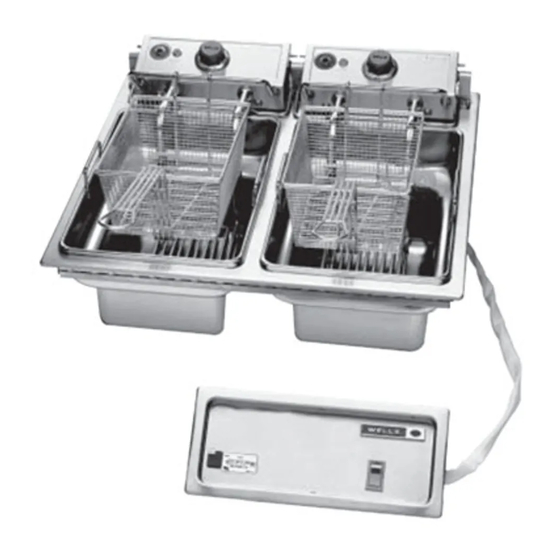

Wells F-856 Built-in Fryer is one of the most durable and
versatile fryers in the industry. Swing-up elements allow the
fry pots to be easily removed for cleaning, while the elements'
low-watt density provides extended oil life. Fry two separate
foods at the same time using the individual fry pots. The
built-in Safety Test System enables periodic checks of the
temperature-limiting thermostat.
Inches MM
24 13/16 630
23 9/16 598
Lbs. KG
30 14
Fahrenheit Celsius
275º to 375º 135º to 191º
450
Per Hour
600
40
Lbs. KG
65 29
77 35
I T E M N O .
Features
• Swing-up elements, located below the baskets, allow
easy removal of the fry pots for cleaning. Elements are
heavy-duty stainless steel with low watt density for
longer oil life.
• Element control housings have a spring-loaded
support rod to secure elements when in a
raised position.
• Safety Test System controls are recessed in a
one-piece, drawn, remote stainless steel panel.
• Positive-off thermostats control the elements, allowing
for adjustable and more consistent temperatures. Signal
lights indicate that the heating elements are energized.
• Deep-drawn, removable fry pots are made of
nickel-plated steel and can hold up to fifteen pounds
of oil each.
• A manual reset safety thermostat will shut off the
heating element power and illuminate the signal light
if an over-temperature condition is reached.
• A terminal block is provided for field wiring
connection to the main power supply.
• An auxiliary terminal block allows connection to an
external flame sensor fire suppression system.
• The F-856 is provided with a Safety Test
System to enable periodic checks of the
temperature-limiting thermostat.
• Two full size, rear-hanging, interchangeable fry
baskets are provided and allow for product versatility.
• Wellslok allows for quick and easy installation in
stainless steel countertops.
• The F-856 Fryer is Underwriters Laboratories, Inc.
recognized and meets NSF International standards.
• A one-year warranty against defects
covers parts and labor.
