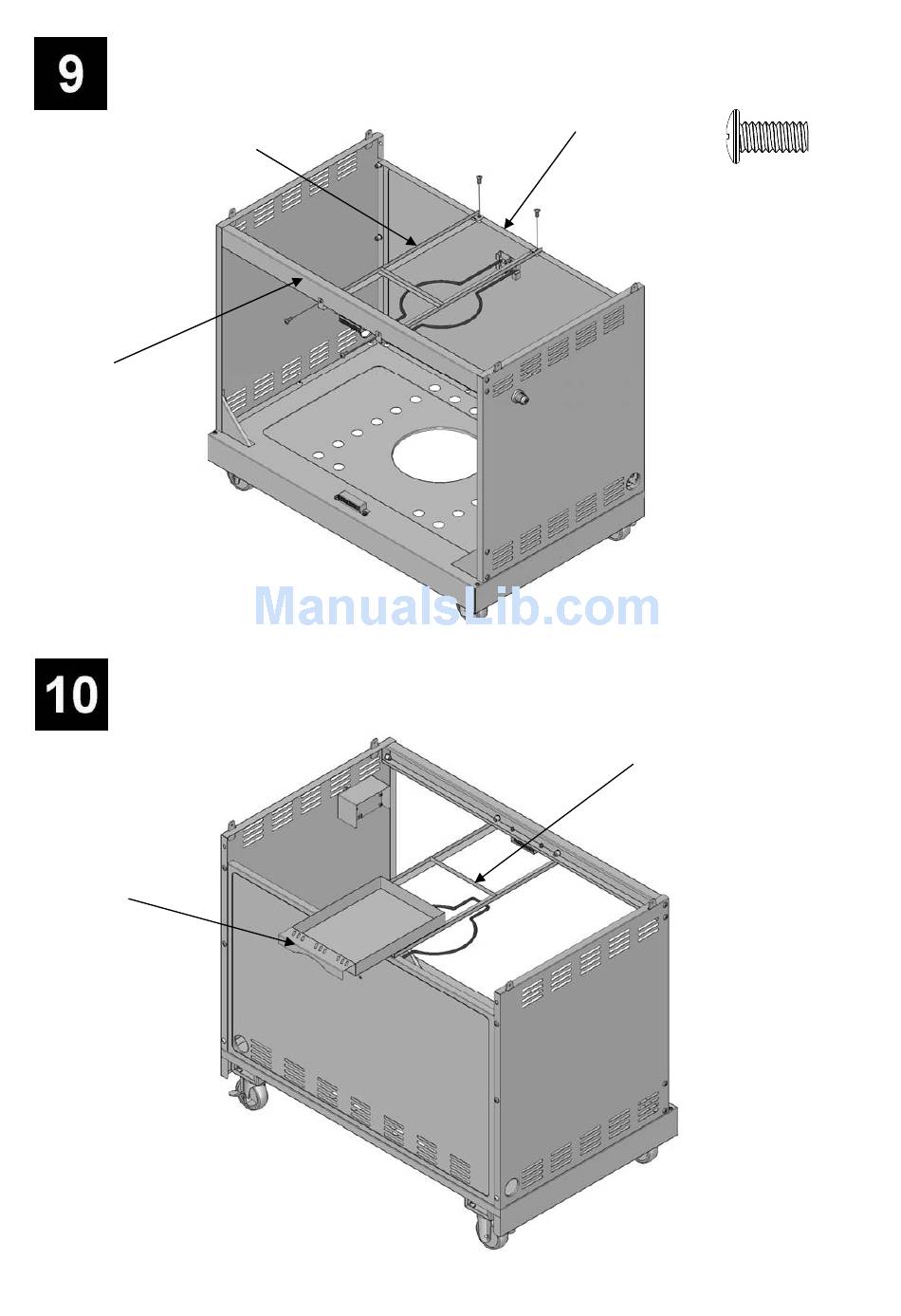

Attach the drip tray support to the front beam and rear panel with 4 screws as shown.
NOTE: Drip tray support tabs connect to outside of front beam.
Rear Panel
Drip Tray Support
1/4-20 x 5/8"Screw
Qty. 4
Front Beam
Slide the drip tray through the rear panel and into the drip tray support as shown.
Drip Tray Support
Drip Tray
